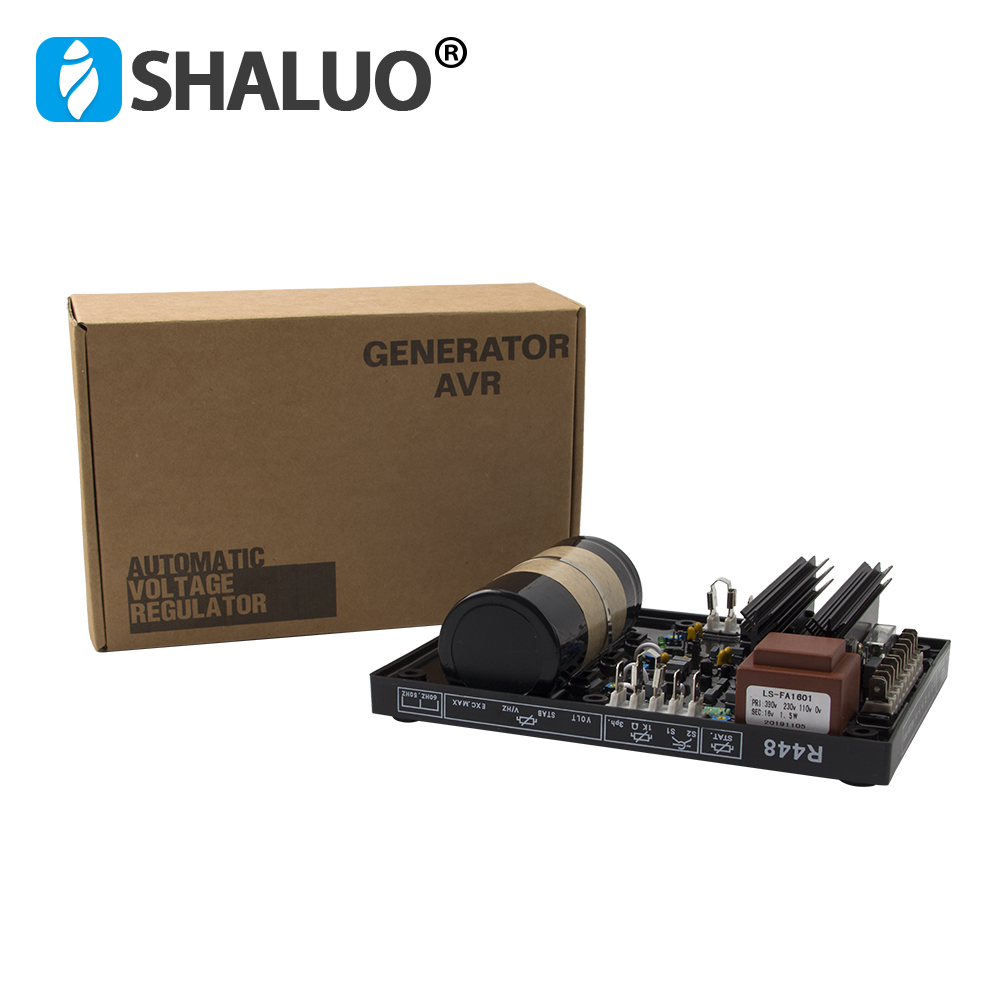

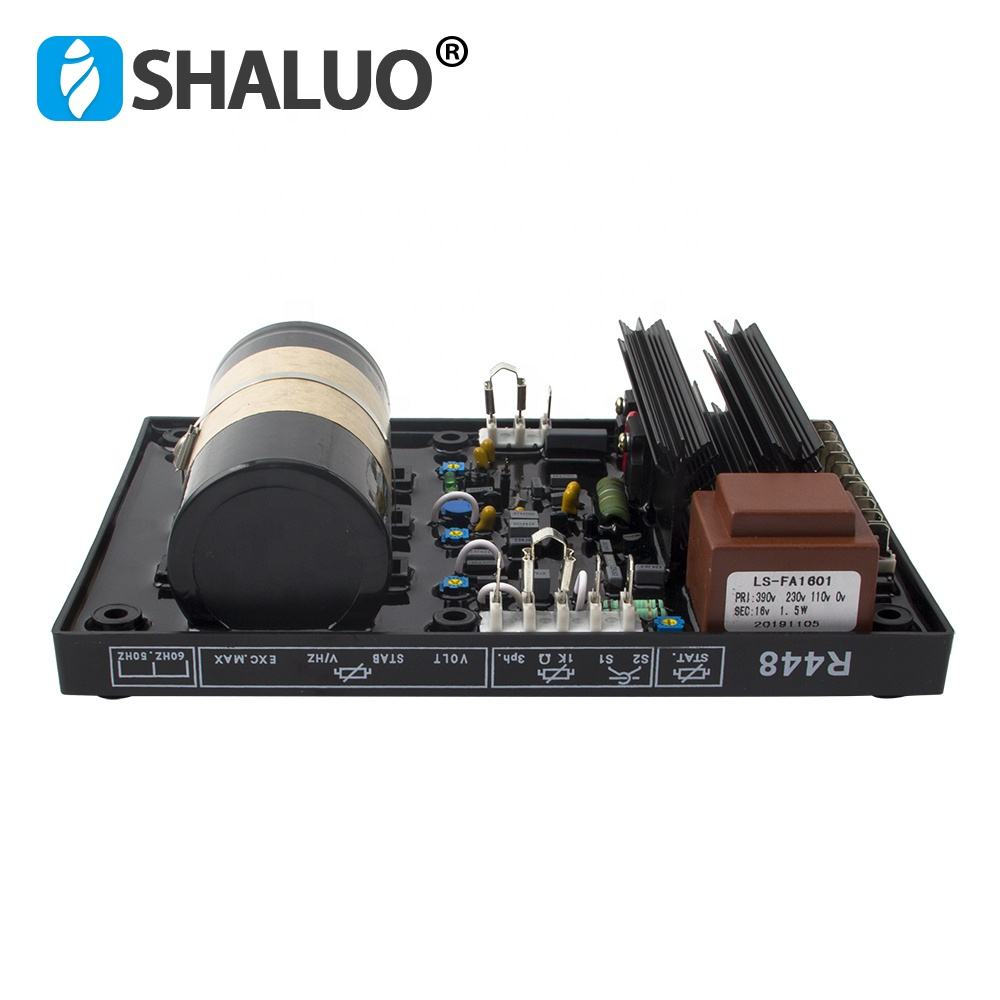

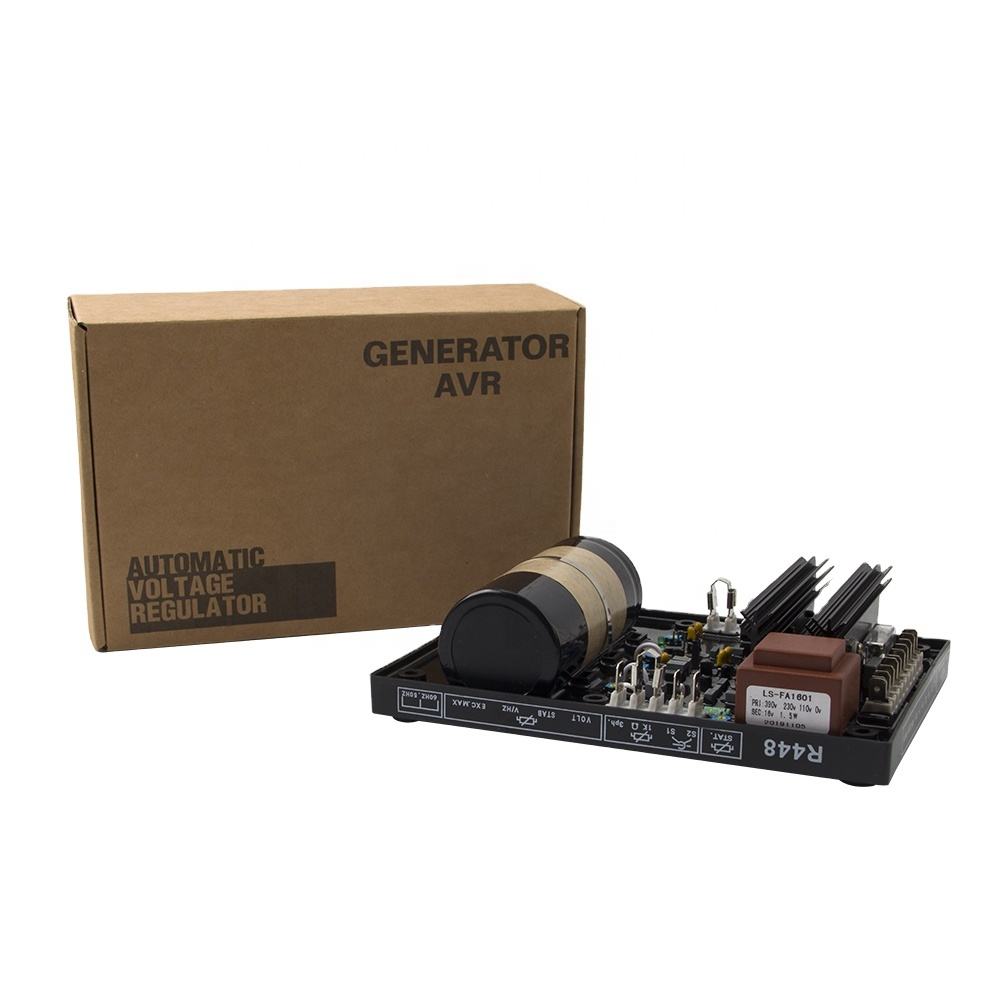

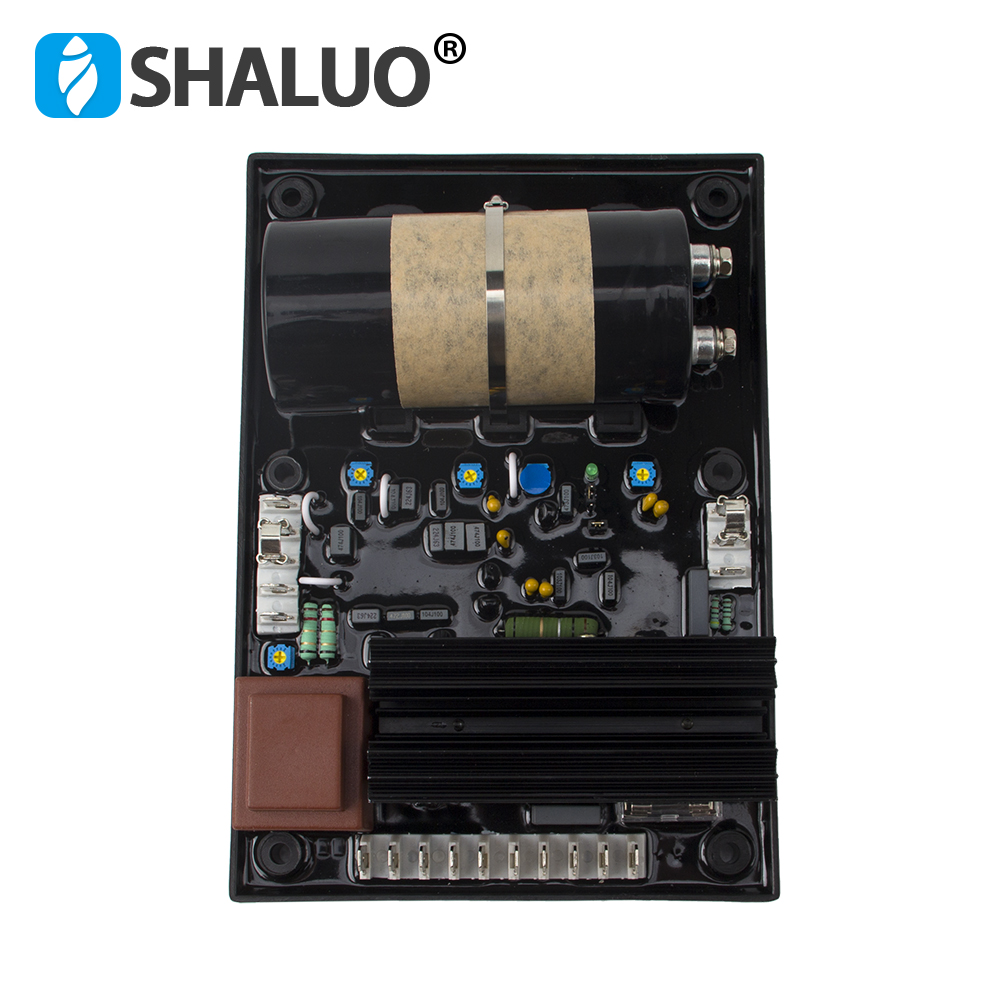

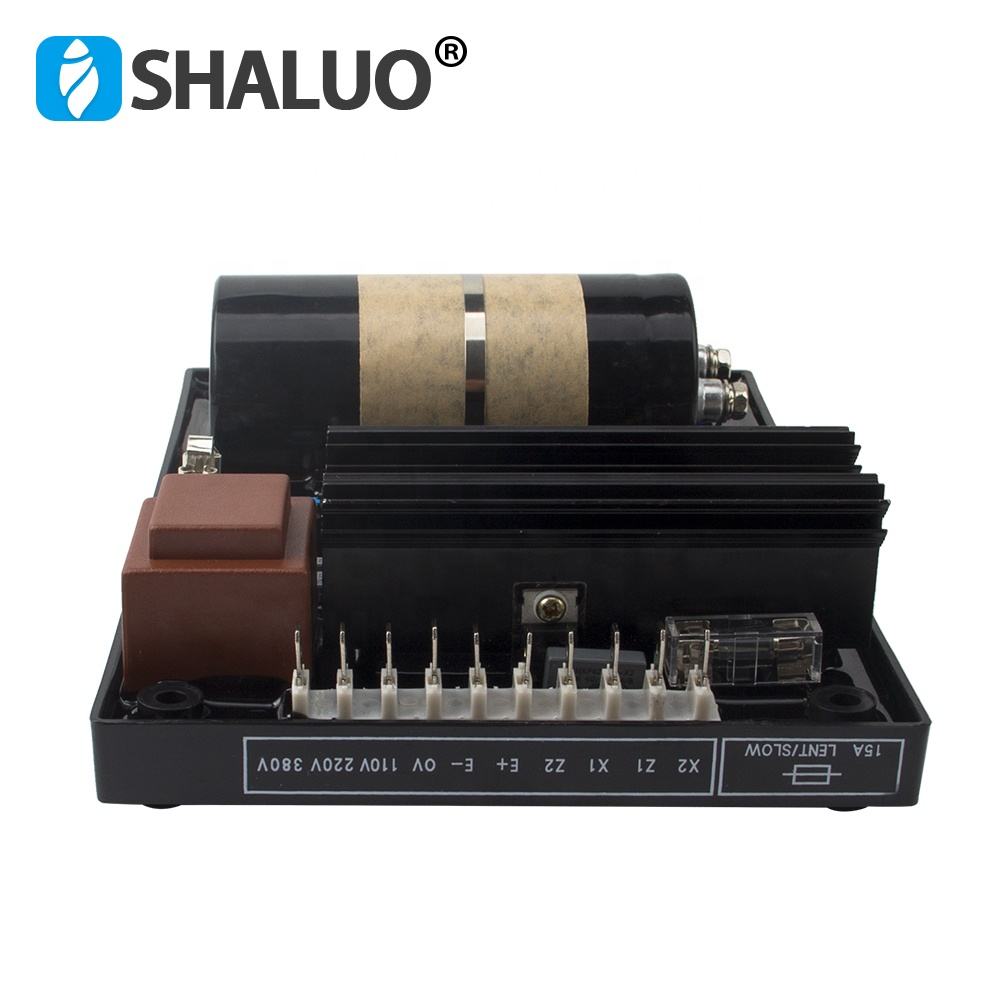

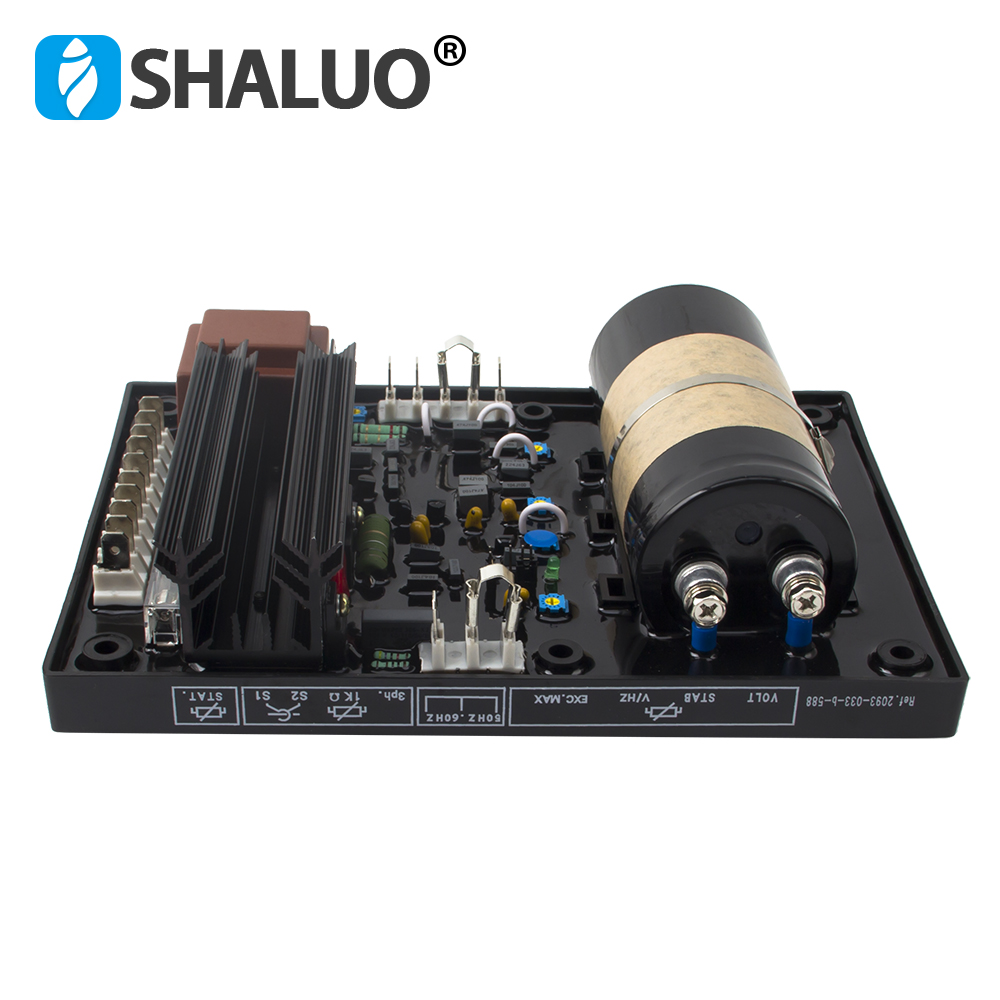

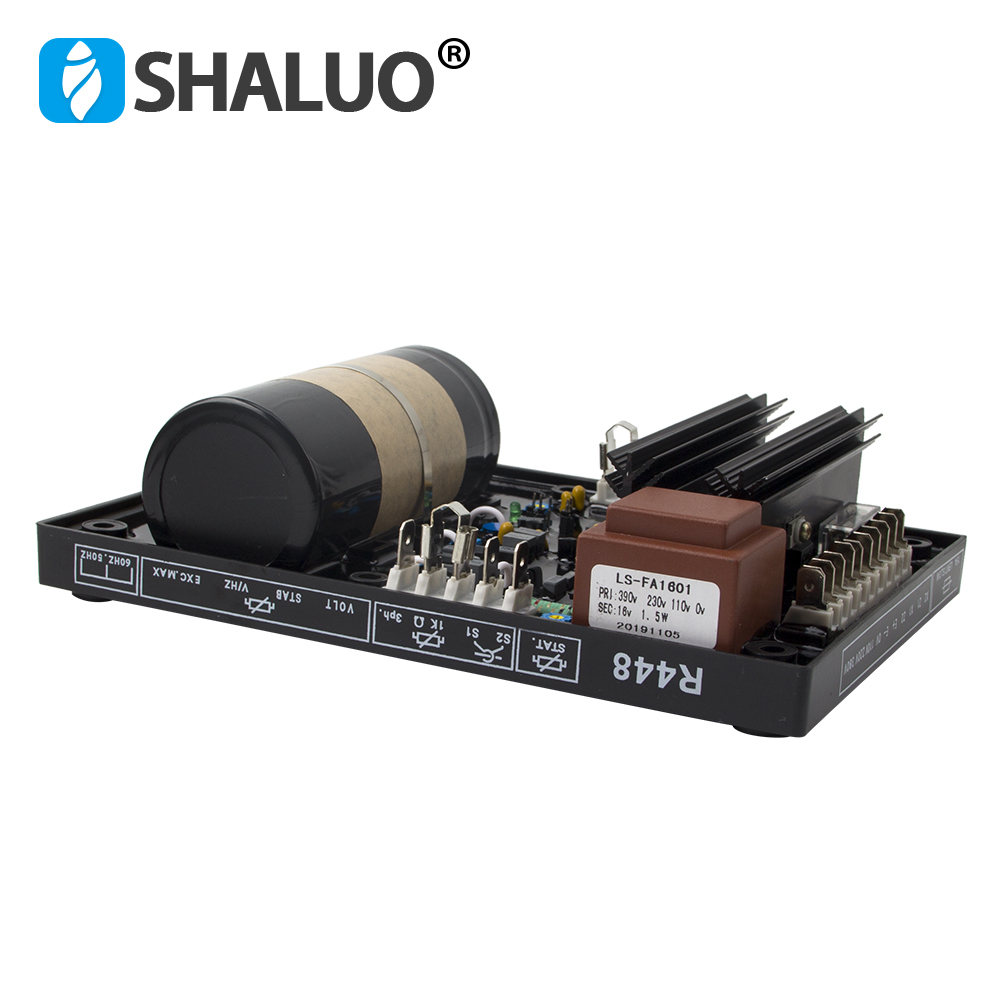

R448 AVR Automatic diesel voltage regulator generator AVR ac parts

Availability:
Quantity:

Product Description

AVR R448,Automatic Voltage Regulator
Description----------
The circuitry of the R448 Automatic Voltage Regulator (AVR) provides closed loop control of the alternator output voltage by
regulating the exciter field current. The primary winding has a voltage in ratio to that of the alternator (characteristic shunt),
the next has a voltage in proportion to the stator current (compound characteristic: booster effect). Which is powered by two
auxiliary windings which are independent of the voltage equal circuit. The power supply voltage is rectified and filtered before
being used by the AVR monitoring transistor. With PMG excitatioin, a permanent magnet generator (PMG) added to the alternator
supplies the AVR with voltage which is free of the main alternator winding. This is built-in at the rear of the machine and
connected to the R448 AVR, and the ST9 jumper must be disconnected.
*Quadrature droop adjustment
*AVR Voltage adjustment
*Stability adjustment
*LAM Threshold (underspeed) adjustment
*Excitation ceiling adjustment
*Selection of single phase or three phase*
*voltage sensing
*Selection of normal or rapid response time
*50 Hz or 60 Hz frequency option
*Remote voltage adjustment option
*LAM enable/disable option
*Alternator frame selection
*Excitation system selection
Specificaion
Input voltage: 70-140V AC, (PMG, or auxiliary
winding, single, three phases)
Reaction is measured : 90-480V AC
MAX. output :DC 10A 125V
Function: Built-in low-speed , over excitation
LAM,
REGULATION: +/-0.5%

Voltage regulation
± 0.5%
Remote voltage adjustment range
± 5%
Short circuit capability
3 x Irated for 10 seconds
Voltage sensing
95 to 140 volts (50/60 Hz)
170 to 260 volts (50/60 Hz)
340 to 520 volts (50/60 Hz)
Response time
Normal (1 sec) for ± 20% voltage variation
Rapid (0.3 sec) for ± 20% voltage variation
