Product Description

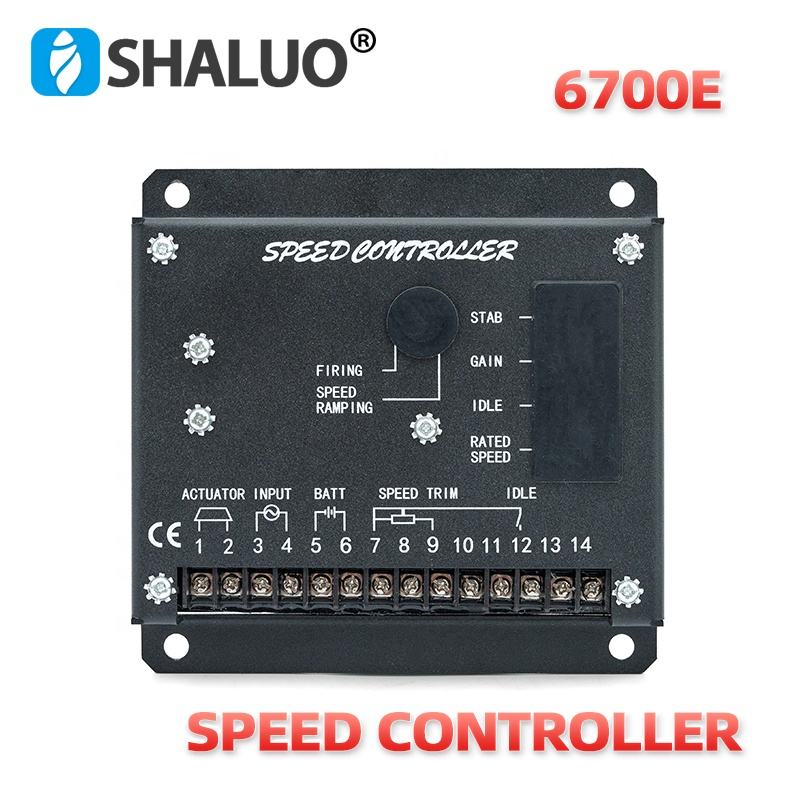

The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to
transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power
as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a
series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input
breaks.
* Power reverse connection protection
* Actuator default protection
* Speed signal Lose protection
* Over-speed & External high Level input Alam
| Environmental | Ambient operating temperature range | - 40 ~ 85 °C |
| Relative humidity | 95% | |
| Input Power | Supply | 24VDC |
| Actuator current range | 2.5-10A(continuous) | |
| Speed sensor signal | 1-20v | |
| Characteristics | Speed fine adjustment range | ± 100% r / min |
| Frequency fluctuation | ± 0.25% | |
| Steady speed droop | 0~3% (variable) | |
| Temperature drift | ± 1% (maximum) |
