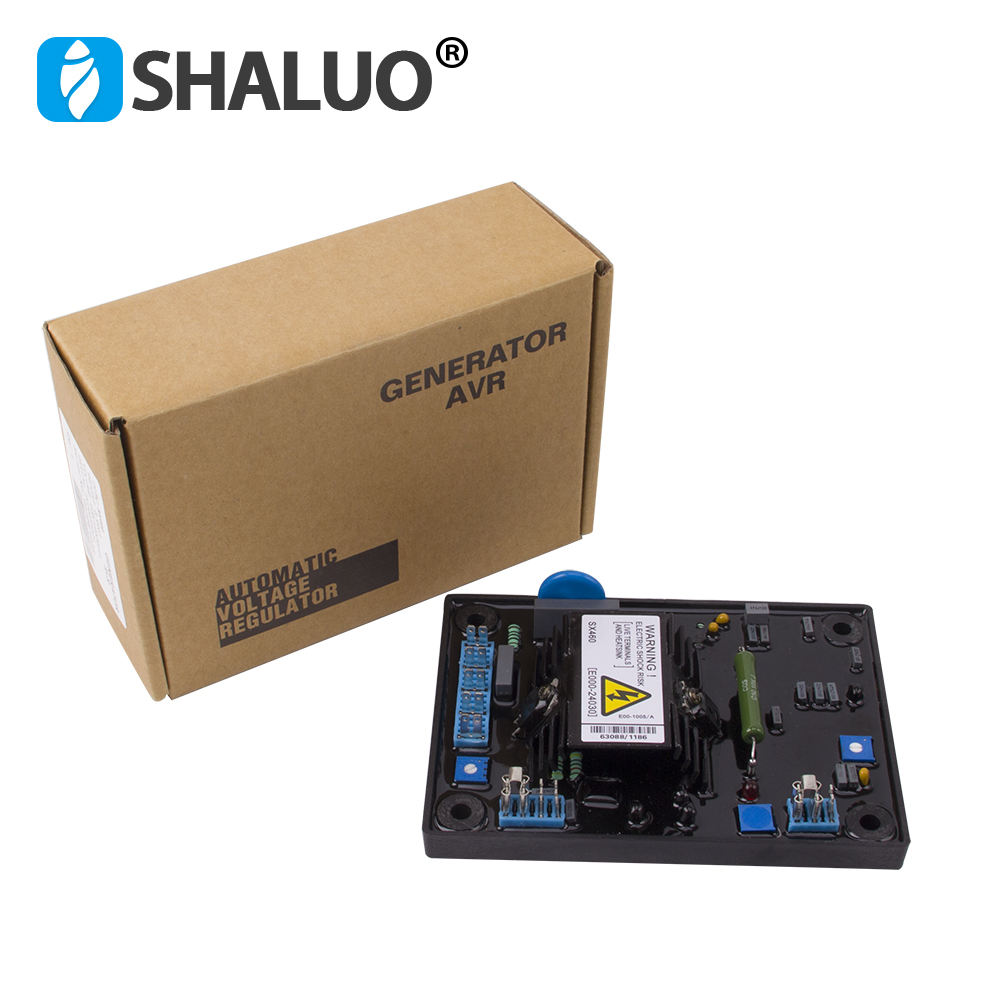

SX460 AVR Generator Automatic Voltage Regulator Diesel Alternator Part Power Voltage Stabilizer 220v Free Gift

Availability:
Quantity:
Inquire Add to Basket

Product Description

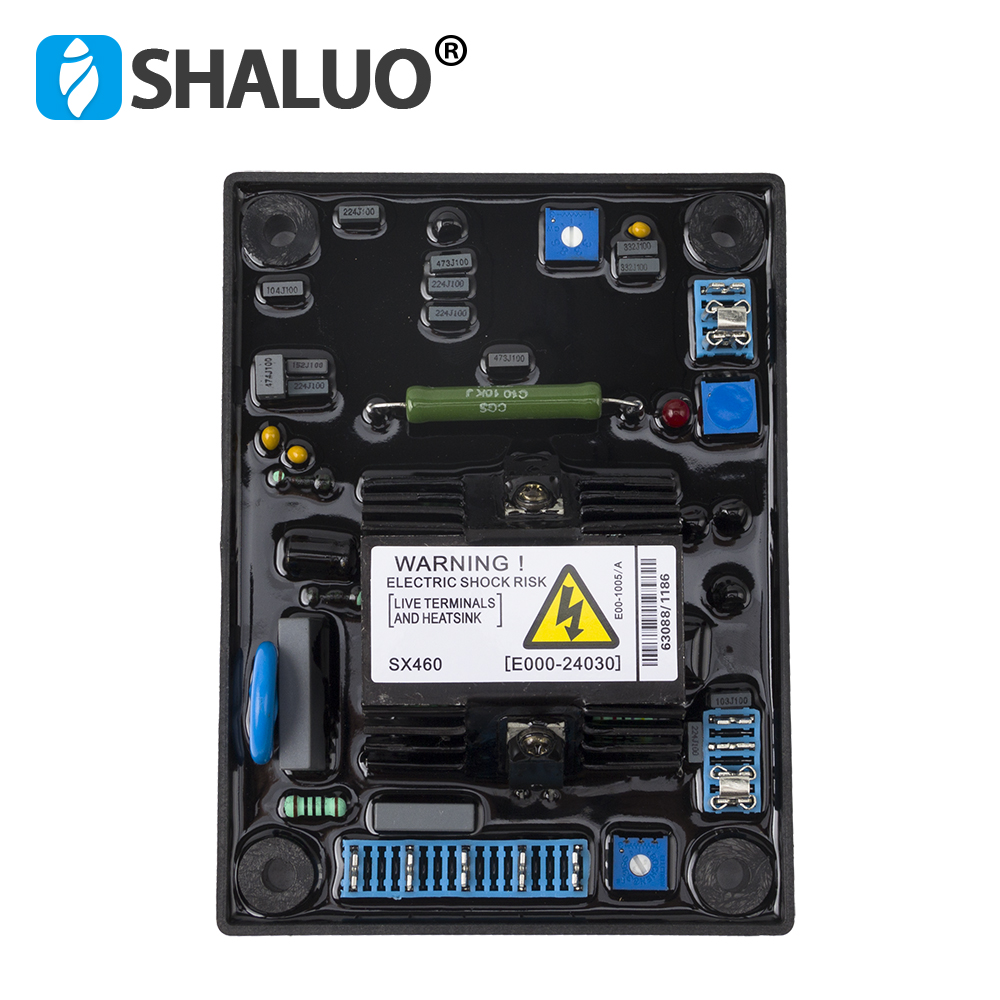

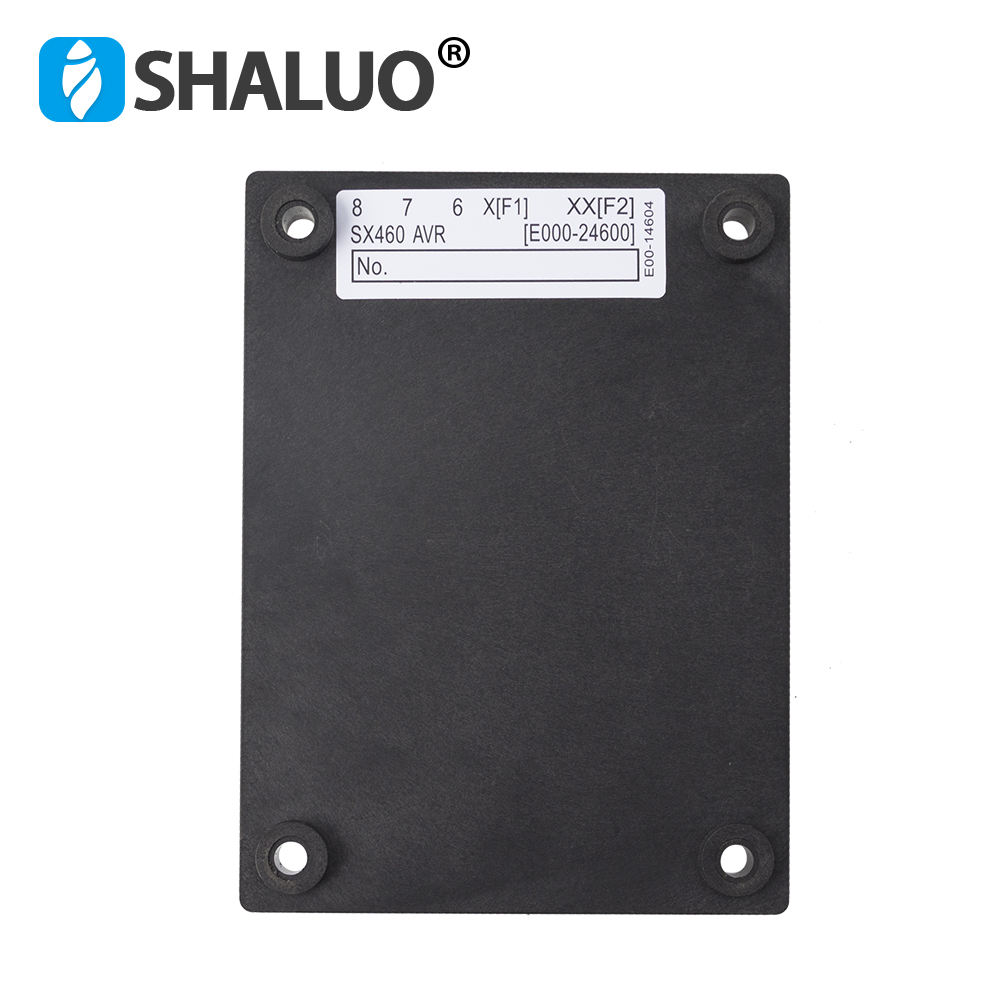

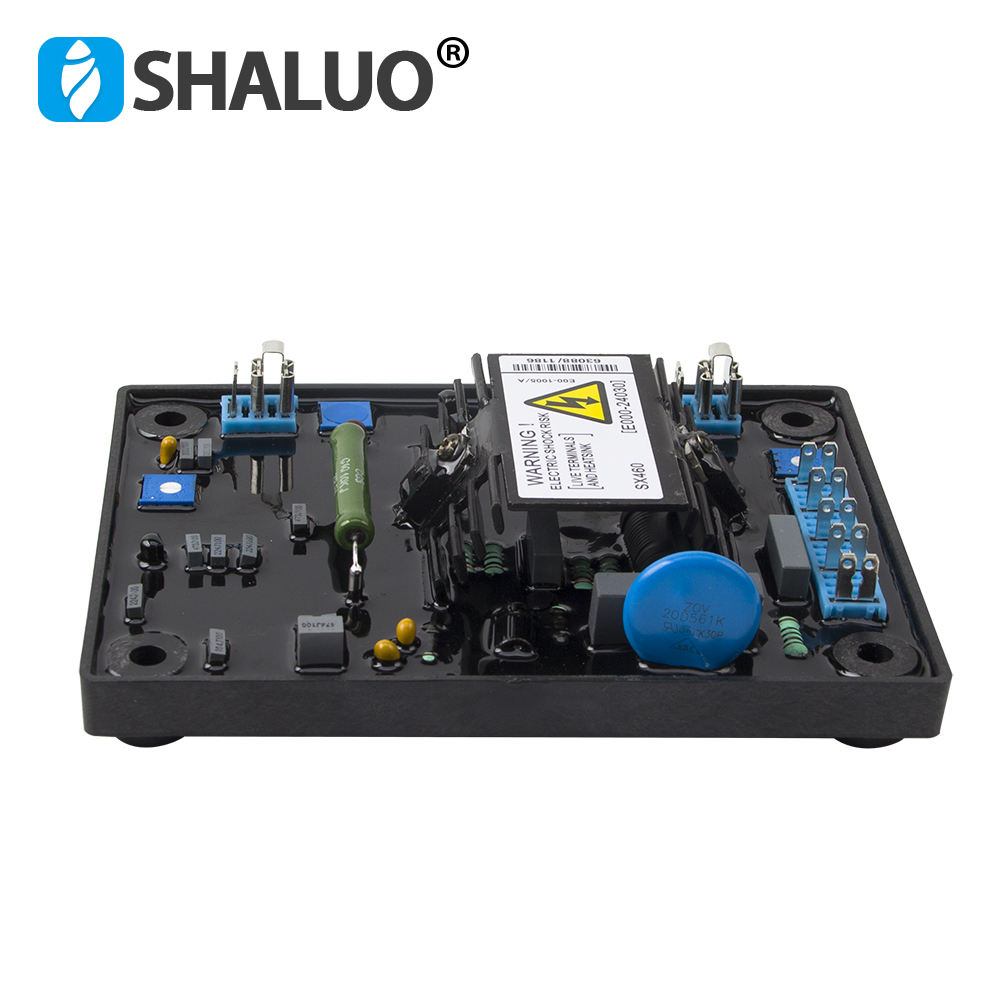

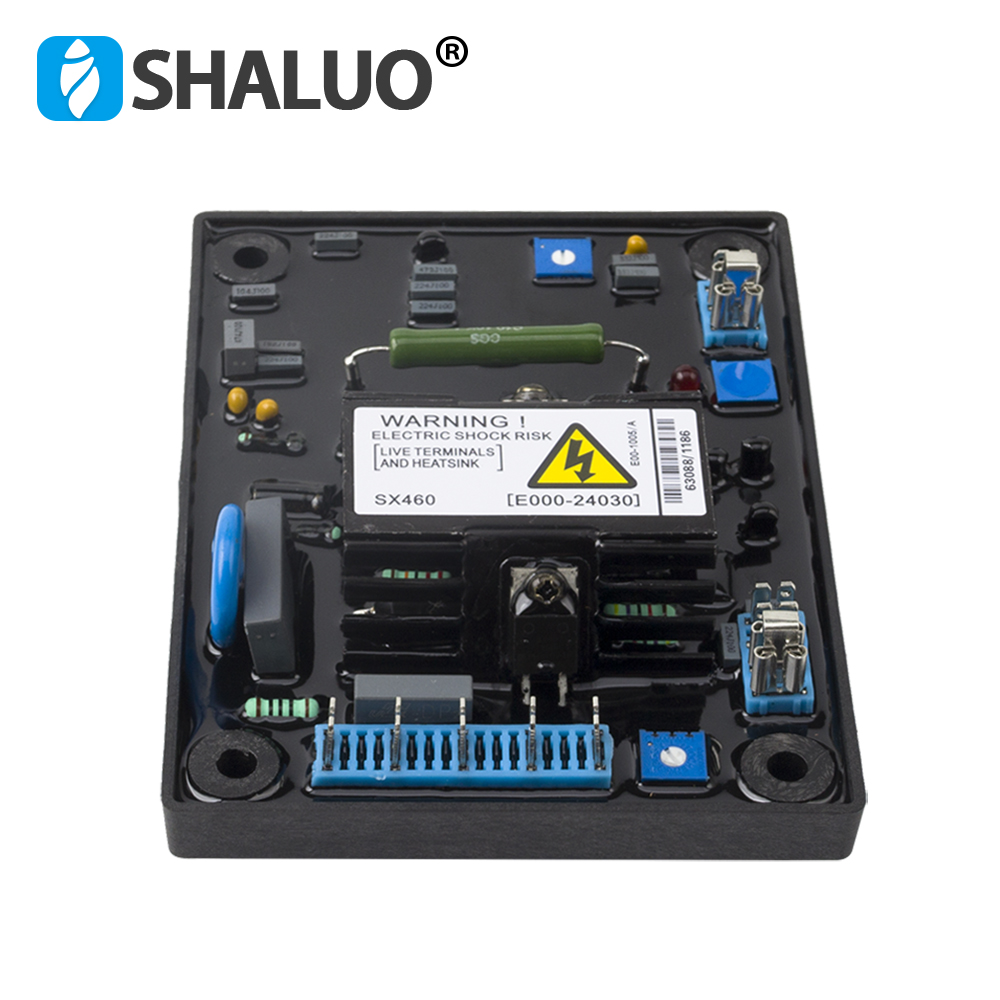

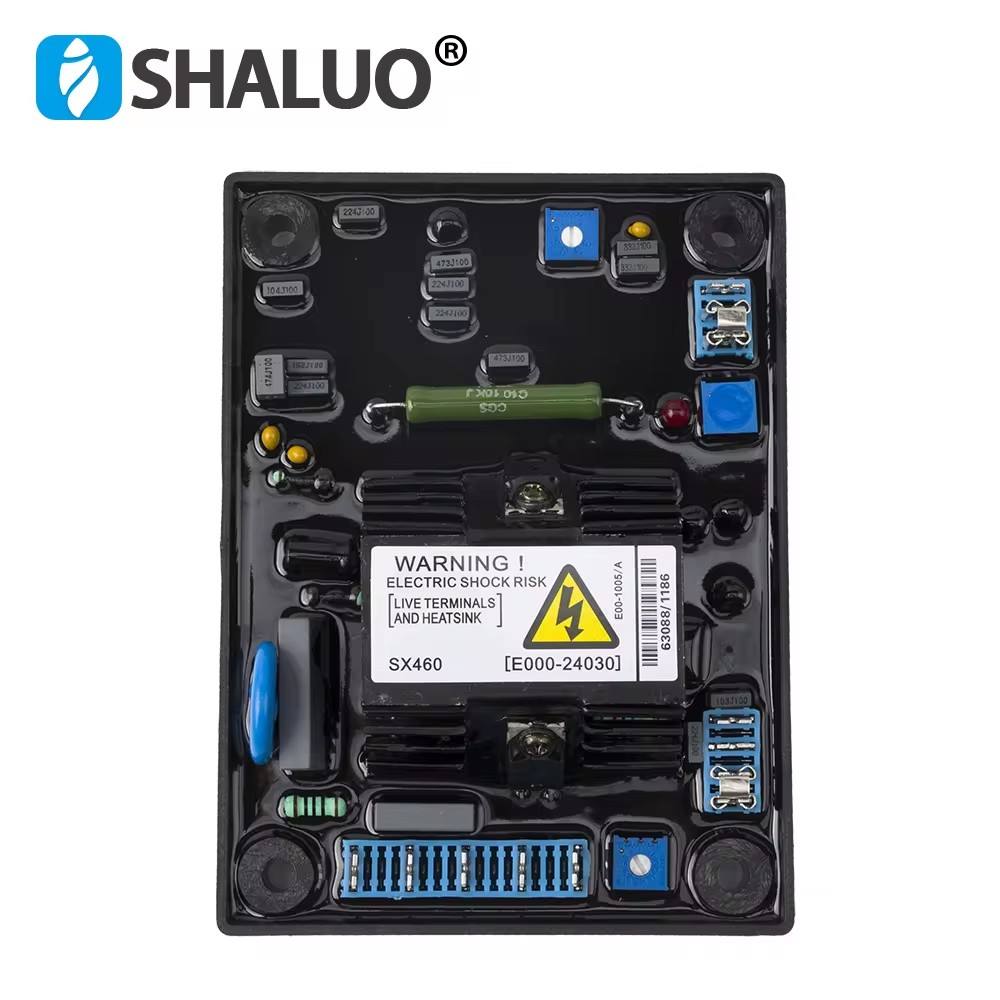

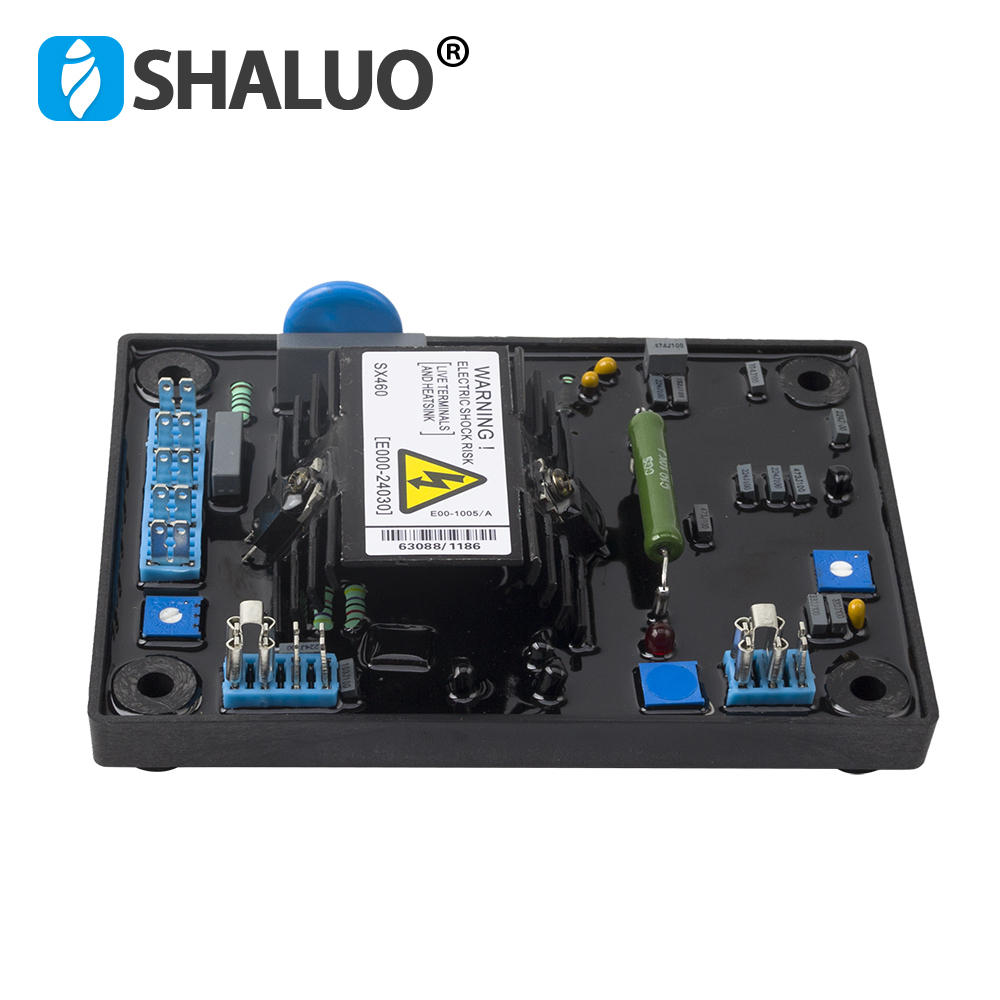

Sx460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator. In addition to regulating the generator voltage，
the AVR circuitry includes under- speed and sensing loss protection features.Excitation power is derived directly from the generator terminals.

Sensing voltage
jumper selectable120(95-132)VAC, 240(190- 264)VAC,single phase 2wire
Sensing Input Voltage
220/40OVAC,1phase 2wire
Frenquency
50-6OHz nominal
Voltage Input
Max 9oVDC at 207VACinput
Resistance
15 Ωminimum
Regulation
＜±1% RMS with 4% engine governing
Voltage Build-up
residual voltage at avr terminal >5vac
External Voltage Adjustment
+/-7% with 1k ohm 1 watt trimmer
