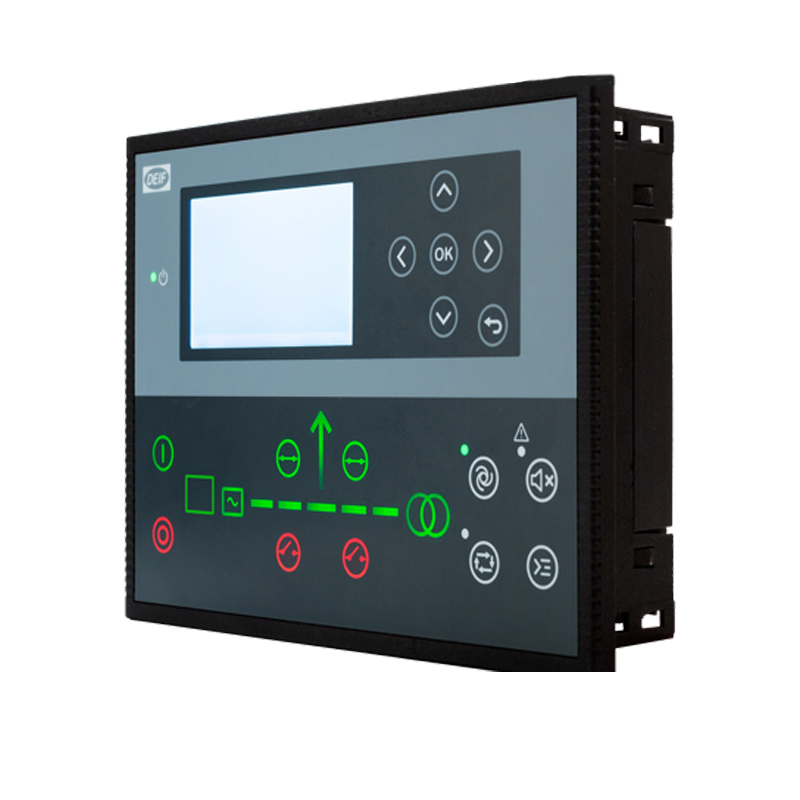

Spare Parts Gasoline Generator Engine Parts & Accessories Univers DEIF AGC150 Controller Module Smart Control Panel

Easy setup
Gensets connected via CAN bus are easily set up for parallel operation as the controllers automatically detect each other at the
CAN network. If you at a later stage connect more gensets, the controller automatically identifies and connects them via CAN bus,
and application configuration is possible via the display.
Easy and safe to use

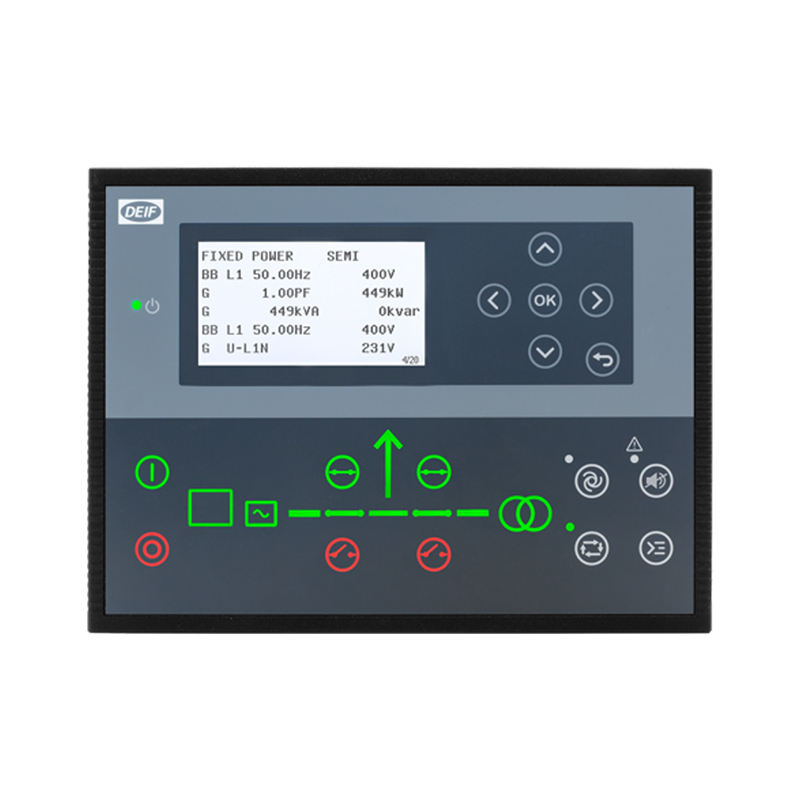

Get access to important genset information quickly via the sunlight readable LCD.
The controller features illuminated buttons that smoothly guide the operator and make it very easy and intuitive to operate. Only
buttons relevant for a function are visible to the user. Get easy access to the most common functions with configurable shortcuts.
The AGC 150 provides up to three levels (customer, service, and master) of password-protected and role-based access. Configure
parameters for each level and have only relevant parameters displayed.
Built to last – also in green energy applications
The AGC 150 comes with uncompromising quality. The controller is made of robust materials and is built to last. It has undergone
several tests showing that it stands wear and tear in all types of harsh environments. Also, the controller is suitable for
PV-Diesel hybrid solutions and also meets Tier 4 Final requirements
Other AGC 150 variants
* The AGC 150 Mains controller can synchronise one or two breakers (mains breaker and tie breaker) plus protect and monitor the
utility.
* The AGC 150 BTB controller can synchronise one breaker, protect and monitor the busbar. In total, DEIF’s power management
system can handle eight bus tie breakers.
* The AGC 150 Stand alone controller for controlling non synchronising applications with all the necessary functions for genset
protection. It stands out for its reliability and operator-friendliness.
* The AGC 150 Hybrid comes with all the necessary functions for protection and control of a hybrid installation with PV and
genset.
* The AGC 150 Engine Drive controller provides engine protection and controls engine start and stop sequences, including simple
fixed- and variable speed functions for pump applications.
* The AGC 150 Remote Display unit provides access and control of any master controller in the AGC 150 series over the local
network. This provides fast incident response and operational convenience.
* The AGC 150 PMS Lite controller is ideal for setting up and operating simple power management systems in off-grid plants with
up to 128 gensets.
