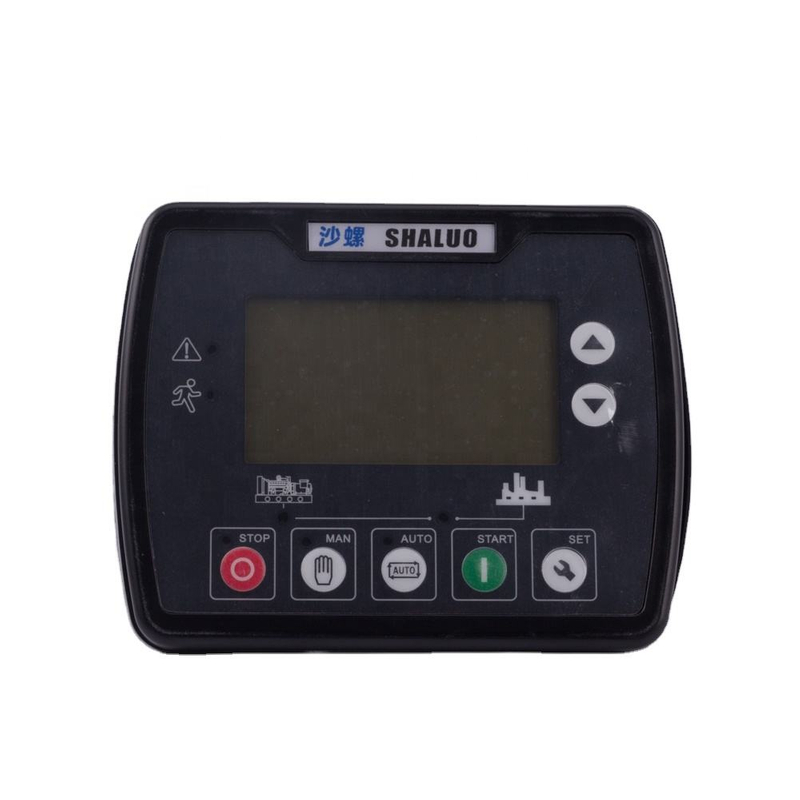

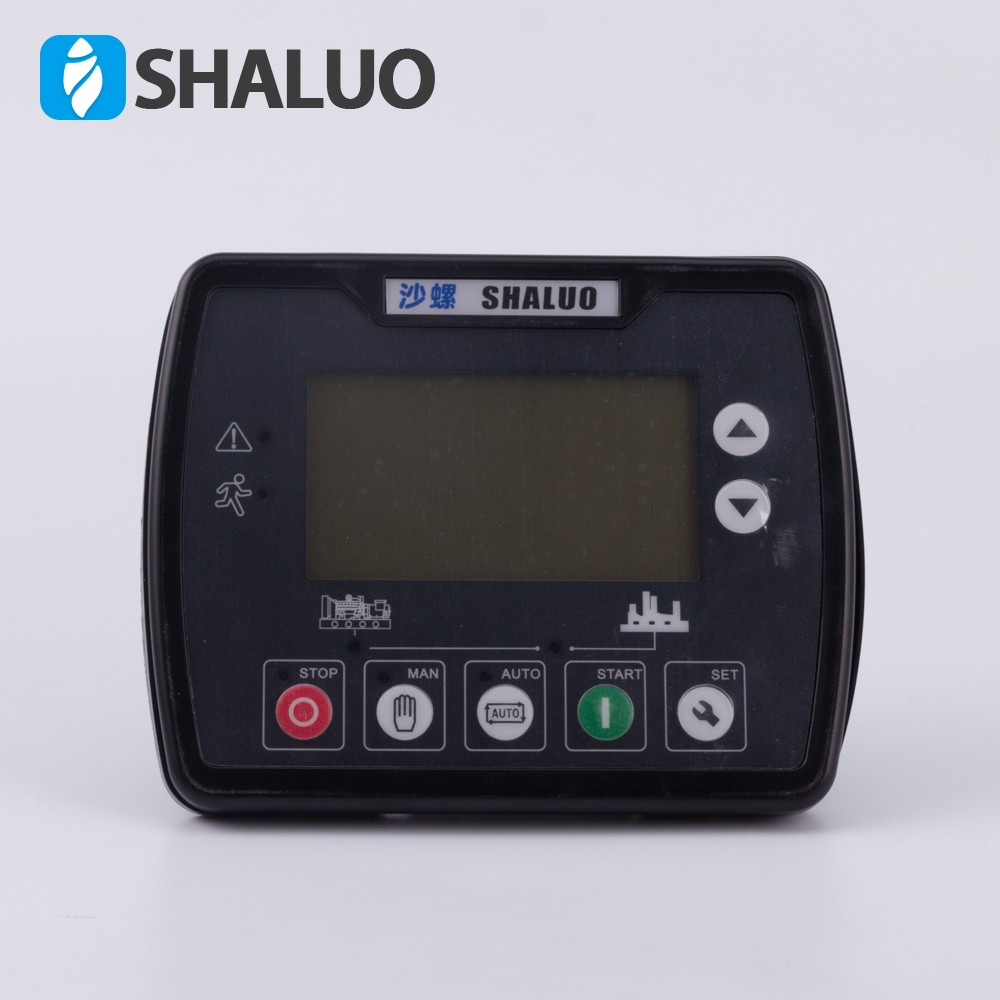

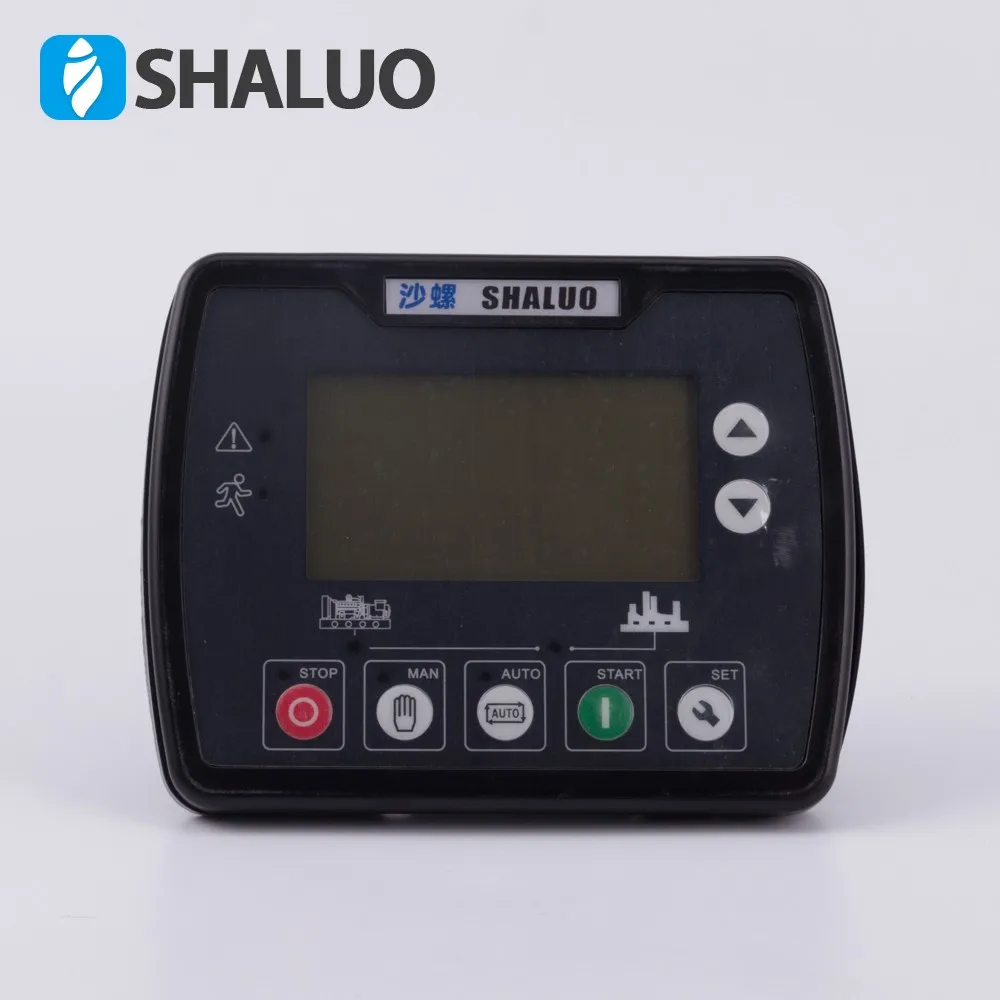

generator Intelligent controller deep sea automatic control module lixise lxc3110

The DSE3110 can be utilised as a Manual or Auto Start Module for single gen-set applications or engine only applications. The module has been designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection features.

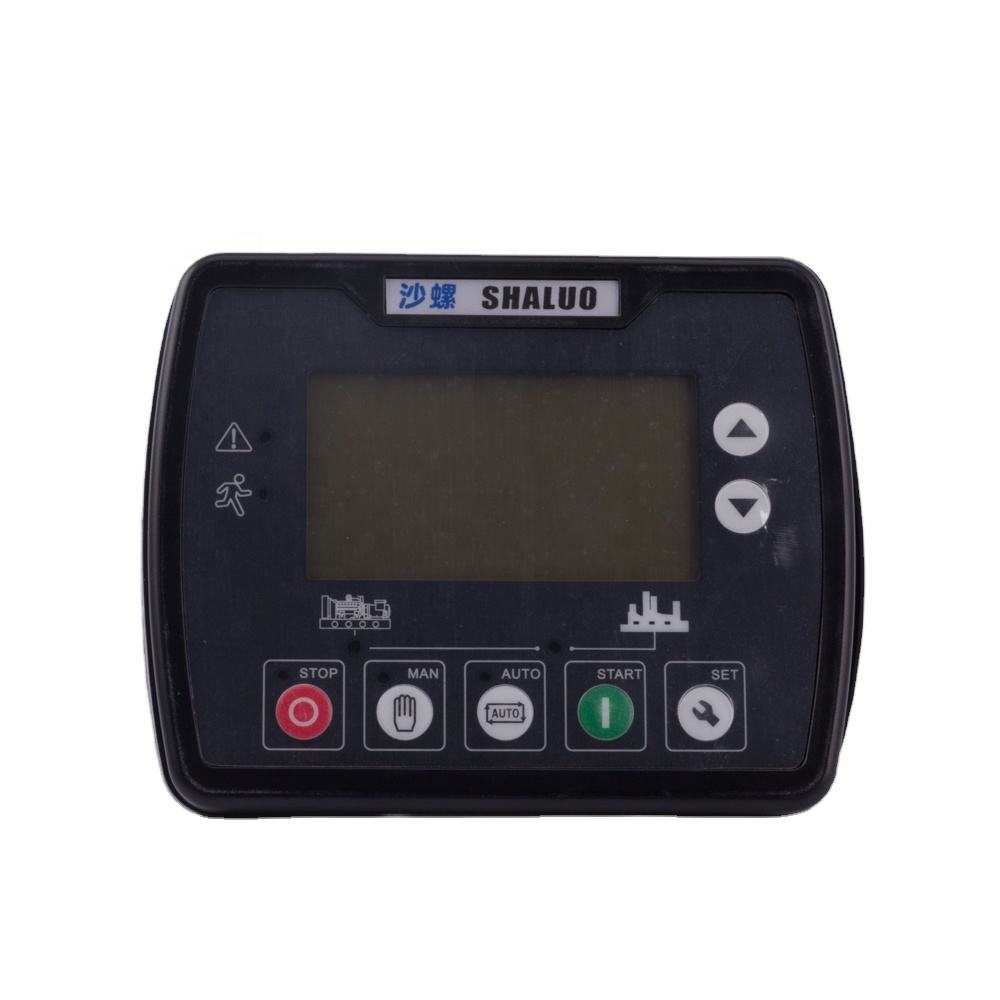

The DSE3110 includes a back-lit icon LCD display which clearly shows the status of the engine at all times.

The module has been designed to combine a maximum of 16 generators and 16mains (utility)

supplies up to a maximum of 20 in one system, e.g. 16 generators and 4mains (utility) supplies (DSE5560 required to synchronise with the mains).

Model DSE3110

Continuous Voltage Rating 8 to 35 V Continuous.

Cranking Dropouts Able to survive 0 V for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achineved without the need for internal batteries.

Charge Fail/ Excitation 8 to 35 V fixed power source 2.5W

Nominal Standby Current 23 mA at 12 V, 18 mA at 24 V

MAXIMUM OPERATING CURRENT 35 mA at 12 V, 30 mA at 24 V

OUTPUT A (FUEL) 2 A DC at supply voltage

OUTPUT B (START) 2 A DC at supply voltage

AUXILIARY OUTPUTS C & D 2 A DC at supply voltage

VOLTAGE RANGE 15 V - 333 V AC (L-N)

FREQUENCY RANGE 3.5 Hz to 75 Hz

VOLTAGE RANGE ± 0.5v to 70v

FREQUENCY RANGE 10,000 Hz (max)

OVERALL 9.8 cm x 7.9 cm x 4.0 cm

PANEL CUT-OUT 8 cm x 6.8 cm

MAXIMUM PANEL THICKNESS 8 cm
