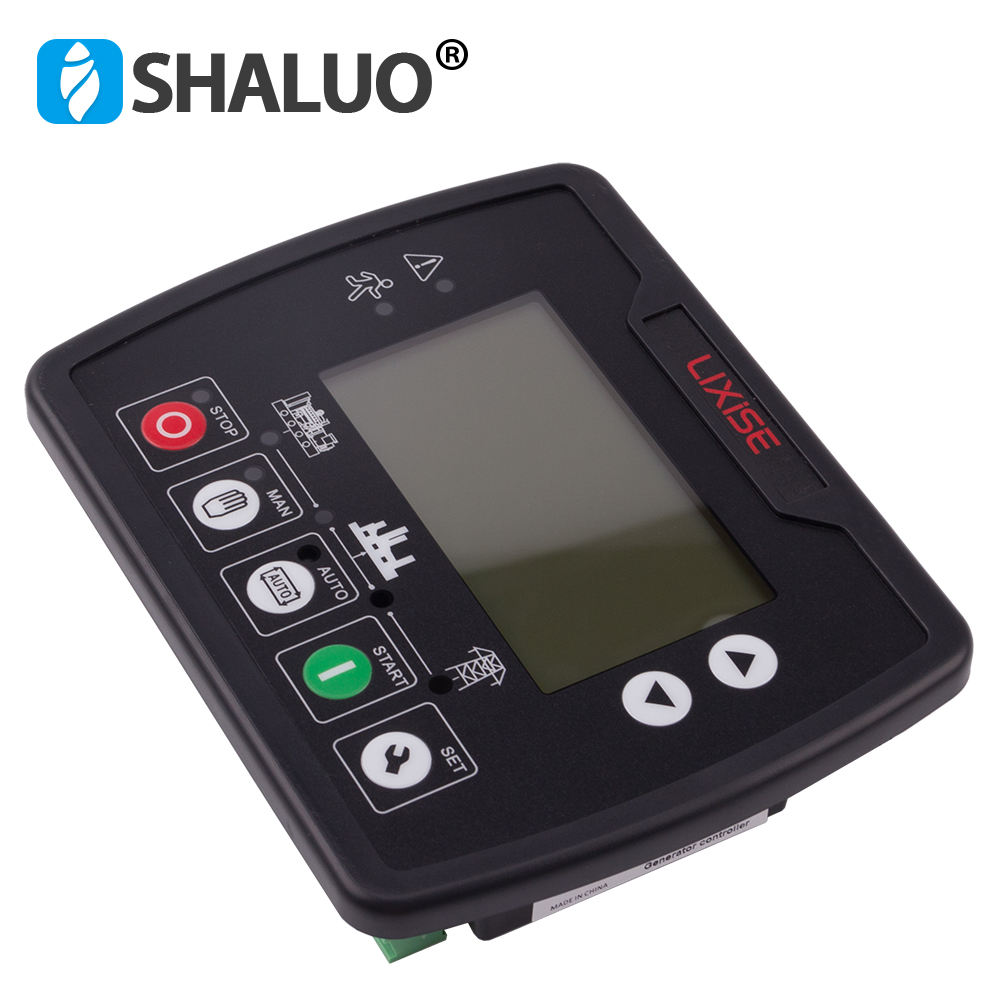

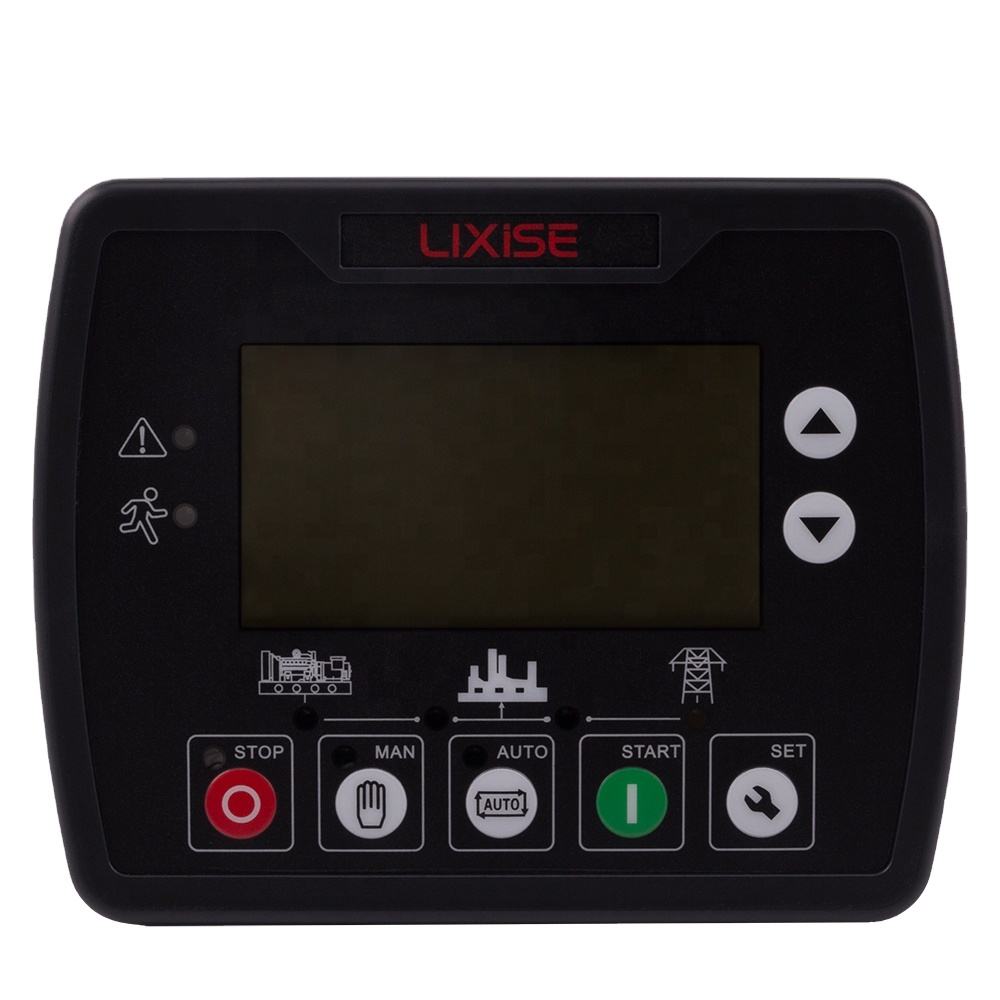

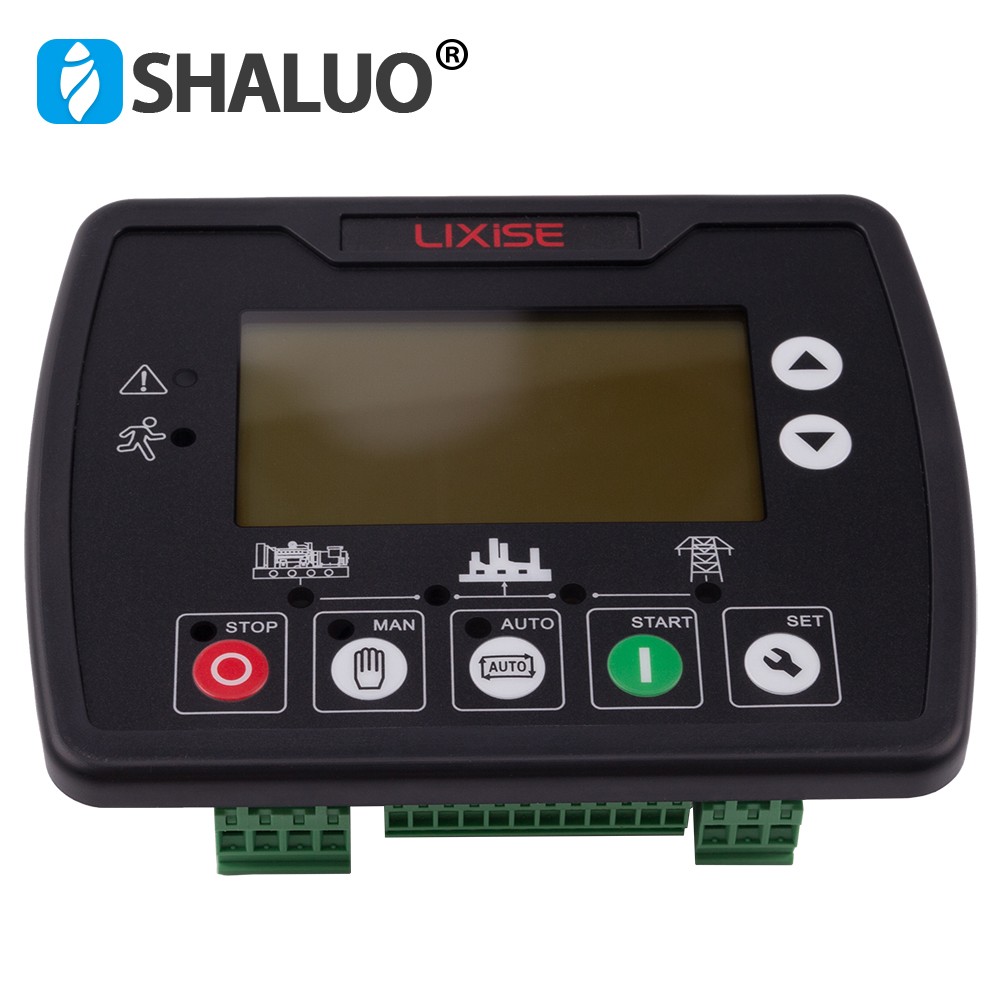

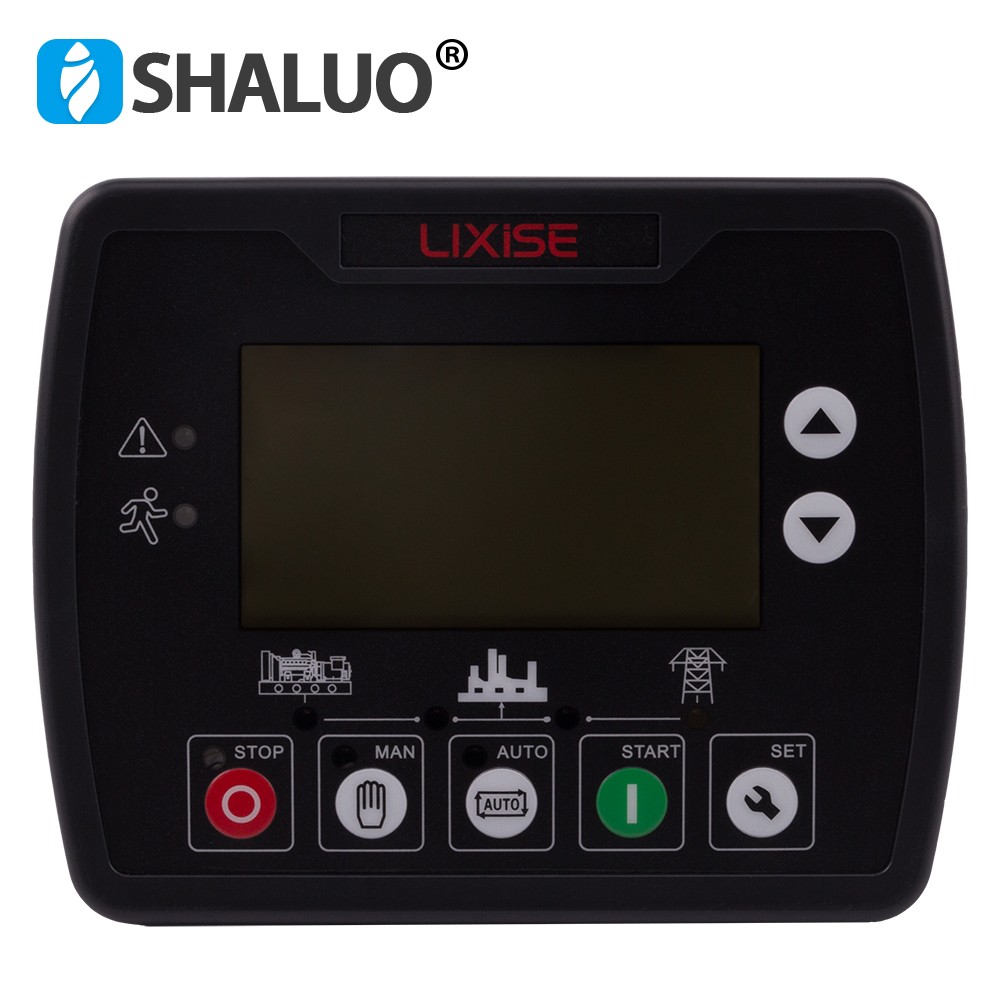

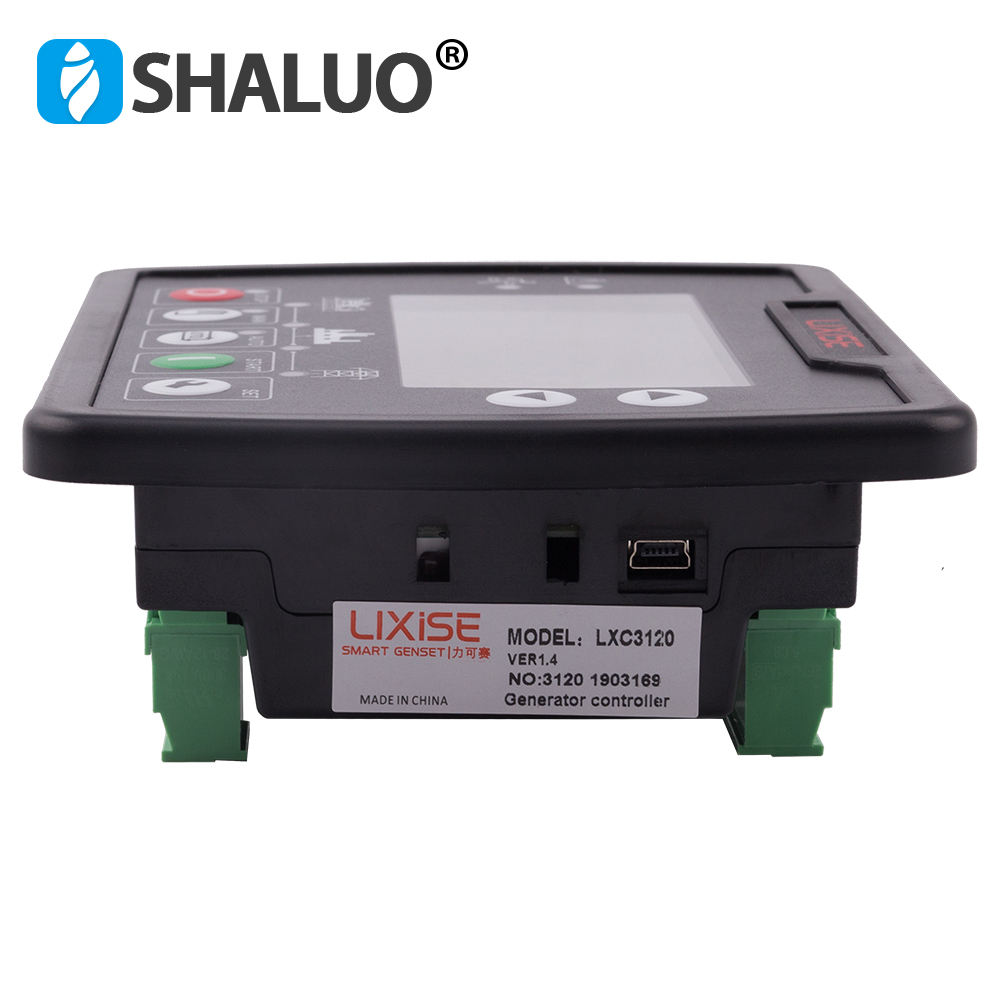

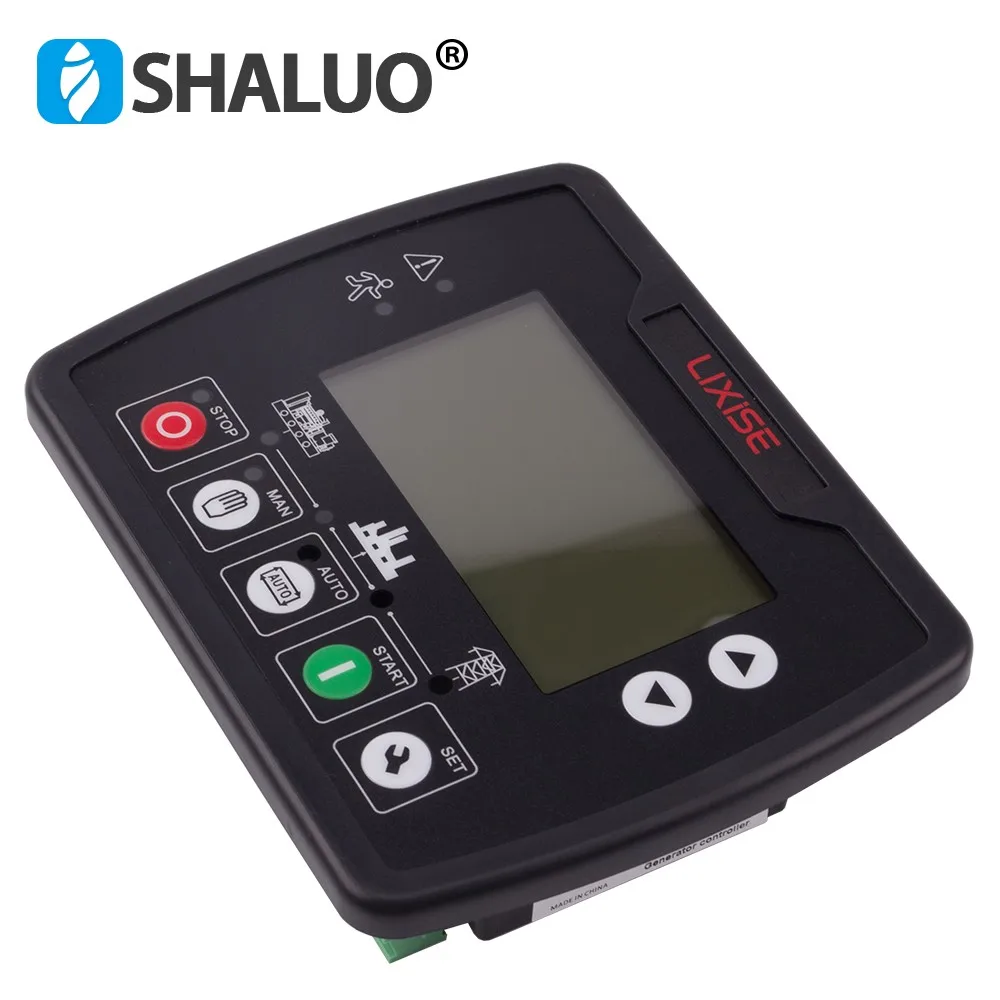

generator auto start intelligent control panel controller LIXiSE LXC3120

LXC3120 Series power plant automation controller integrating digital, intelligent and network technology, diesel generator sets for a single automation and monitoring system, automatic generator start / stop, data measure and alarming, and "three remote" (to be equipped with RS485 module) function. Controller with large-screen LCD display, Chinese, English, Spanish and Russian optional interface with operation easy and reliable operation. Parameters to achieve a variety of precision measurement, setpoint adjustment, timing and threshold setting and other functions, the controller of all parameters can be adjusted from the controller front panel, or by using a PC via USB, RS232 interface programming, adjustment and monitoring. Its compact, simple wiring, high reliability, and can be widely used in all types of generator automation systems

Phase four-wire 15V AC - 360 V AC (ph-N)

Two-phase three-wire 15V AC - 360 V AC (ph-N)

Single-phase two-wire 30V AC - 620 V AC (ph-ph)

Three-phase three-wire

Alternator frequency 50 Hz / 60Hz

Speed sensor voltage 1.0 to 24V (rms)

Speed sensor frequency Maximum 10000Hz

Start relay output 5A DC28V DC power supply output

Programmable relay output 1 5A DC28V DC power supply output

Programmable relay output 2 5A DC28V DC power supply output

Programmable relay output 3 5A DC28V DC power supply output

Programmable relay output 4 5A AC250V passive output

Programmable relay output 5 5A AC250V passive output

Dimensions 143mm x 115mm x41mm

Hole size 110mm x 90mm

Current transformer secondary current Rated: 5A

Working conditions Temperature: (-25 ~ 70) ° C Humidity: (20 ~ 93)% RH

Storage conditions Temperature: (-30 ~ +80) ° C

Protection class IP55: When installed between the controller and the control panel when the waterproof rubber ring.

IP42: When between the controller and the control panel when not fitted waterproof rubber ring.

Dielectric Strength Object: Input / Output / Power

Reference Standard: IEC688-1992

Test Method: AC1.5Kv/1min leakage current 3mA
