Product Description

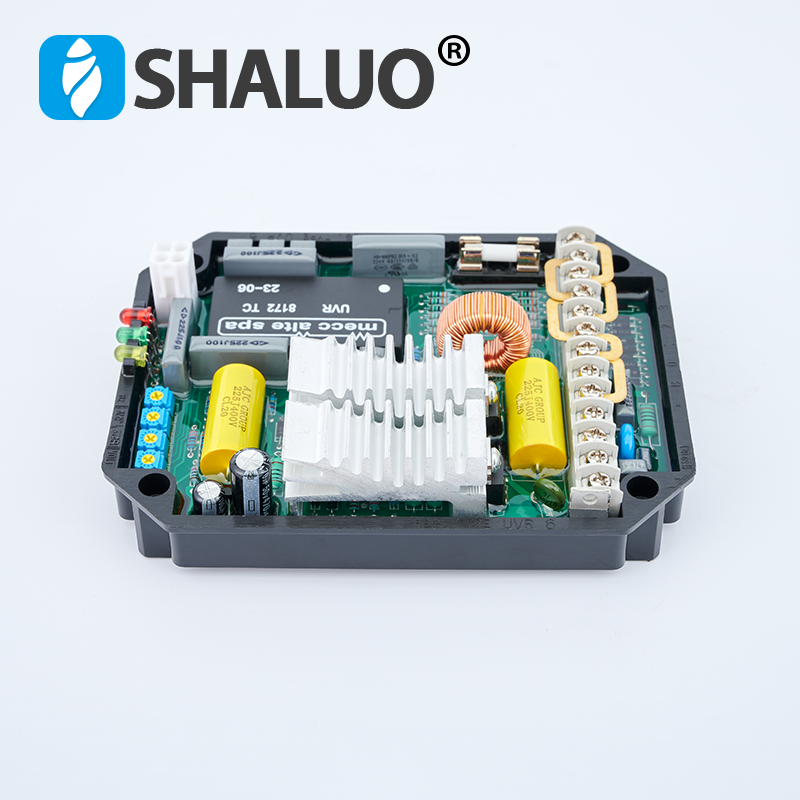

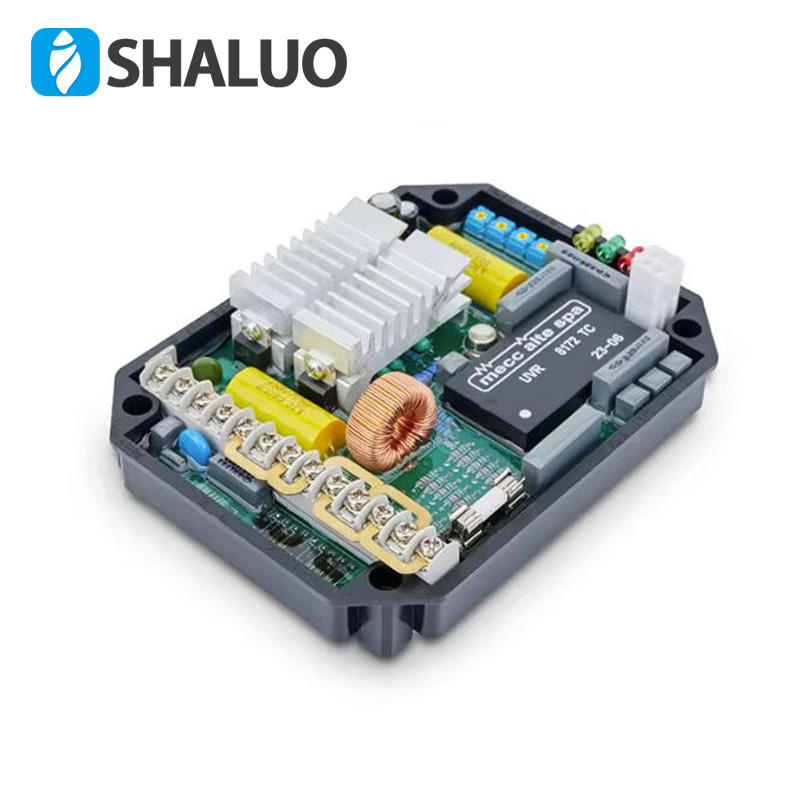

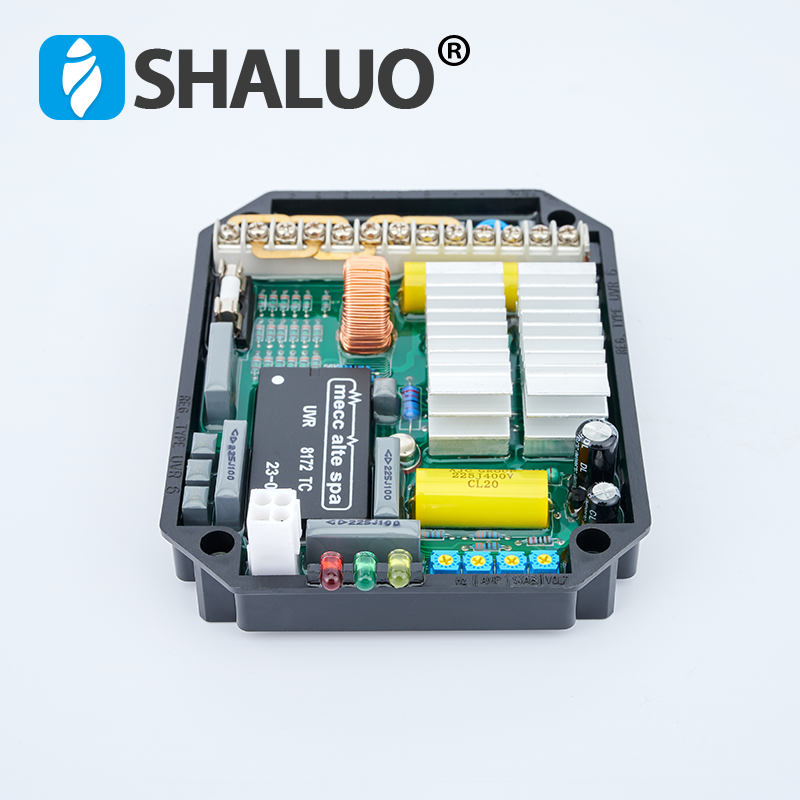

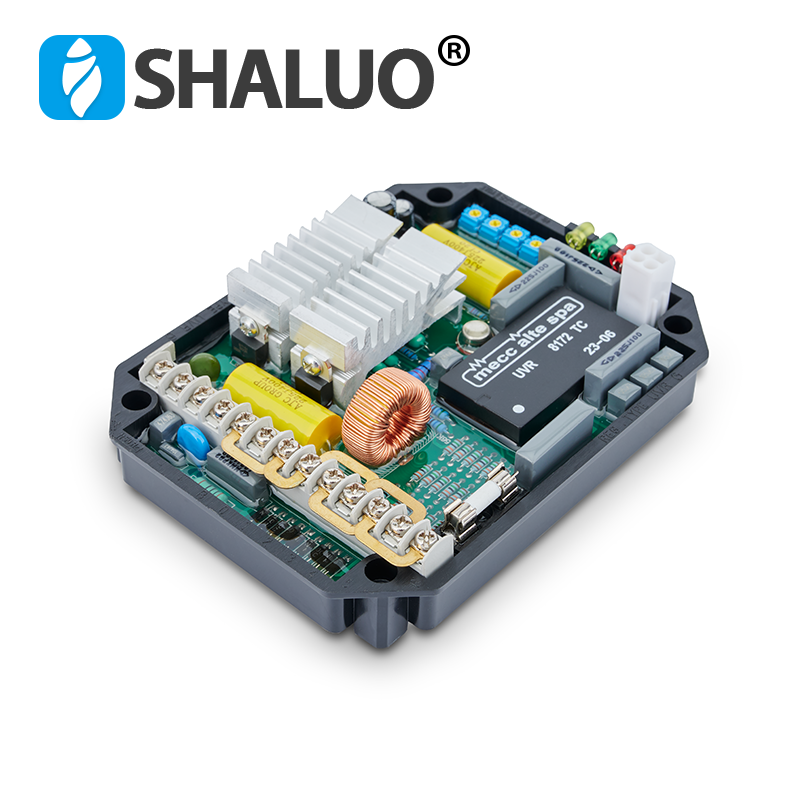

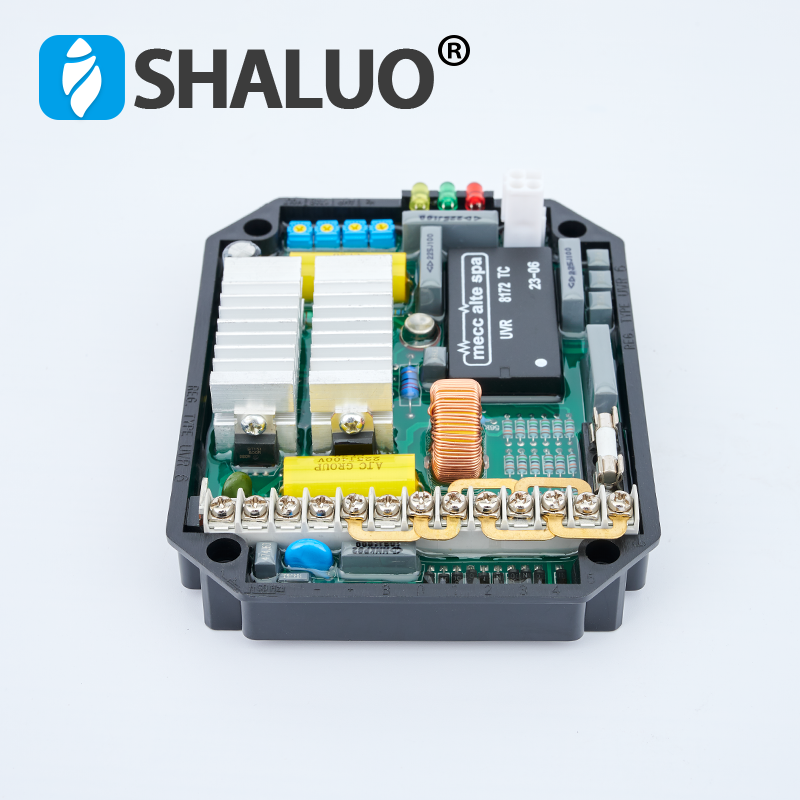

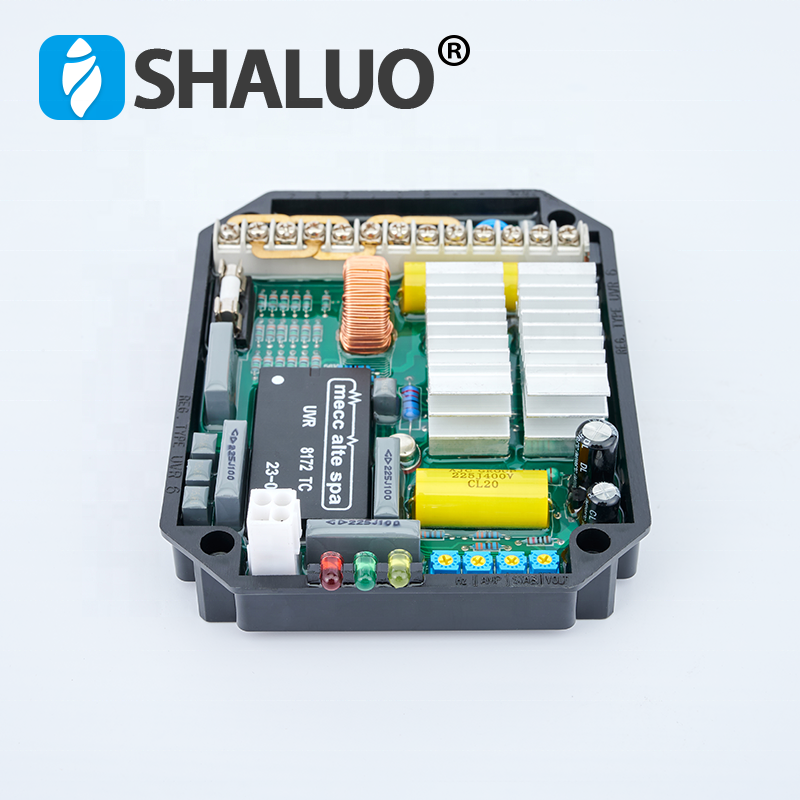

The UVR6 type voltage regulator is an advan-ced design electronic regulator that ensures excellent performance of the alternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine. The UVR6 regulator is suitable for being used with all Mecc Alte alternators and is standard supply for power outputs above or equal to 85 KVA, both three-phase and single phase.
| Brushless AVR | UVR6 | ||||
| Sensing Voltage Input | 220-480V AC | ||||
| Voltage Input | 50-280V AC or | ||||
| Frequency | 50-60Hz nominal | ||||
| Voltage Output | max 63V dc at 220V ac input | ||||
| Current | continuous 6A. Intermittent 7A for 10secs | ||||
| Resistance | 10 Ω minimum | ||||
| Regulator | ±1.0% with 4% engine governing | ||||
| Type | brushless | ||||
