Home » Products » Generator Parts & Accessories » AVR » Common Avr » 15kva 40kva AVR Generator Automatic Voltage Regulator GAVR-8A voltage stabilizer 220v adjustable voltage protector

15kva 40kva generator automatic voltage regulator AVR GAVR-8A

Share to:

15kva 40kva AVR Generator Automatic Voltage Regulator GAVR-8A voltage stabilizer 220v adjustable voltage protector

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

generator AVR GAVR-8A 50/60HZ with high quality

Product Description

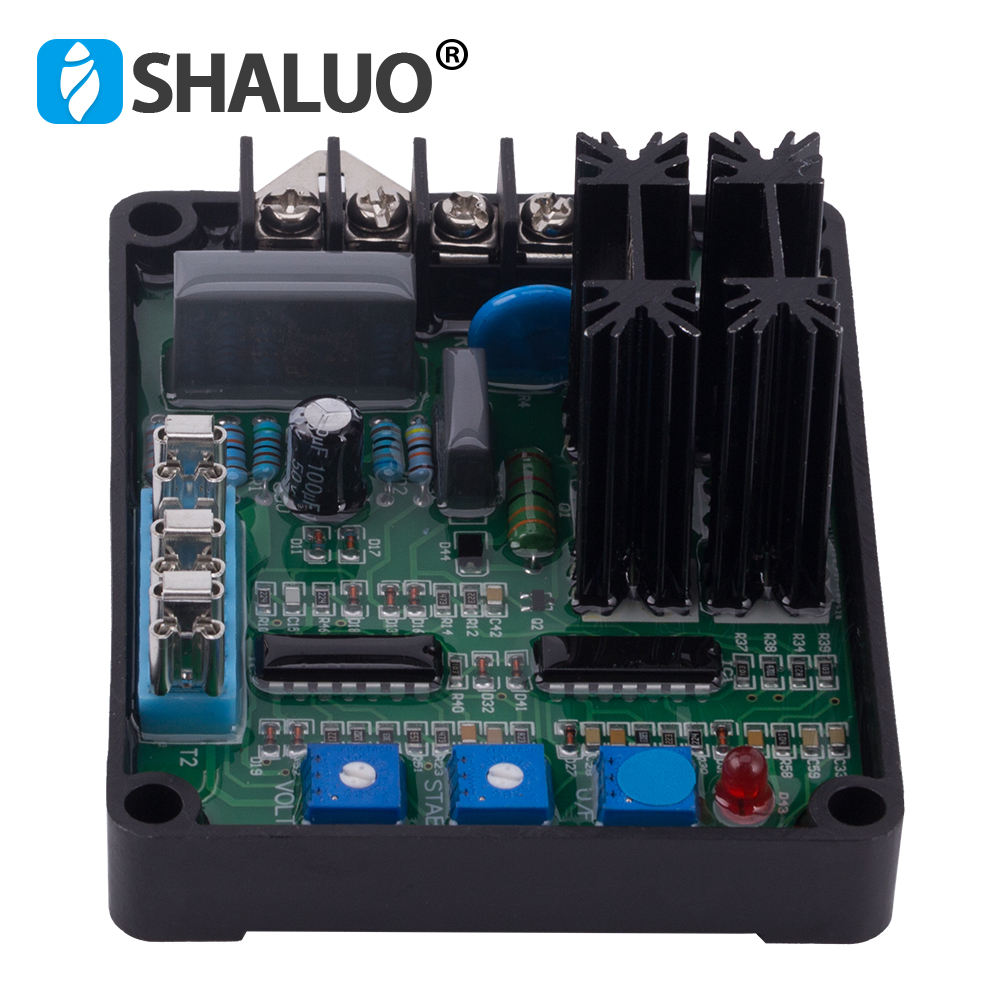

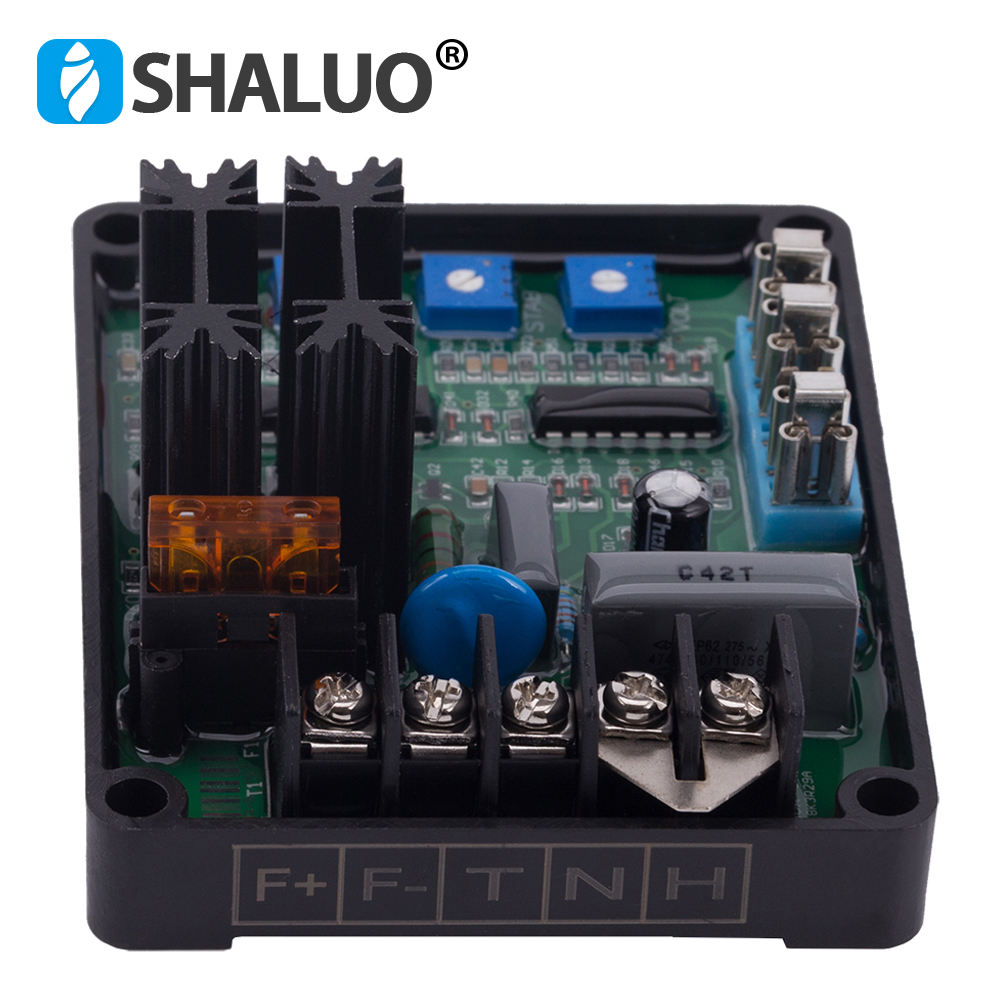

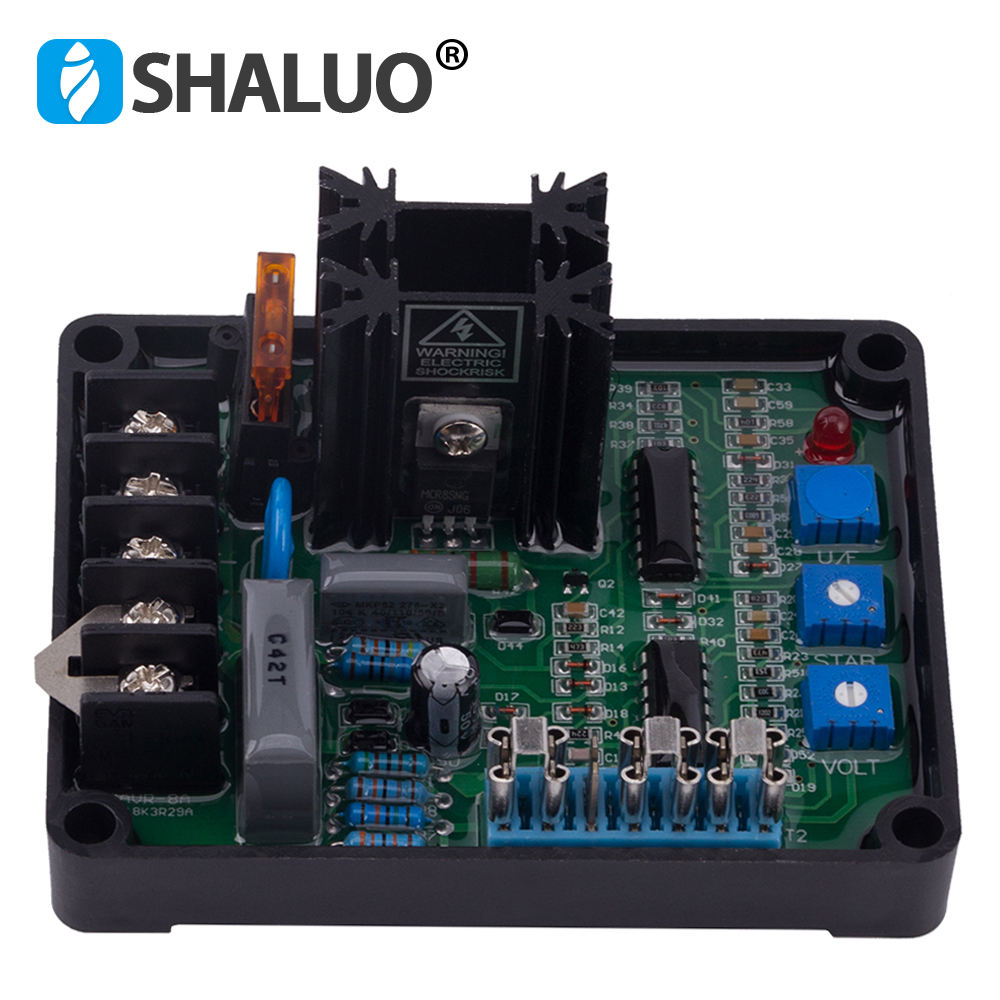

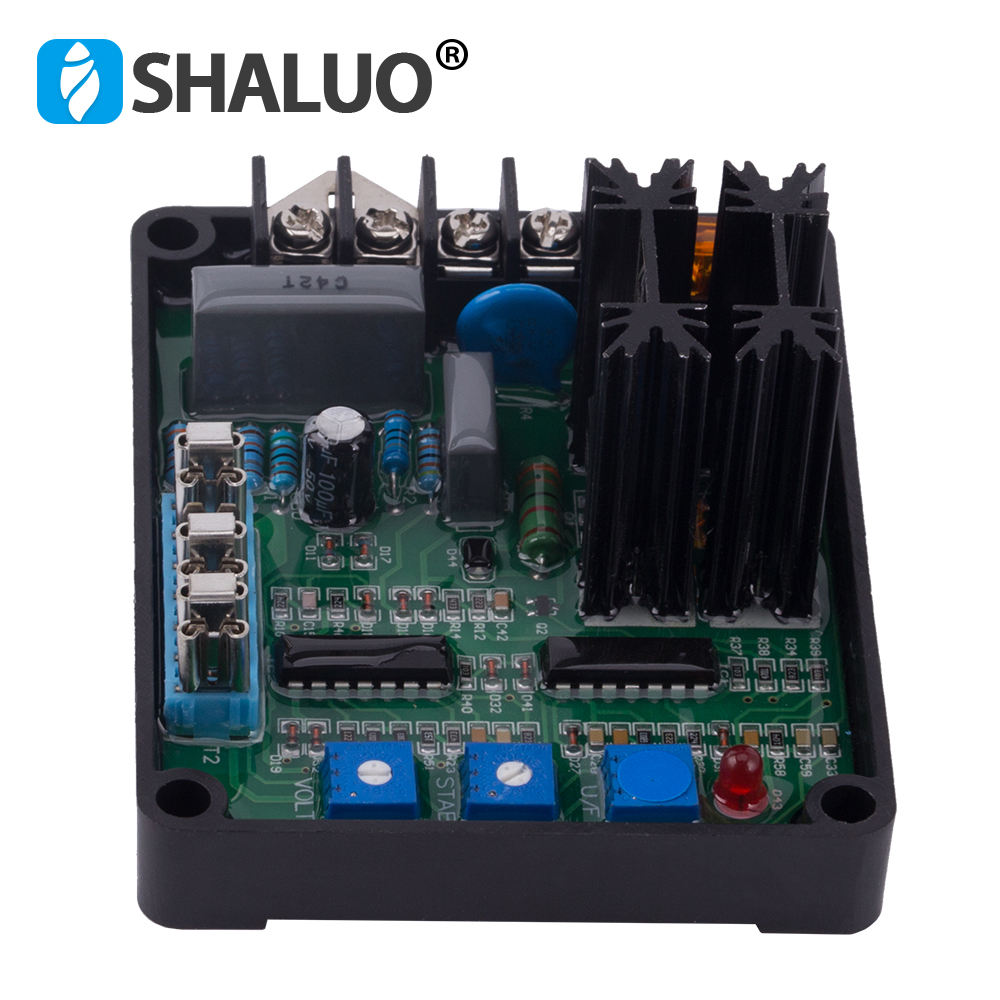

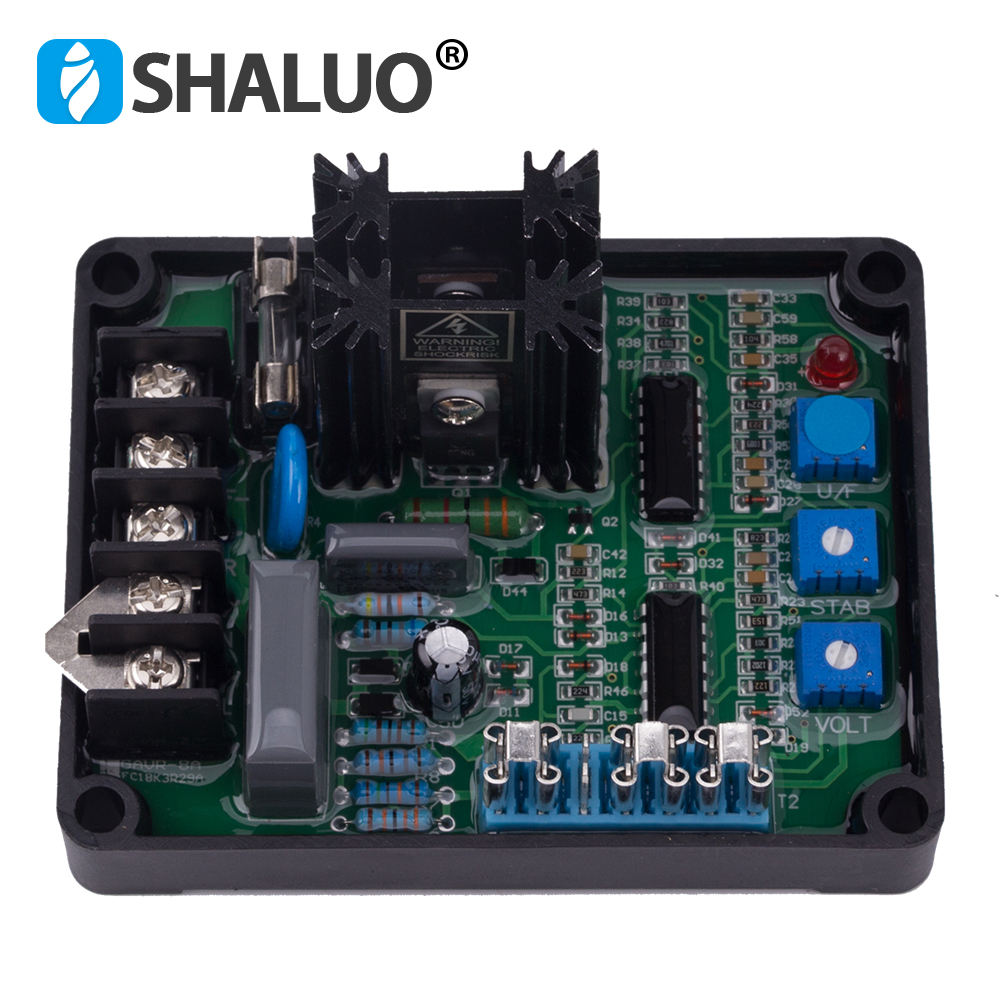

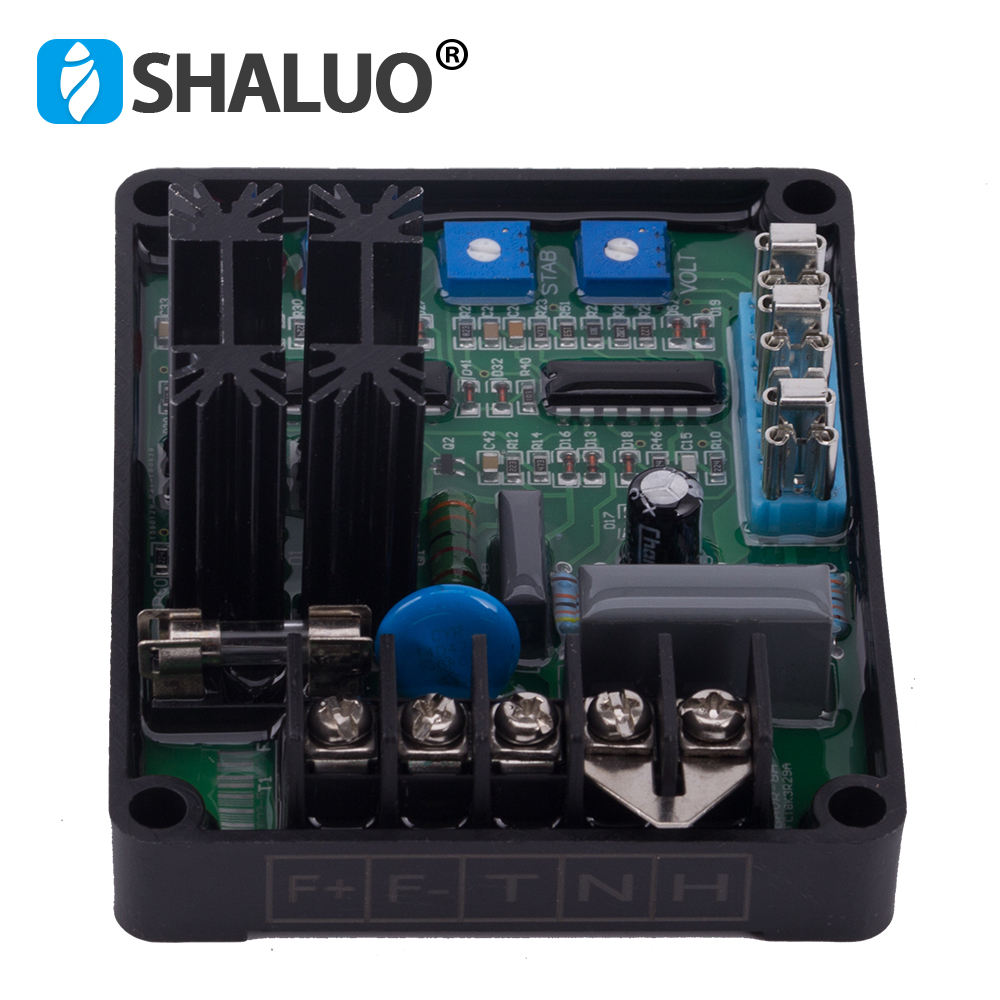

GAVR-8A is Universal 8 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.

Technical data:

Sensing input Voltage

110/220/400VAC , 1 phase 2 wire

Power Input voltage

100-260VAC , 1 phase 2 wire

Output voltage

max 90 VDC at 240VAC input

Current

Continuous 3 A , intermittent 5A for 10secs

Resistance

Min.15 ohm , Max 100ohm

Voltage Build-up

residual voltage at avr terminal >5VAC

Voltage Regulation

<±1% with 4% engine governing

Operating Temperature

(-40°C to +60°C

Storage Temperatue

(-65°C to +85°C

External Volts Adjutment

±7% with 1k ohm 1 watt trimmer

EMI Suppression

avr Internal electromagnetic interference filtering

Unit Power Dissipation

Max.8 watt

Under Frequency Protection

60Hz system presets knee point at 55Hz

50Hz system presets knee point at 45Hz

Dimentions

107mmL*82mmW*50mmH
