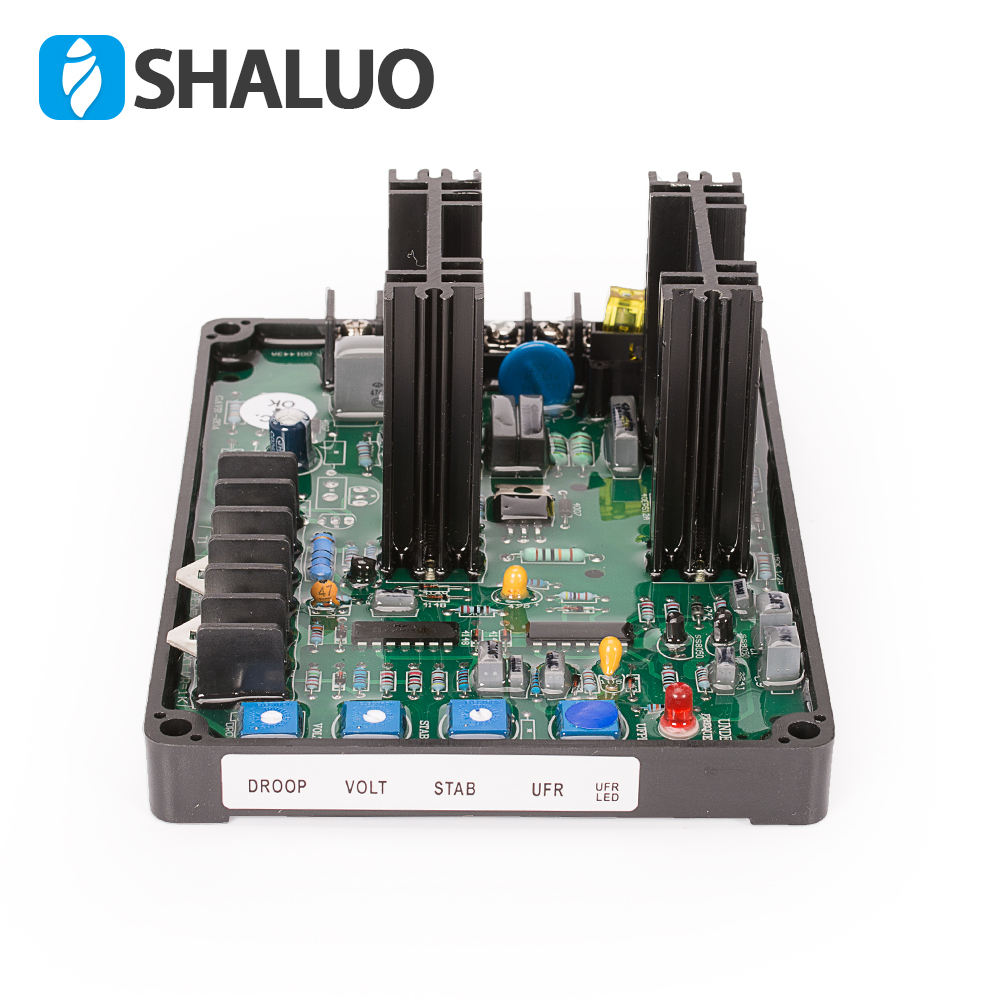

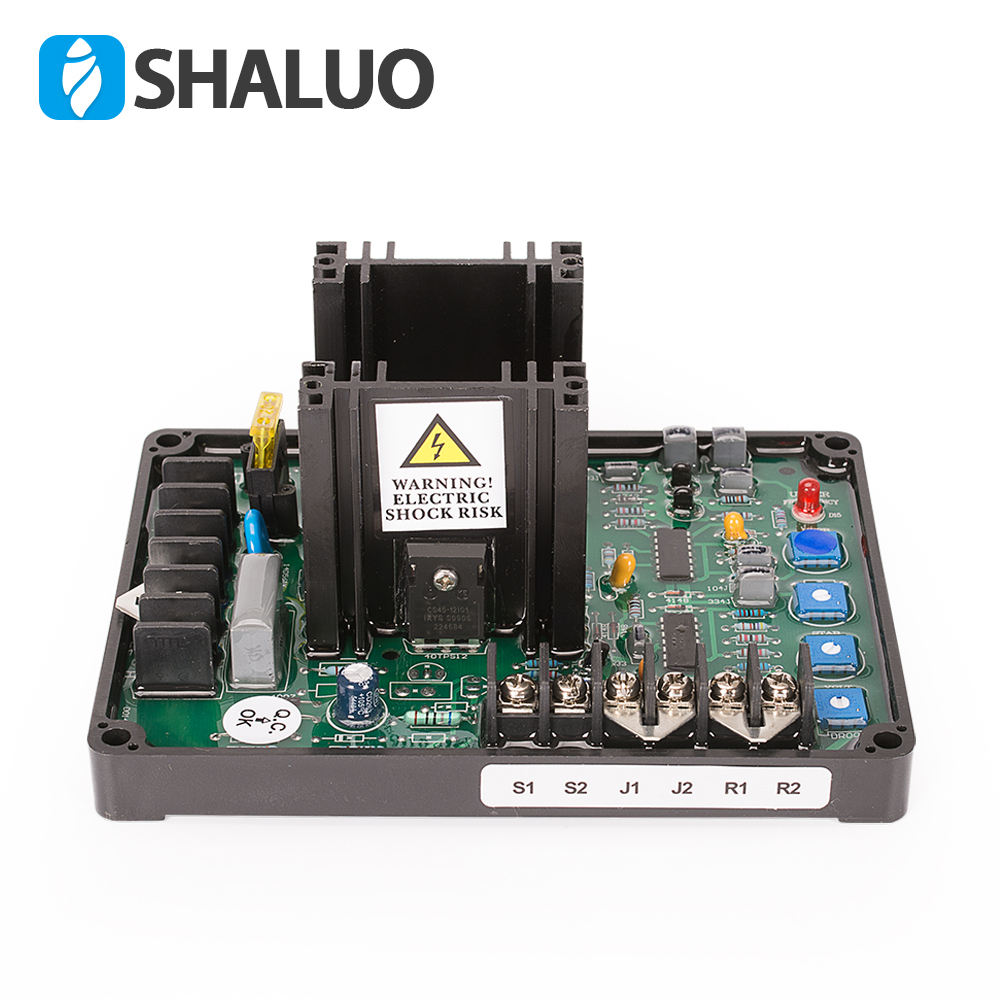

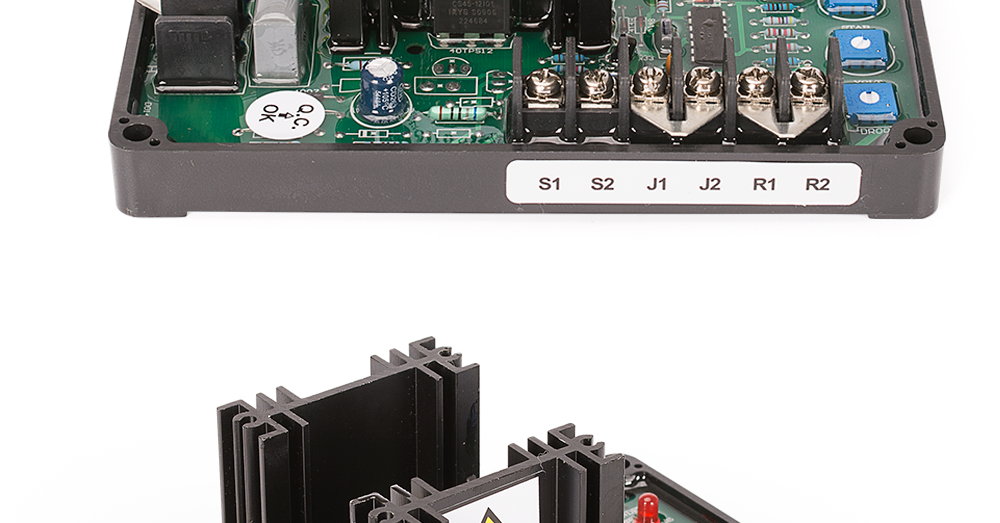

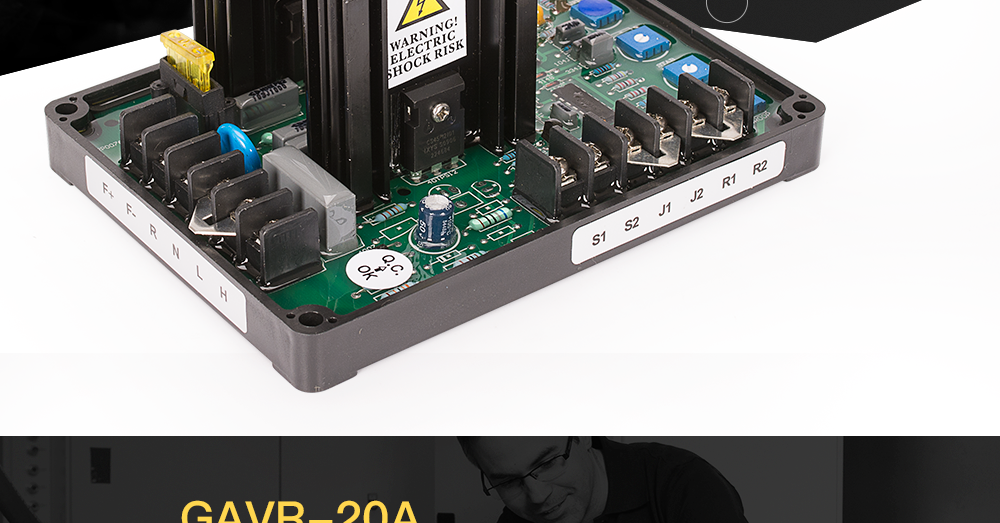

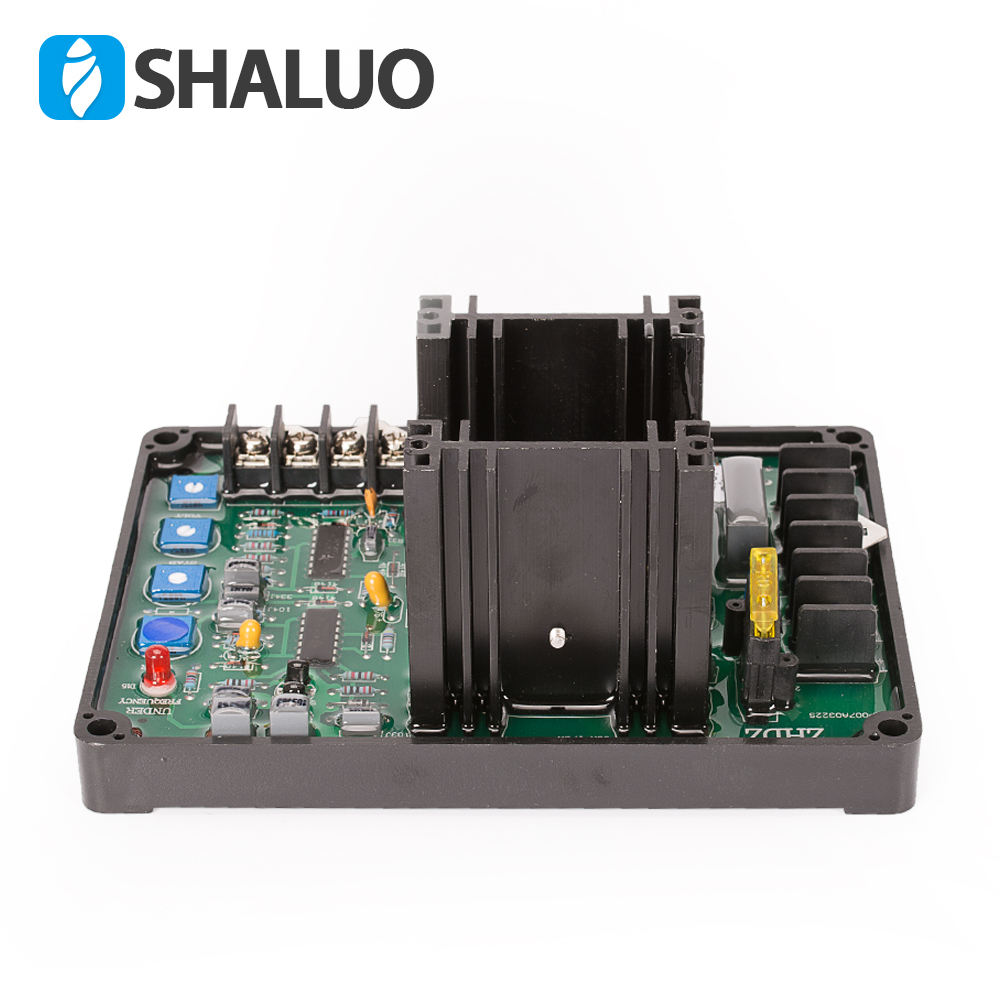

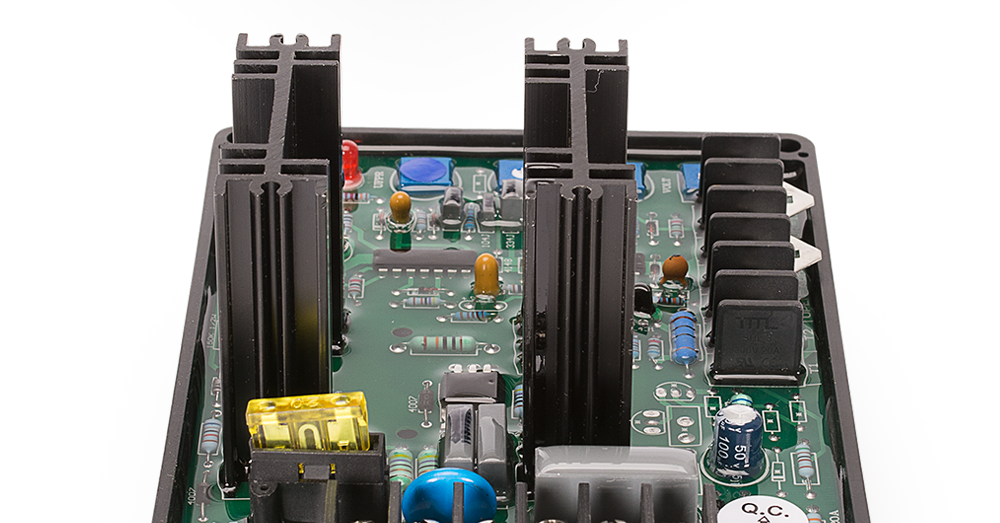

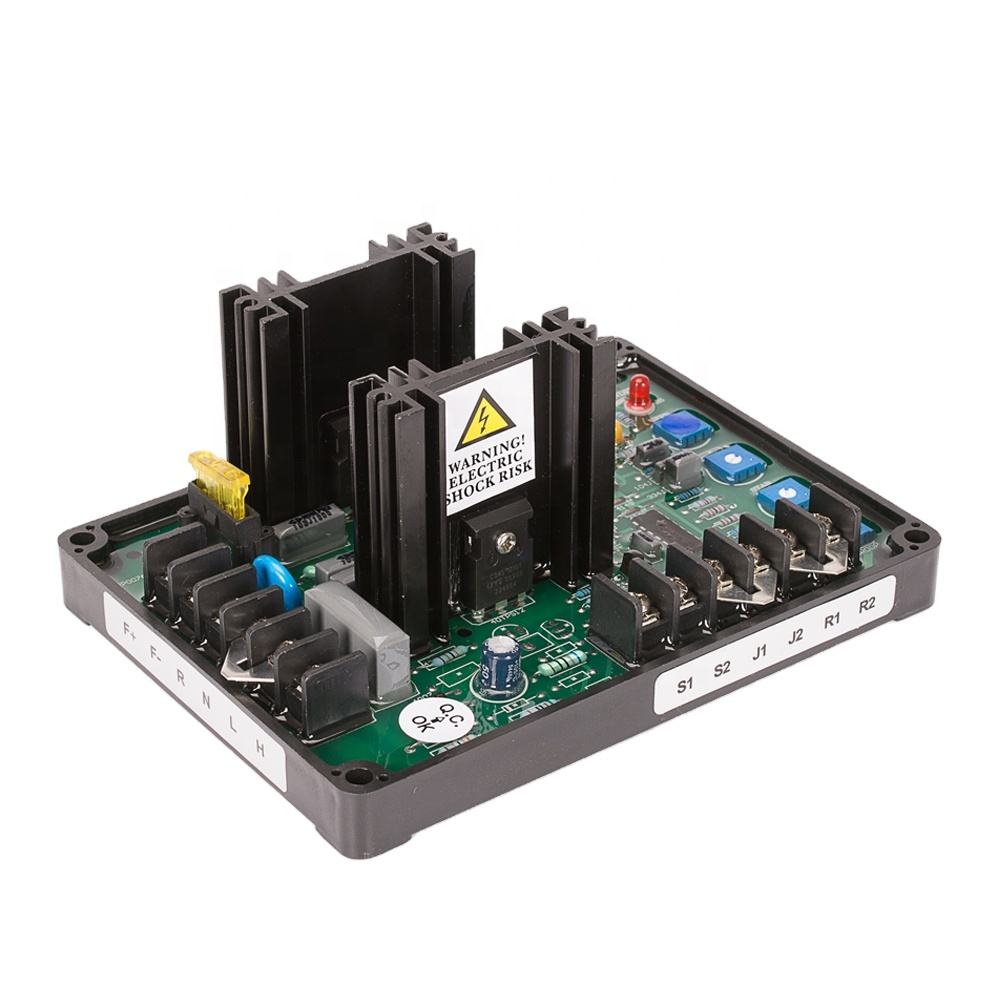

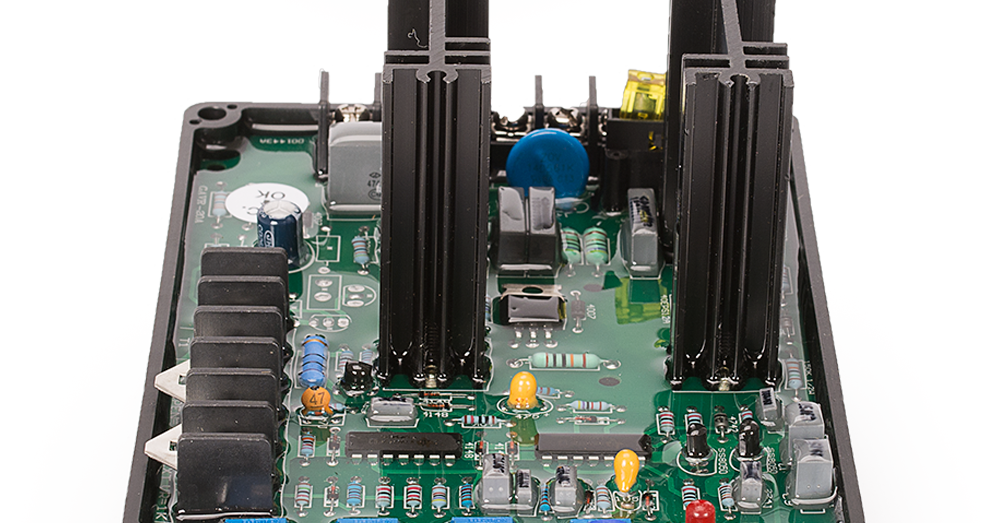

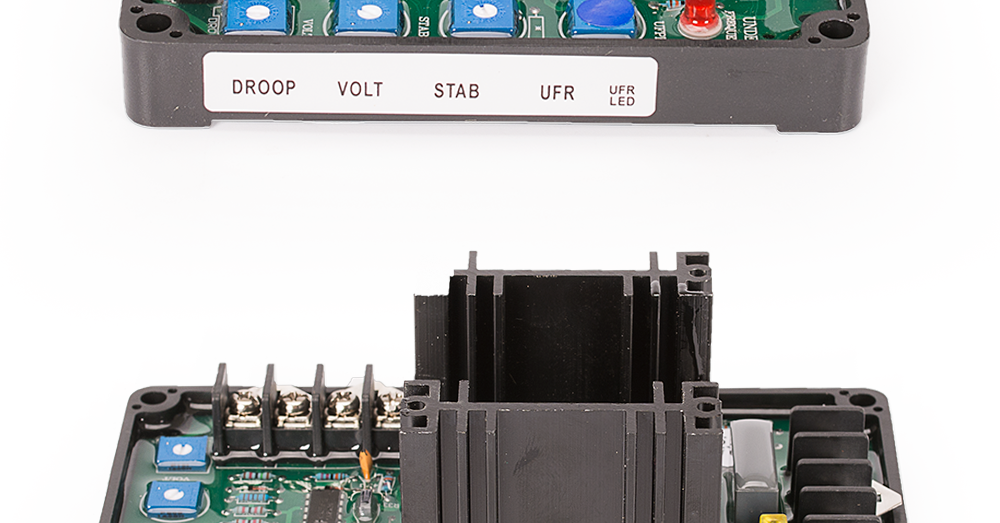

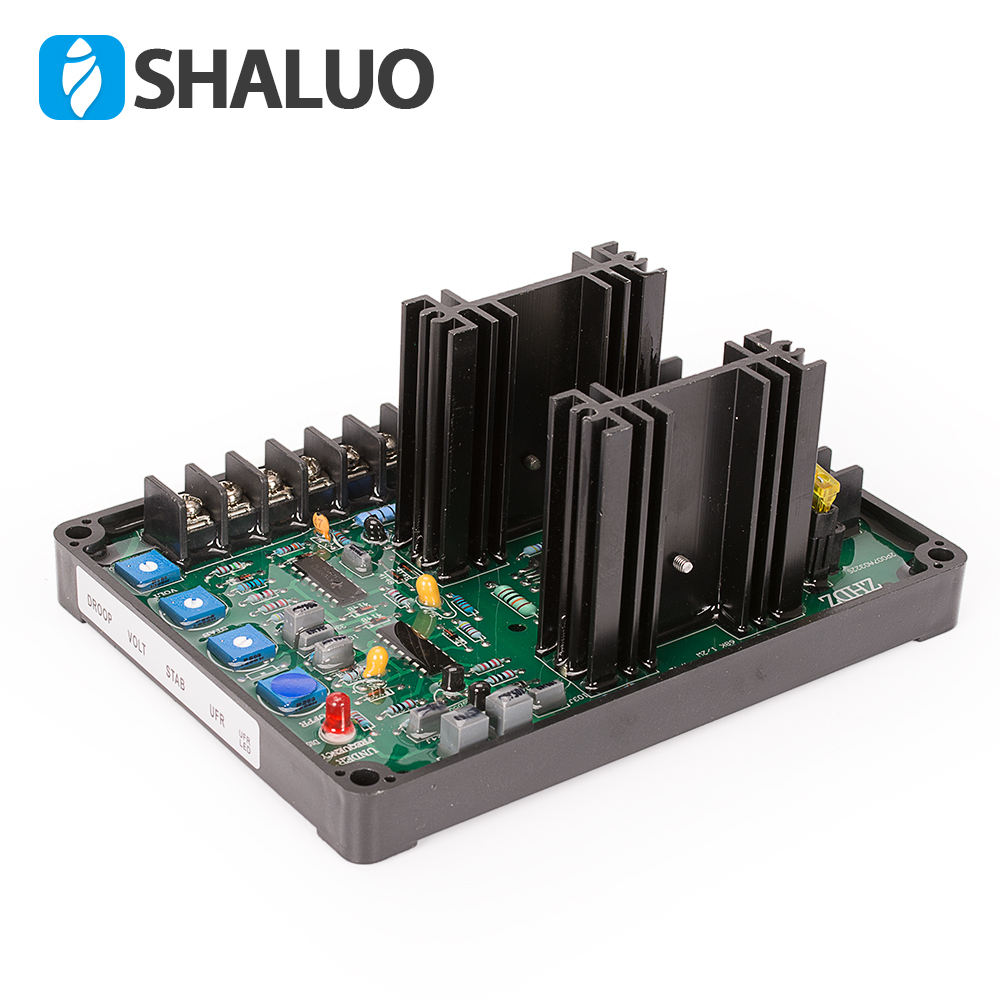

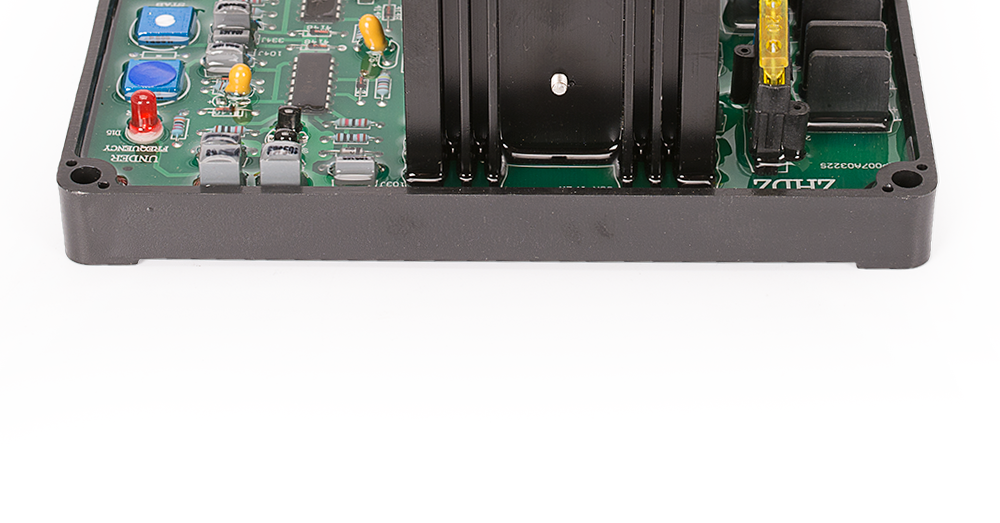

500 kva generator universal brushless avr Automatic Voltage Regulator GAVR-20A

GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.

Specification

*Sensing Input Voltage: 220/400VAC,1phase 2wire

*Power Input Voltage: 180~240VAC, 1phase 2wire

*Output Voltage: Max.90VDC at 240VAC input

*Current: Continuous 6A

*Intermittent: 15A for 10SEE

*Resistance: Min.10Ω Max 100Ω

*Voltage Build-up: esidualvolts at AVR teminal >5VAC

*External Volts Adjustment:  +/-7%with 1KΩ 1watt trimmer

*Unit Power Dissipation: Max.8Watt

*Under Frequency Protection: 60Hz system presets knee point at 57Hz

*Factory Settings: 50Hz system presets knee point at 47Hz
