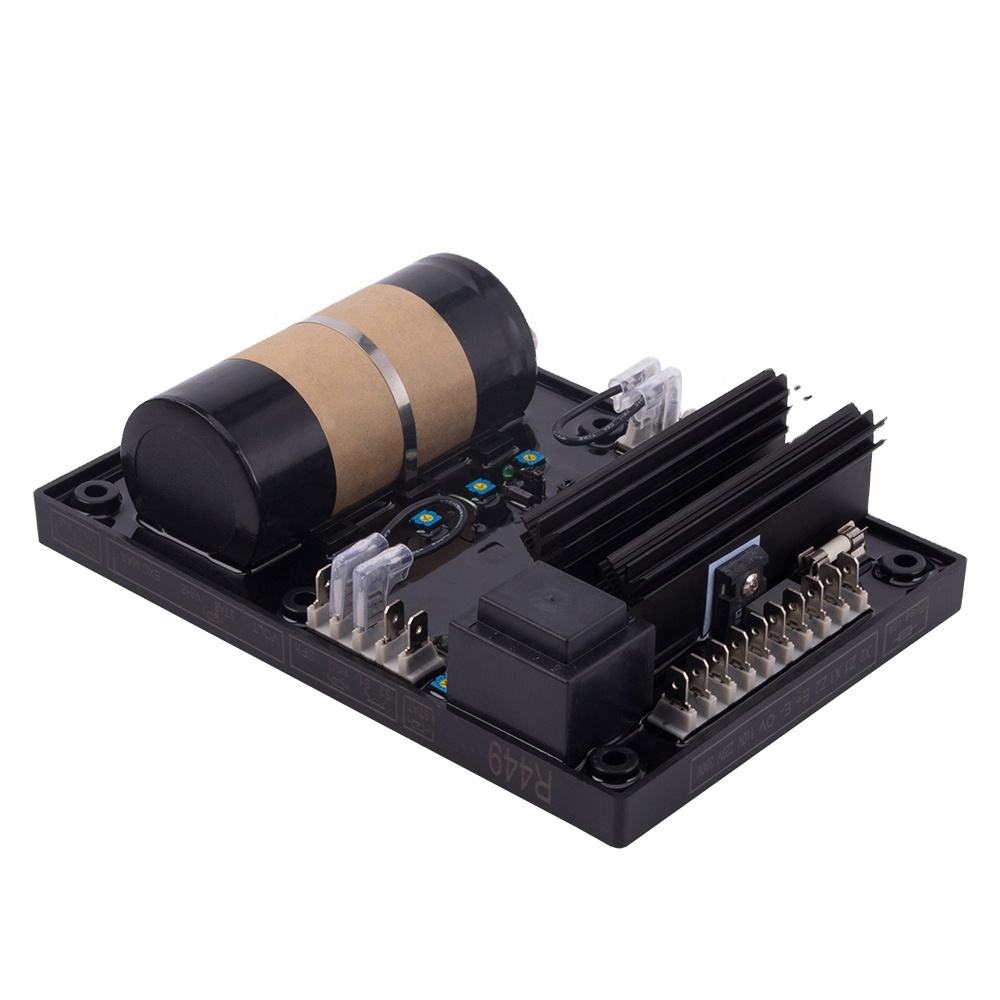

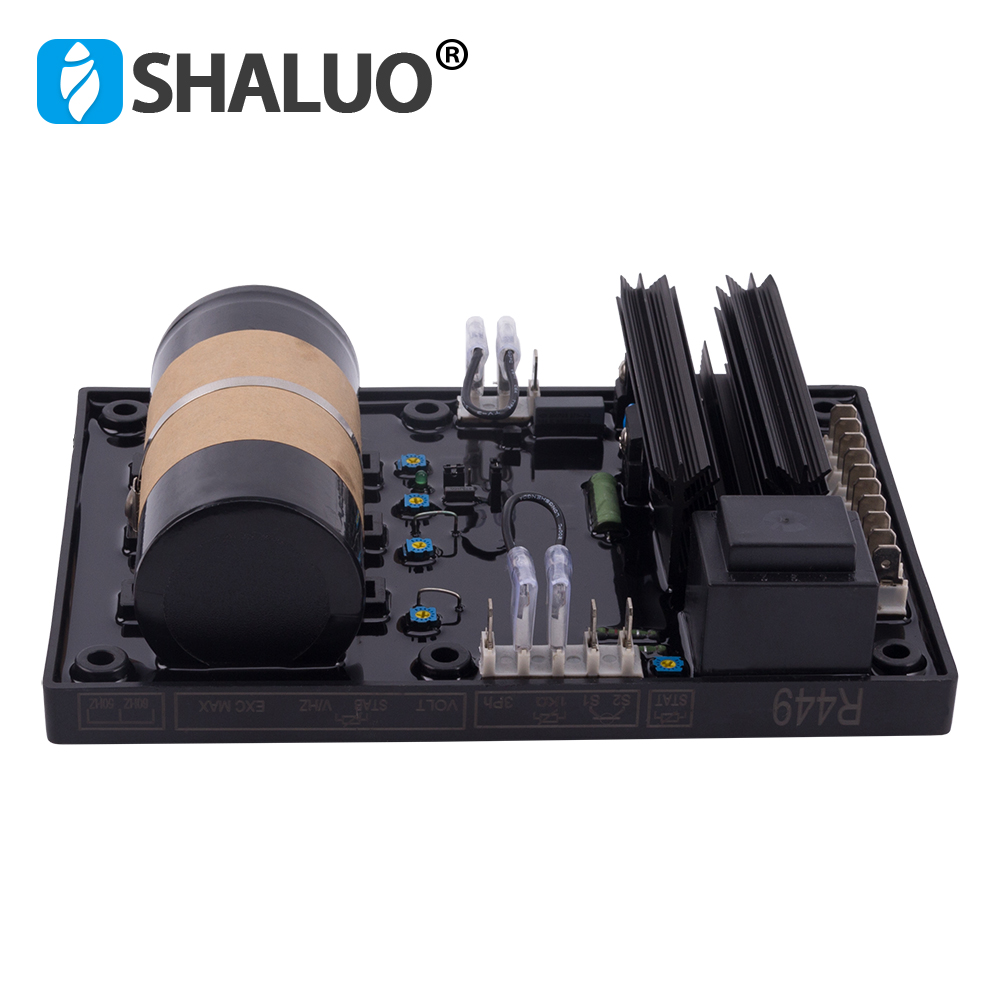

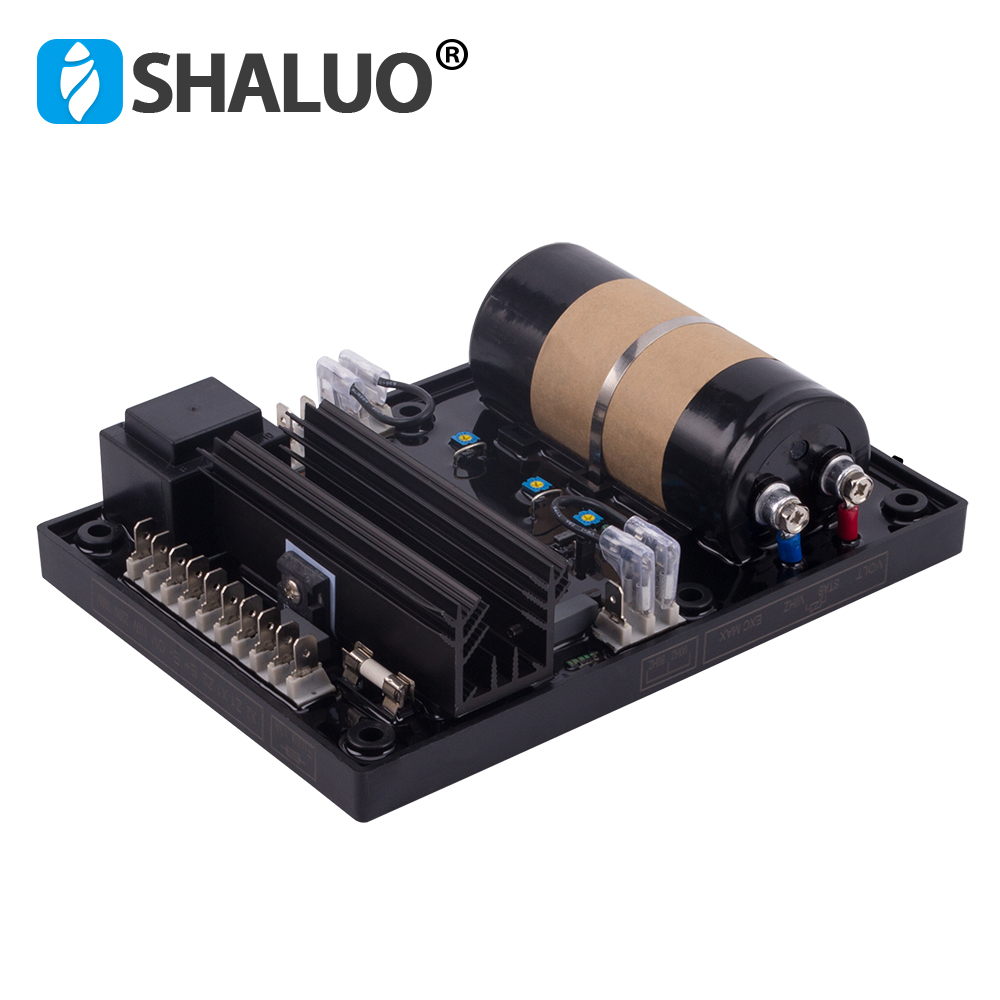

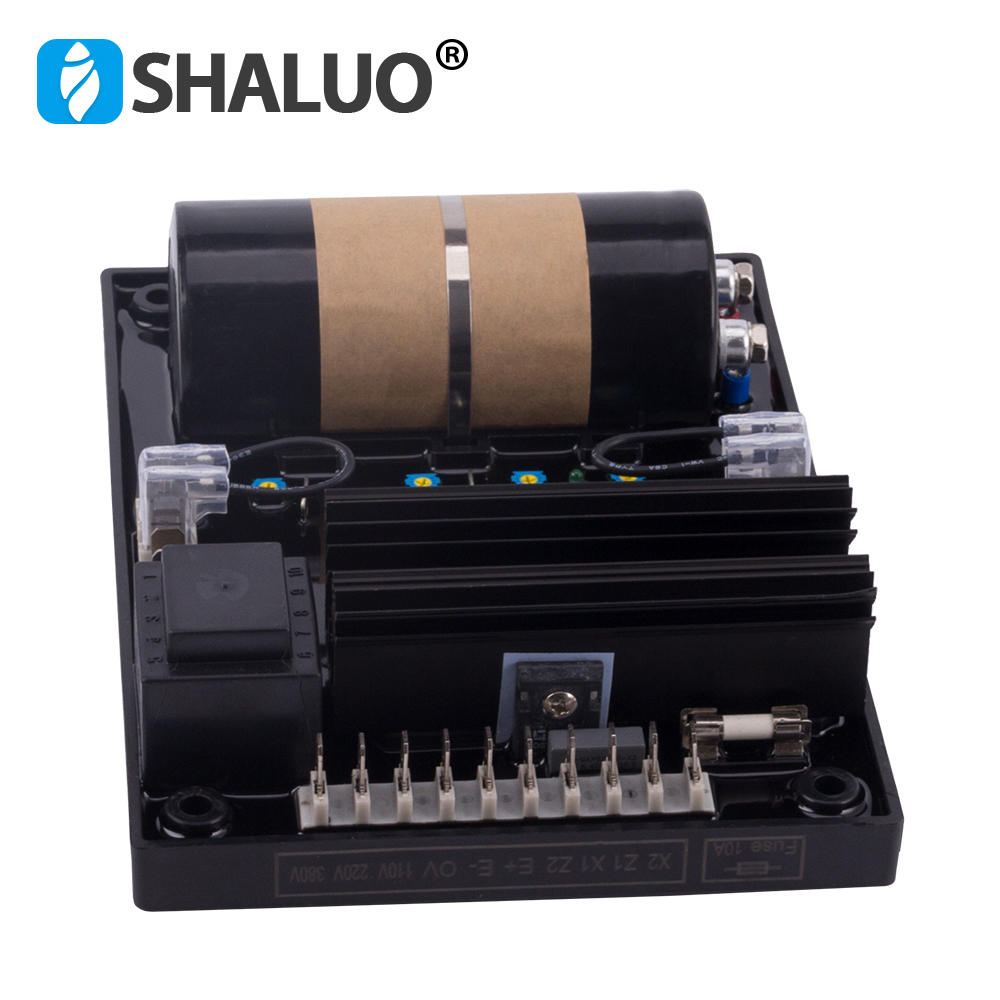

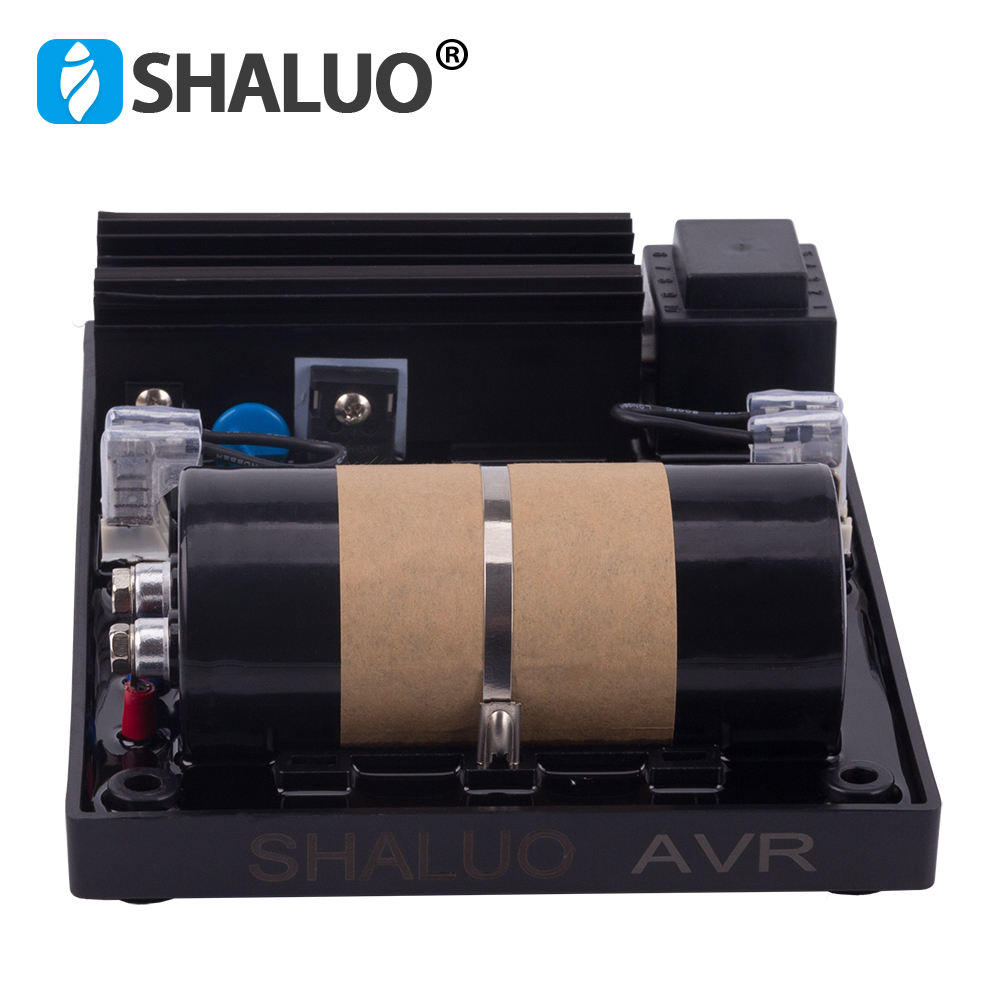

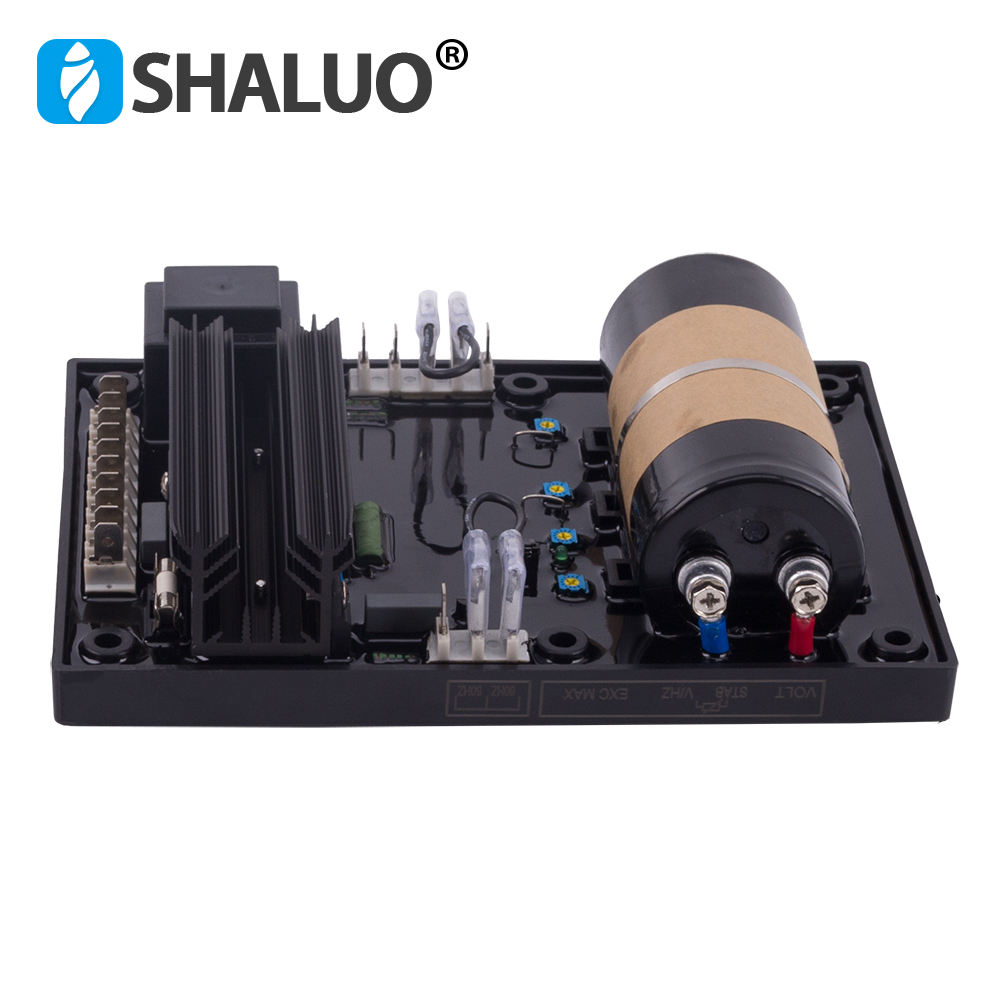

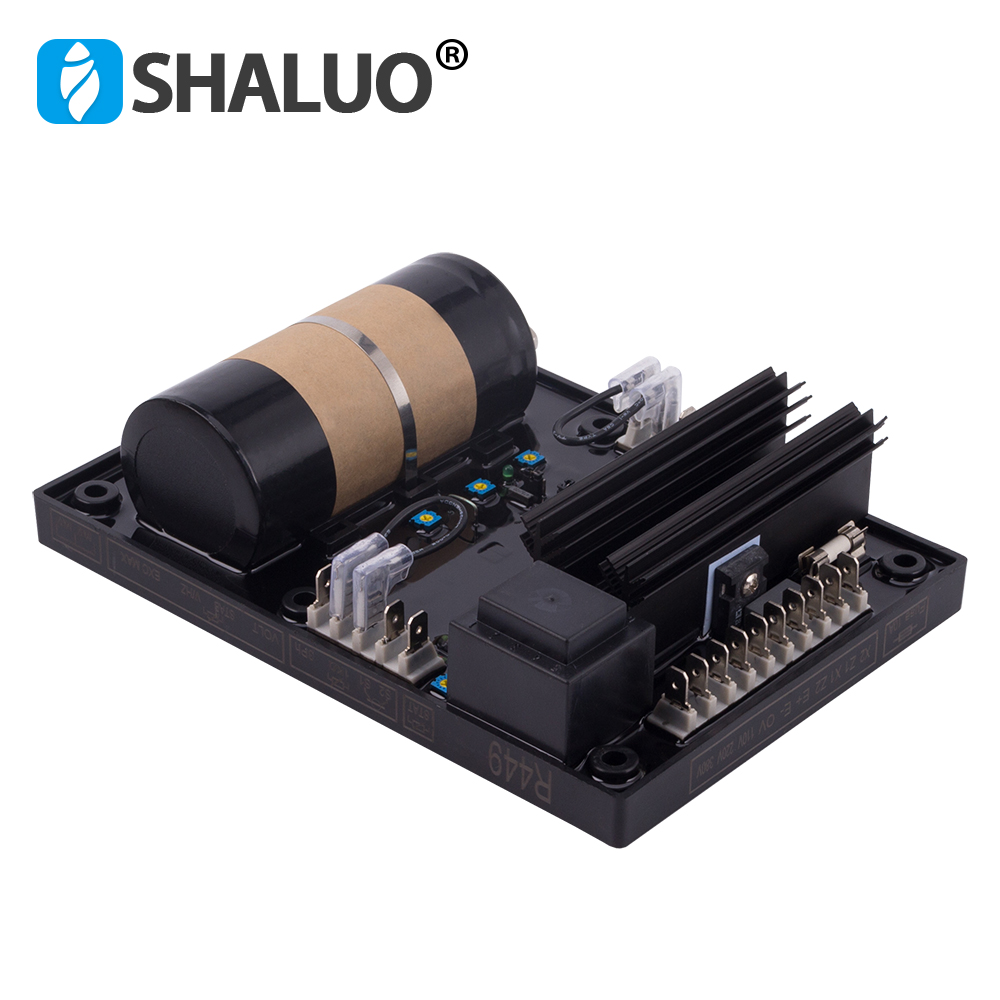

Automatic Voltage Regulator Avr for Generator Ac Adjustable Voltage Protector Stabilizer 220v R449

R449 voltage regulator of a sealed electronic devices,by adjusting the excitation current in order to stabilize the output voltage of the brushless generator.

Specifications

Normal AVR supply power: 2 auxiliary windings

Shunt supply:150V - 50/60Hz

Rated overload current: 15A, 10s

Electrionic built-in(overload, shour circuit, and loss of sensing) prodtection: If Excitation current raises over 10 Amps for more than 10 seconds, excitation current will drops automatically to about 1A.

To reset AVR protection, generator must be stopped(or by cutting supply voltage to the AVR).

Protection of power inputs by fuses F1

voltage sensing: 5VA insulated transformer with input voltage taps at:

Terminals 0-110V=95-140V

Terminals 0-220V=170-260v

Terminals 0-380V=340-520V

Load current 7A

overload current 15A,10s
