Compatible DATAKOM Unit DKG-307 DKG307 Control Module MPU AMF CAN Generator Automatic Mains Failure Controller Panel Genset Part

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

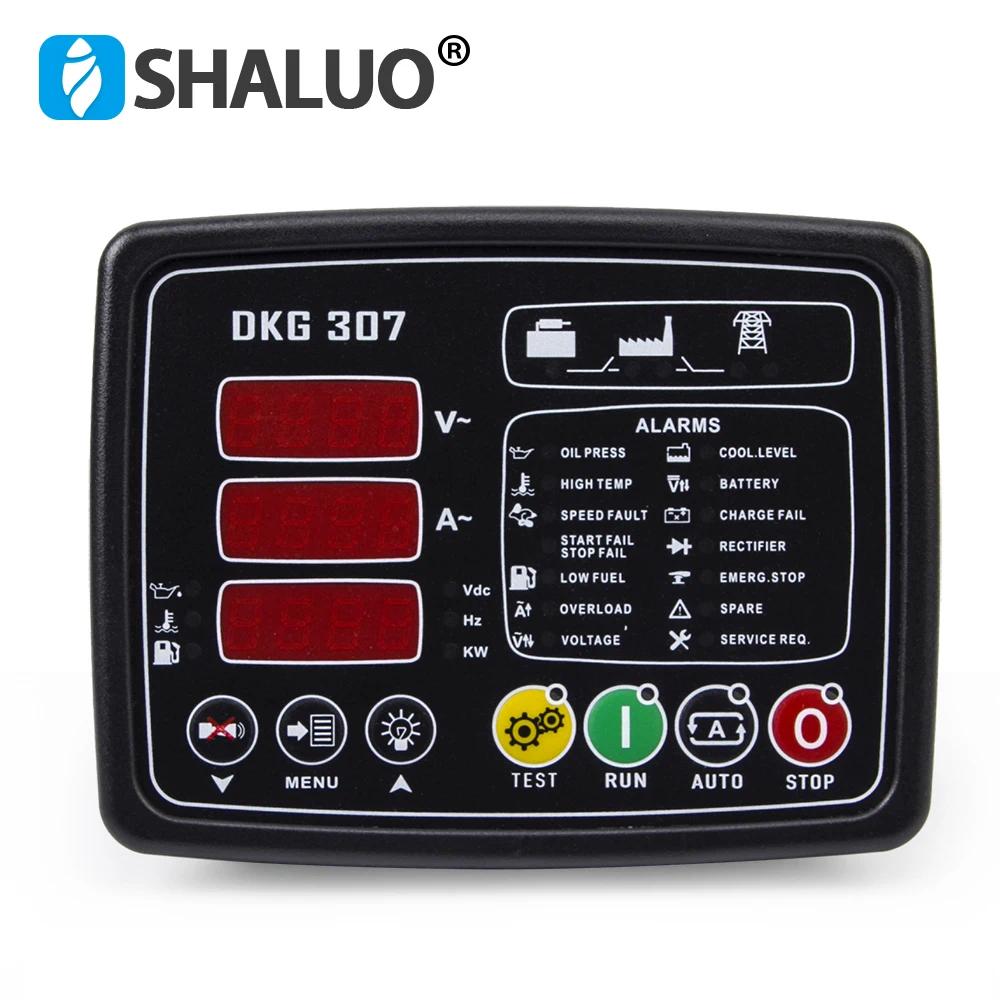

The DKG-307 is a comprehensive AMF unit for a single generating set operating in standby mode.
In AUTOMATIC position, DKG-307 monitors mains phase voltages and controls the automatic starting, stopping and load transfer of
the generating set in case of a mains failure and once the generator is running, it monitors internal protections and external
fault inputs. . If a fault condition occurs, the unit shuts down the engine automatically and indicates the failure source with
the corresponding red led lamp.

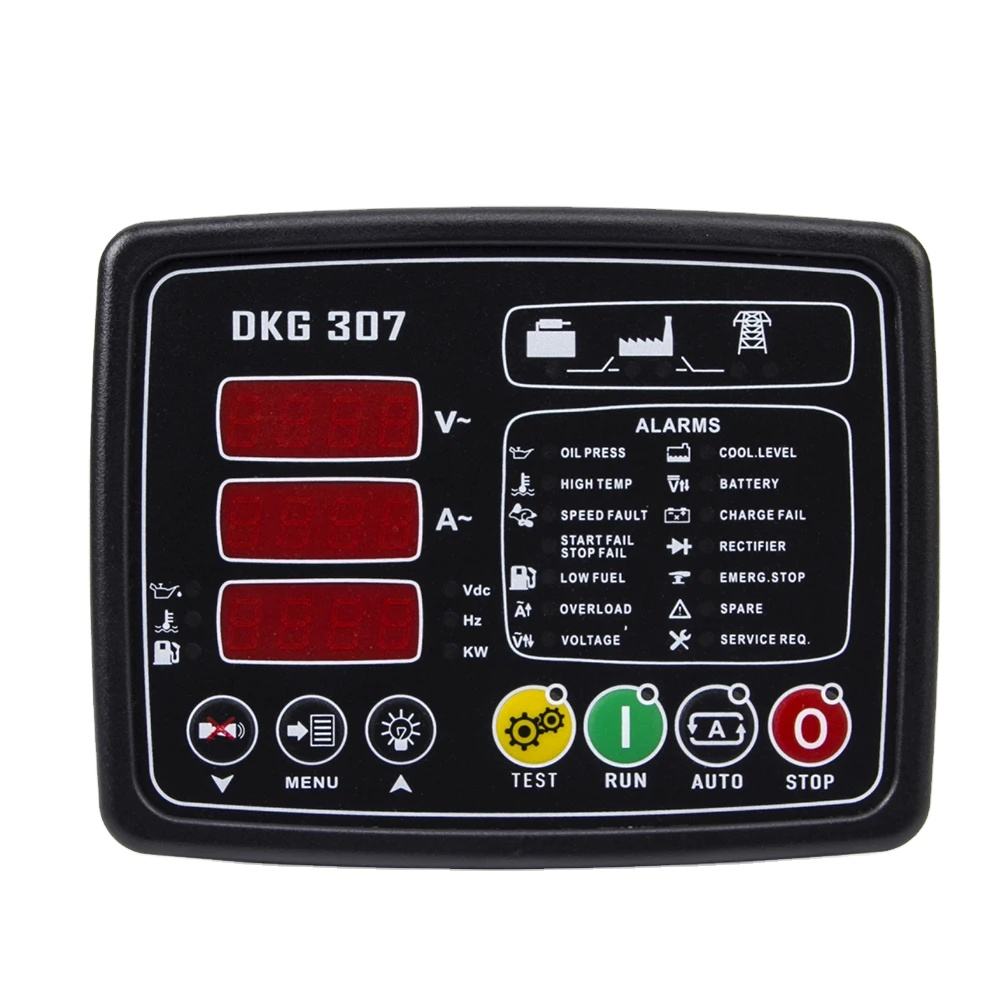

The operation of the unit is controlled with front panel pushbuttons. The LOAD TEST, TEST, AUTO and OFF pushbuttons select the
operating mode. Other buttons select the display parameter scroll, alarm mute and lamp test functions.
The DKG-307 provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations and
operating sequences. The unauthorized access to program parameters is prevented by the program lock input. All programs may be
modified via front panel pushbuttons, and do not require an external unit.
The fault conditions are considered in 2 categories as Warnings and Alarms. Measured values have separate programmable limits for
warning and alarm conditions.
The service request indicator lamp turns on at the expiration of either engine hours or time limits.
It is possible to monitor the operation of the system locally or remotely with the WINDOWS based PC utility program.

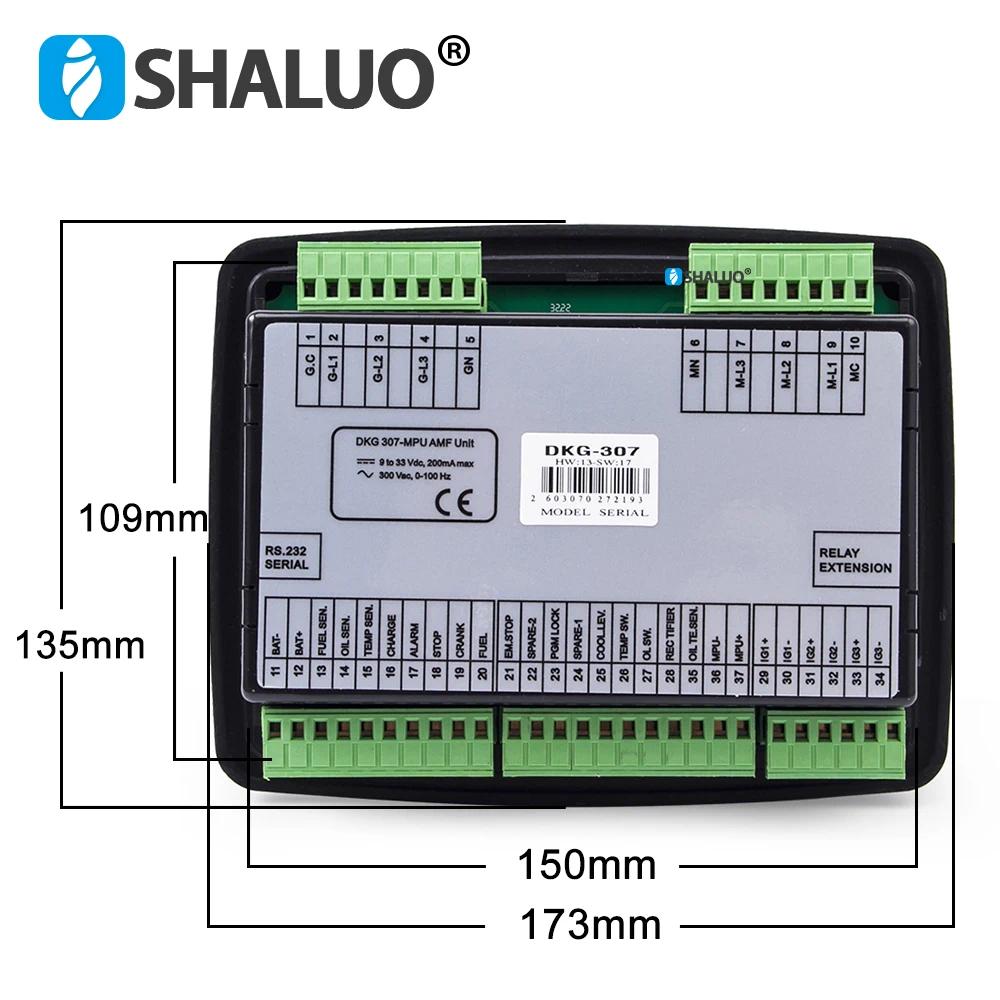

The unit is designed for front panel mounting. It is fitted into the cut-out with the steel spring removed. Connections are made
with 2 part plug and socket connectors.
FEATURES
-Automatic mains failure;
-Engine control;
-Generator protection;
-Built in alarms and warnings;
-3 phase mains voltage inputs;
-3 phase genset voltage inputs.
More on controllers4generators.com
