Diesel Generator Electric Engine Throttle construction machinery power fuel Switch Controller 24V SGCD10

12V Diesel generators electric throttle / diesel electric oil

The power supply voltage: 12V 8 to 15V DC 24V for 16 ~ 30V DC

The static current: 20mA

The TVU pull current: < 1A

The maximum stroke: 90mm

The maximum tension: 200N

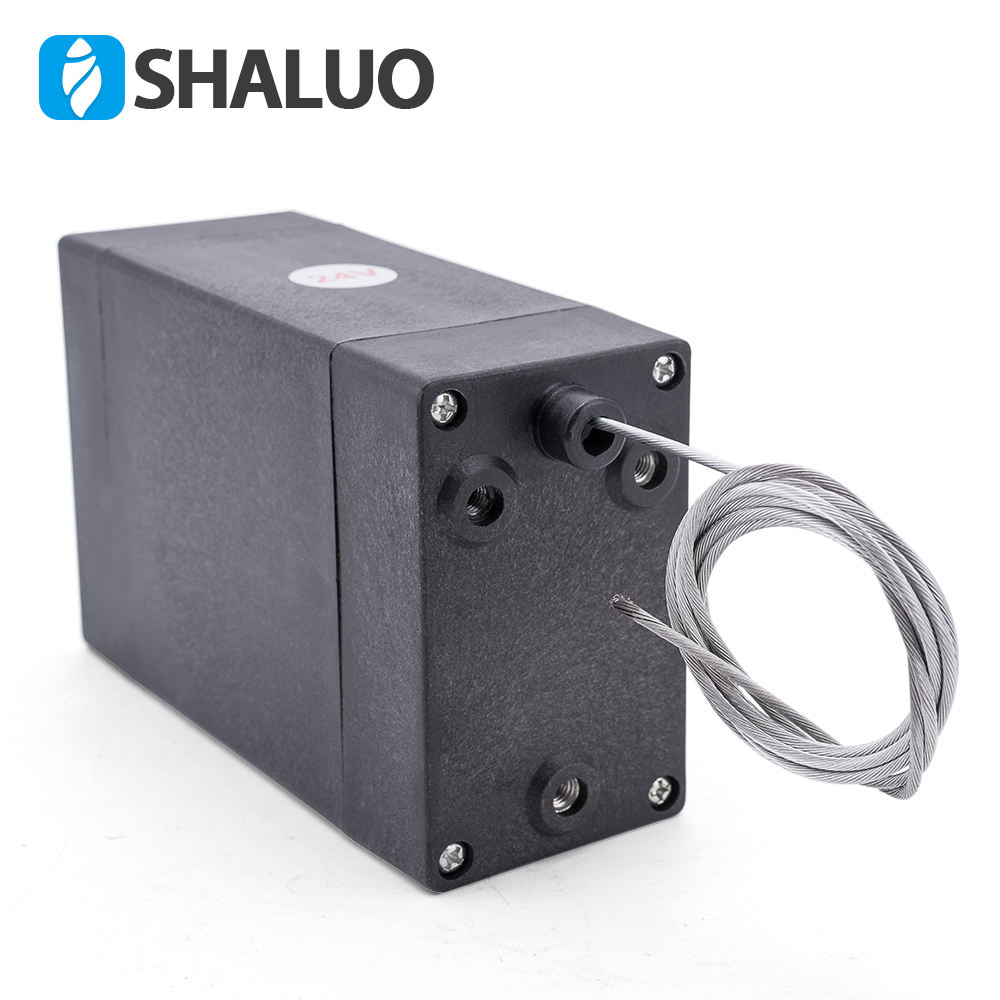

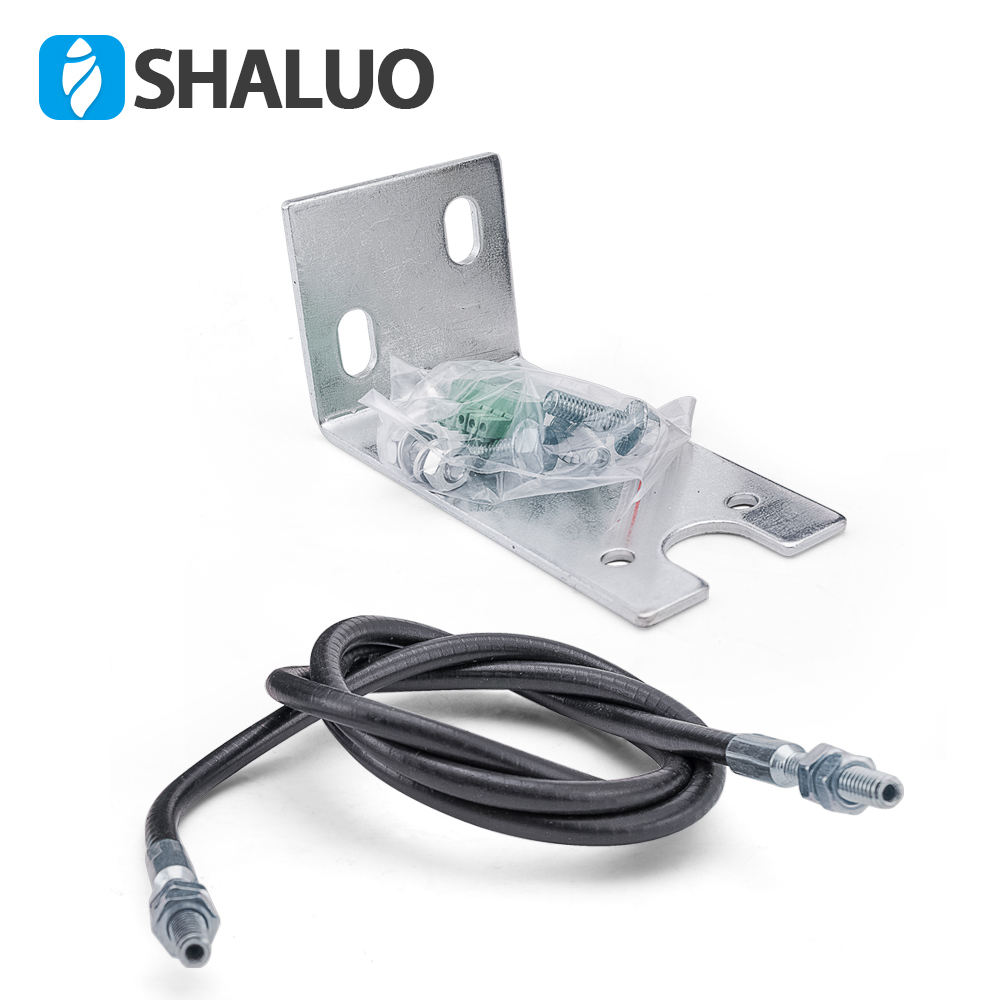

The length of wire rope: the standard 1m, can be customized according to the needs of customers.

Product Description.

SGCD10 series of electric throttle controller is an intelligent electric throttle control device of diesel engine, is a kind of electromechanical products using the chip design, mechanical accelerator can be used in diesel generators, engineering machinery, diesel engine idle speed control, implementation of start, idle stop, speed control, but also through a external multi ring precision potentiometer to realize the accurate control of the throttle, the engine speed control. The device is essentially a position servo system, can be controlled by a potentiometer wire rope position, so it can be used in automatic control system needs the position control, the SGCD10C with isolation type 485 communication interface, support MODBUS protocol, can be computer or PLC communication, remote control.

The main properties and characteristics

The wide range of SGCD10-12V DC power supply: 9~15V DC, SGCD10-24V 18~30V DC

The rally, the maximum tensile force: 200N

The large stroke: 0~90mm

The length of wire rope: the standard 1m, the user can be customized according to the needs of

That has a motor locked rotor and low voltage protection, and there is a corresponding fault indication

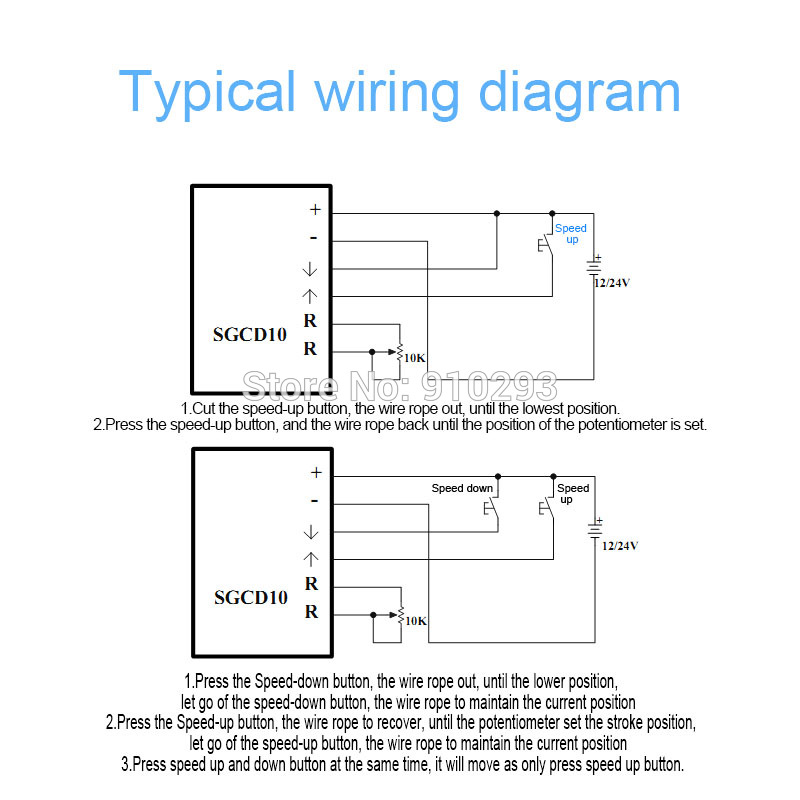

The SGCD10 can be an external potentiometer, SGCD10C has no external potentiometer, but there are 485 communication interface

The MCU and Holzer sensing element, reliable work, convenient operation

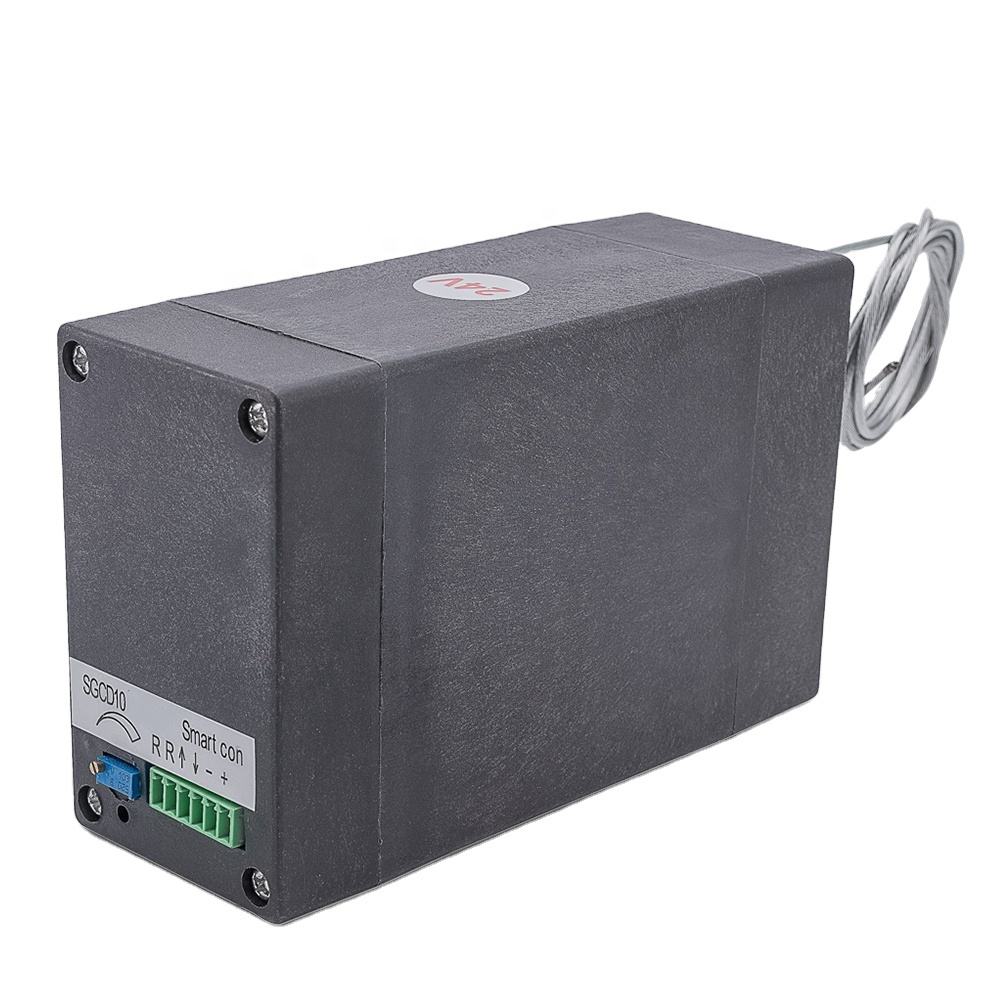

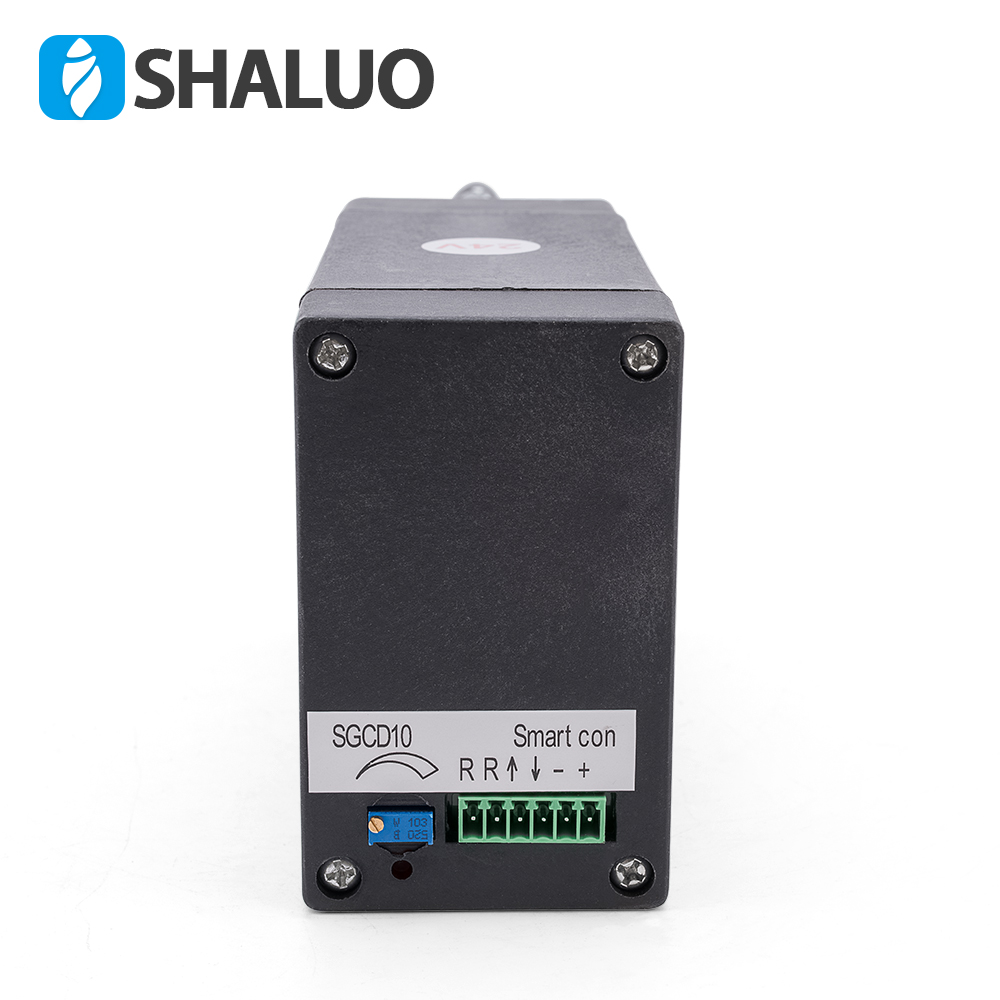

That the use of European plug type terminals, wiring is convenient

For more information, feel free to talk to the customer survice.
