Product Description

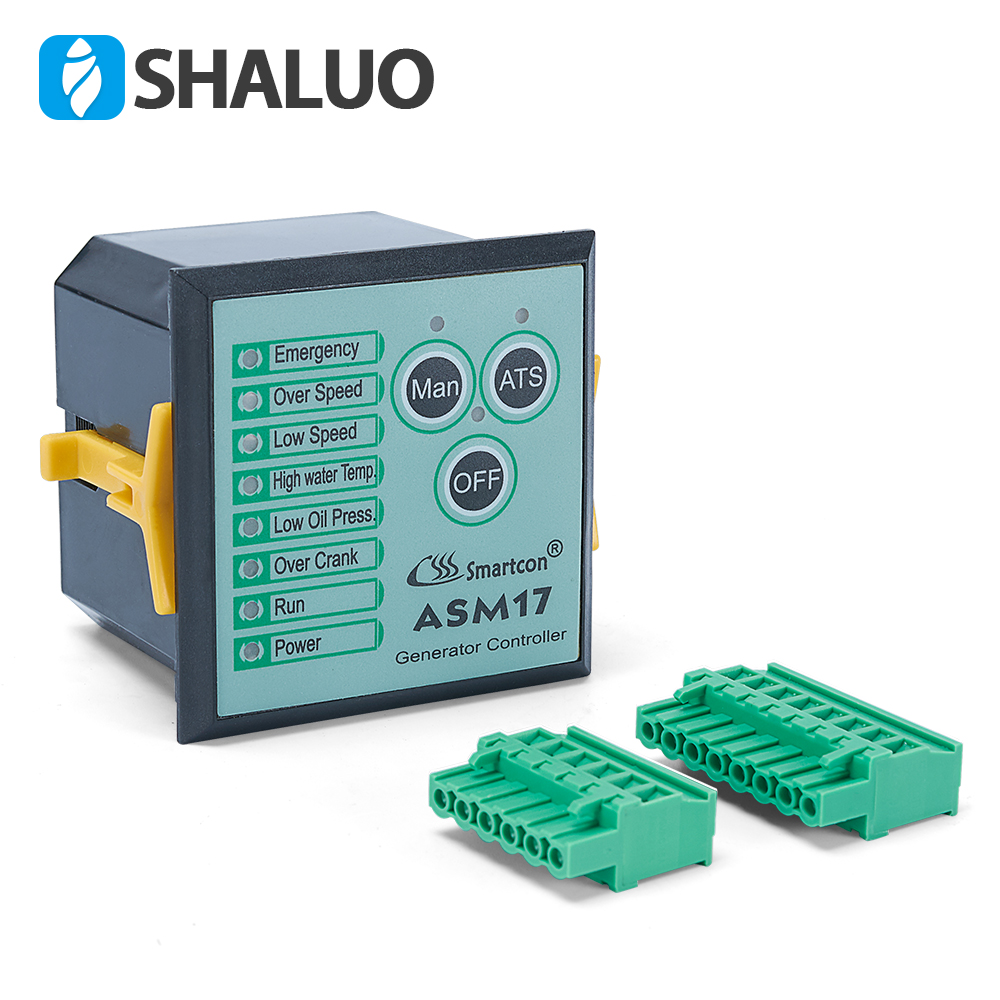

ASM17 is a low cost but multi-function diesel engine generator controller. It applies with 3 buttons and provides 3 kinds of operation mode: Manual, Auto, Off. No special training is required due to the easy operation.
YellTechnical characteristic
Wide DC power voltage range:8~35V DC
Automatic stop and alarm: Low oil pressure,high coolant temperature,over speed,low speed

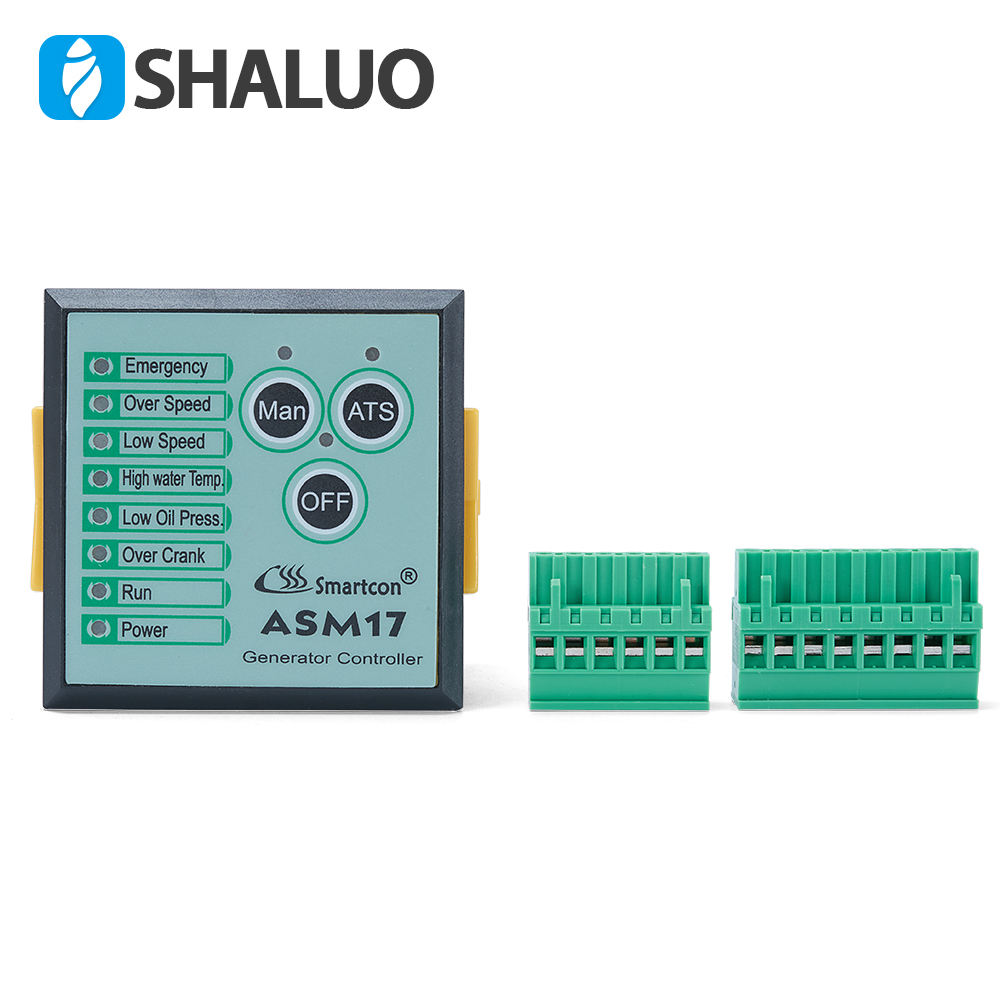

Dispaly status via 11 LEDS in front panel
Speed depend on frequency of generator
Configurable stop crank by oil pressure
Configurable generator frequency(50/60HZ)
Supply oil valve and engine stop output
Supply D+ output for charge generator
Remote start
Supply two configurable output may be designated to preheat,idle control,engine speed servo unit control,ATS control,alarm etc.

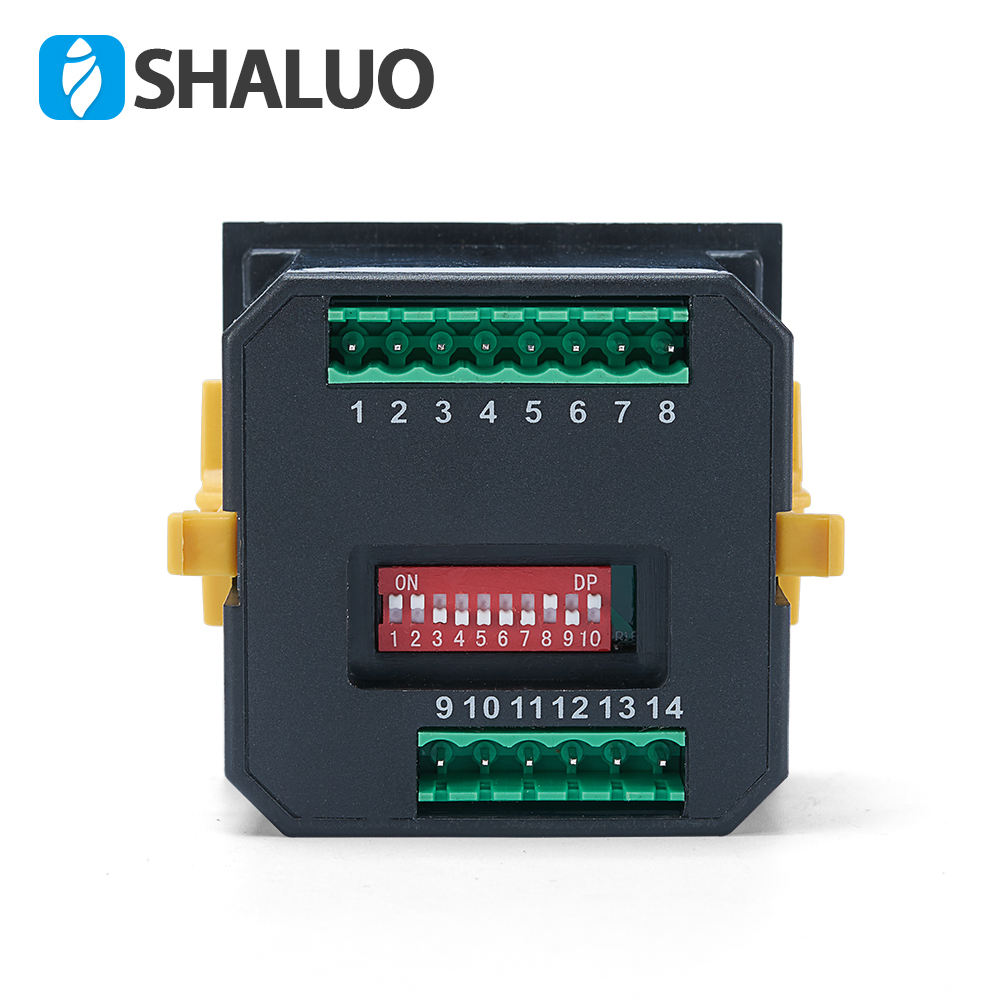

Config the all control parameters via 10 DIP switchs in back panel
Ouptput relay current 5A and built-in continue current doide
Micro-processor based design

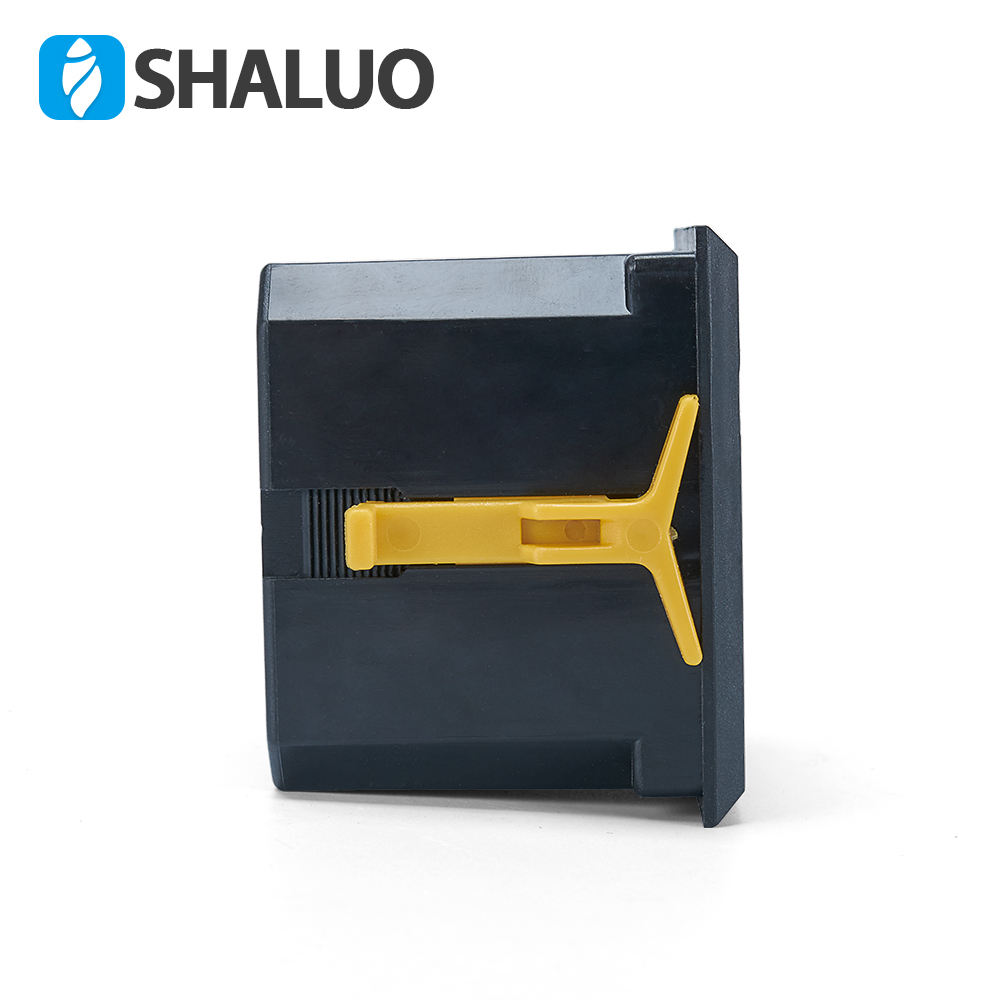

Modular configuration design,inserted type connection terminals,flush type installation, compact structure, easy installation
