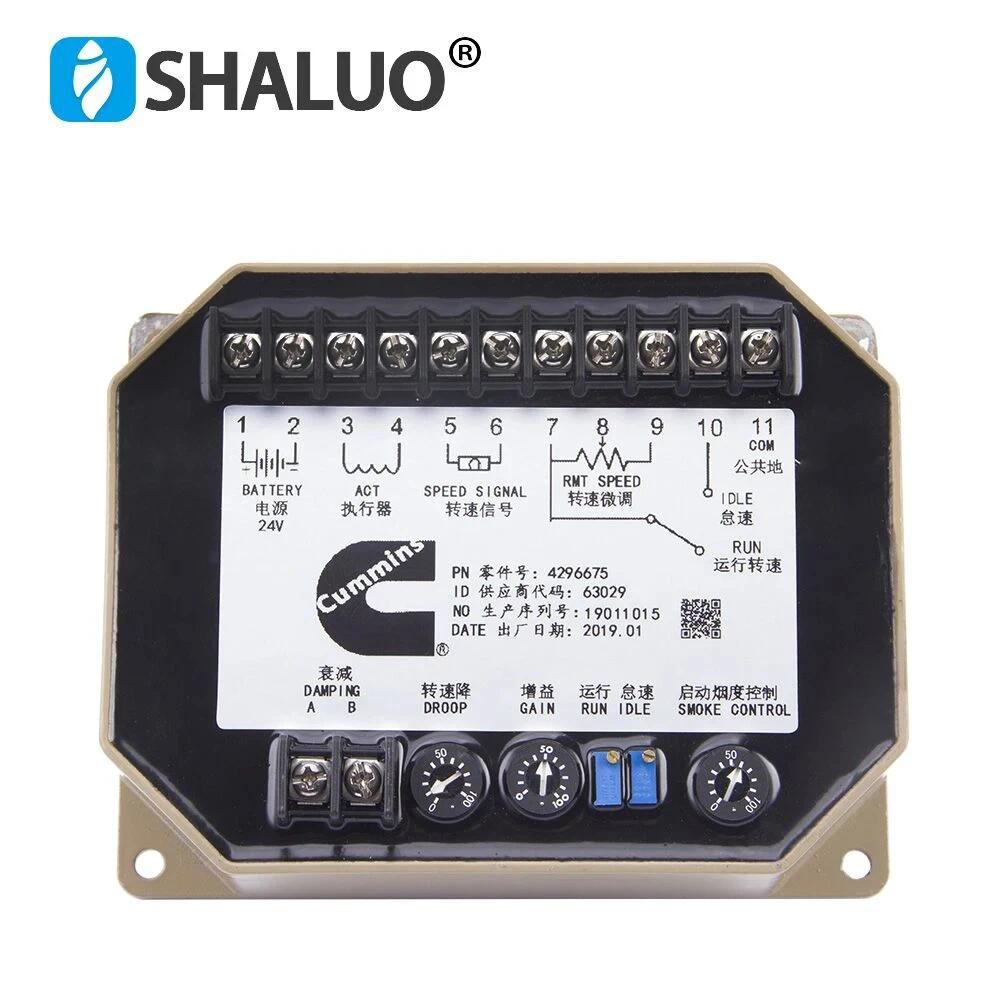

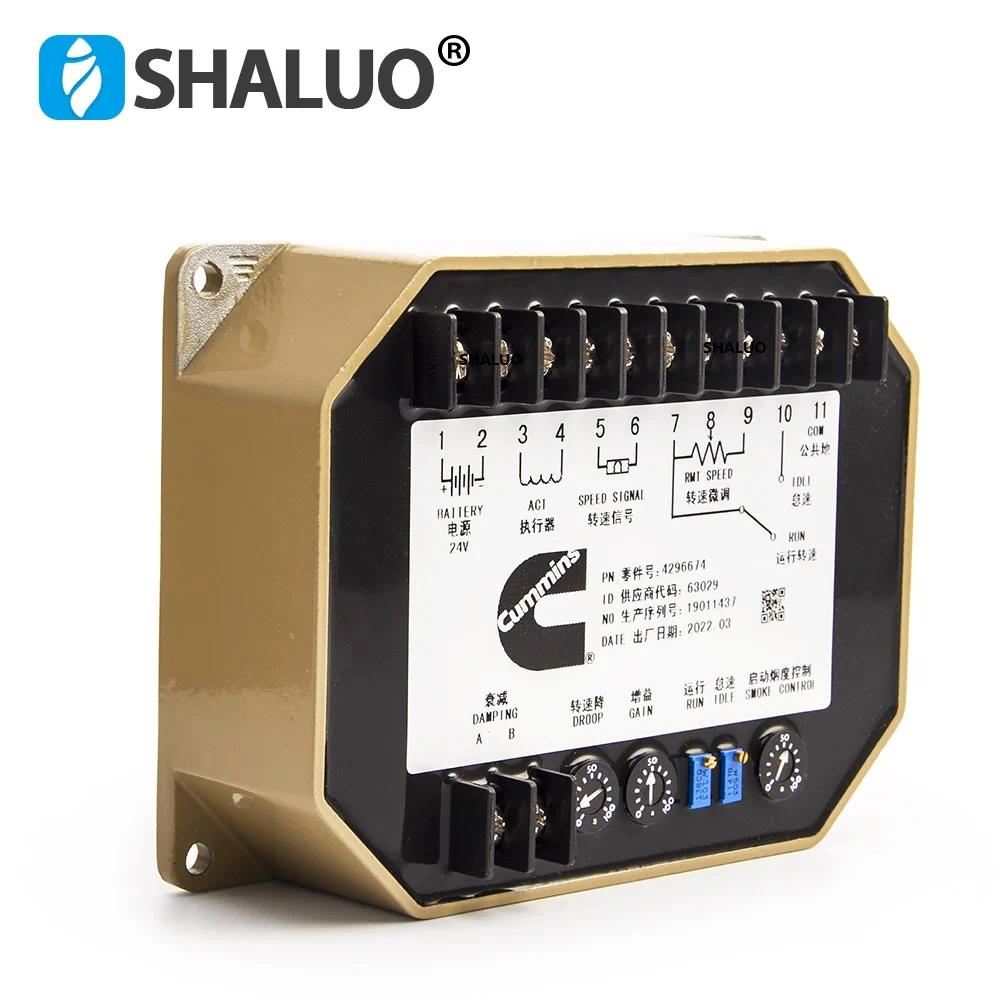

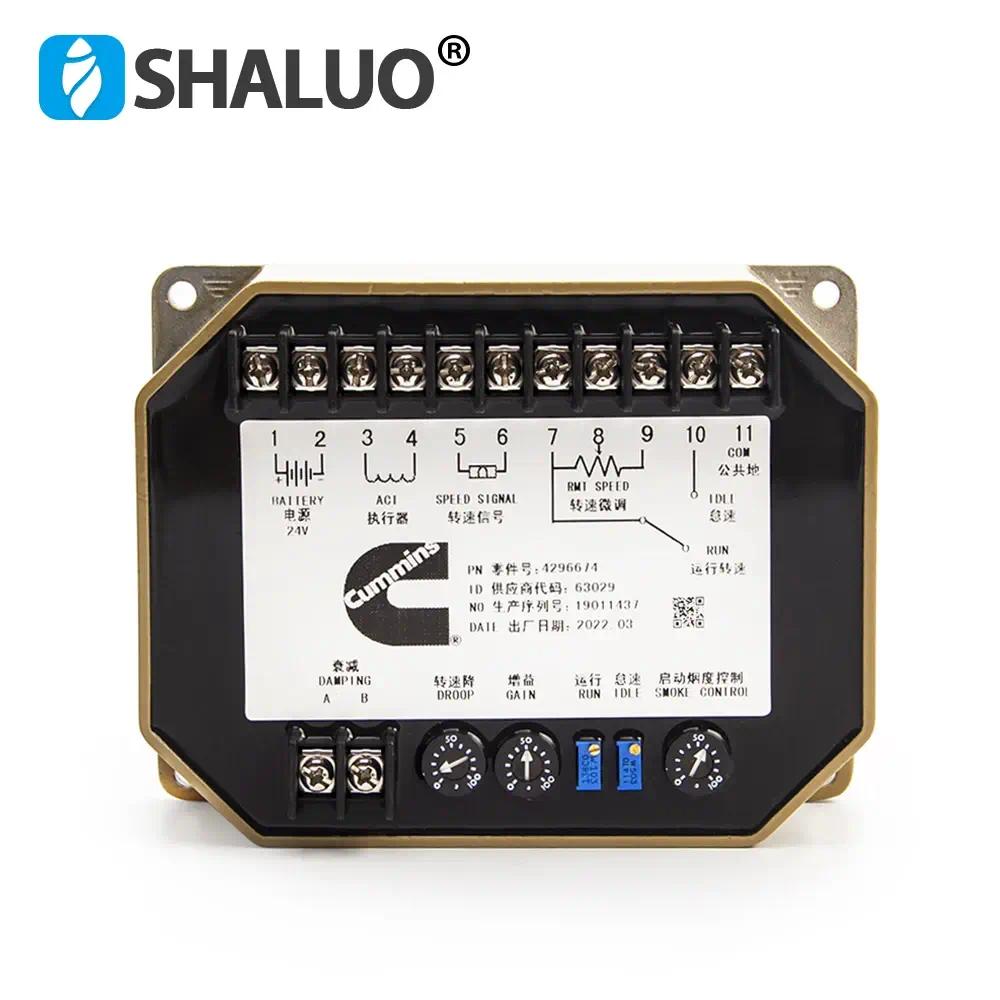

Cummins Diesel Generator Speed Controller 4296674 NT855 K19 Board Engine Speed Govornor Control Unit Module 4296675 K19 KV38

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

4296675 4296674 Replace original Cummins diesel generator Speed Controller Engine Govornor DC motor panel control speed board
module

1. Summary The 4296674 4296675 are a high performance Control gov emors for diesel engine, especially reliability,environmentsuitability,smoke control.Smoke control and cold starting performance had been optimized while wide working voltage, an ti-interference ability and protection ability were enhanced. 2. Technical Characteristics 2.1Basic Functions 2.1.1The 4296674 type is suitable for Cummins NT855, M11, K19 series speed constant engine; The 4296675 type is suitable for Cummins K19, KV38 series speed constantengine. 2.1.2Run/ldle mode switch 2.1.3Remote Speed Adjust 2.1.4Run speed and idle speed setting 2.1.5Gain and Droop setting 2.1.6Smoke control setting 2.2 Working Parameters 2.2.1Rated Voltage: 24 t 6 VDC 2.2.2Maximum Output Current: 2.1A 2.2.3 Speed Signal: Sinusoidal Signal, effective value not less than 1.7V 2.2.4 Speed Adjustment Range 500 t 50Hz (speed range dep endent on flywheel gear tooth No.) 2.3 Working Environment 2.3. 1Temperature Range: -45~+75'C 2.3. 2Relative Humidity: < 90% 2.3.3Vibration Acceleration :< 100m/s 2.3.4 Shock Acceleration: < 150m/s'


Detailed Images
