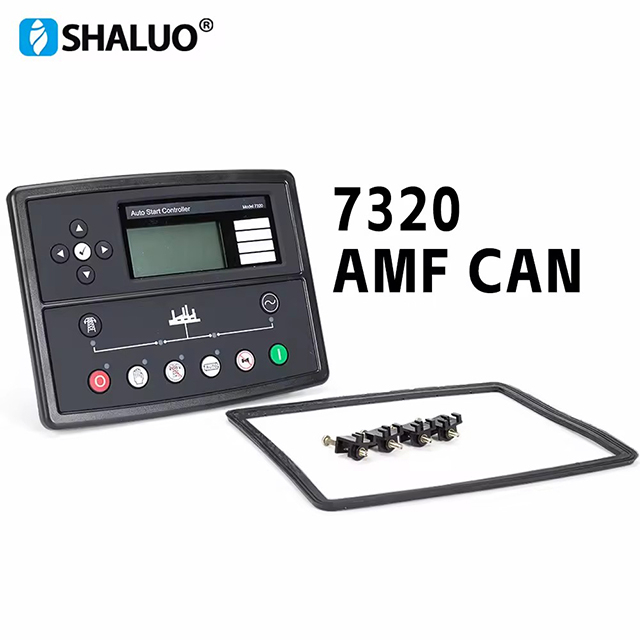

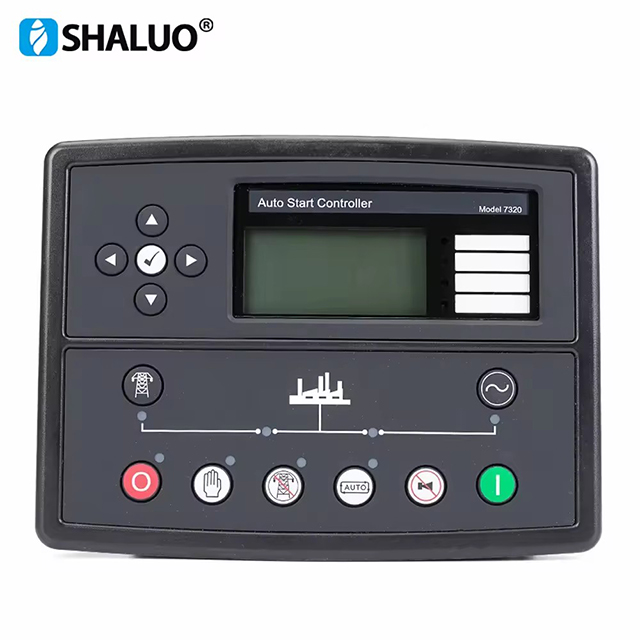

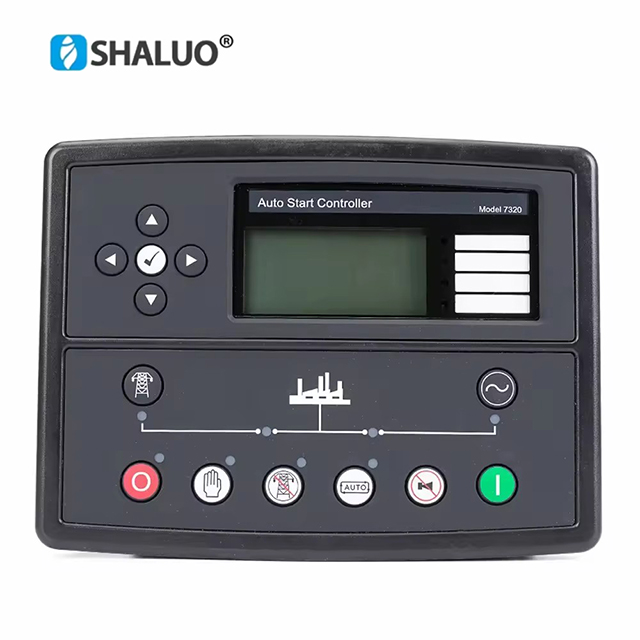

DSE7320

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

*The 7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

*Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).

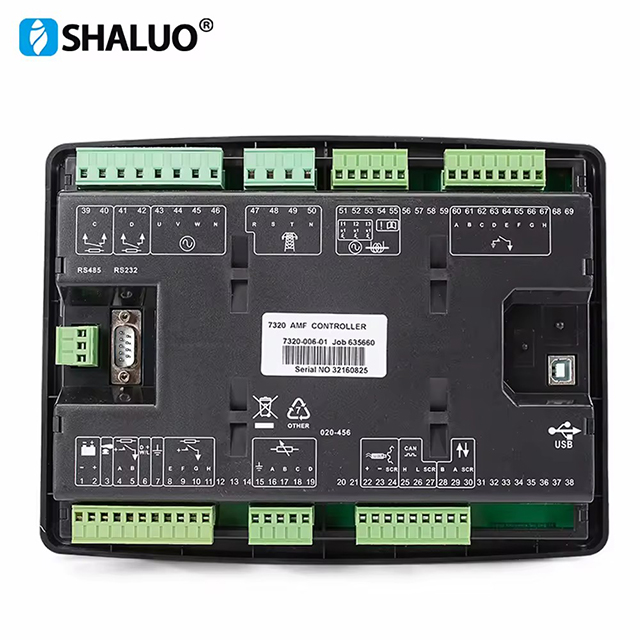

*The 7320 will monitor the mains (utility) supply and includes USB, RS232 and RS485 ports as well as dedicated

DSENet® terminals for system expansion.

*The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.

*The module has an extensive list of features including enhanced event and performance monitoring and remote communications

*The module can be easily configured using the Configuration Suite PC software. Selected front panel editing is also available.

Power Supply	8 to 35 Vdc Continuous
Cranking Dropouts	Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the Need for internal batteries.
Max Current	Operating 340 mA at 12 V, 160 mA at 24 V; Standby 160 mA at 12 V, 80 mA at 24 V 24V
Start Output	15 A DC at supply voltage
Fuel Output	15 A DC at supply voltage
Auxiliary Relay Outputs	2 A DC at supply voltage
Charge Fail / Excitation Range	0 V to 35 V
Alternator Input Range	15 V - 333 V AC (L-N)
Alternator Input Frequency	3.5 Hz to 75 Hz
Mains Supply Input Range	15 V - 333 V AC (L-N)
Mains Supply Input Frequency	3.5 Hz to 75 Hz
Magnetic Pick-up Voltage Input Range	+/- 0.5 V to 70 V
Magnetic Input Frequency	10,000 Hz (max)
Operating Temperature Range	-30 to +70°C

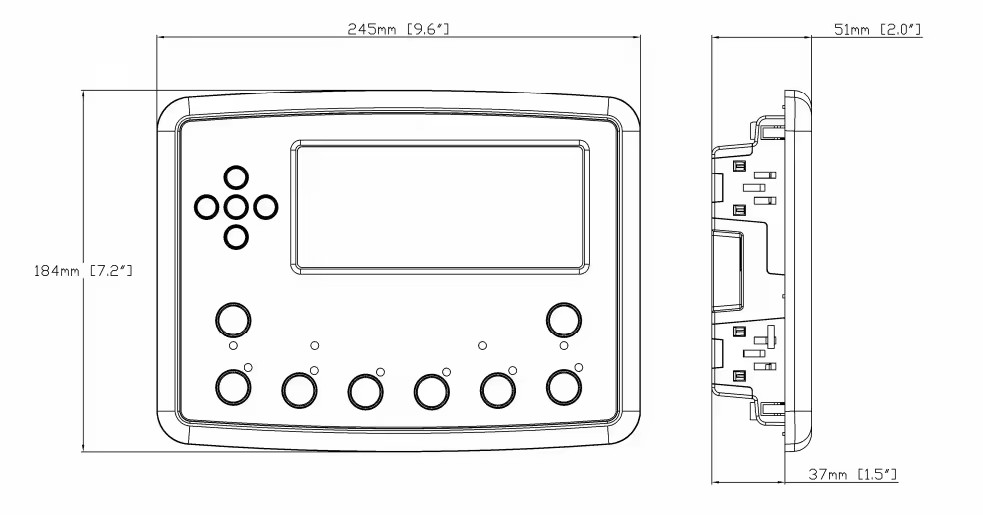

Panel Cutout	220mm x 160mm ( 8.7" x 6.3"
