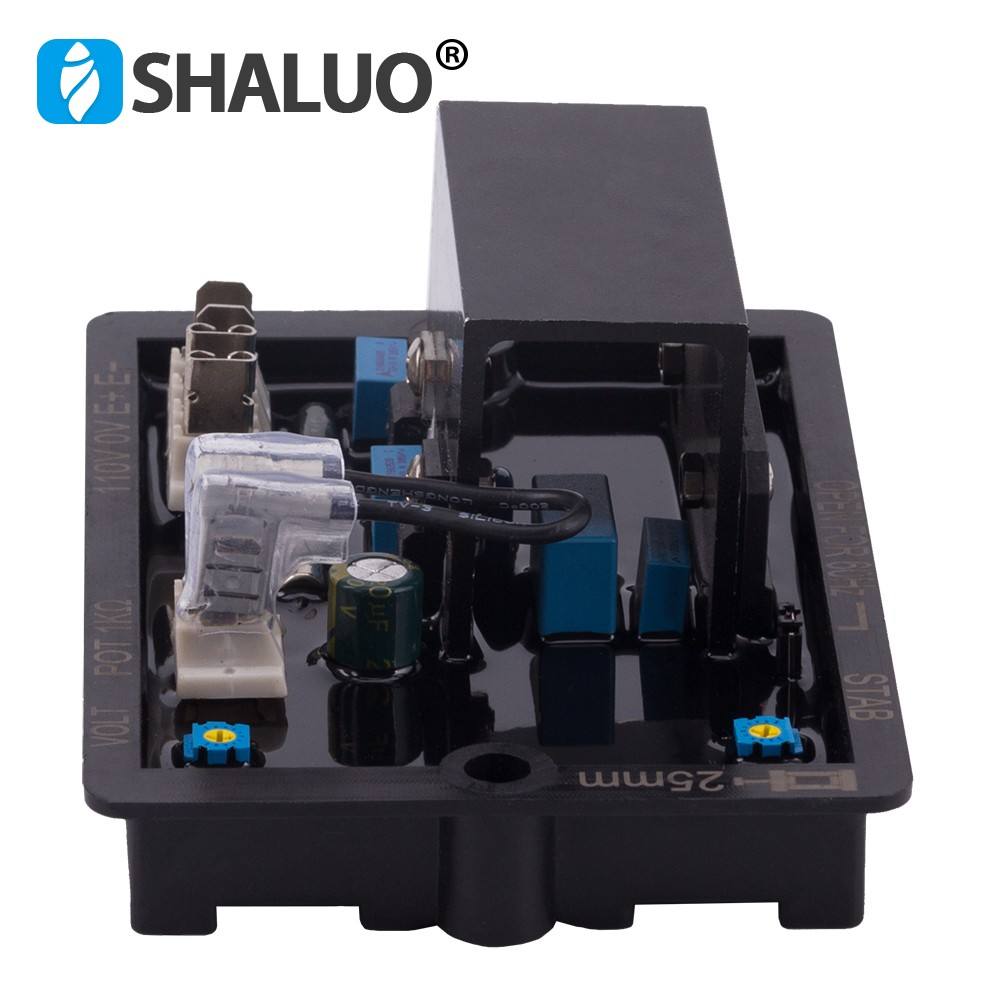

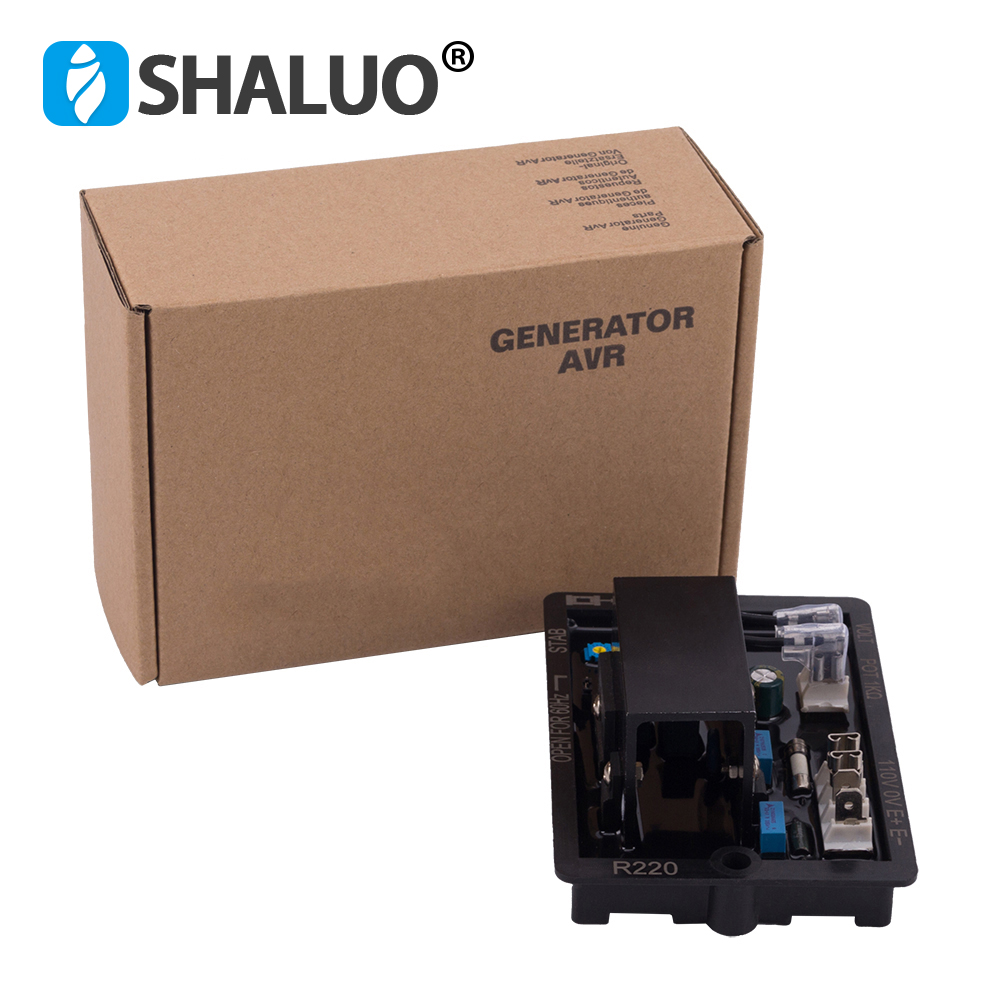

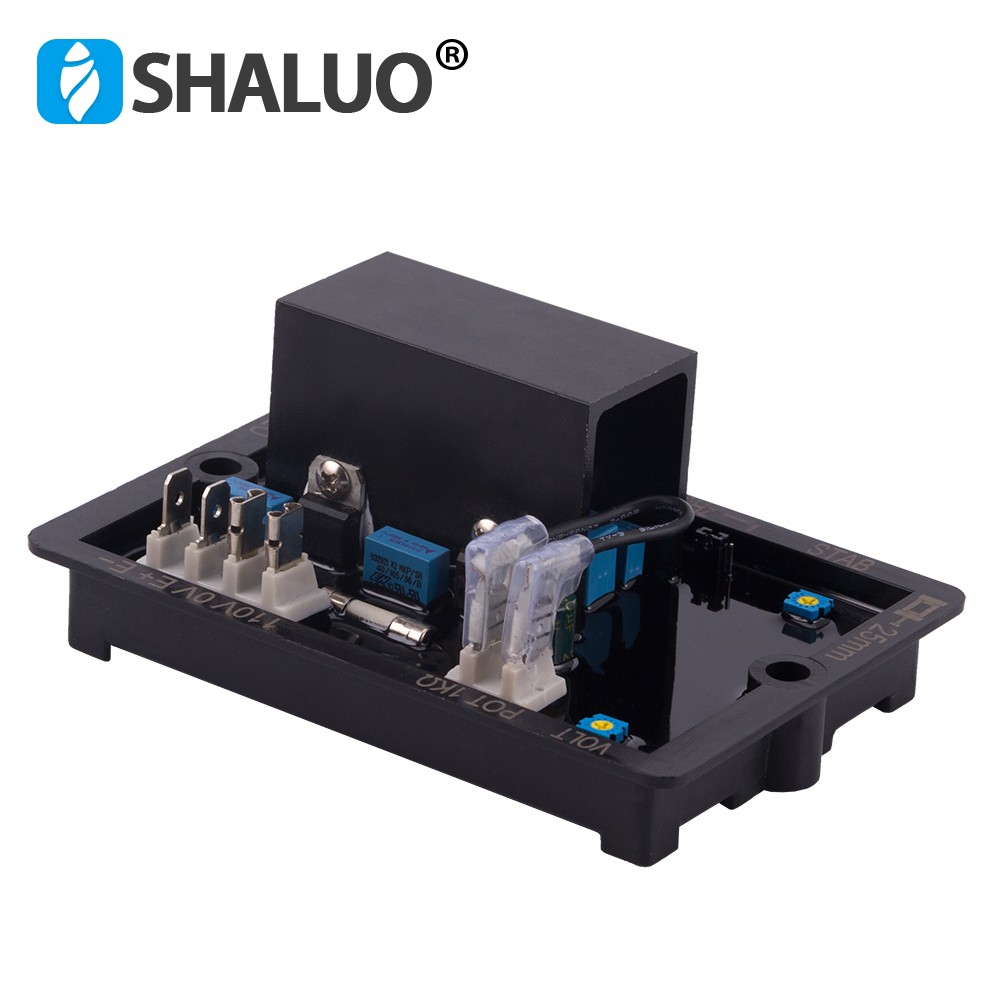

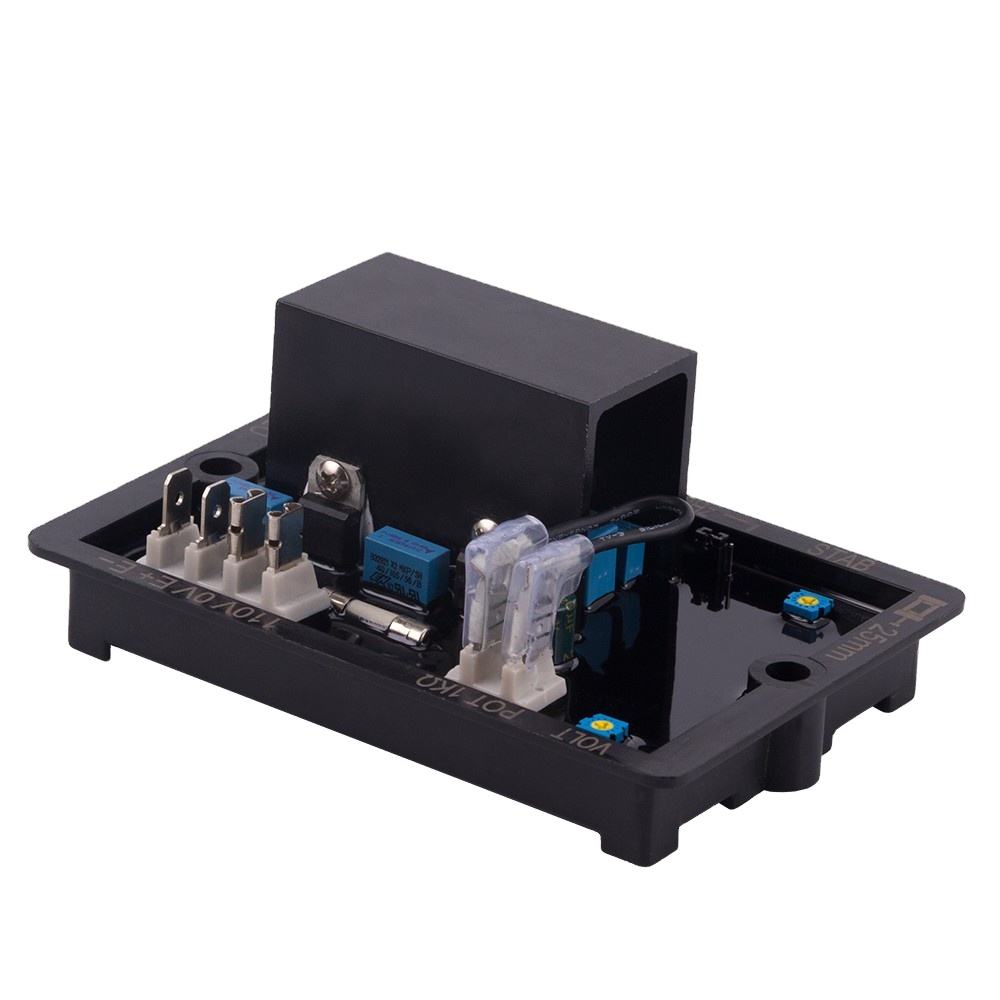

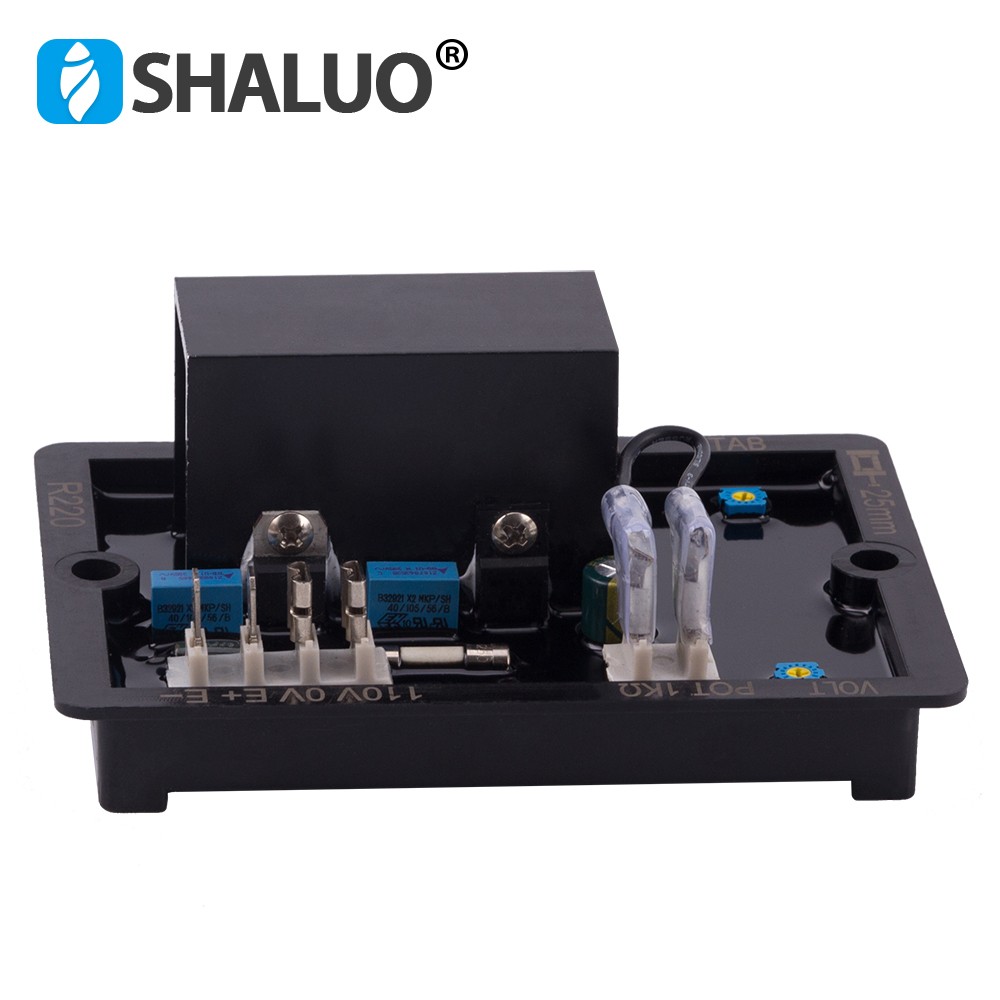

Diesel Generator AVR R220 Genset Spare Parts Stabilizer Automatic Voltage Regulator 3 Phases for Brushless Alternator

The R220 is analog Automatic Voltage Regulator with transistors.

standard : for LSA 40 alternators.

-Adapted to the SHUNT and AREP excitation system

-Main characteristics

-Voltage regulation +/- 0.5% at steady state and constant speed.

-Response time 500 ms

-Nominal excitation current : 3A

-Maximum excitation current 7A for 10 sec.

-Alimentation and detection 85 to 139 V (50/60Hz)

-Protection : Fuses embeded in resin

Features:

- Storage : -55°C ; +85°C

- Operation : -40°C ; +65°C

- Voltage regulation: ± 0.5%.

- Voltage supply/sensing range 85 to 139 V (50/60 Hz)

- Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20%

- Voltage setting P1

- Stability setting P2.

- Power supply protected by 8 A fuse, slowblow action (tolerates 10 A for 10 s)

The fuse is impregnated in the resin, therefore it can not be replaced.

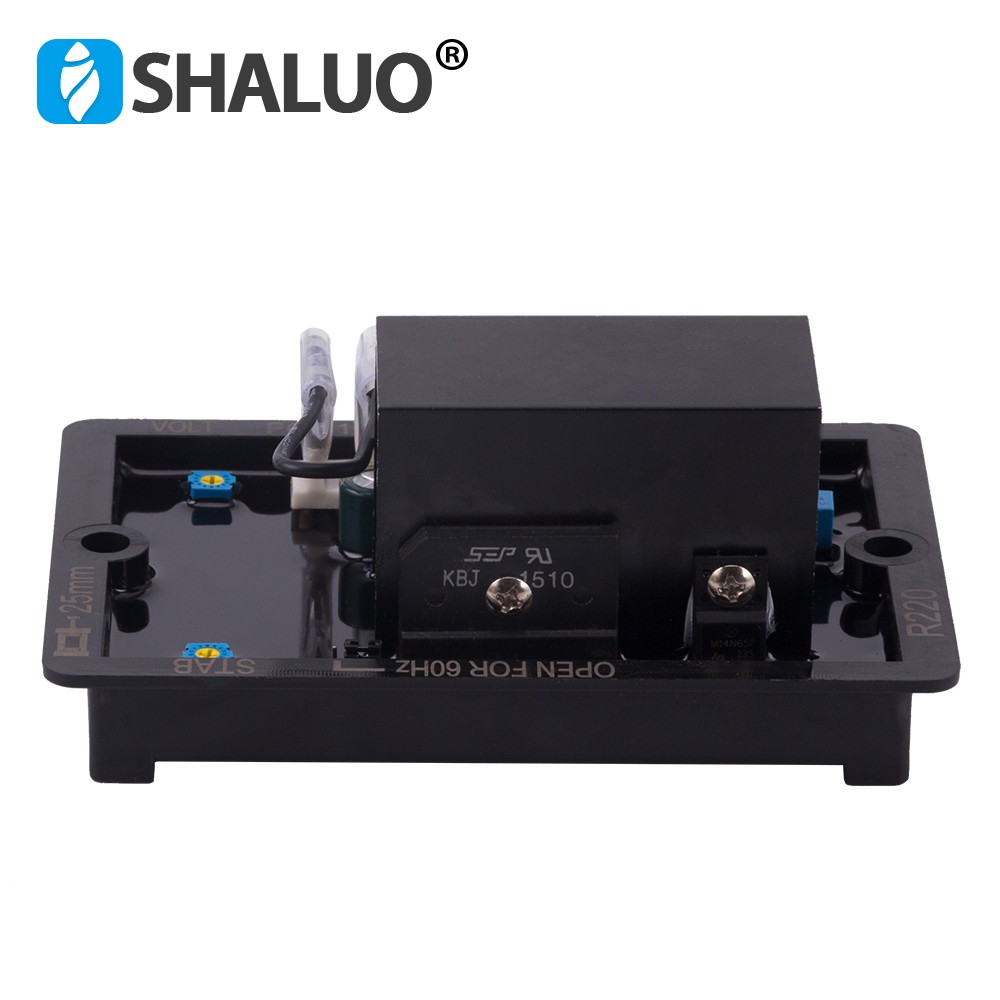

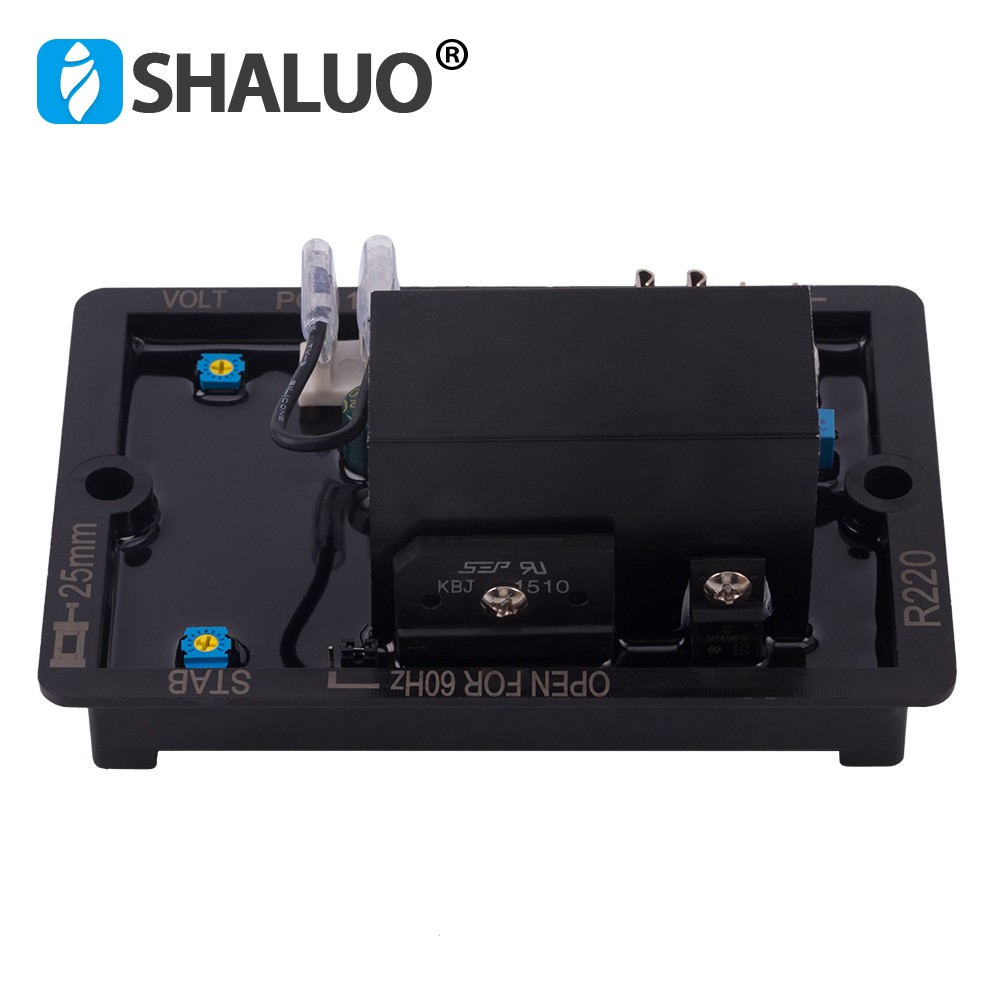

- Frequency: 50 Hz with ST3 jumper - 60 Hz without ST3 jumper.

- The size of the screwdriver tip used to adjust the potentiometer is 2.5 mm

Description:

1.R 220 is an analog A.V.R. with numerical regulation function.

2.It is designed for small alternators with a SHUNT excitation.

3.It controls the excitation current in order to maintain the output voltage of the alternator.

4.It is performant in terms of voltage regulation,simple to set , to use and is reliable.

5.It is in compliance with I.E.C. 60034-1 standard and U.L. 508 / C.S.A. approved.

Technical specification

Compatible with Leroy Somer Brushless generators bellow 100KW

Power Input 35~ 109VAC 50/60Hz

Current Continuous 8 A dc. transient 10A for 10 secs.

frequency 50-60 Hz nominal

Exteral voltage adjustment 1 k ohm

Voltage regulation ≤ ± 0.5%

AVR response 500ms

Differential input current tune 0 ~ 0.3A

Operating temperature -40 ~ 65 degree

Storge temperature -55~85 degree

Installation size 115 * 50 * 55 (mm)
