Product Description

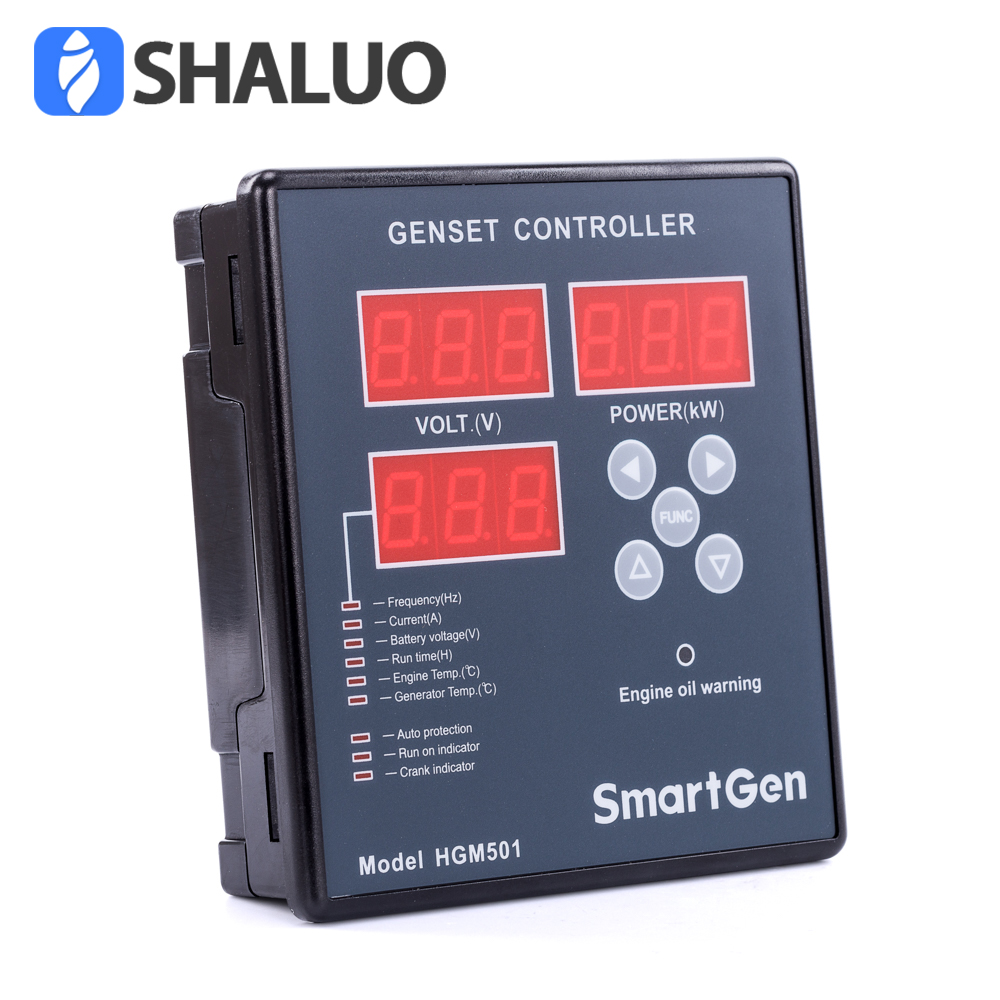

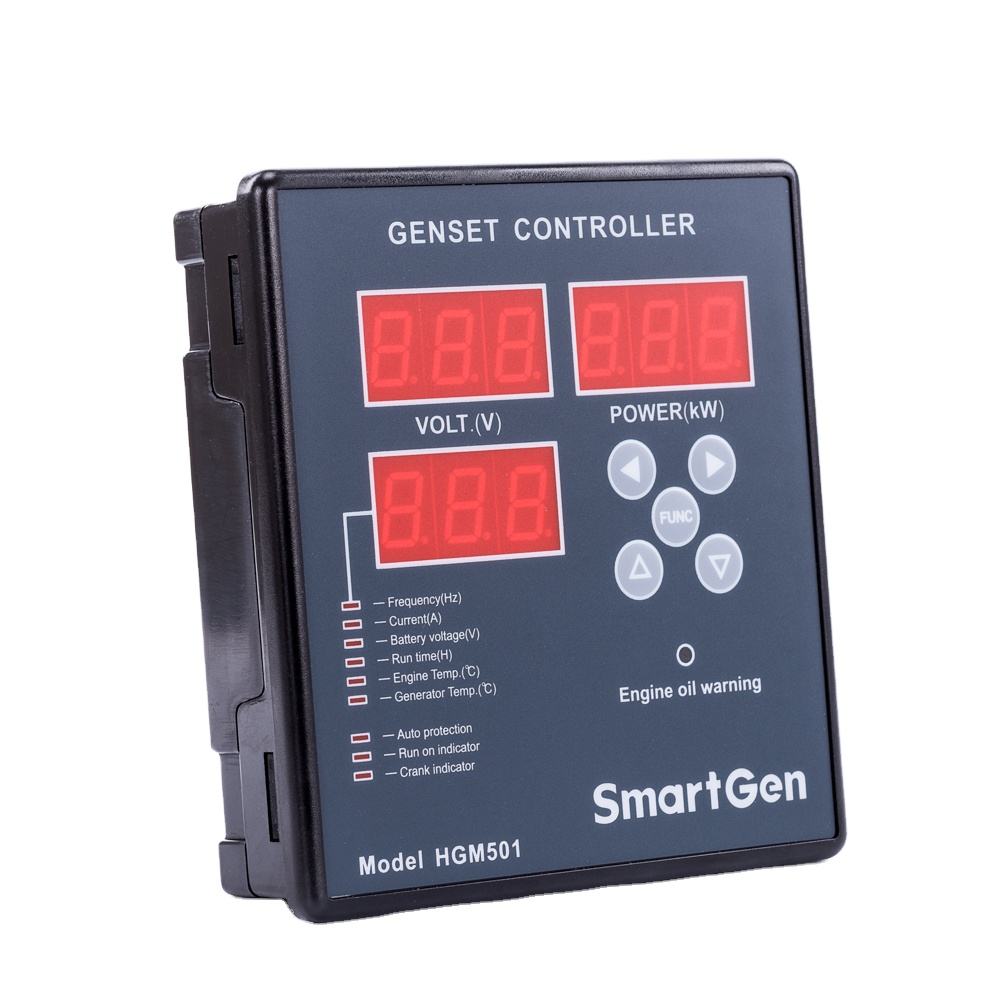

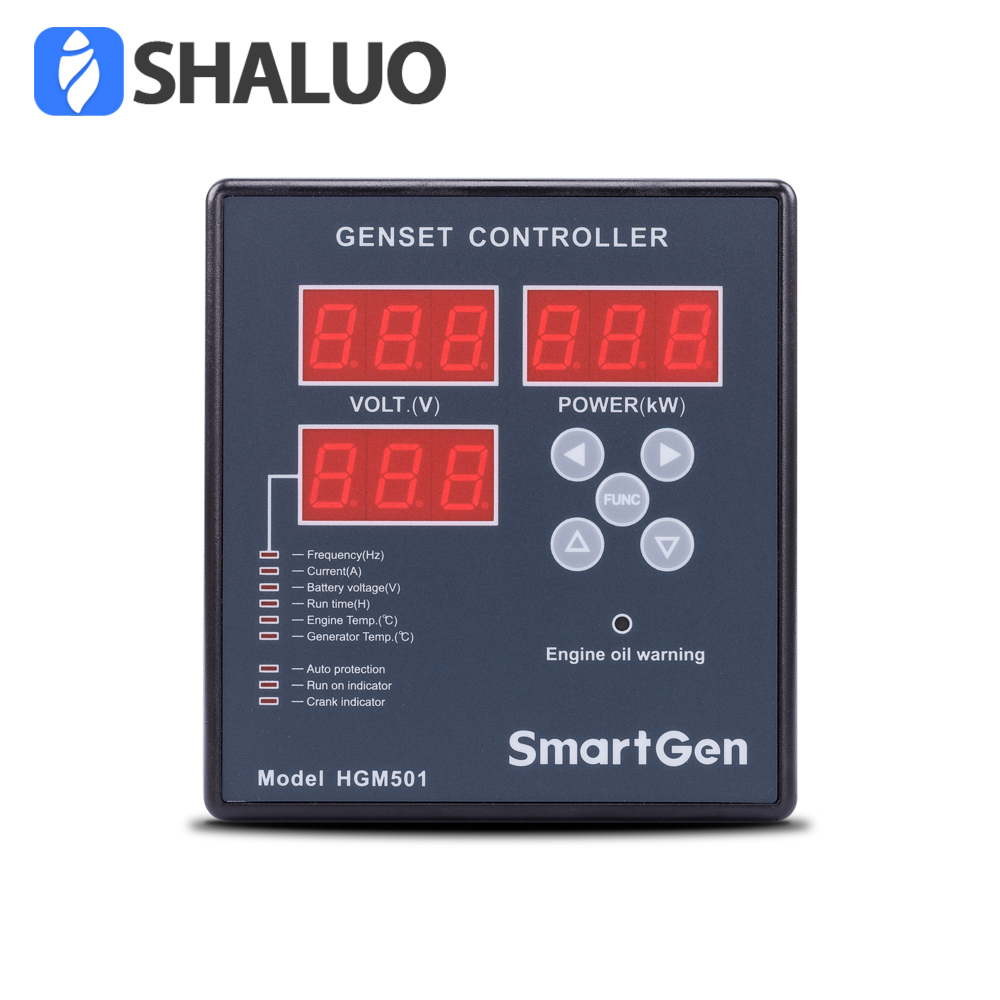

HGM501 gen-set controller is smart digital controller for control and protection of single-engine gen-sets. It can carry out start/stop, data measurement, alarm indication, shutdown protection and other functions. The controller is fitted with LED indicators; it is reliable and easy to use.
Product Code:6010009
Power Supply:DC(9-18)V
Case Dimensions:118*128*36(mm)
Operating Temp. :(-25~+70)℃
Weight:0.216kg
PERFORMANCE AND CHARACTERISTICS
Two specialized LED displays: single phase voltage display and total active power voltage display (calculated using single phase power, taking load as balanced);
Multifunction LED display that can be switched between single phase frequency, single phase current, battery voltage, total running time (max 999 hours), engine and generator temperature;
Under voltage, over voltage, under frequency, over frequency, over load, over temperature protection, starting with flashing lights alarm and followed by shutdown protection after alarm delay;
Low oil pressure digital input that immediately shuts down the generator in case of low oil pressure;
Displayed parameters can be selected using touch-buttons;
Wide selection of temperature sensor types in settings;
All the parameters can be set via front panel for easy and convenient operation;
Modular design, anti-flaming ABS plastic enclosure, compact structure, convenient embedde
