Diesel generator smartgen automotive lead acid 12V 24V 6A battery charger bac06a

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

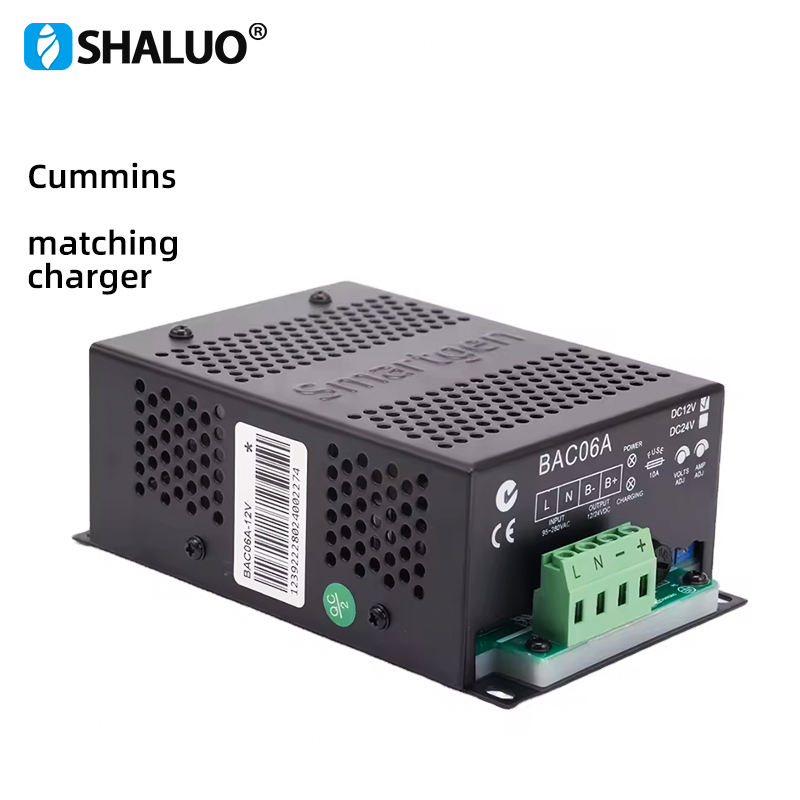

Make lead-acid battery chargers for various brands of generator sets, such as Cummins, etc.

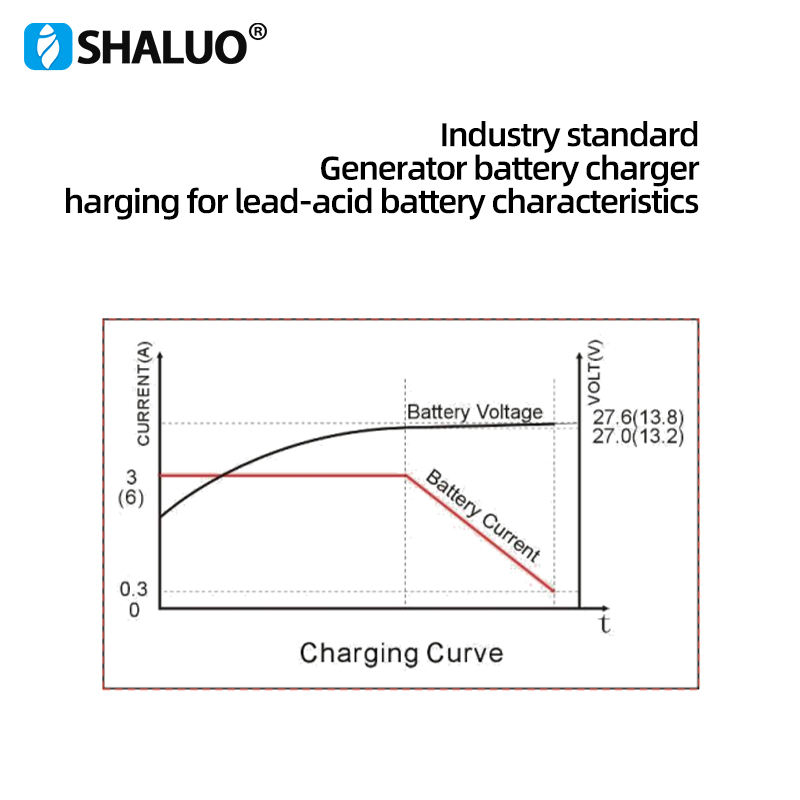

According to charging property of the lead-acid battery,

battery charger uses 2-stage charging method and charge mode is “constant-current”

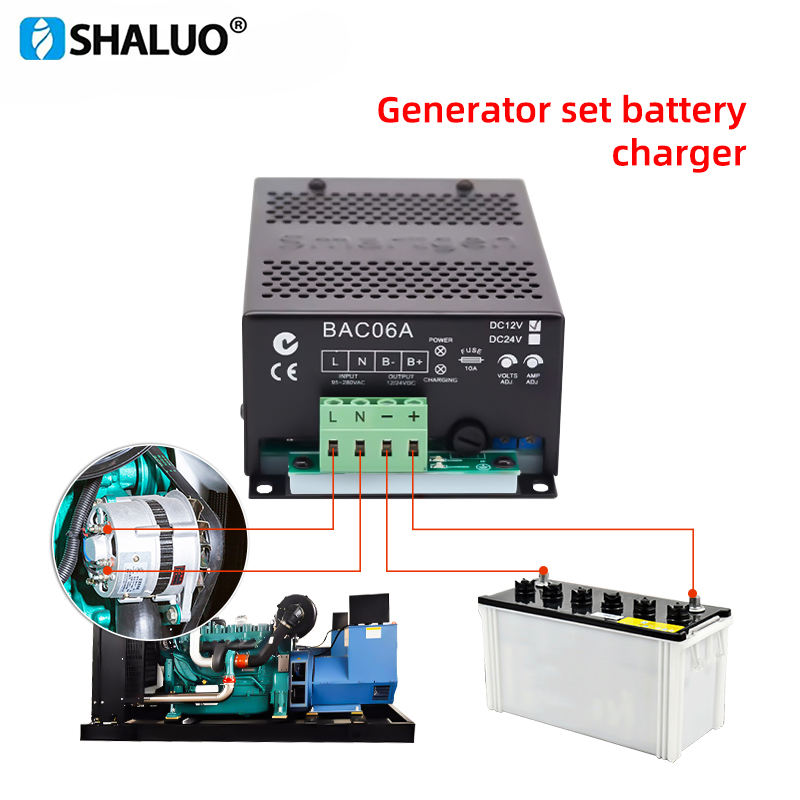

— Terminals L and N connect AC 220V, using multi-strand BVR 1mm2 copper wires.
— Terminals B+ and B- connect battery positive and negative, using multi-strand
BVR1.5mm2 copper wires.

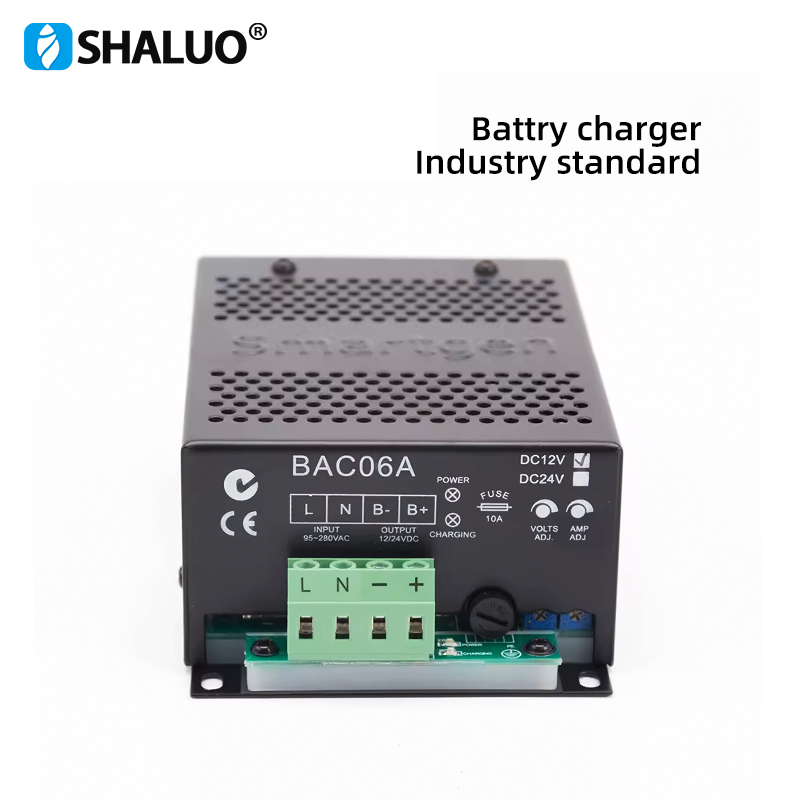

— POWER: Power indicator. When charger works normally, it will illuminate.
— CHARGING: Battery charging indicator. When charging current is over 0.3A, it will
illuminate.
— VOLT: Voltage adjustment potentiometer.
— AMP: Current adjustment potentiometer.
— Output 10A fuse. Reverse connection will cause fuse blown. At this time no output voltage; After
correcting the connection and changing another fuse, it can continue working

Comply with U.S. electrical certification standards,

Passed the UL certification of the United States

Category	Items	12V	24V
Input Characteristi cs	Nominal AC Voltage	AC (95～280)V
		Max. AC Voltage	AC (90～305)V
		AC Frequency	50Hz/60Hz
		Max. Input Current	2A
		Max. Efficiency	85%
Output Characteristi cs	Charging Current	4A～6A,(Error±2%)	2A～3A,(Error±2%)
		Factory Current Charging	6A	3A
		Max. Power	85W
		Min. Voltage	7.5V
		No-load Voltage	13.8V, (Error ±1%)	27.6V, (Error ±1%)
		No-load power consumption	<3W
Insulation	Insulation Resistance	Between input and output, input and shell both are: DC500V 1min RL≥500MΩ
Insulation			Between input and output, input and shell both are:
	Insulation Voltage	AC1500V 50Hz 1min Leakage current: IL≤3.5mA
Working Conditions	Working Temperature	(-30～+55)°C
		Storage Temperature	(-40～+85)°C
		Working Humidity	20%RH～93%RH (No condensation)
Profile	Weight	0.65kg

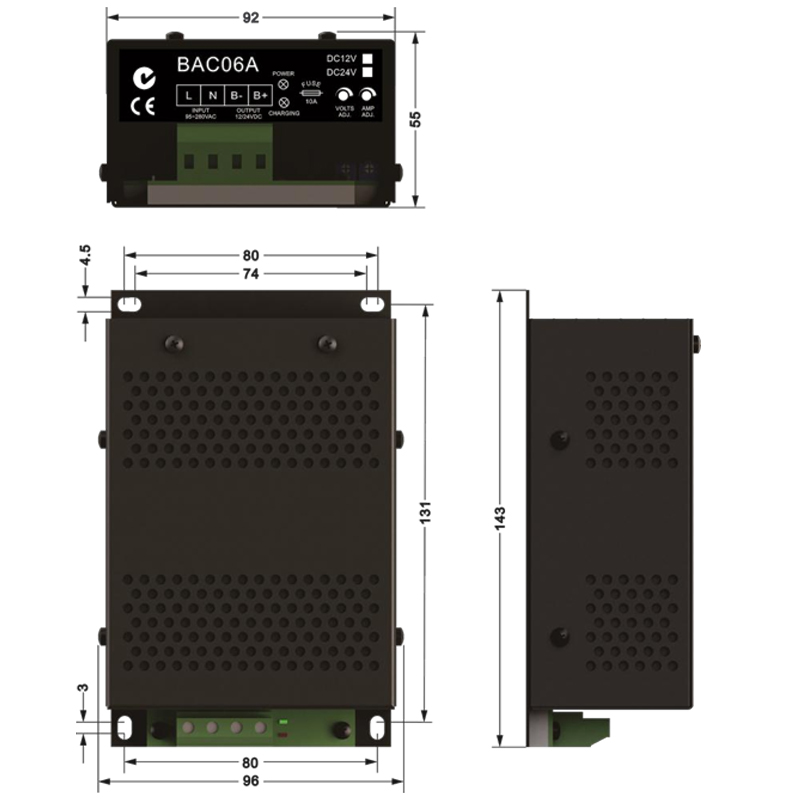

Profile		Dimension	143mm×96mm×55mm (LengthWidthHeight)

Detailed Images

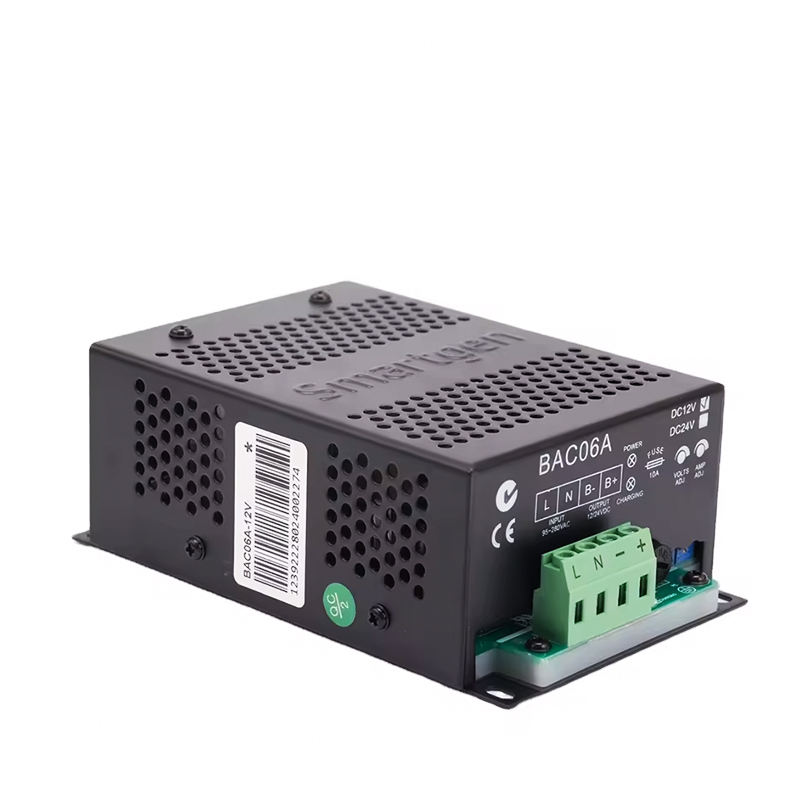

The BAC06A battery charger adopts the latest switching power supply device and is specially designed for the charging characteristics of lead-acid batteries used for engine starting.

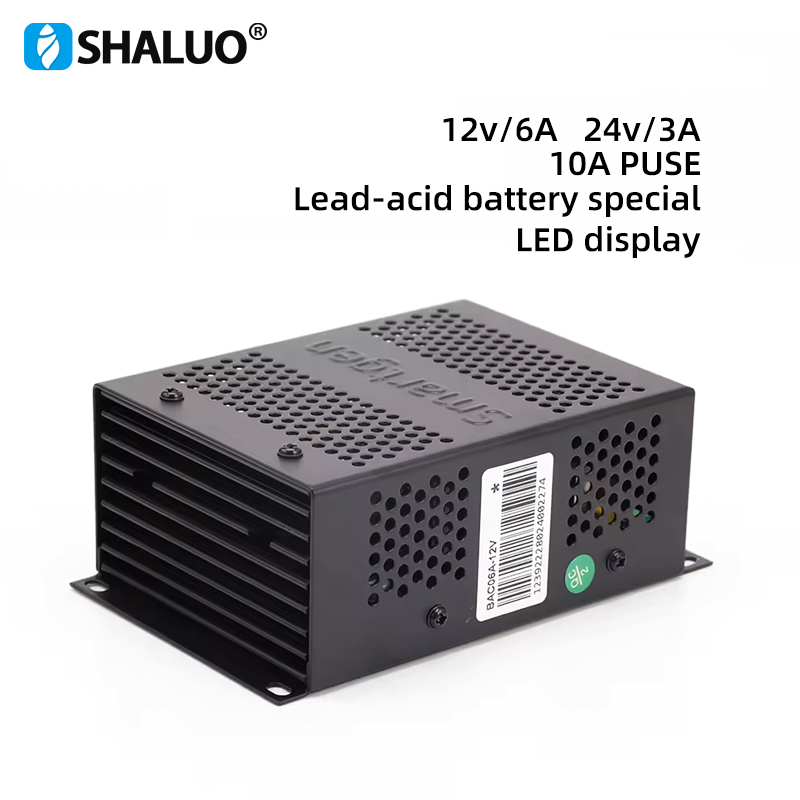

Designed for long-term supplementary charging (float charging) of lead-acid batteries. The maximum output current for a 12V charger is 6A, and the maximum output current for a 24V charger is The maximum output current is 3A.
