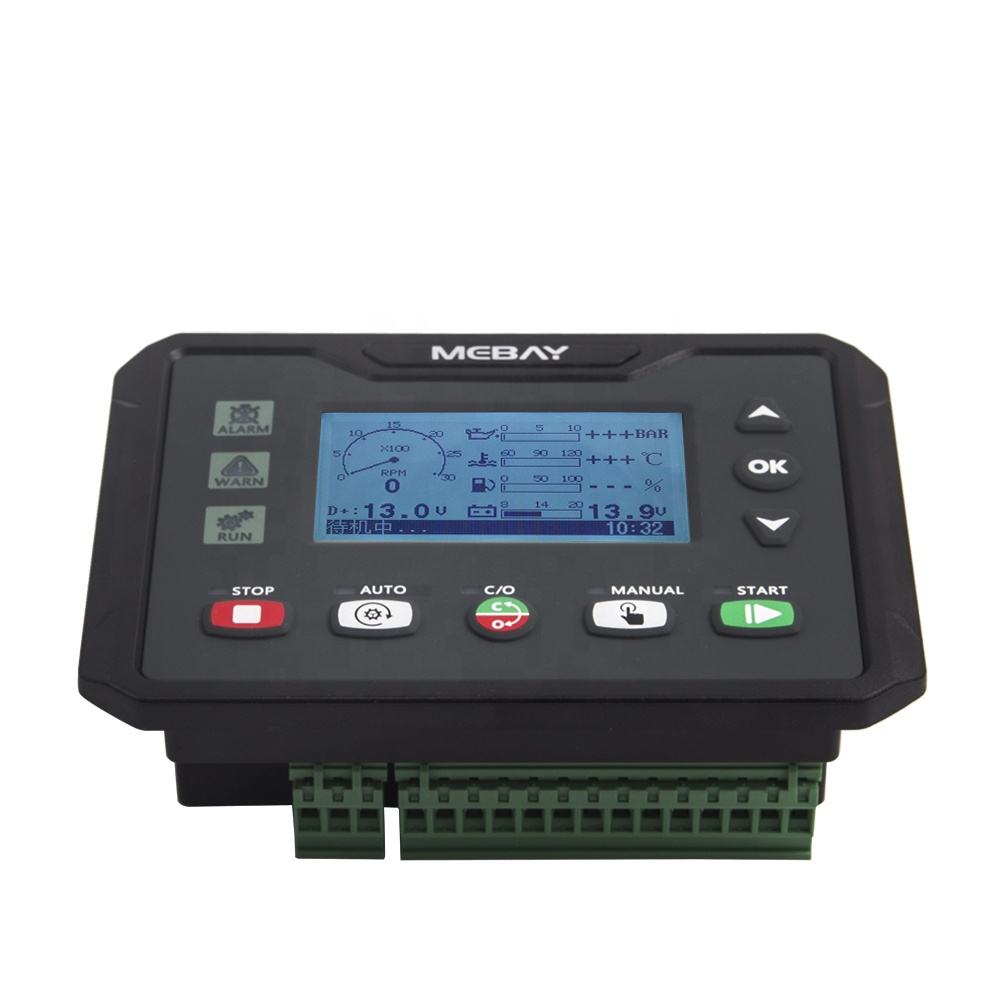

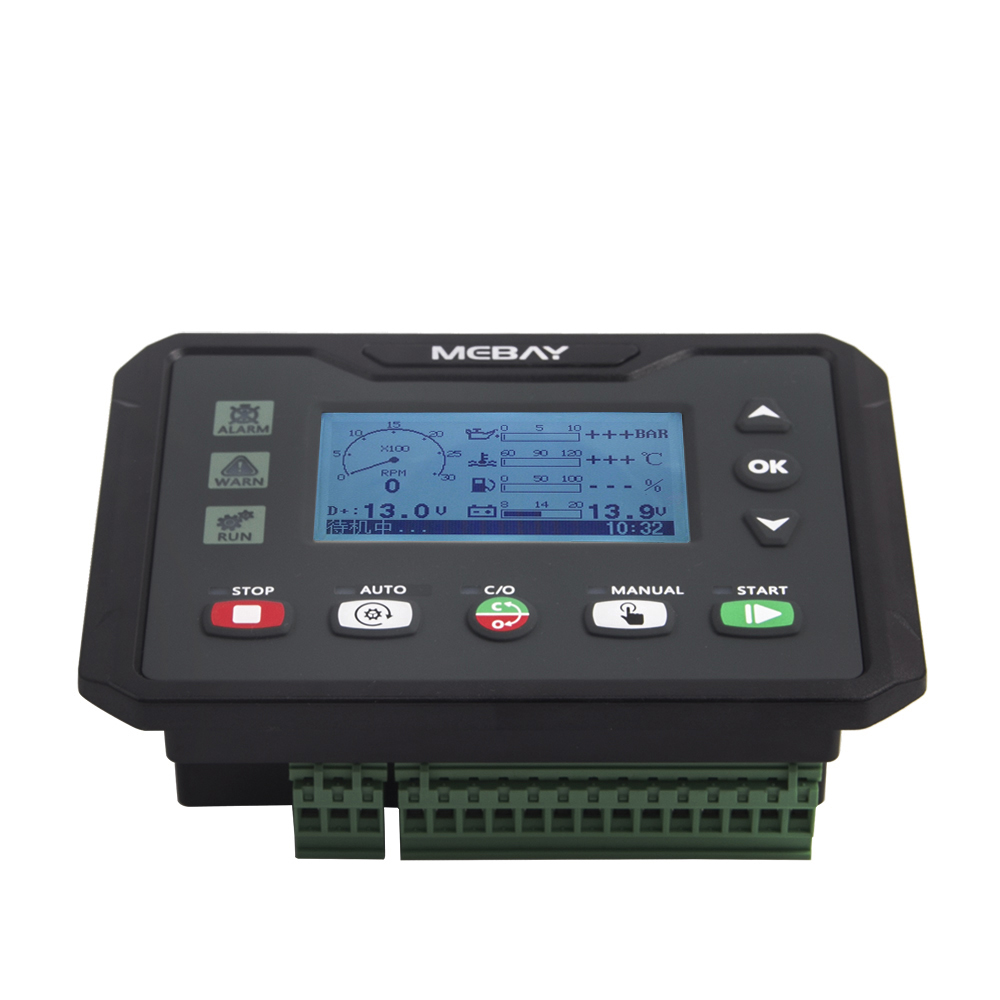

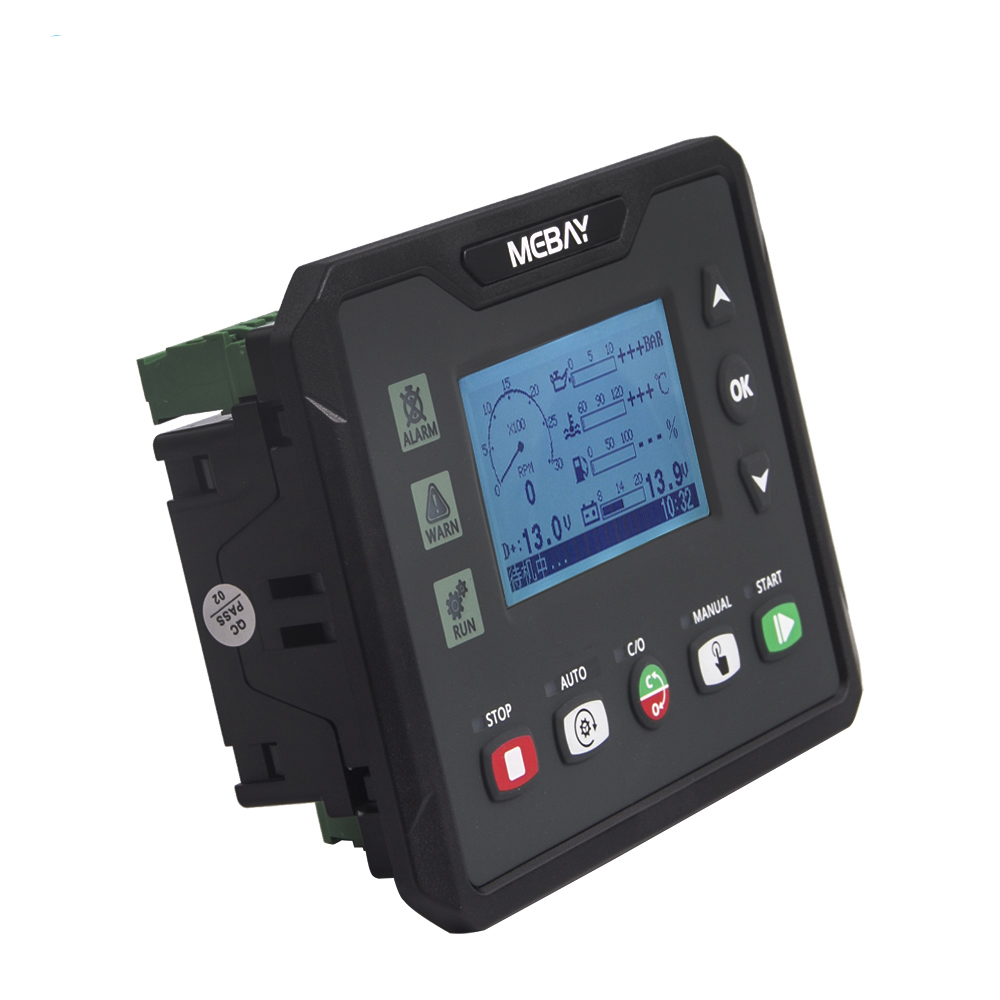

Replace HGM4010 DSE4610 DC40S Mabey Diesel Gas Gasoline Generator Engine Controller Module Panel DC42S Replace HGM4020 DSE4620

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

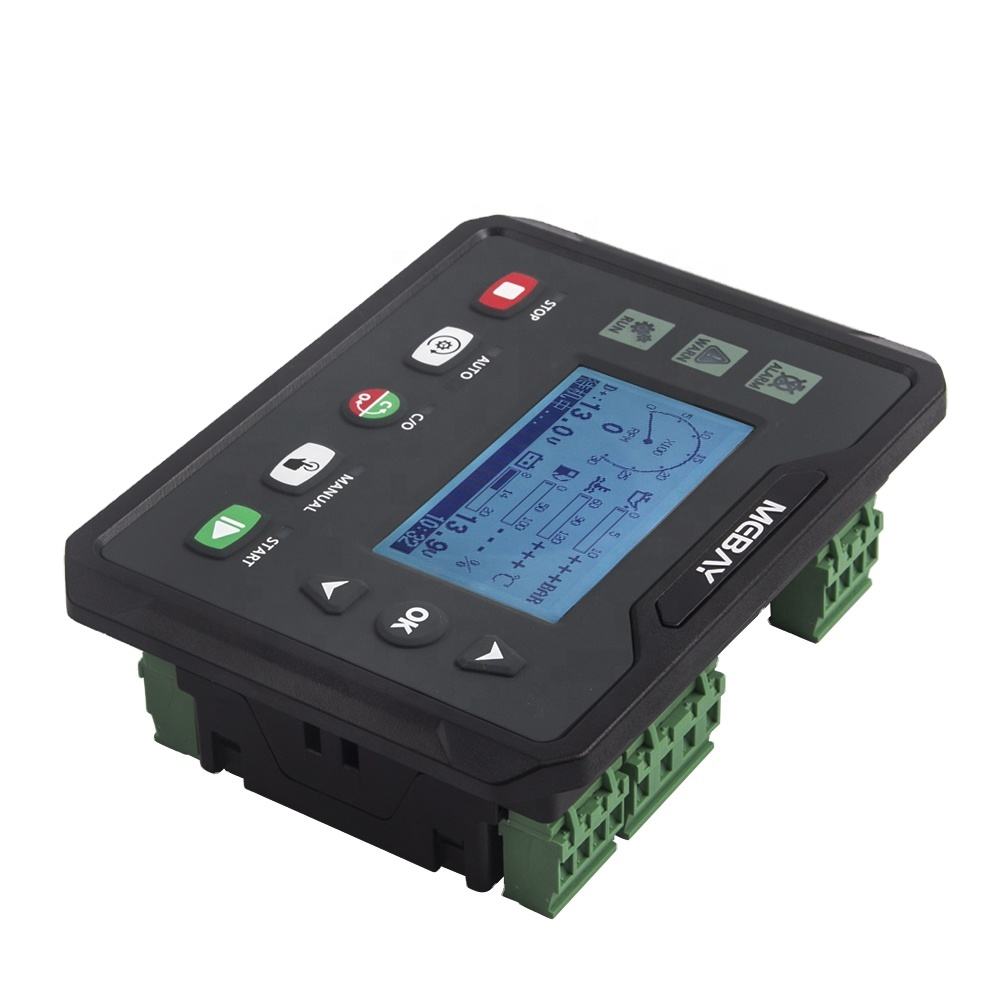

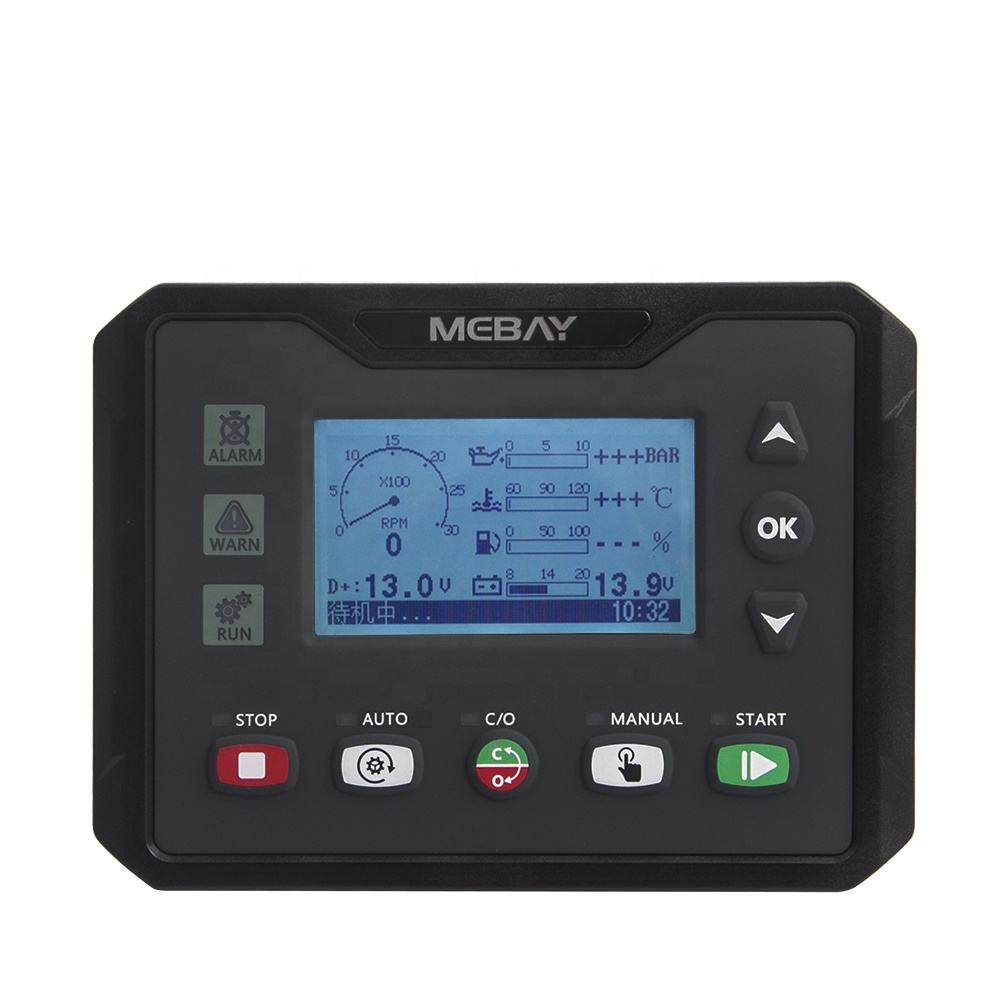

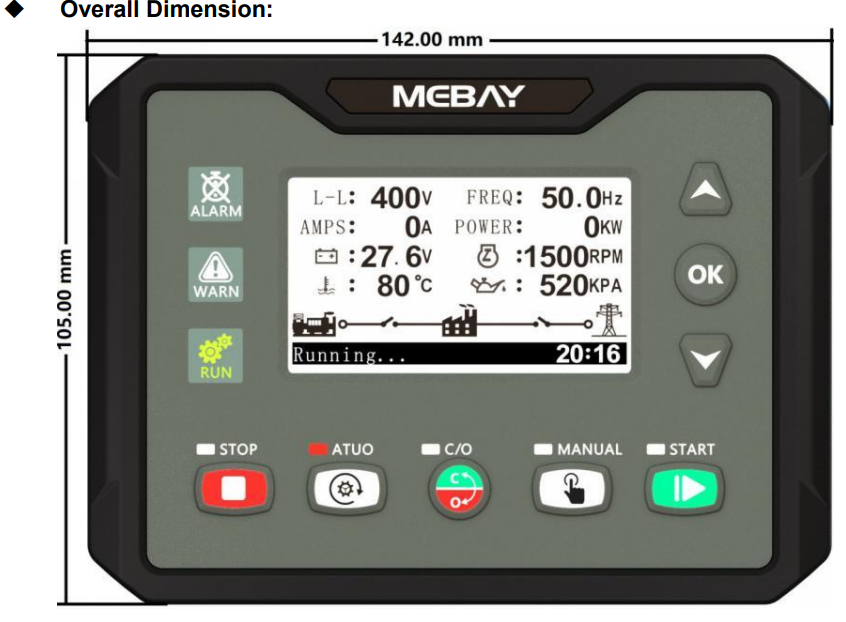

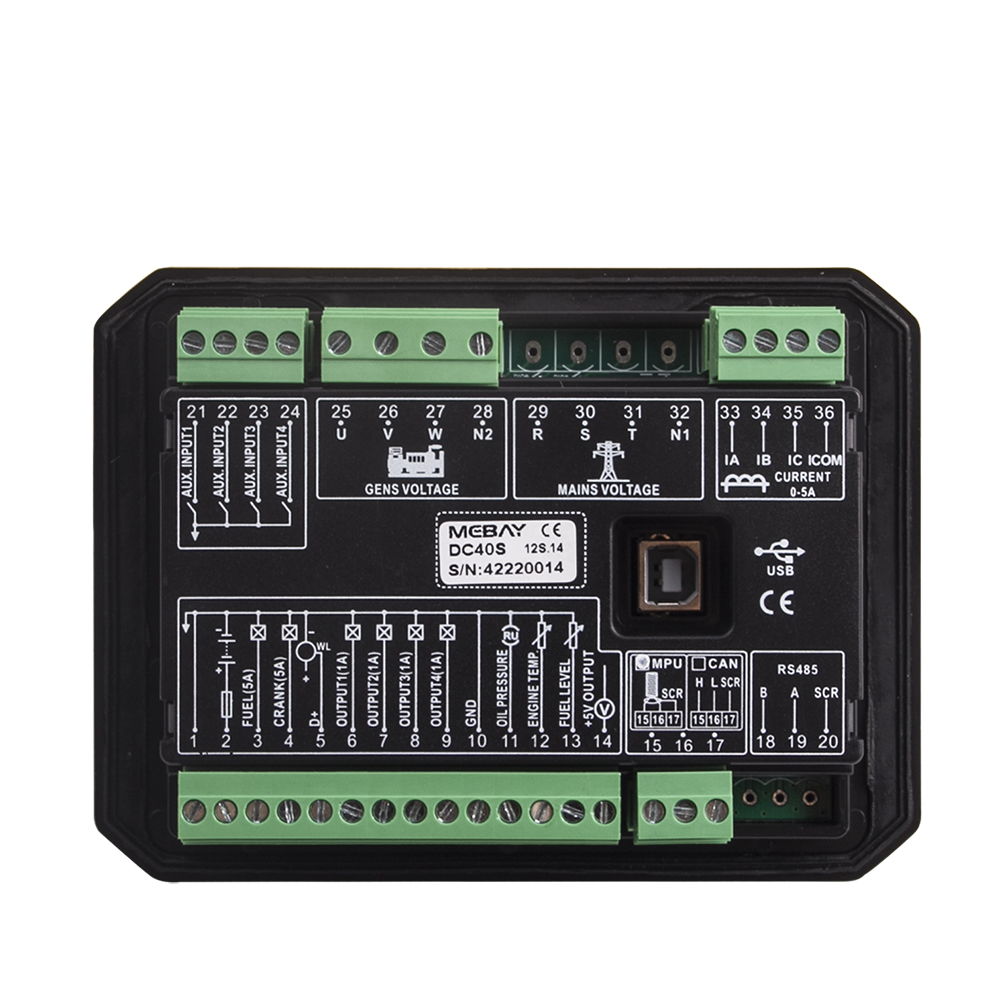

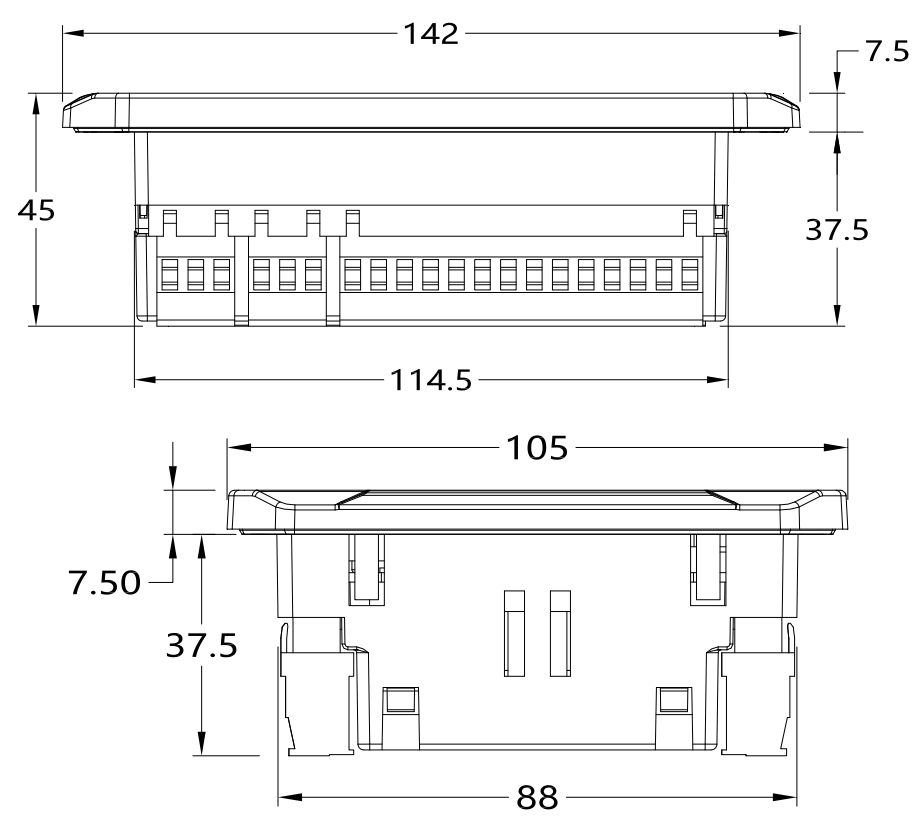

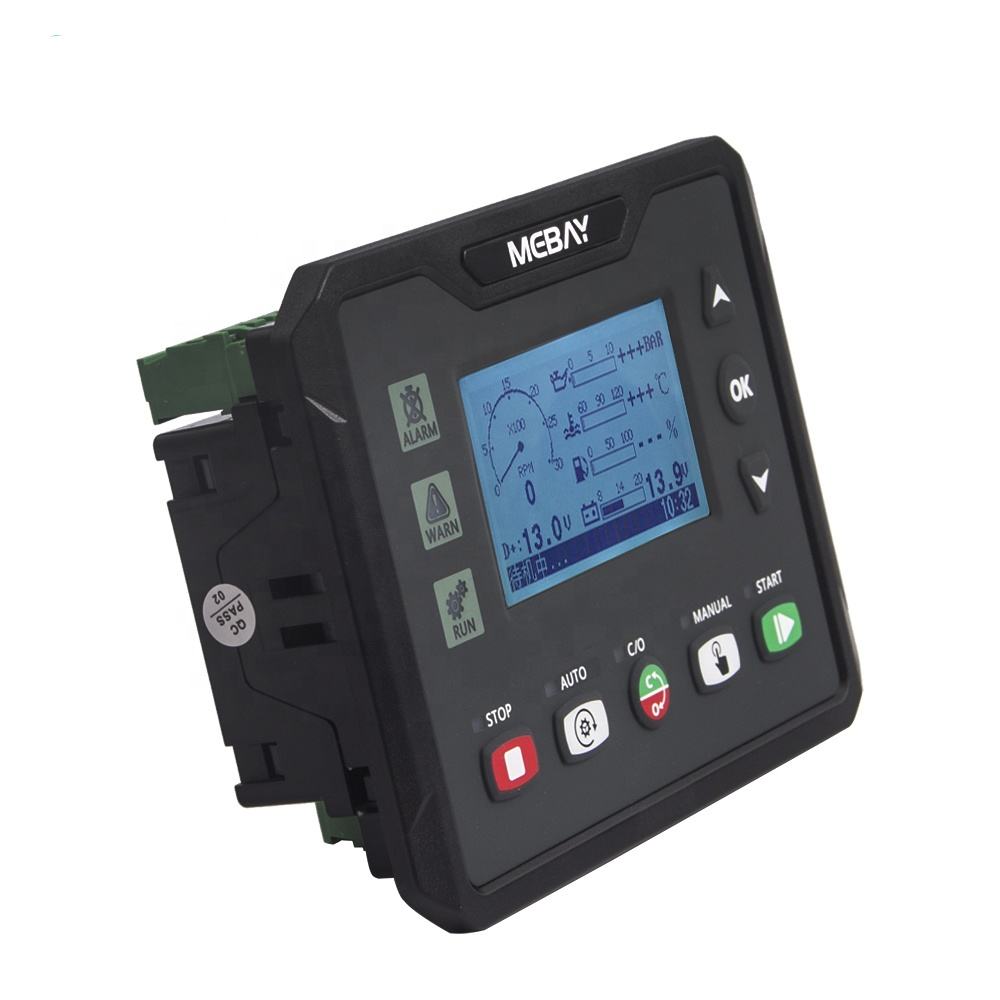

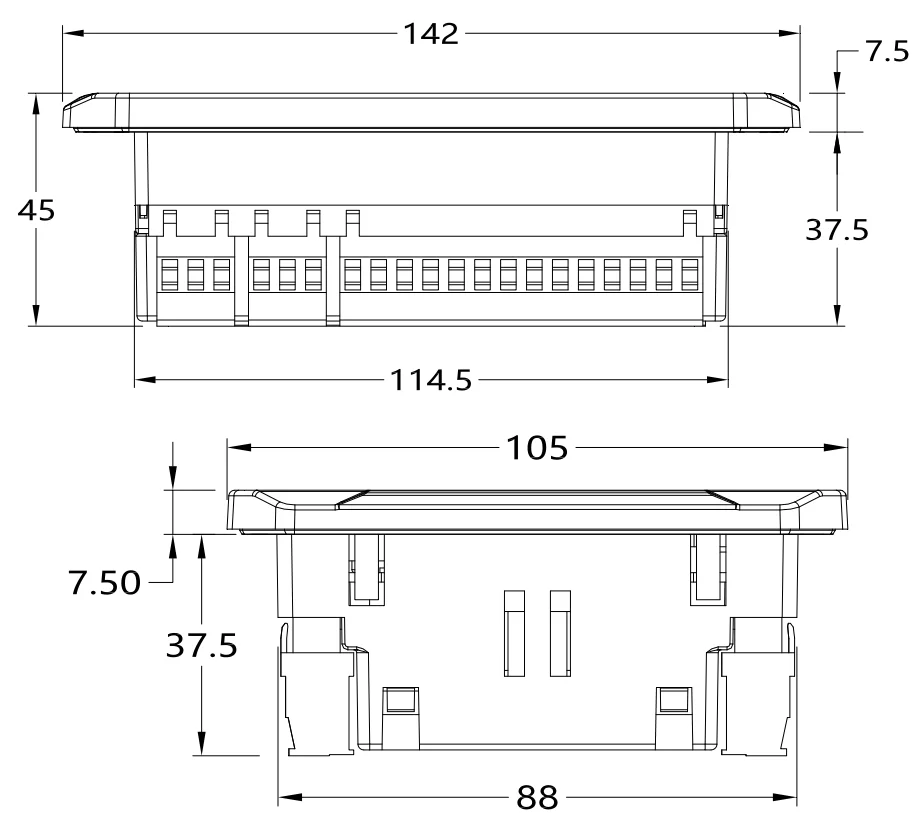

Detailed Images

1. Summary

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as
well as data setting. 2.8 inch LCD screen display with brand new UI design is adapted in this controller that the relative
failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can
display various faults in the same time that the genset will be stopped once it can’t work
smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be
configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied
for all kinds of auto control system of gensets.

2. Main Features

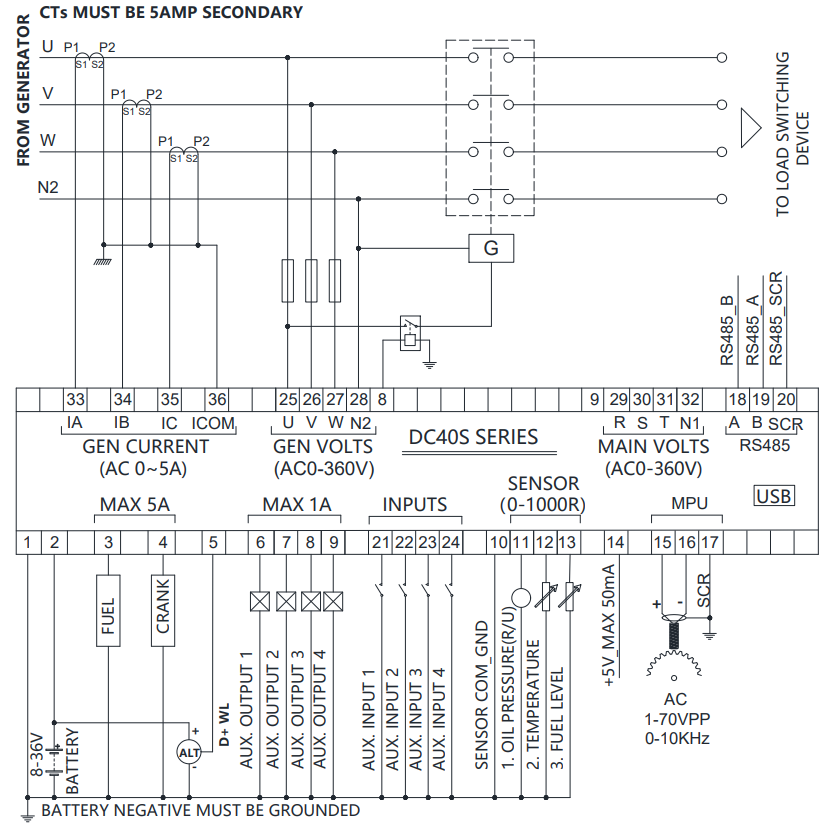

There are ten Models under DC4xS/C series.
DC40S: Used for single machine automation. Start/Stop through remote start signal.
DC40SR: Based on DC40S, it adds RS485 port.
DC42S: Based on DC40S, it adds Mains monitoring and AMF (Mains/Generator
automatic switching control), especially suitable for the automation system composed by mains and genset.
DC42SR: Based on DC42S, it adds RS485 port.
 Dual core 32bit high performance single chip microcomputer.  2.8 inch 240 * 128 high-resolution LCD screen, Available in 6
languages, user’s language set if necessary.  Indicator and number display through UI surface.  Acrylic material is adapted to
protect the screen.  Silicone panels;
 USB Port: parameters can be set even without power through USB port to monitor in real time.  With RS485 communication port,
can achieve “Three Remote” functions via MODBUS protocol.  Standard CAN communication port, built-in J1939 protocol, has matched
more than 40 kinds of engines;
 Various kinds of parameters display. DC4xS/C GENSET CONTROLLER USER MANUAL
 Input/output function, status can be shown directly.  Real time clock inside: preset time operate and auto maintenance is
available. Genset working plan can be set as per week or month.  Maintenance countdown function, can set maintenance time or
date.  The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is
convenient to find the cause of the fault.  Totally 6relay’s output, among which 4 relay output can be self-configurable, each
relay can be set as max 20 functions.  With 4 switches input, up to 20 functions optional;
 3 sensor simulation input connectors, the oil pressure sensor is compatible with voltage signal input, and various display units
can be configured.  Battery charging control function,which can protect the battery according to battery voltage status.  Sensor
can be self-defined by front face button or PC software.  Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
 Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.  Control Protection: Auto Start/Stop of genset, load
transfer (ATS control) and perfect failure display and protection.  Standard water-proof rubber gasket. The waterproof can reach
IP54
 Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement
can be more easily.

3. Parameters Display

 Engine RPM
 Engine oil pressure
 Engine temperature
 Engine fuel level
 Engine battery voltage
 Charging voltage
 CAN related parameters(C series only)
 Mains Frequency (only for DC42S/C)
 Mains phase voltage L-N (only for DC42S/C)
 Mains phase voltage L-L (only for DC42S/C)
 Generator 3 Phase voltage L-N
 Generator 3 Phase voltage L-L
 Generator 3 phase current A
 Generator Frequency Hz
 Generator Power Factor COS φ
 Generator active power KW
 Generator apparent power KVA
 Generator reactive power KVar
 Real-time load rate %
 Current load rate %
 Average loading rate %
 Current consumption KWH
 Total consumption KWH
 Total Crank times
 Cumulative power on time of controller
 Current running time
 Total running time
 Maintenance notice
 Switches input status display
 Output status display of relays
 Current date and time;
4. Protection
 Over speed
 Under speed
 Low oil pressure
 High temperature
 Low fuel level
 External emergency alarm
 D+ open
 RPM Lost
 Sensor Open
 Over Frequency
 Under Frequency
 Over voltage
 Under voltage
 Over current
 Non-balance of current
 Over power
 Maintenance expire
 Low water level alarm
 Emergency Stop
 Crank failure
 Battery over voltage
 Battery under voltage
 The charger fails to charge
 Charger charging failure
 Stop Failure
 ECU alarm failure
 ECU communication Failure
