Product Description

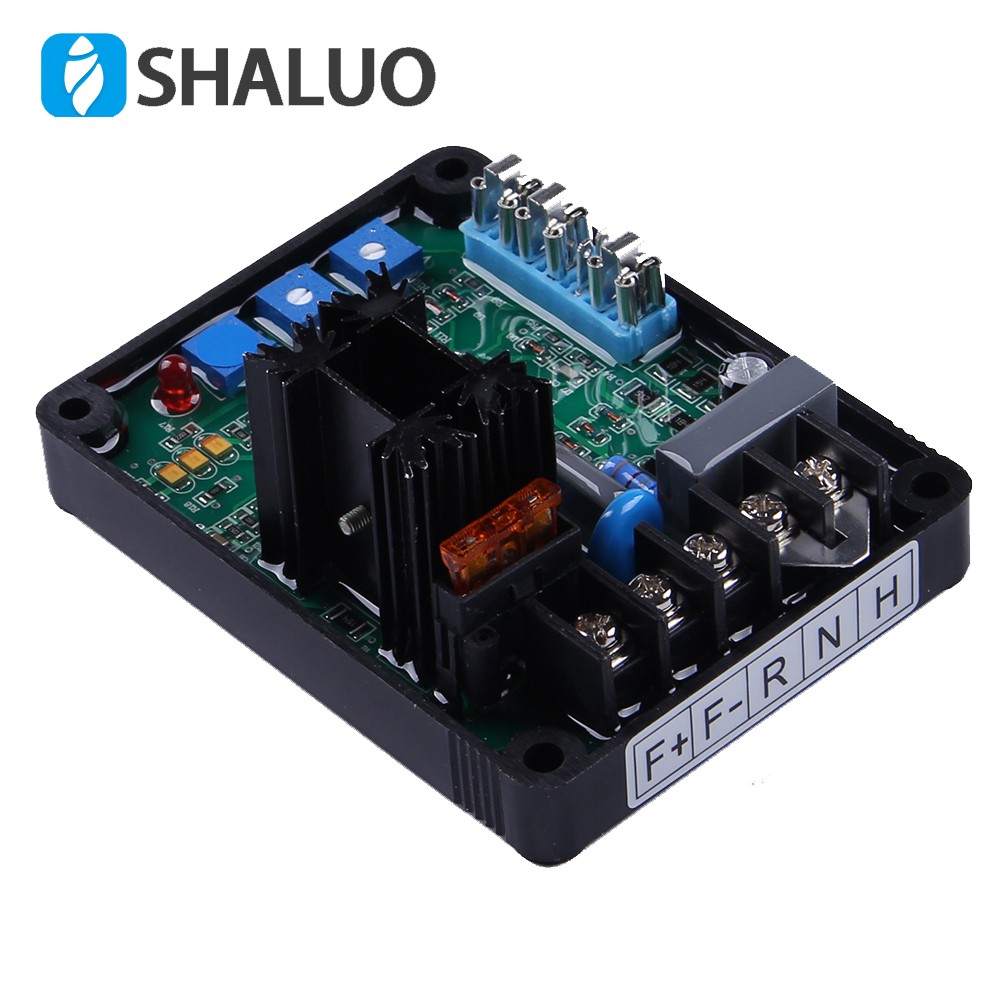

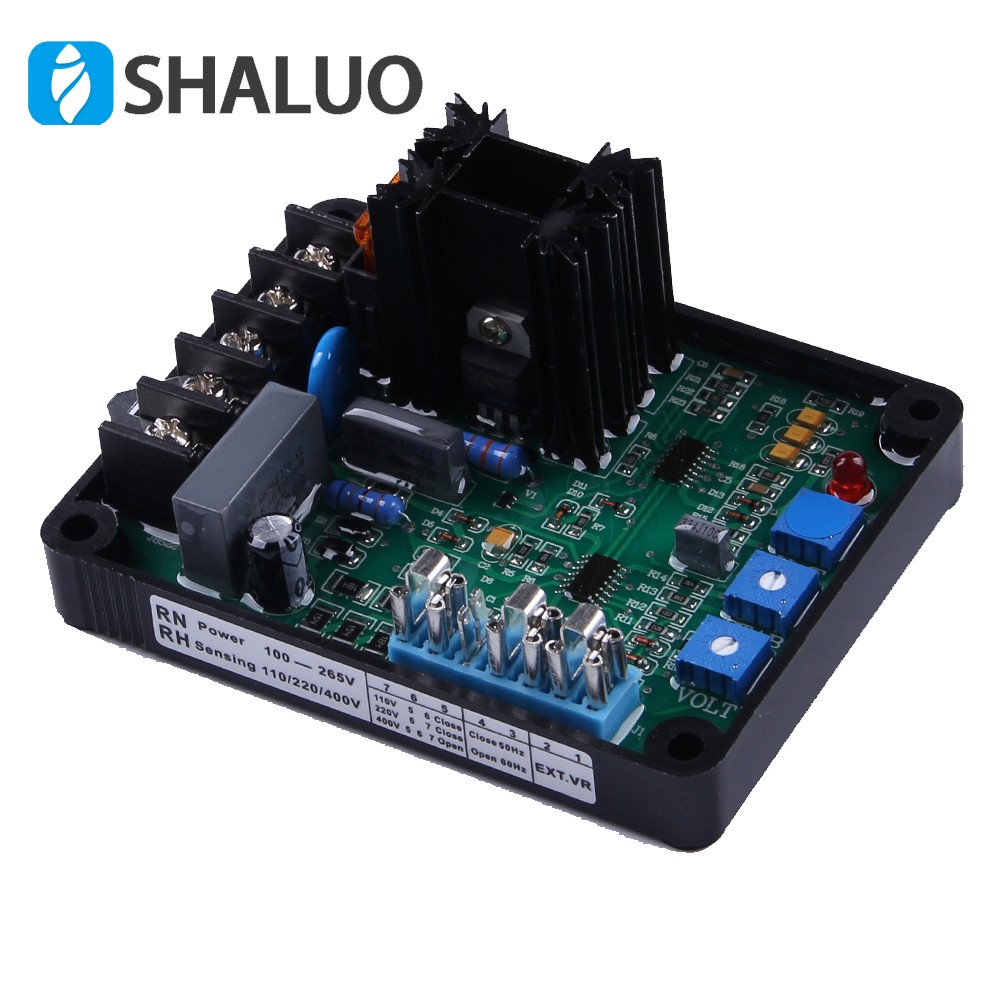

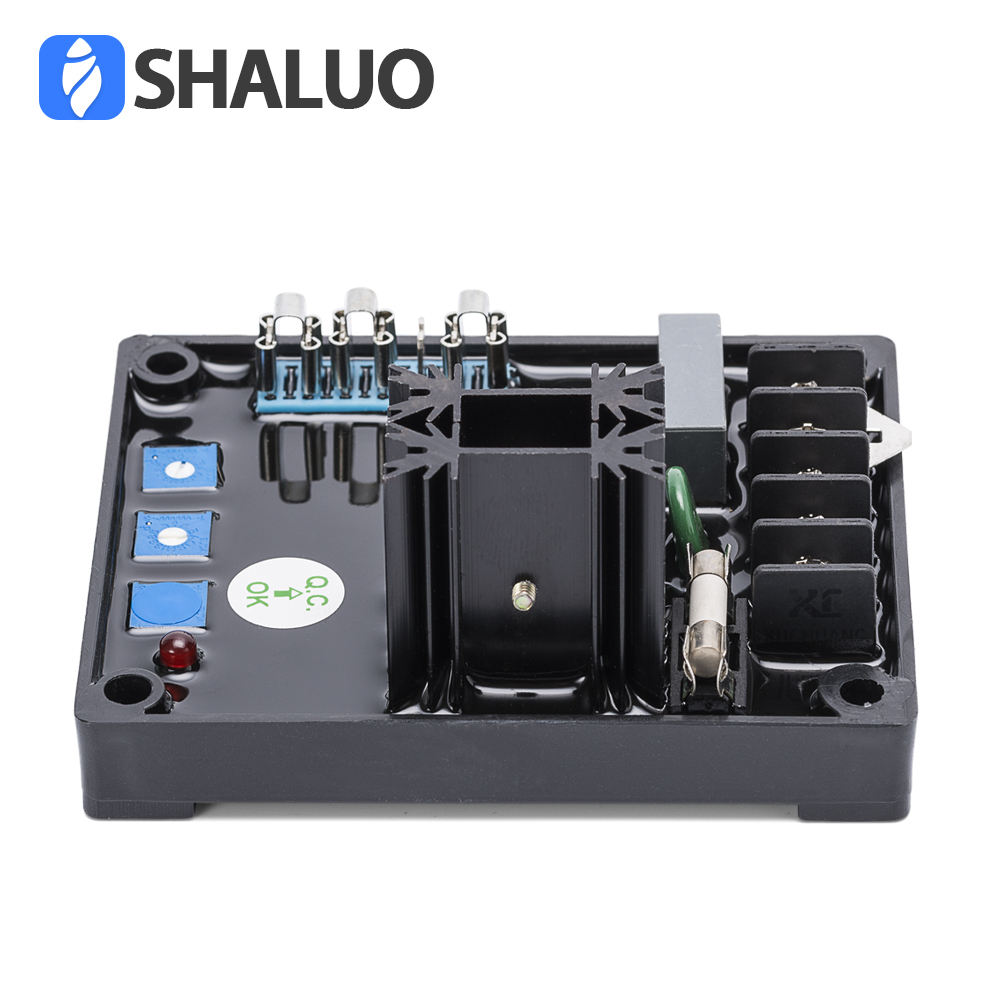

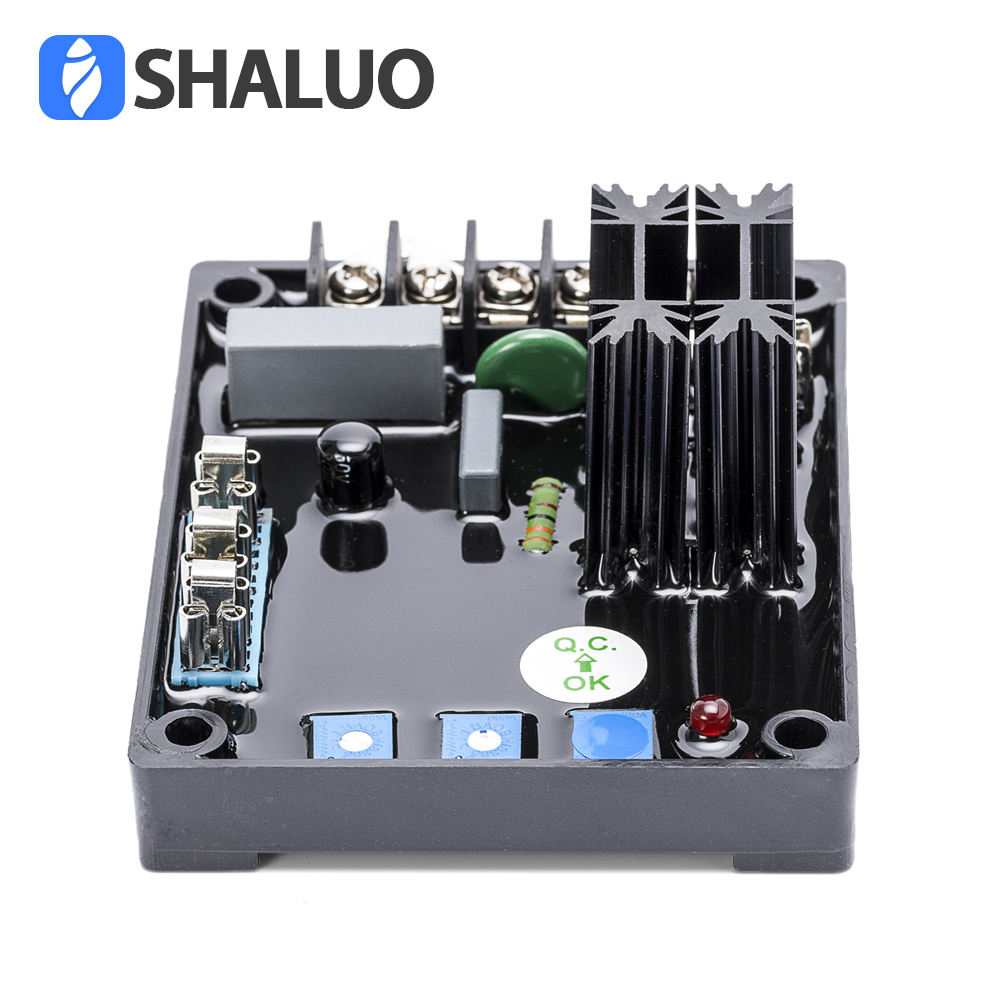

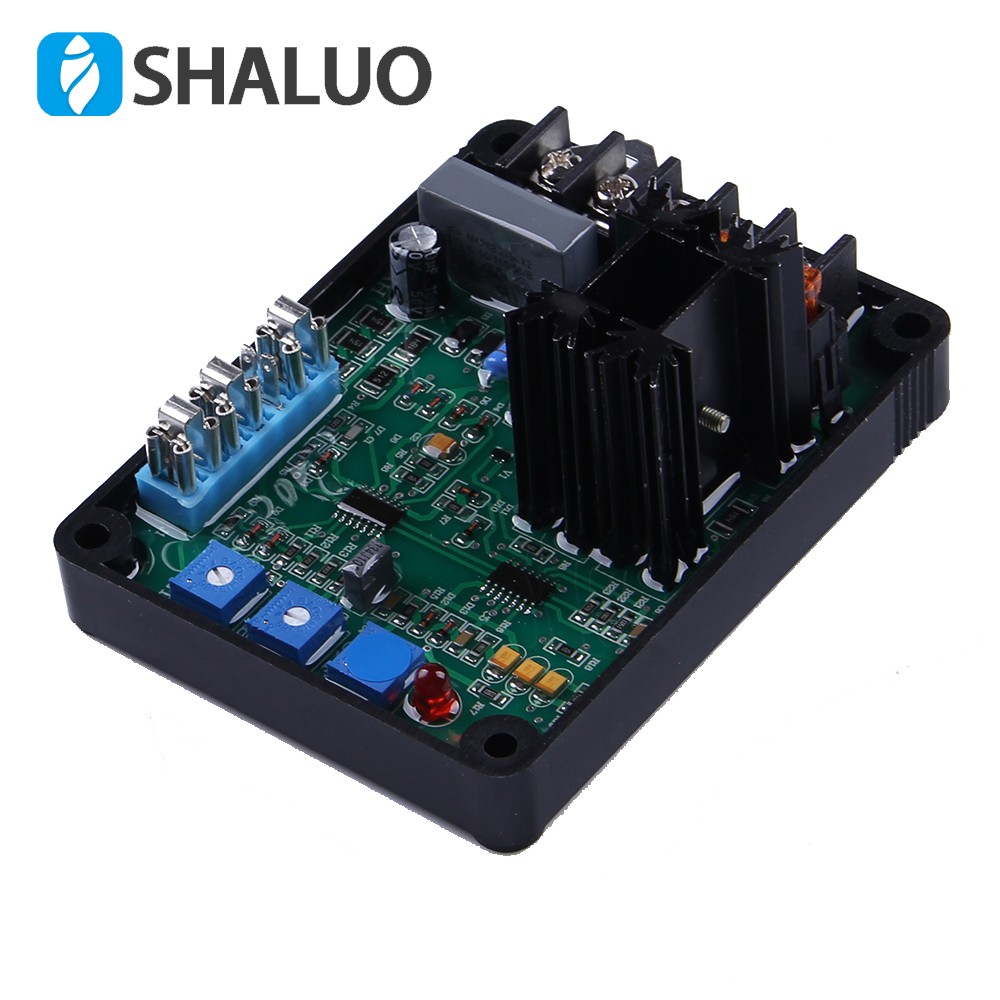

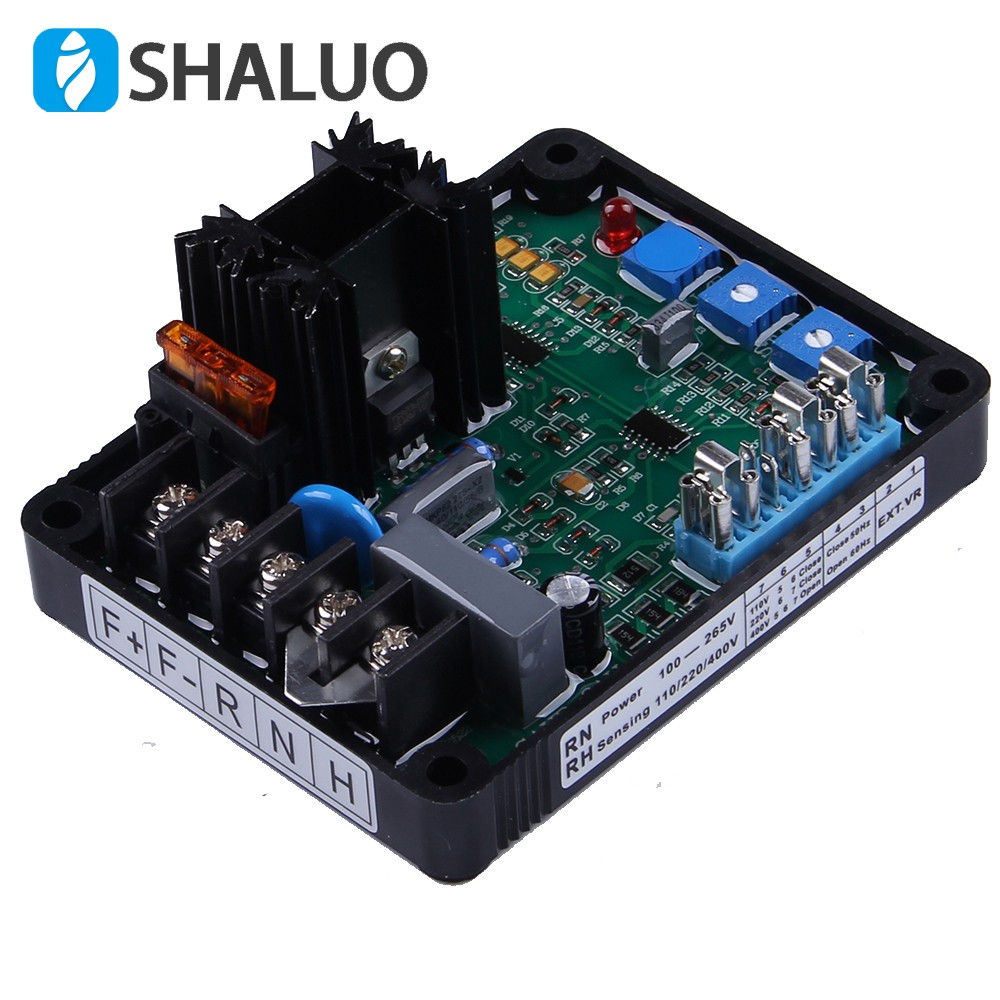

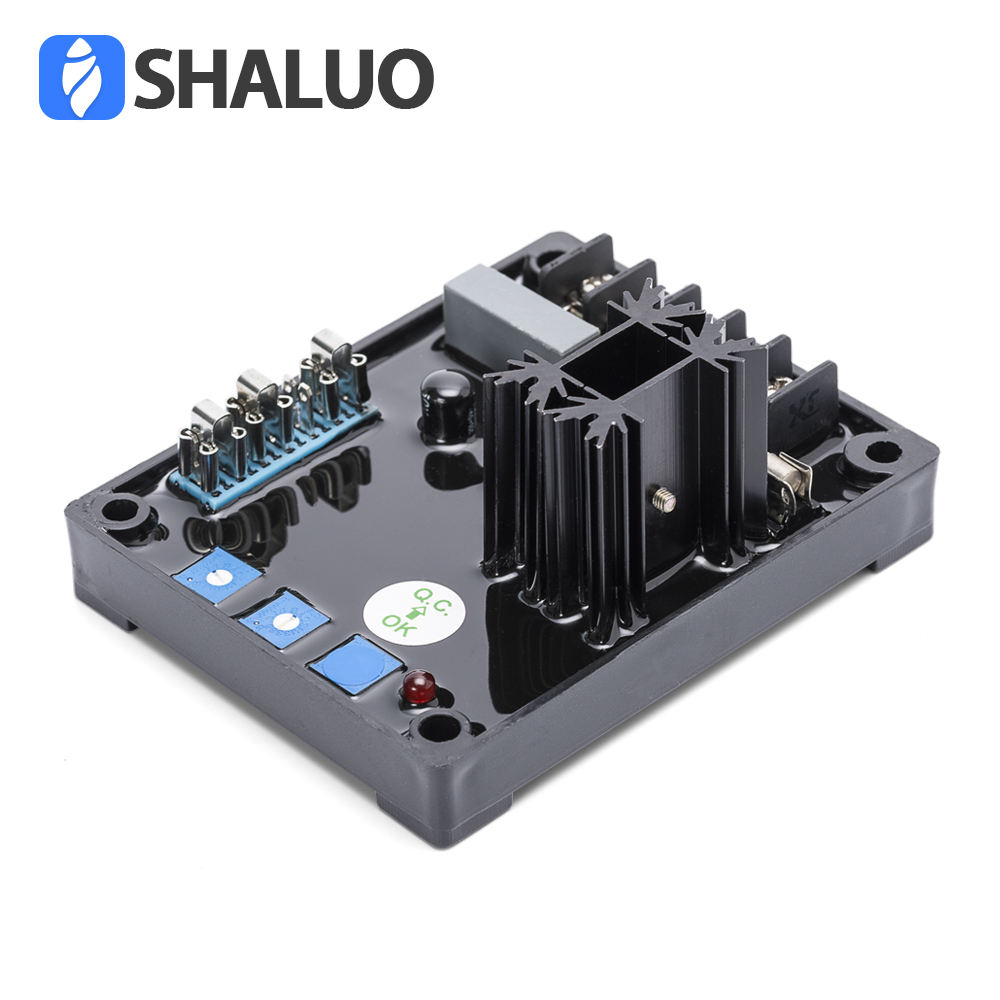

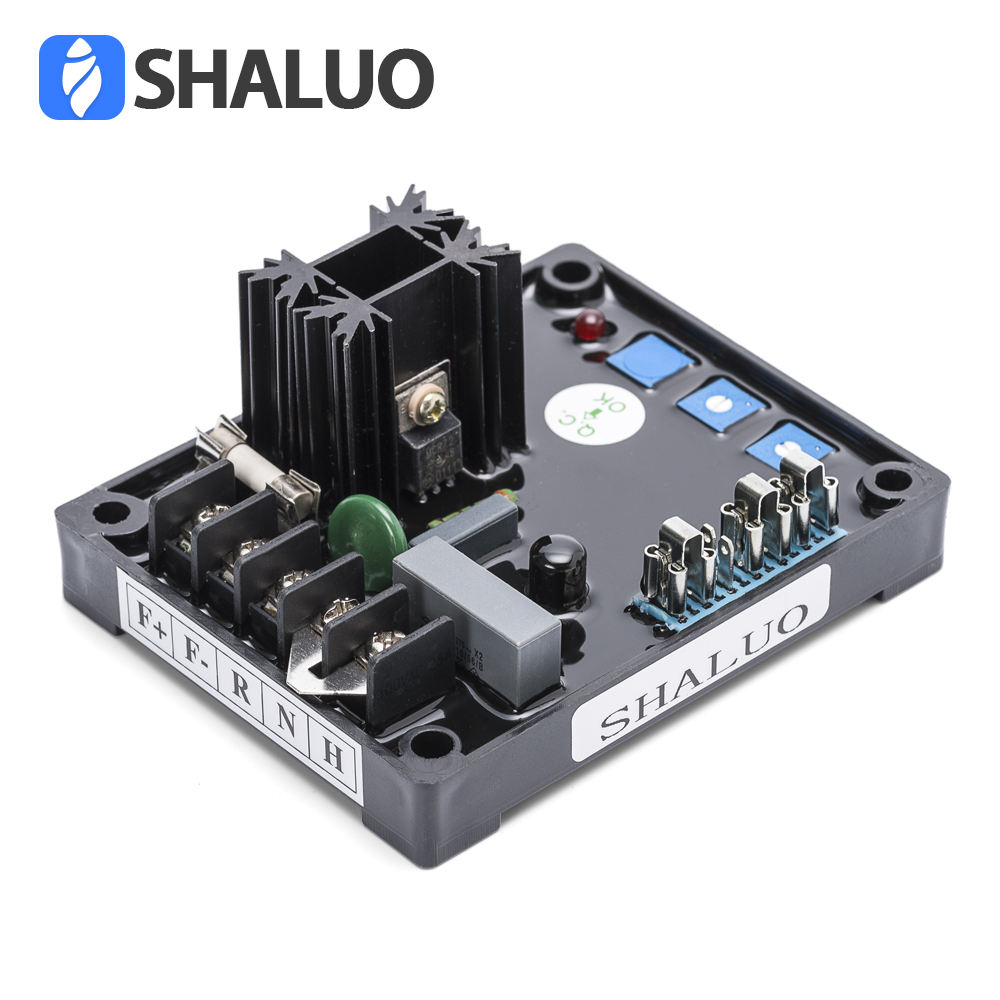

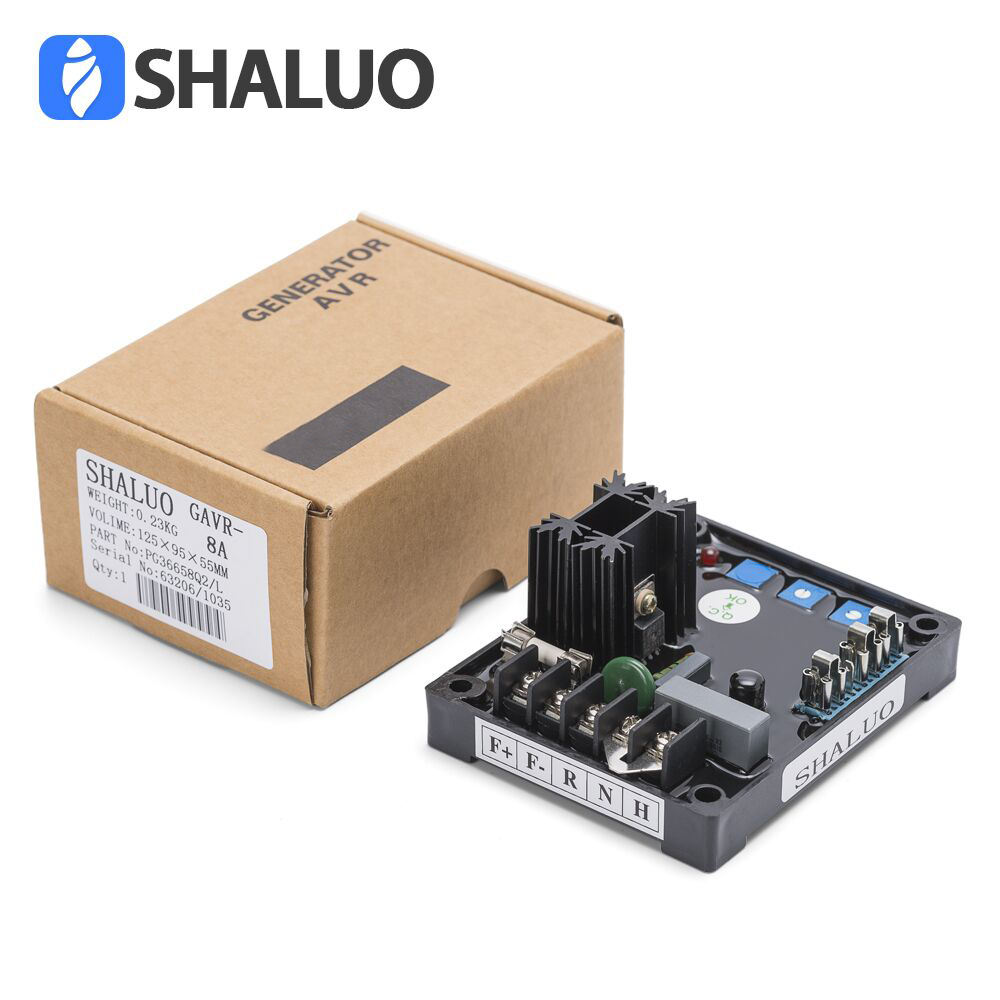

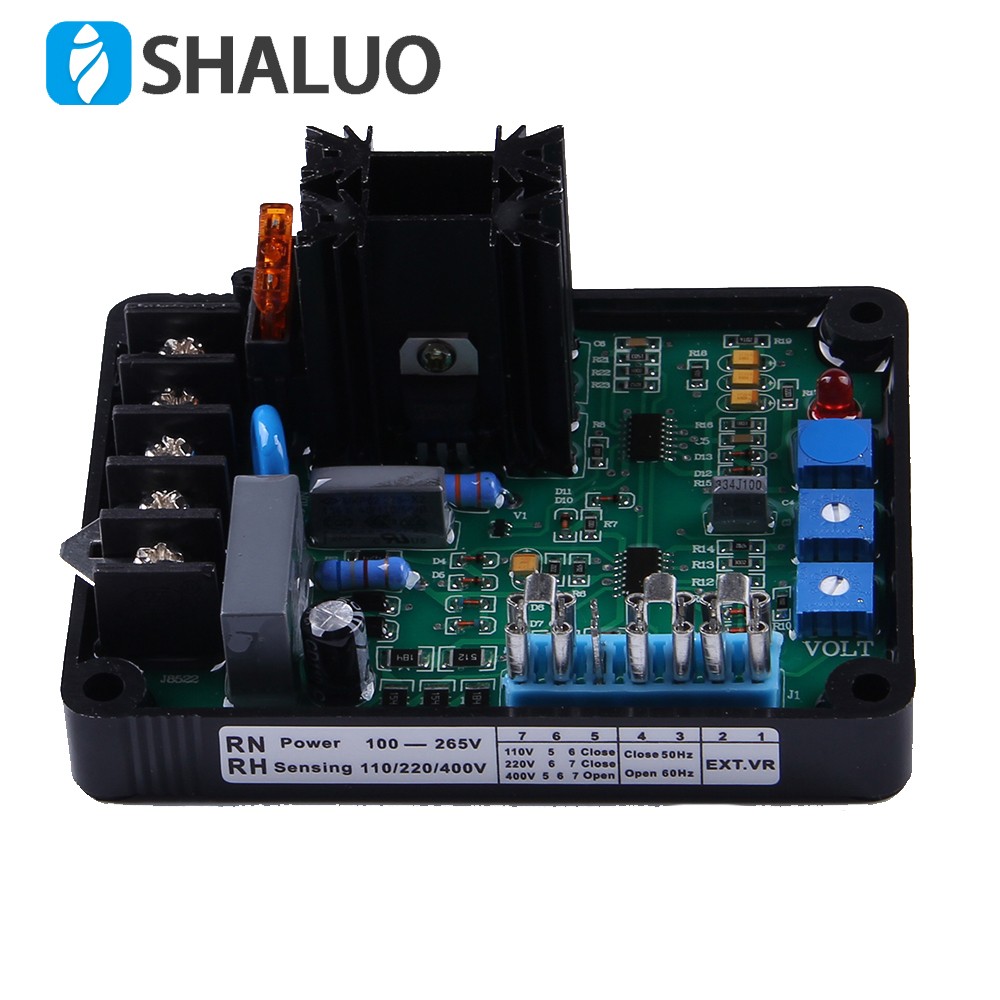

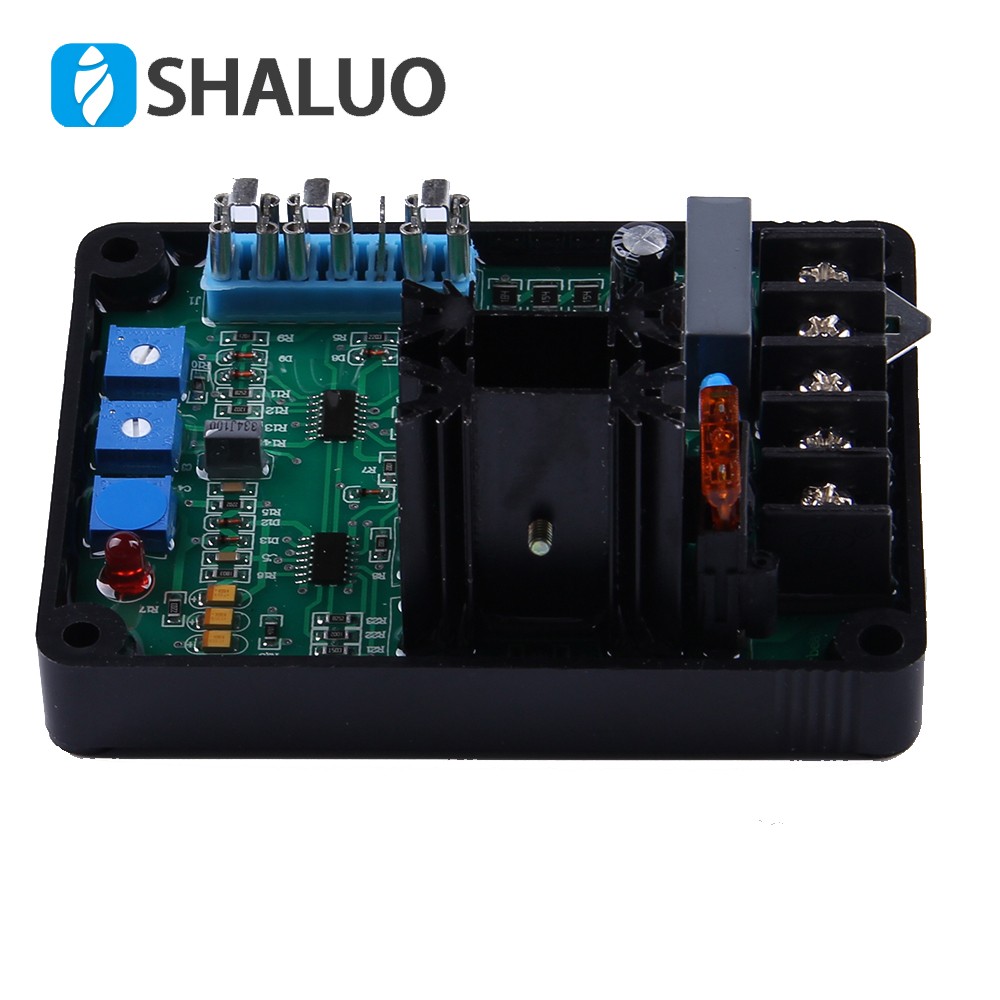

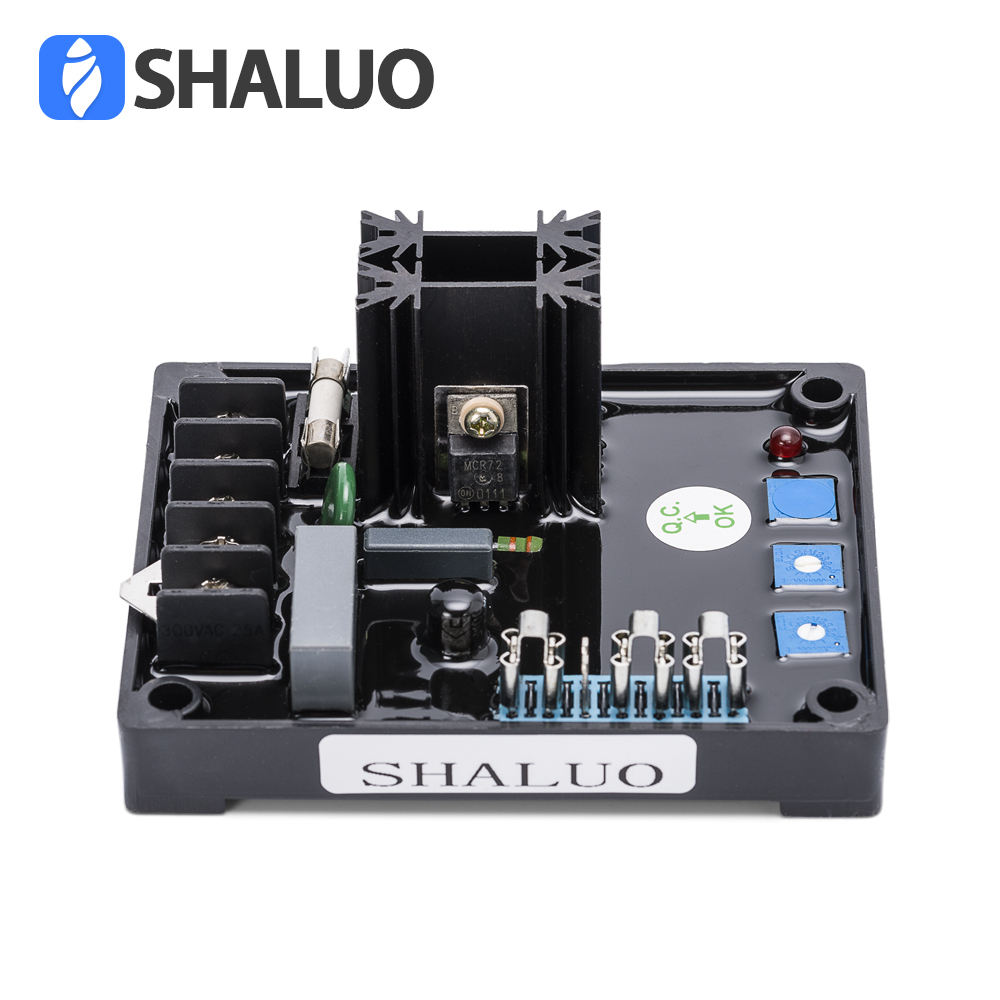

Gavr-8A Universal 8Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr
Voltage Regulation < ±1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
With Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 8Amp Fuse
| Sensing input Voltage | 110/220/400VAC , 1 phase 2 wire |
| Power Input voltage | 100-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 3 A , intermittent 5A for 10secs |
| Resistance | Min.15 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% with 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| 50Hz system presets knee point at 45Hz | |
| Dimensions | 107mmL*82mmW*50mmH |

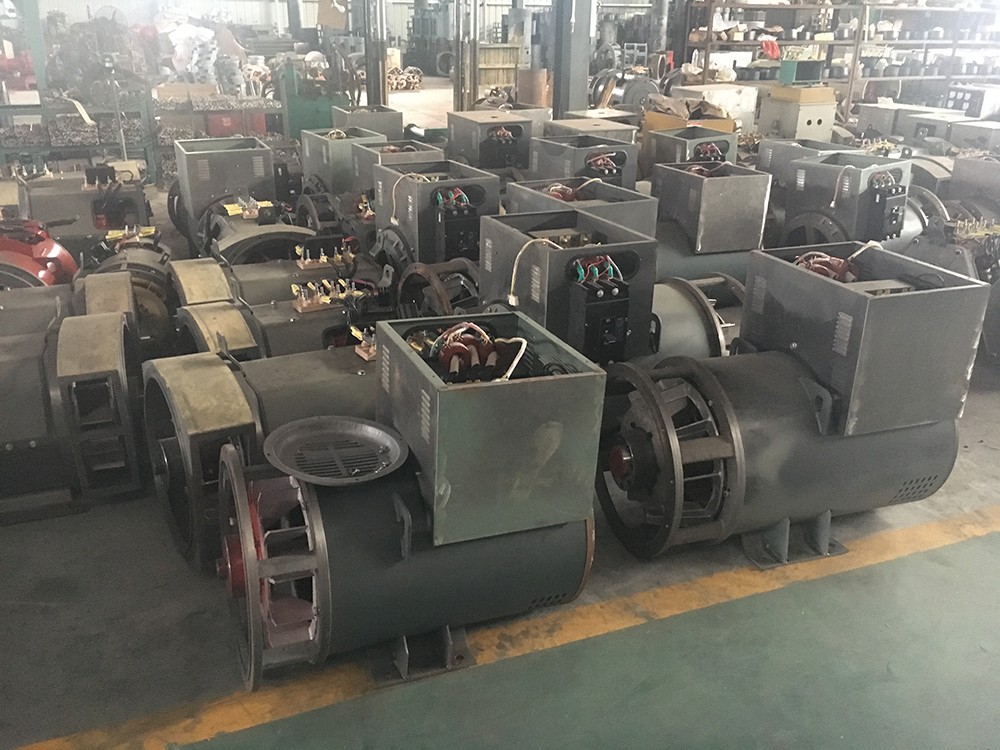

Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
The professional person responsible for the quality of supervision and control in the entire process.
In order to get the superior quality we only use selected good element.
Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
