generator speed controller 3044195 generator electronic governor control plate

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

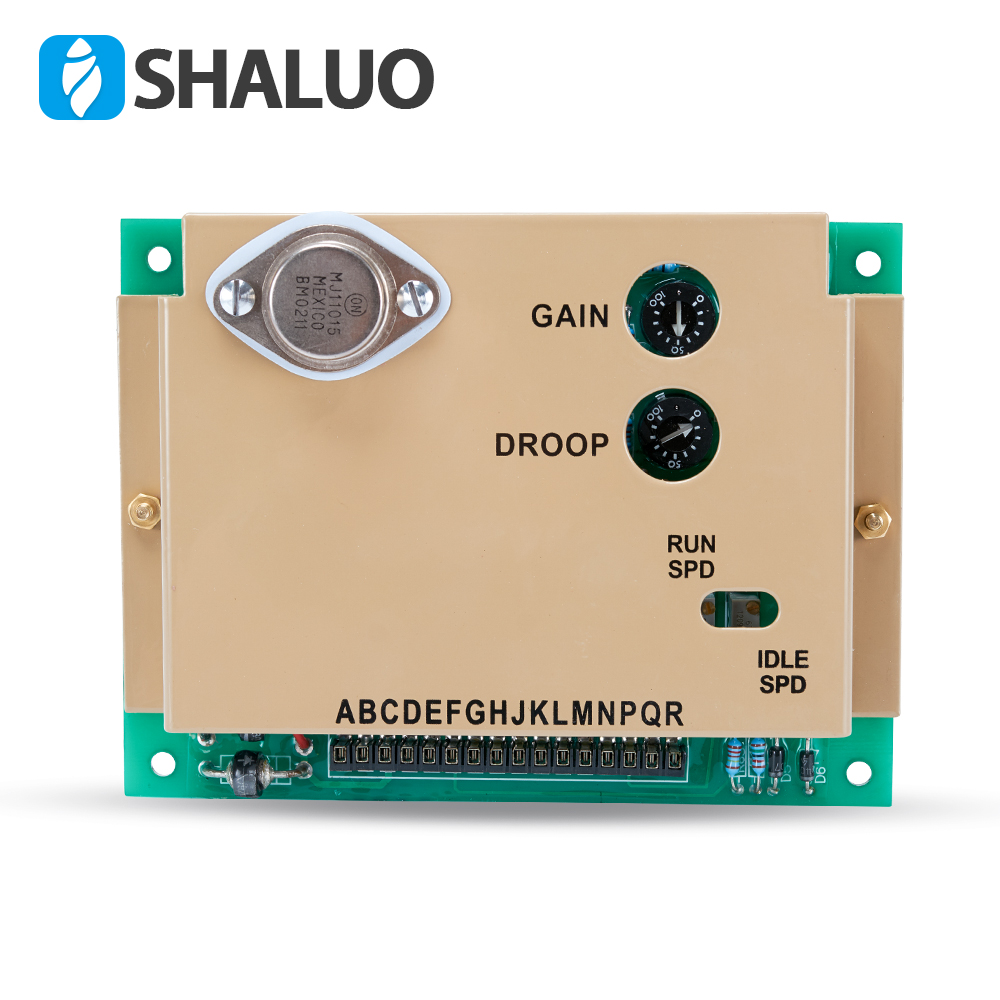

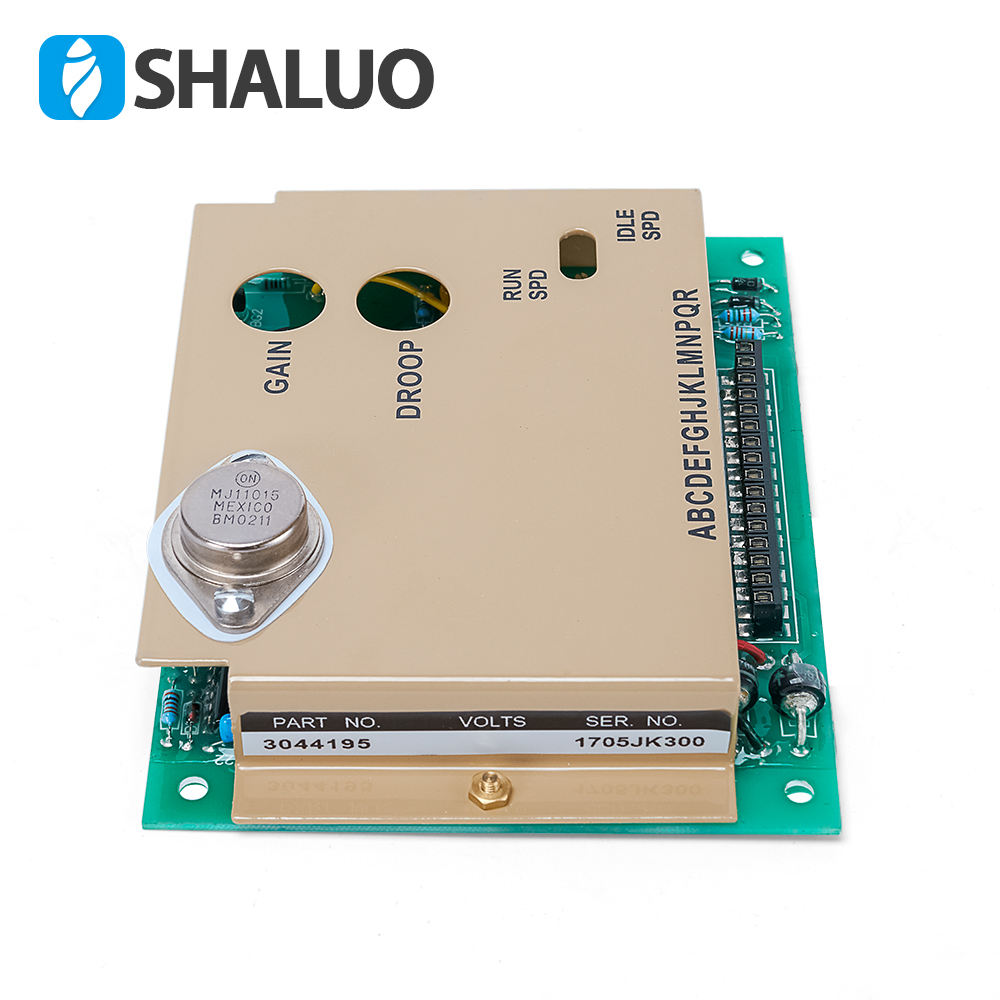

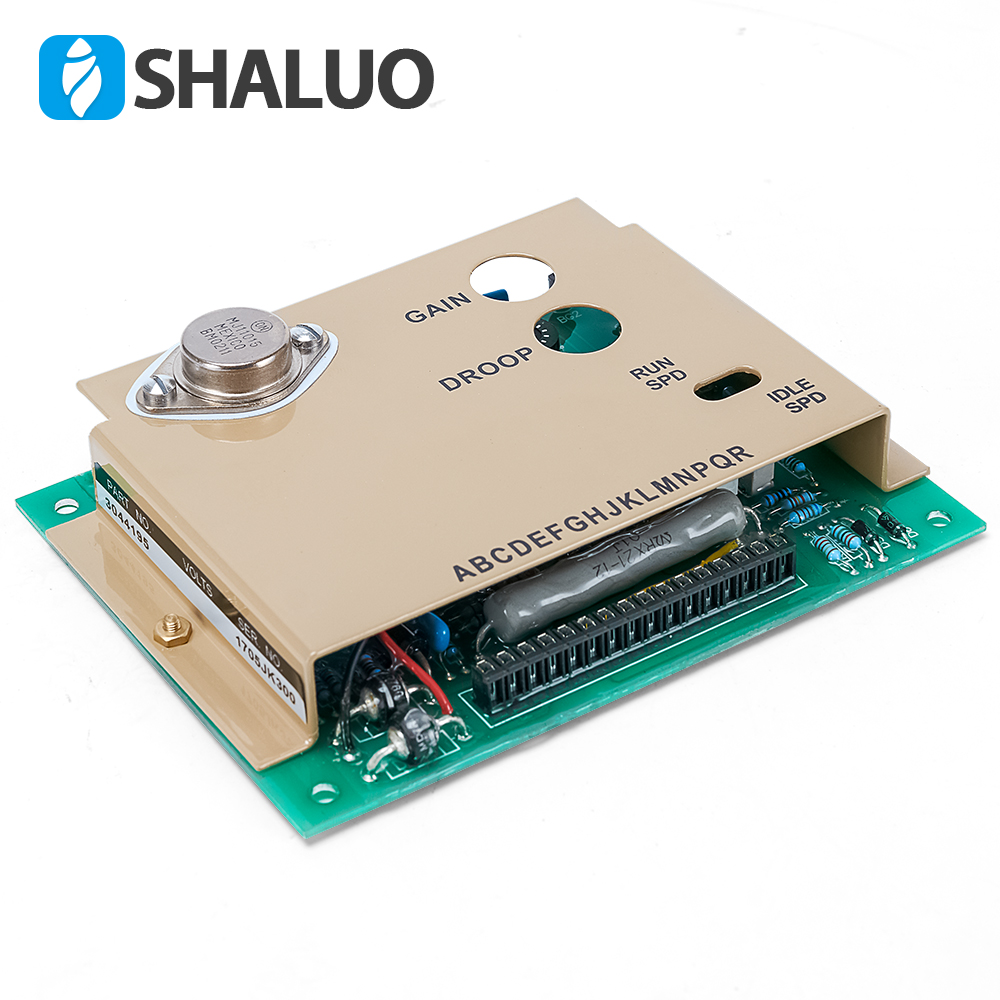

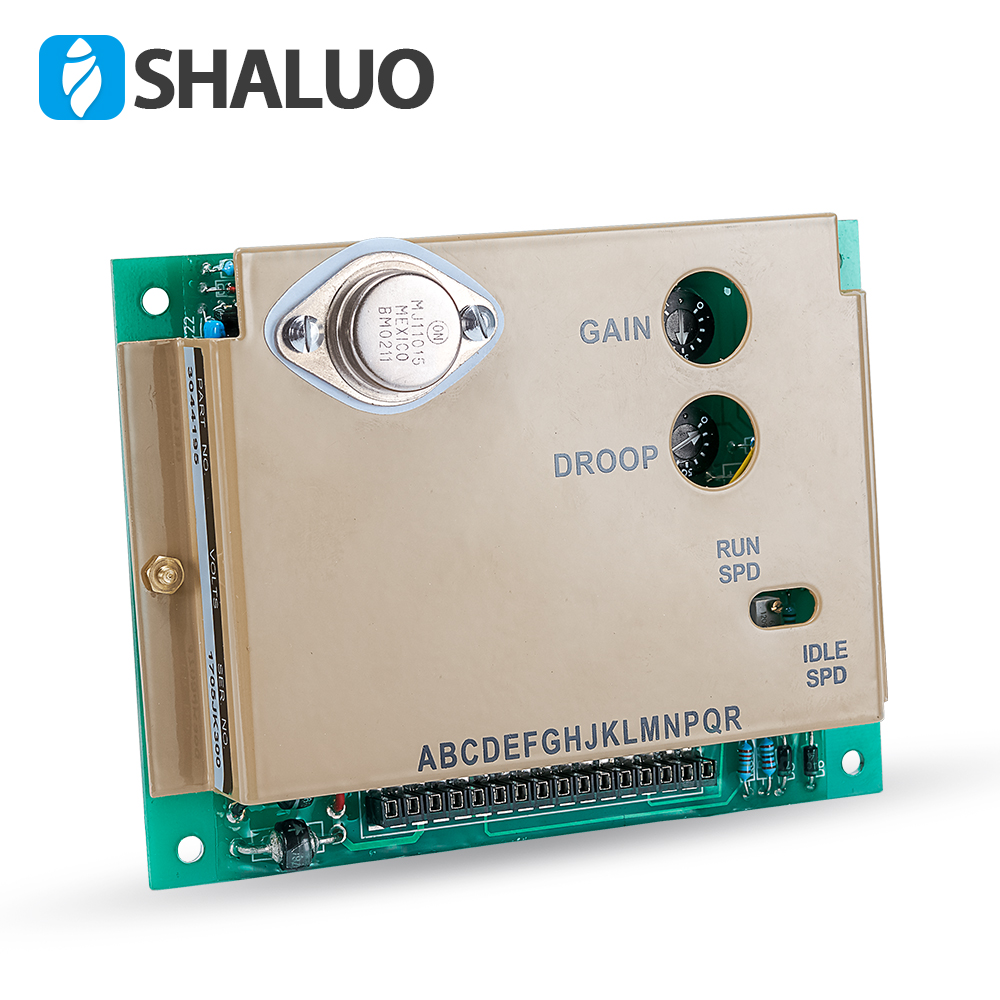

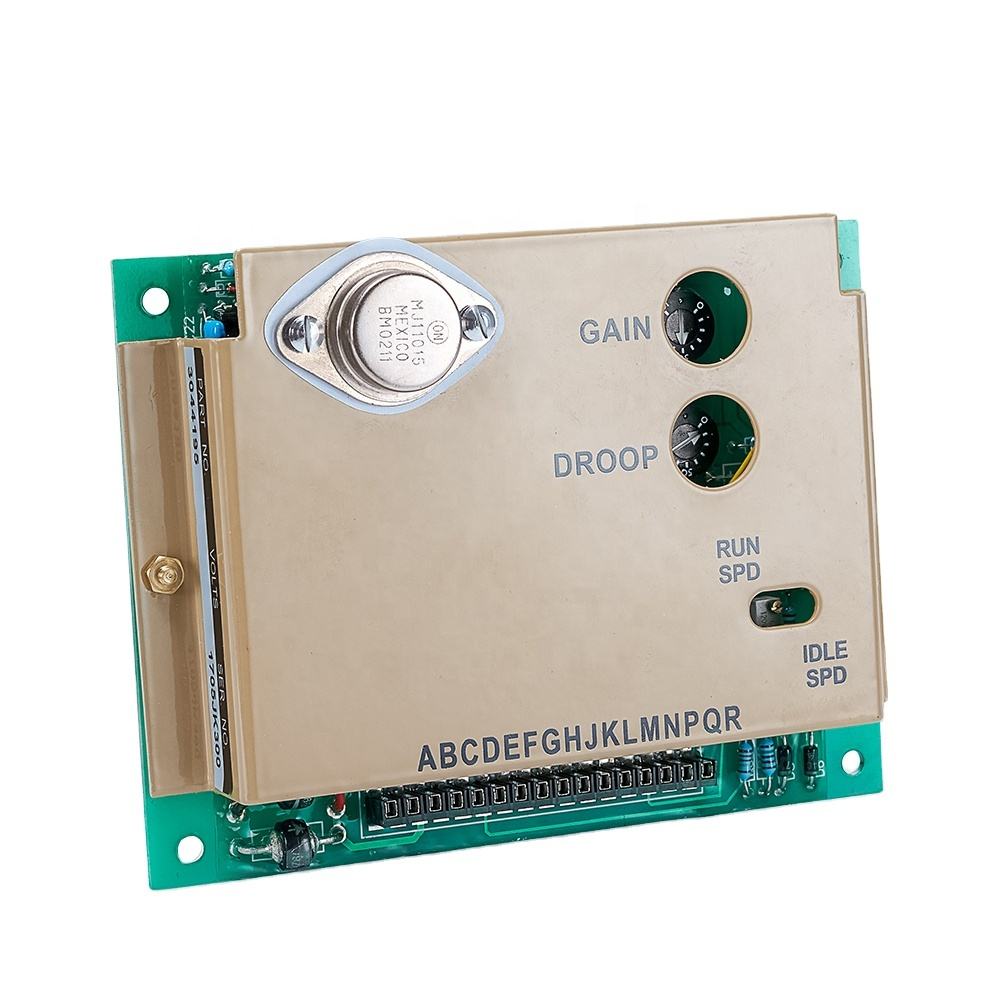

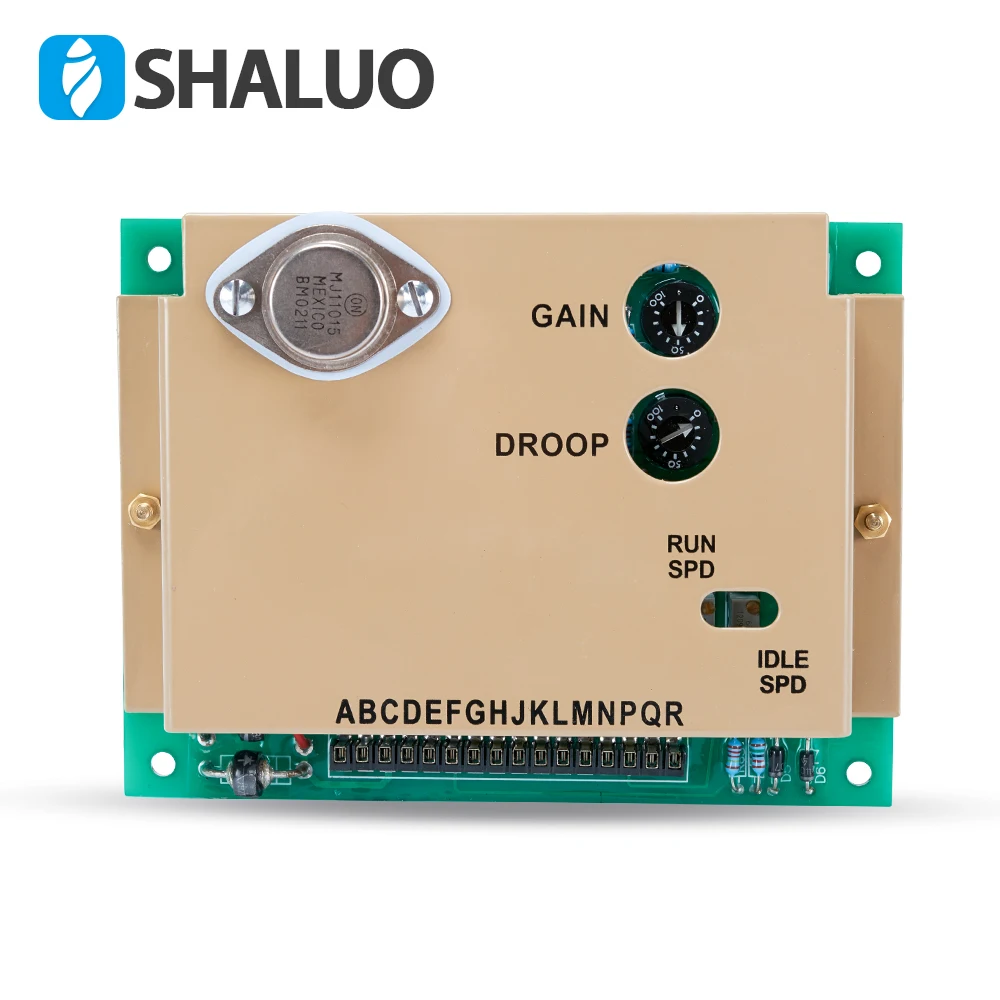

Engine Governor EFC3044195

RPM Stability: <±0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal stability: Max ±0.7%
IDLE Regulation: 260 ±20Hz
DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage: 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
MPU
Signal: 2 ~ 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency



Detailed Images
Our Certifications
Payment & Delivery
Why do you choose us
Other Products
Packing
Our Factory

About the company

Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.

Factory inspection

The professional person responsible for the quality of supervision and control in the entire process.

Element testing

In order to get the superior quality we only use selected good element.

Assembles products

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
