Product Description

Product Description

6110U AMF Diesel Generator Set Controller Auto Start and Stop Genset Module ATS Control Box Charge Panel Alternator Parts

1.SUMMARY HGM6100U series automatic controller, integrating digital, intelligent and network techniques, is used for automatic
control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection
and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display
interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.
HGM6100U series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment,
timing and threshold setting etc.. All the parameters can be configured from front panel or use or RS485 interface to adjust via
PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high

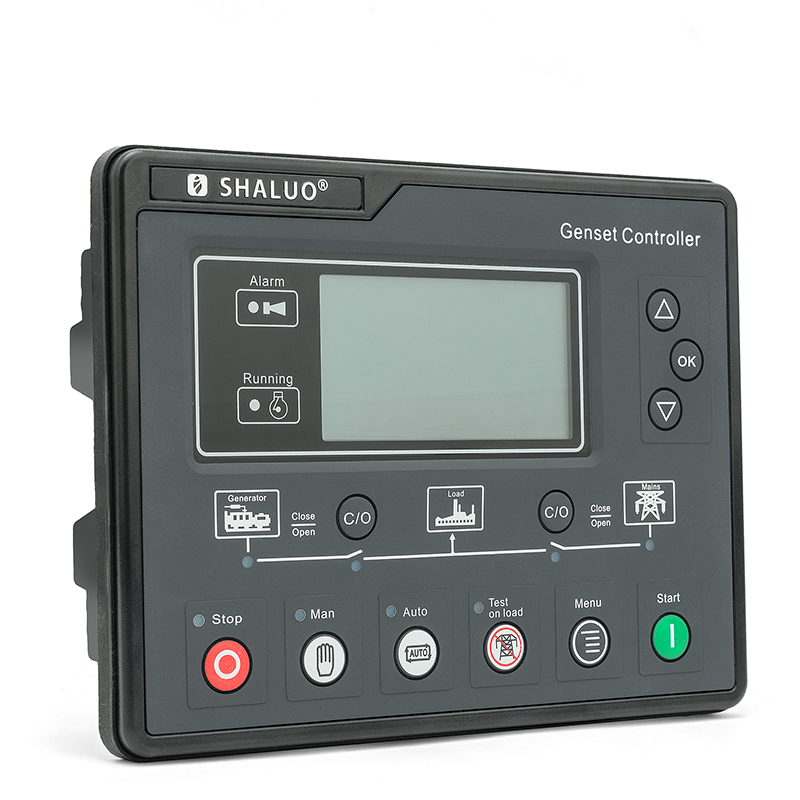

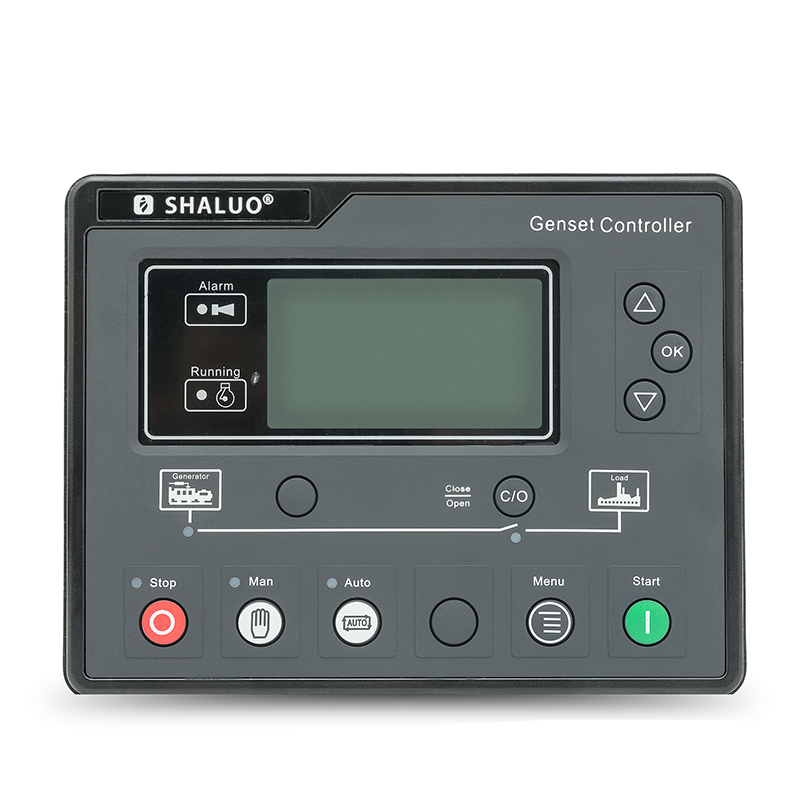

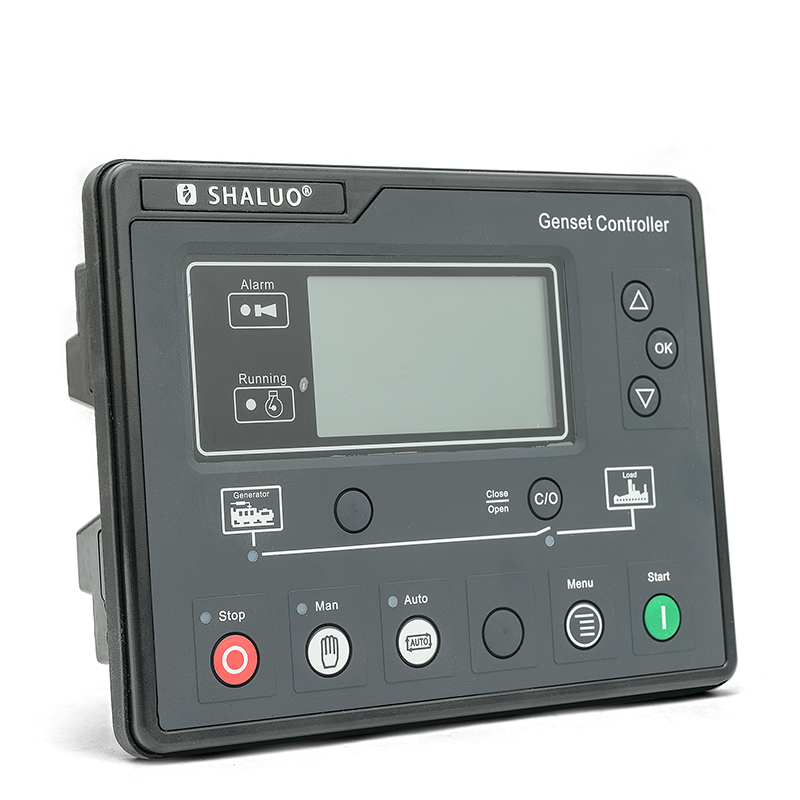

reliability. 2 PERFORMANCE AND CHARACTERISTICS HGM6100U2C controller has two types: HGM6110U2C: Used for single unit automation.

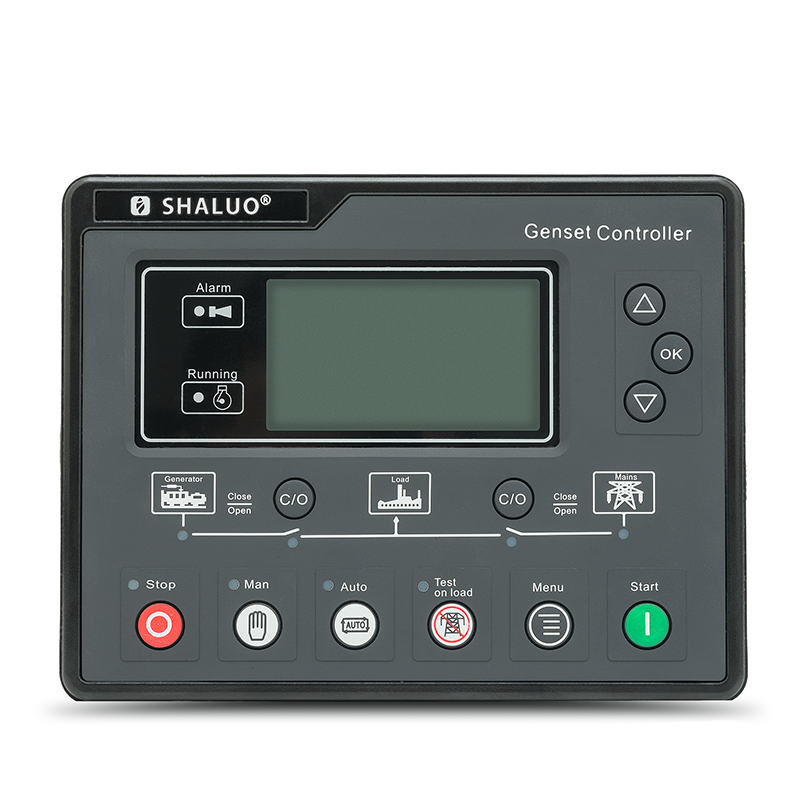

It controls generator to start/stop by remote start signal; HGM6120U2C: Based on HGM6110U2C, it adds mains AC monitoring and
mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset. 
132*64 LCD display with backlight, optional language interface (Simplified Chinese, English, Spanish, Russian, Portuguese,
Turkish, Polish and French), push-button operation;  Acrylic screen, improved wearable and scratch resistance property; 
Silica-gel panel and keys can well adapt to higher and lower temperature;  With double RS485 communication ports, can achieve
“three remote” functions via MODBUS protocol;  Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system;  Can
measure and display 3 phase voltage, 3 phase current, frequency, power parameter of mains/gens; Mains Generator Line voltage (Uab,
Ubc, and Uca) Line voltage (Uab, Ubc, and Uca) Phase voltage (Ua, Ub, and Uc) Phase voltage (Ua, Ub, and Uc) Frequency Hz
Frequency Hz Load Current Ia，Ib，Ic A(unit) Active power P kW(unit) Reactive power Q kvar(unit) Apparent power S kVA(unit) Power
factor λ Generator accumulated energy W kWh(unit)  Mains have functions of over/under voltage and lack of phase; Gens have
functions of over/under voltage, over/under frequency and over current;  Precision measure and display of parameters about
engine, Temp. (WT), °C/ °F both are displayed Oil pressure (OP), kPa/Psi/Bar are all displayed Fuel level (FL), % (unit) Speed
(SPD), r/min (unit) Battery Voltage (VB), V (unit) Charger Voltage (VD), V (unit)
