ATS220 Genset ATS controller auto or manual Generator Control switch Module

ATS220(which can control the ATS switch)

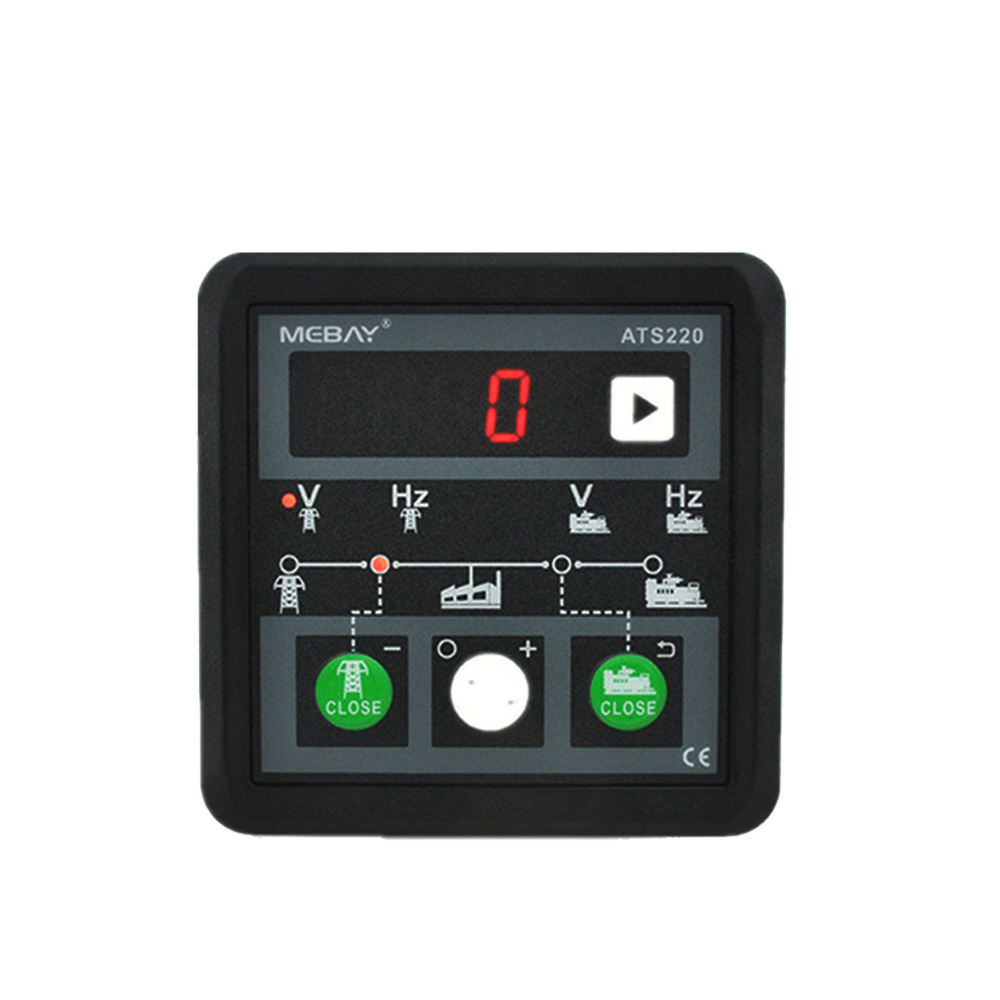

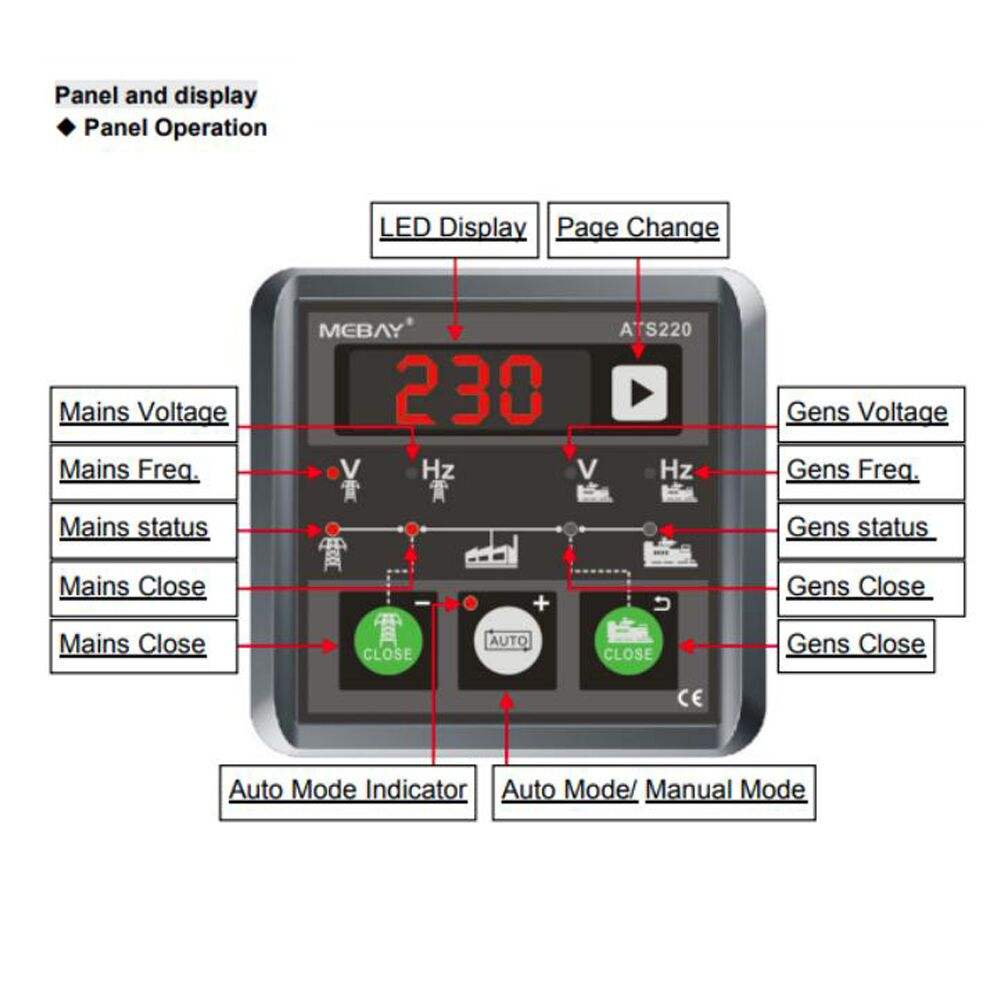

ATS220 is one controller with ATS system of Mains and genset power,which can control the ATS switch by auto or manual mode to

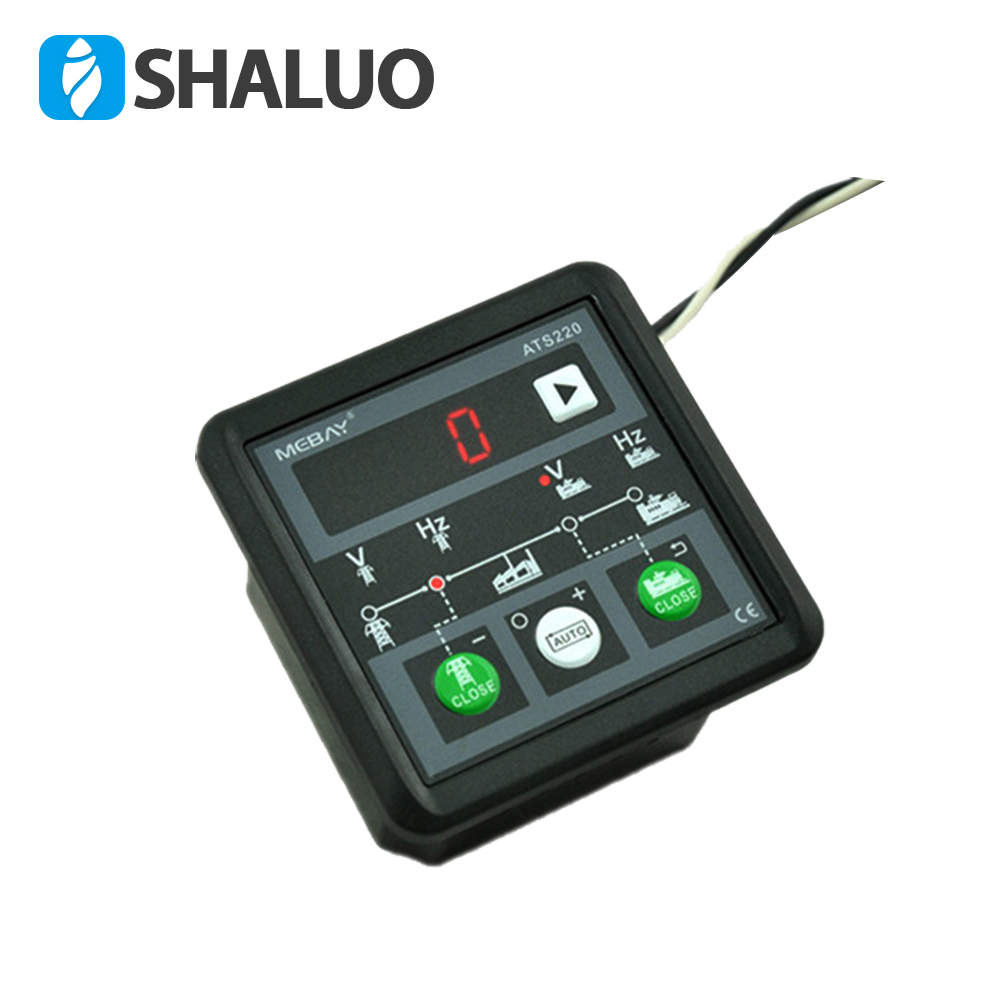

apply for mains and gens power.It is with 4 digits LED tube which can display the single-phase gens voltage, gens frequency, mains
voltage, mains frequency. ATS switch working status can be also shown by LED.
All the parameters can be set through the front face buttons or PC port.
Main Features
* 32 units Micro-procession technology is used.
* Wide voltage range: 8-36V.
* 4 digits LED tube which can display mains, voltage, frequency.

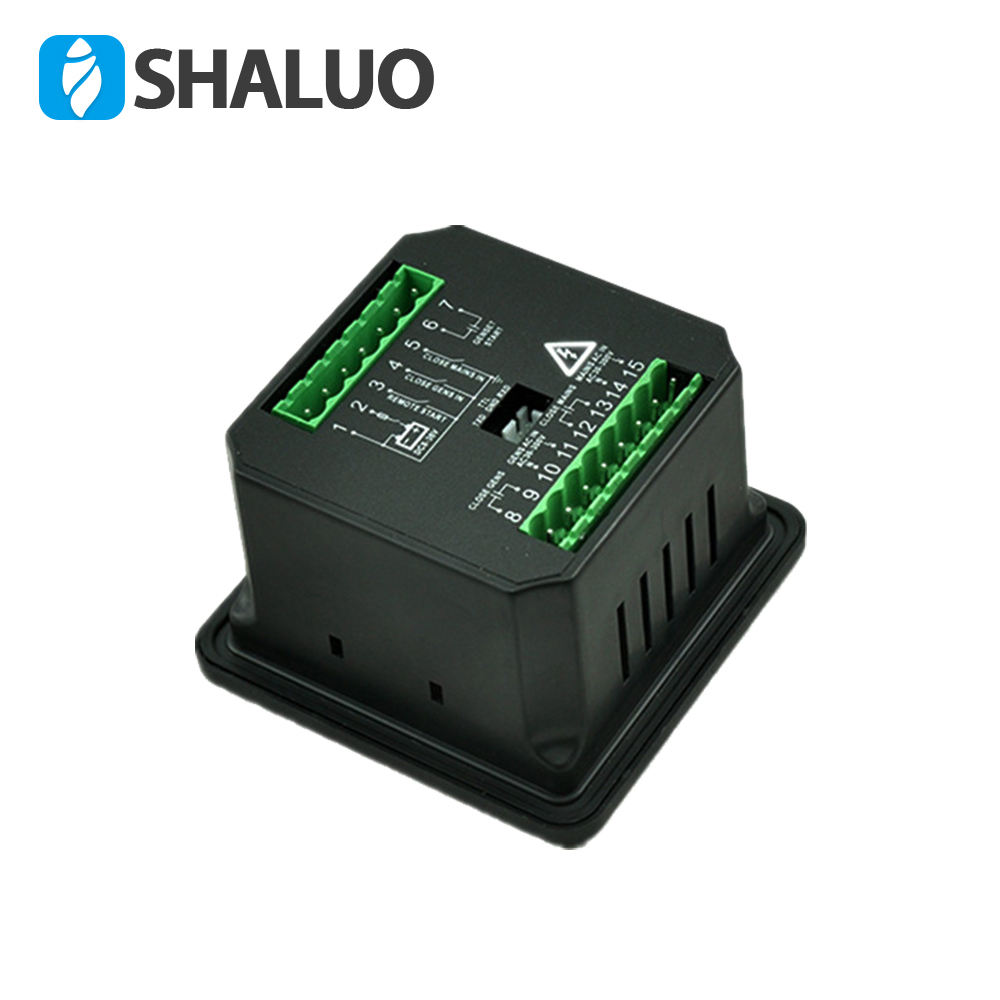

* Totally 7 relay's output, max current is 5A(250VAC).
* 1 group programmable switch input.
* Parameters can be set by front face buttons.
* Standard water-proof rubber, the protection level can reach at IP54
Specification Parameter:
Operation Voltage :DC8-36V Continuous
Power Consumption: Standby:24V:MAX 1W
Working:24V:MAX 3W
Mains AC Voltage Input:30VAC-300VAC(ph-N)
Gens AC Voltage Input:30VAC-300VAC(ph-N)
Gens Close Output:5Amp(AC250V) free output
Mains Close Output:5Amp(AC250V) free output
Gen Start Relay:5Amp(AC250V) free output
Overall Dimension:78mm*78mm*55mm
