Product Description

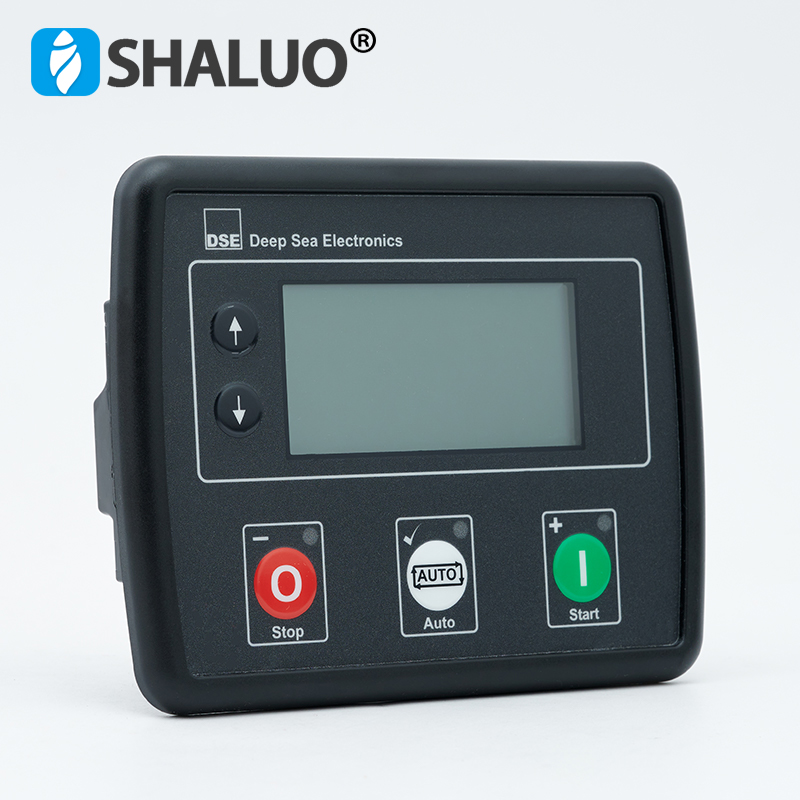

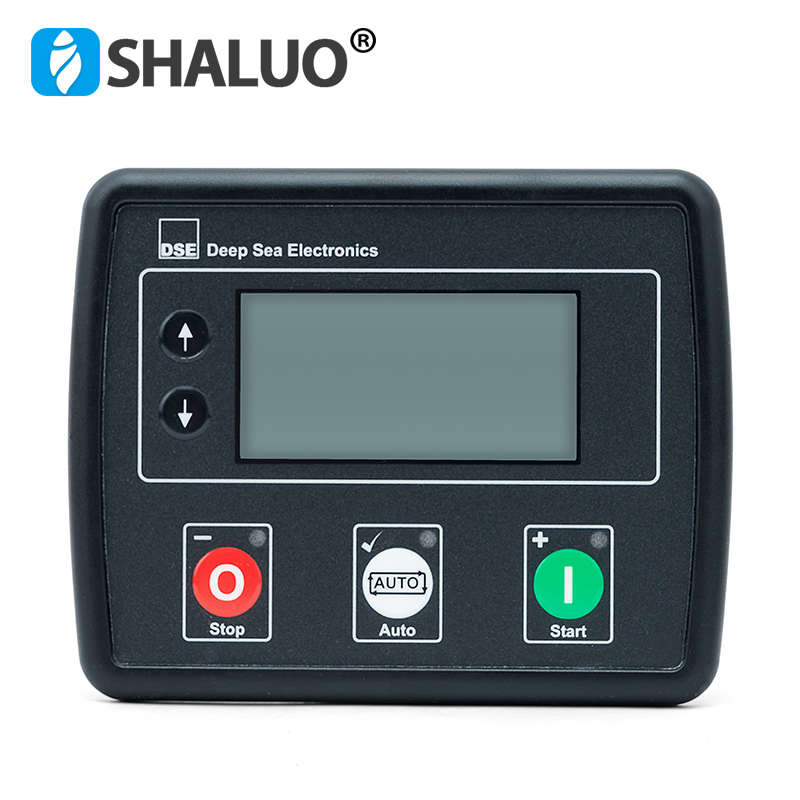

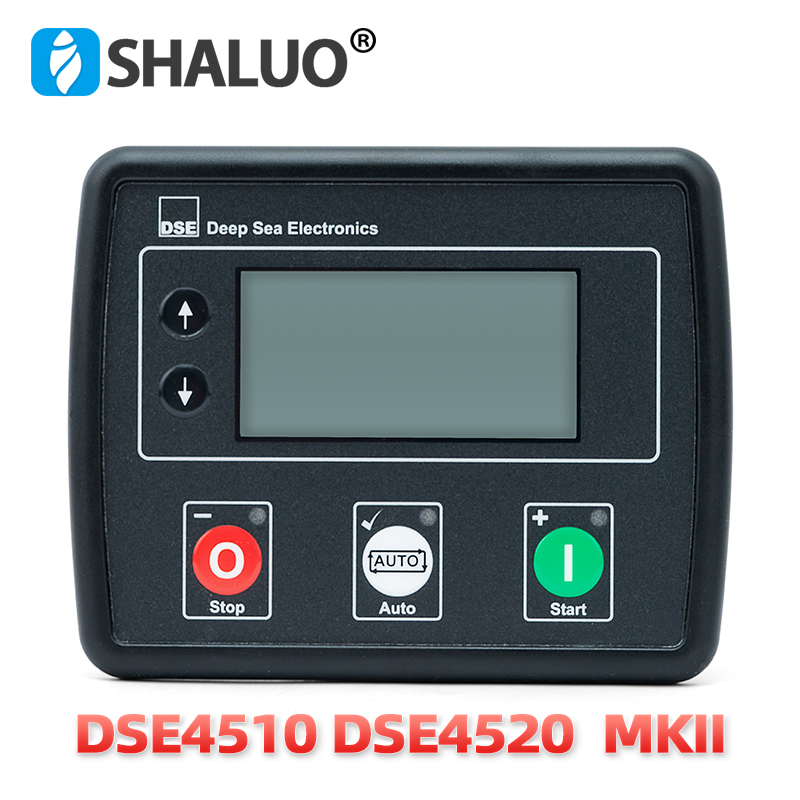

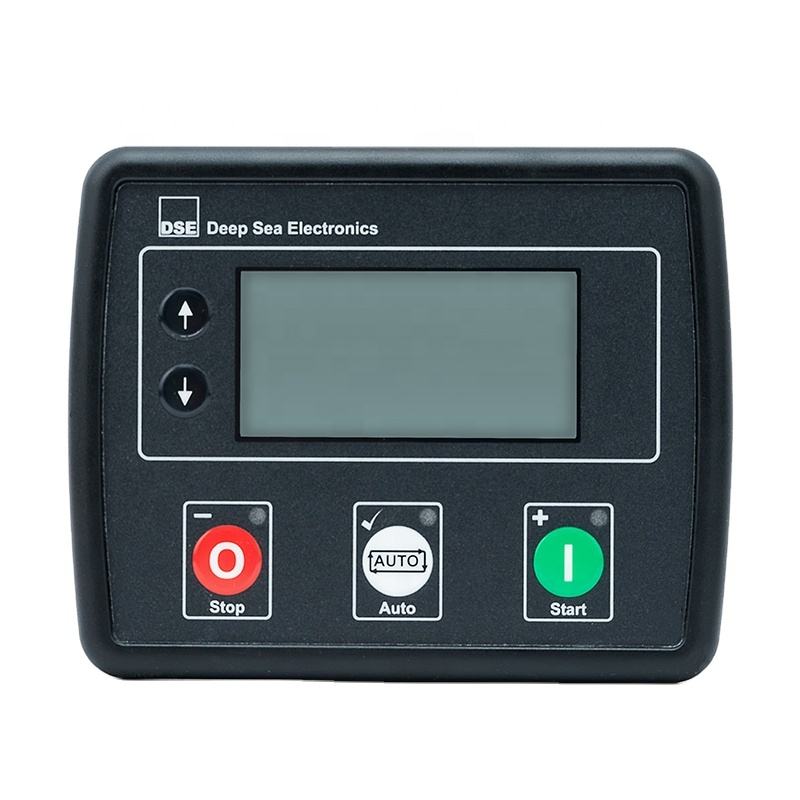

●The DSE4500 series is designed to provide differing levels of functionality across a common platform.This allows the generator OEM greater flexibility in the choice of controller to use for a specific application.
The DSE4500 series module has been designed to allow the operator to start and stop the generator,and if required, transfer the load to the generator automatically. Additionally, the DSE4520 automatically starts and stops the generator set depending upon the status of the mains (utility) supply.
The user also has the facility to view the system operating parameters via the LCD display.
| Continuous Voltage Rating | 8 V to 35 V Continuous | ||||
| Cranking Dropouts | Able to survive 0 V for 50 mS | ||||
| Maximum Operting Current | 460 mA at 12 V, 245 mA at 24 V | ||||
| Nominal Standby Current | 375 mA at 12 V, 200 mA at 24 V | ||||
| Charge Fail/Excitation Range | 0-35V | ||||
| Voltage Range | 15 V - 333 V AC (L-N) | ||||
| Frequency Range | 3.5 Hz to 75 Hz | ||||
| Gain Voltage | 0V-10V DC Fully isolated | ||||
| Offset Voltage | +/- 10 V DC Fully isolated | ||||
| Output A (Fuel)/ B (Start) | 15 A DC at supply voltage | ||||
| Auxiliary Outputs C,D | 8 AC at 250 V AC (Volt free) | ||||
| Auxiliary Outputs E,F,G,H,I & J | 2 A DC at supply voltage | ||||
| Overall | 98 mm x 79 mm x 40 mm | ||||
| Panel cut-out | 80 mm x 68 mm | ||||
| Maximum Panel Thickness | 8 mm | ||||
