Product Description

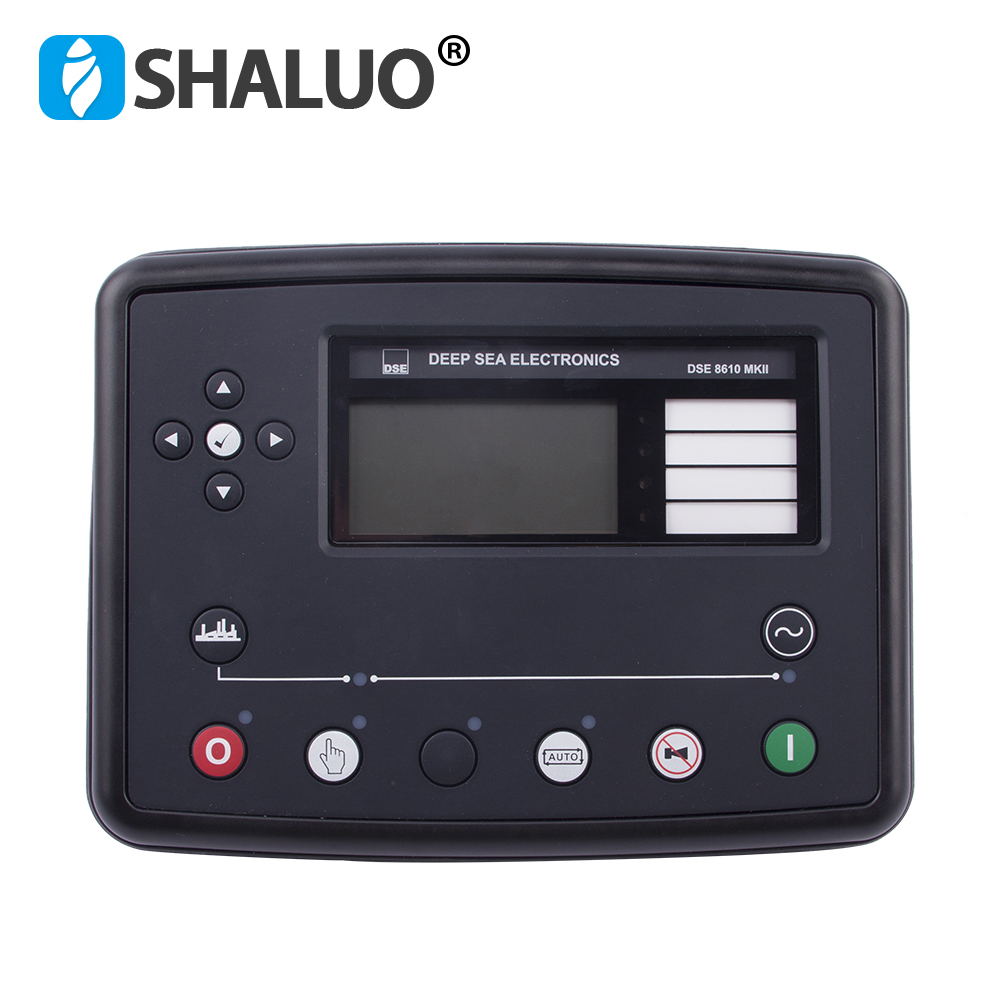

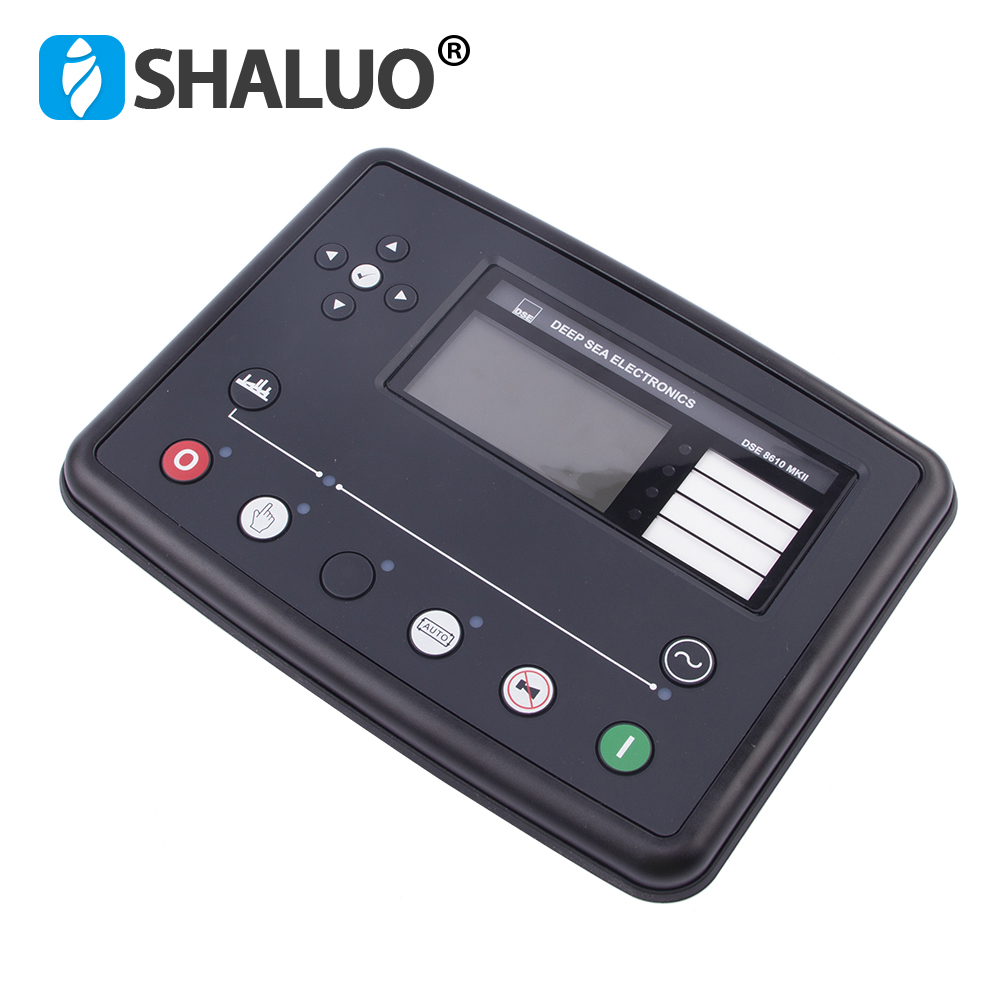

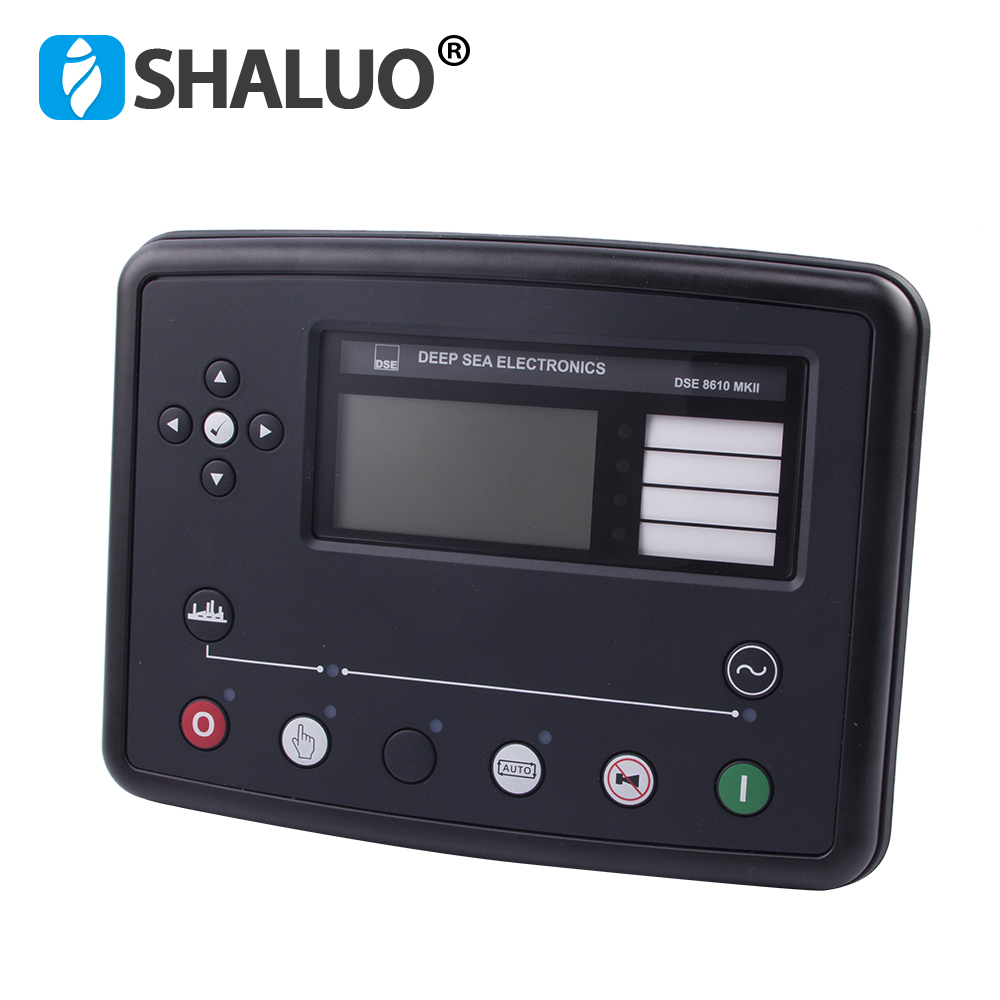

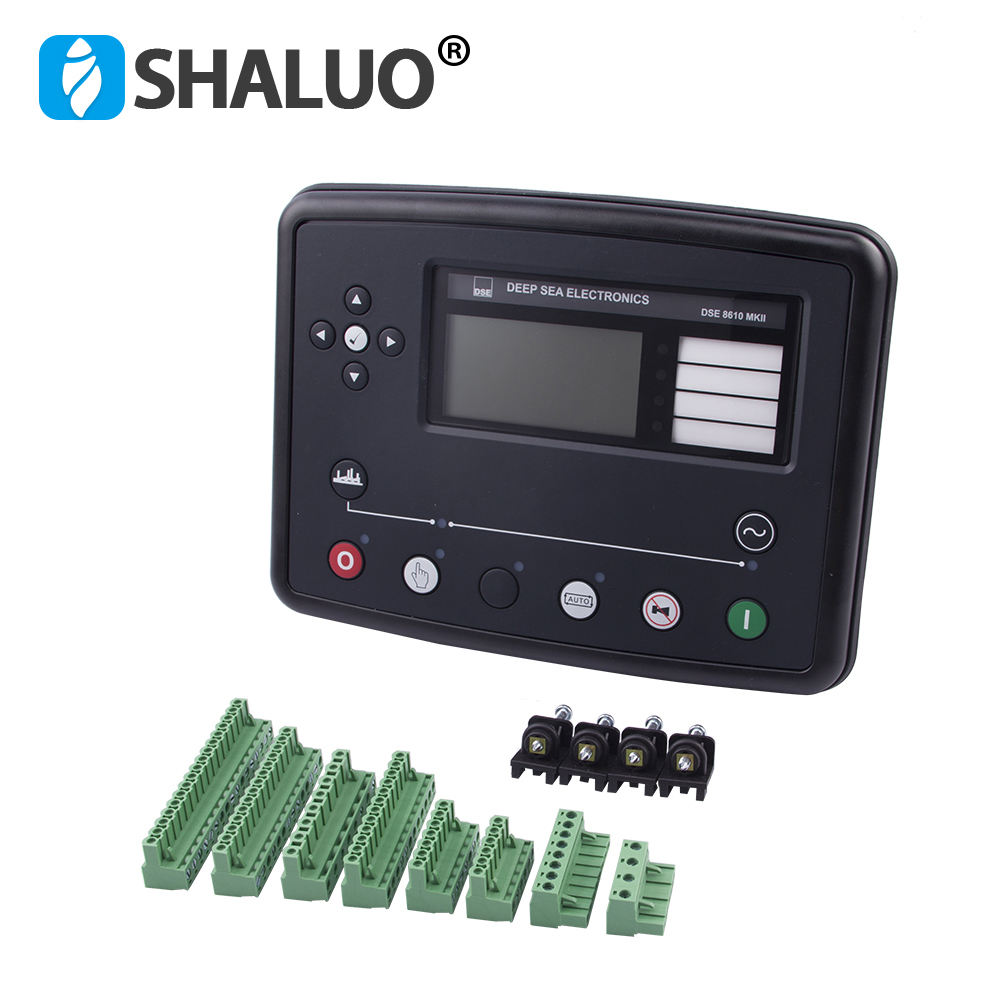

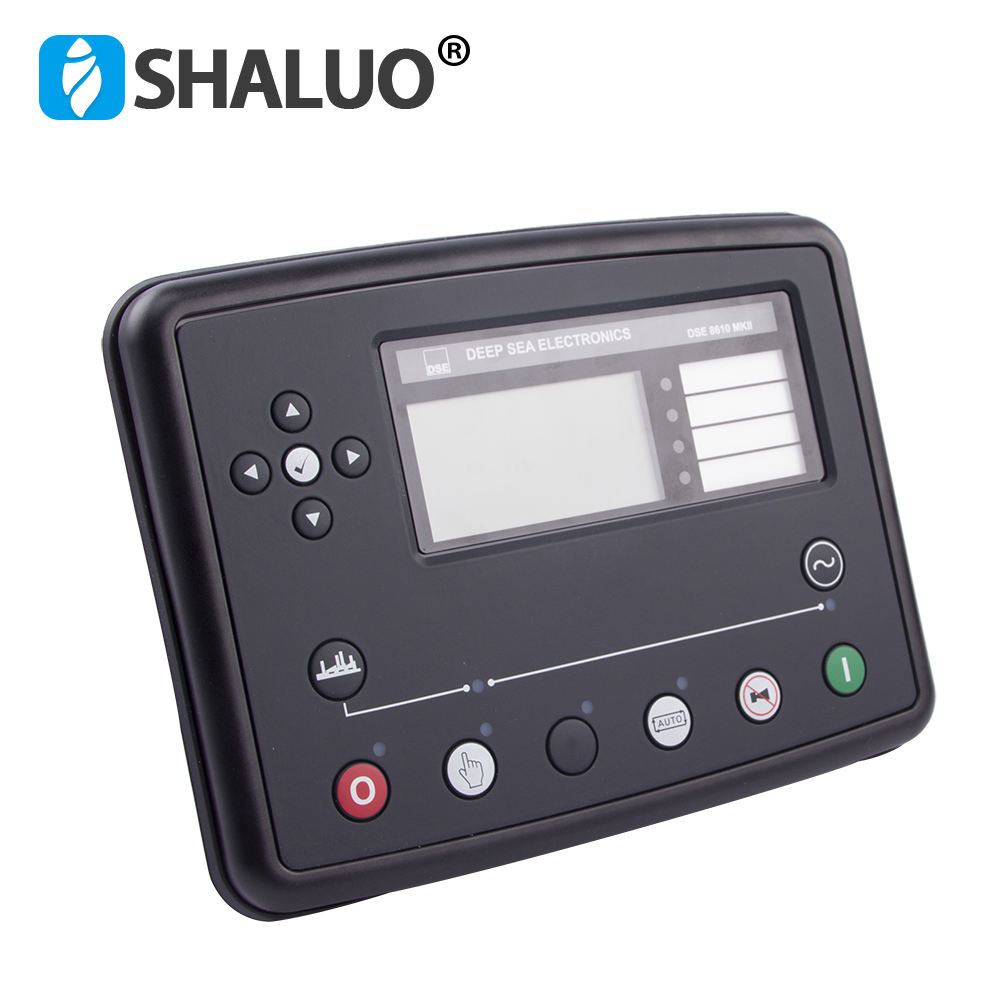

The DSE8610 MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most
complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are
unrivalled across the generator control industry.
This is genuine parts, due to the copy right, we can not present you best images. If you want more info, welcome let us know.
| Continuous Voltage Rating | 8 V to 35 V Continuous | ||||
| Cranking Dropouts | Able to survive 0 V for 50 mS | ||||
| Maximum Operting Current | 460 mA at 12 V, 245 mA at 24 V | ||||
| Nominal Standby Current | 375 mA at 12 V, 200 mA at 24 V | ||||
| Charge Fail/Excitation Range | 0-35V | ||||
| Voltage Range | 15 V - 333 V AC (L-N) | ||||
| Frequency Range | 3.5 Hz to 75 Hz | ||||
| Gain Voltage | 0V-10V DC Fully isolated | ||||
| Offset Voltage | +/- 10 V DC Fully isolated | ||||
| Output A (Fuel)/ B (Start) | 15 A DC at supply voltage | ||||
| Auxiliary Outputs C,D | 8 AC at 250 V AC (Volt free) | ||||
| Auxiliary Outputs E,F,G,H,I & J | 2 A DC at supply voltage | ||||
| Overall | 98 mm x 79 mm x 40 mm | ||||
| Panel cut-out | 80 mm x 68 mm | ||||
| Maximum Panel Thickness | 8 mm | ||||
