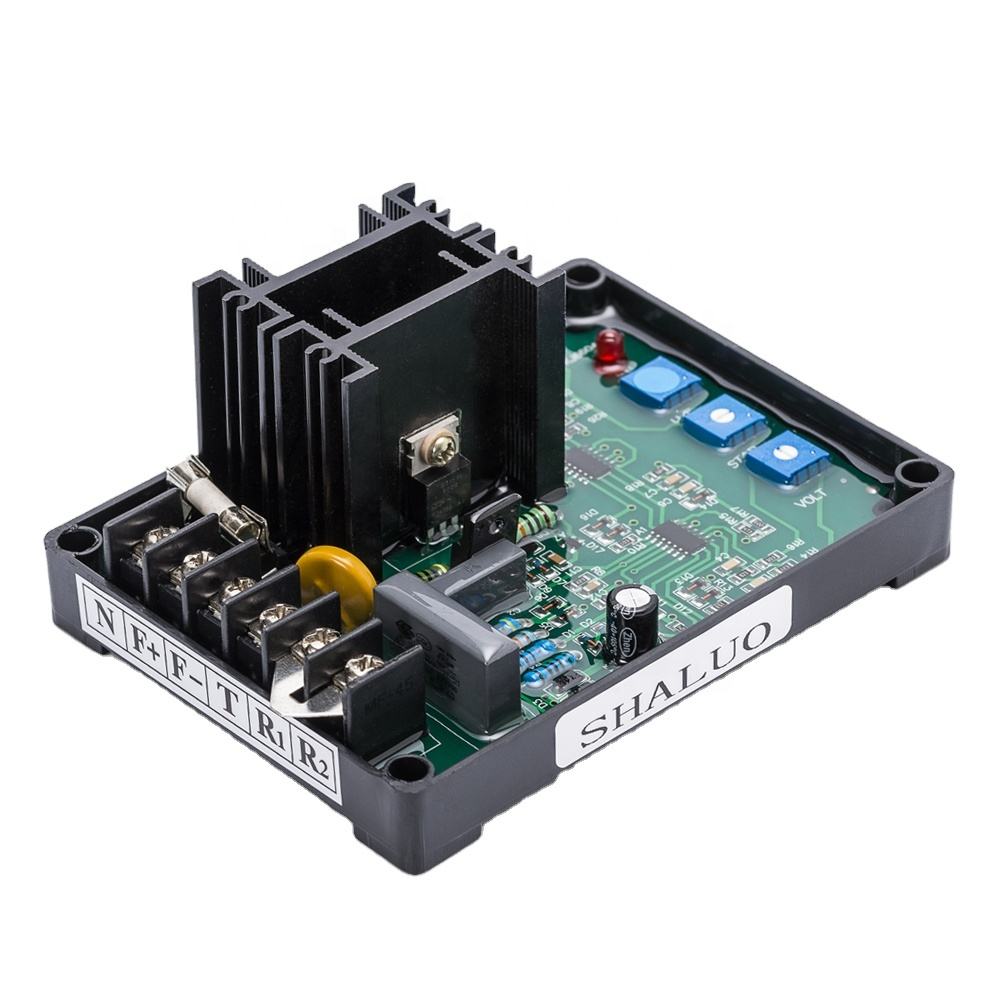

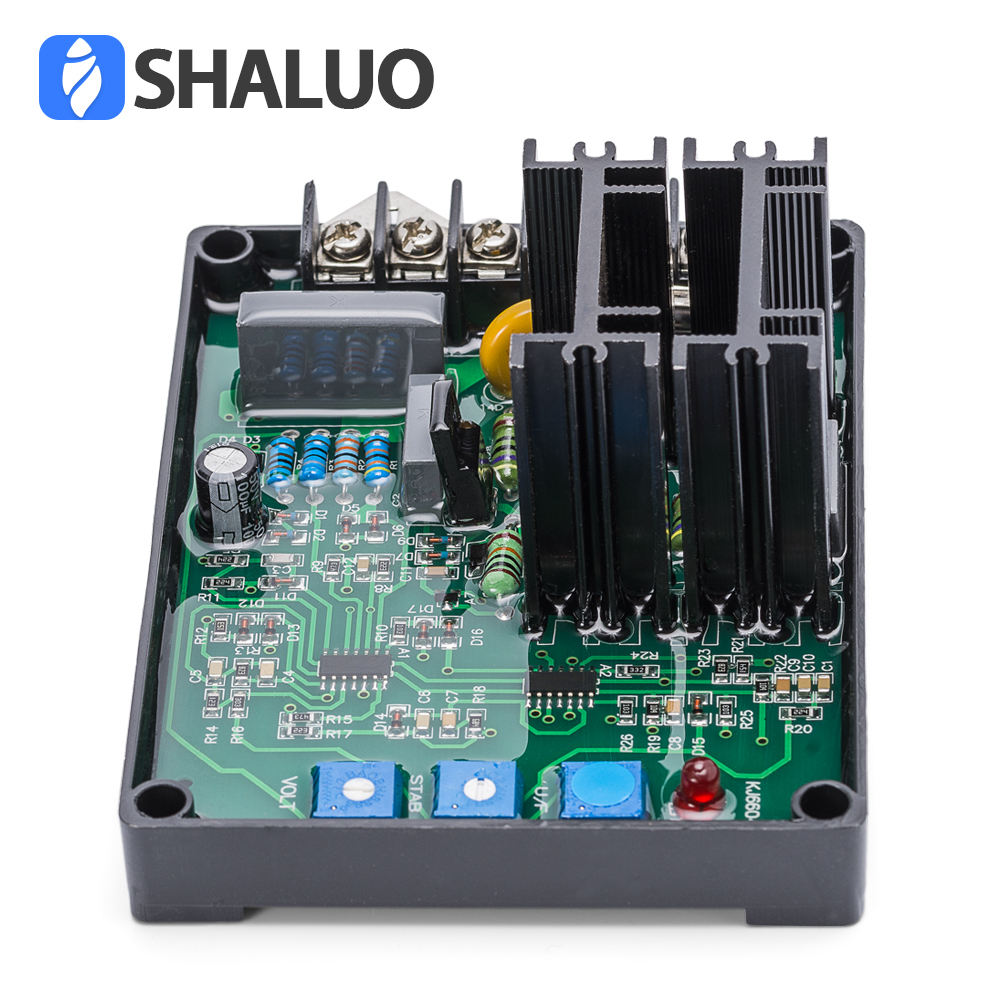

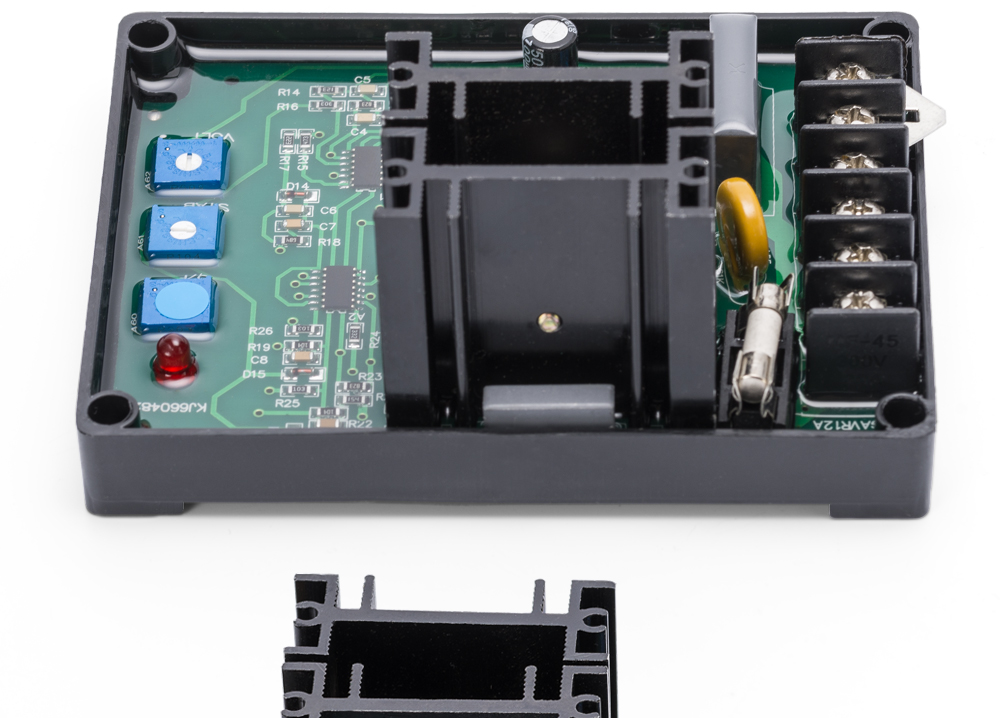

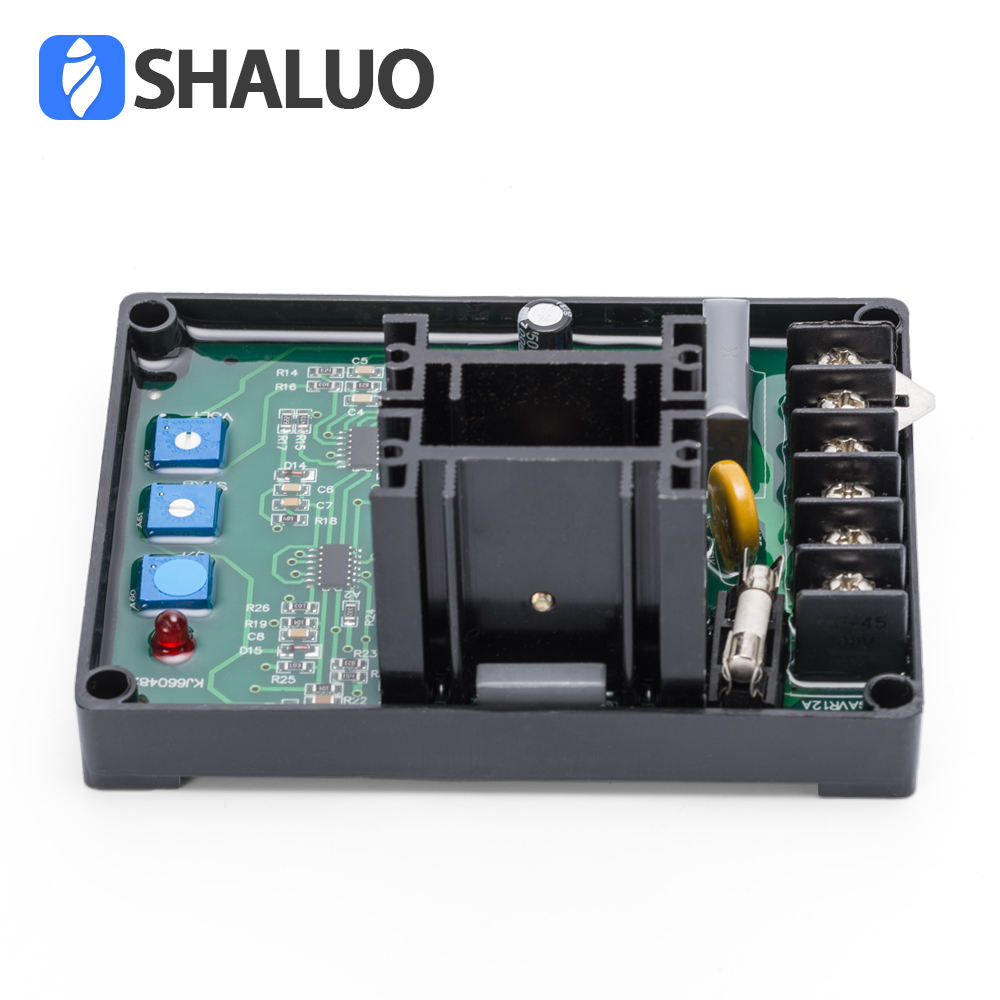

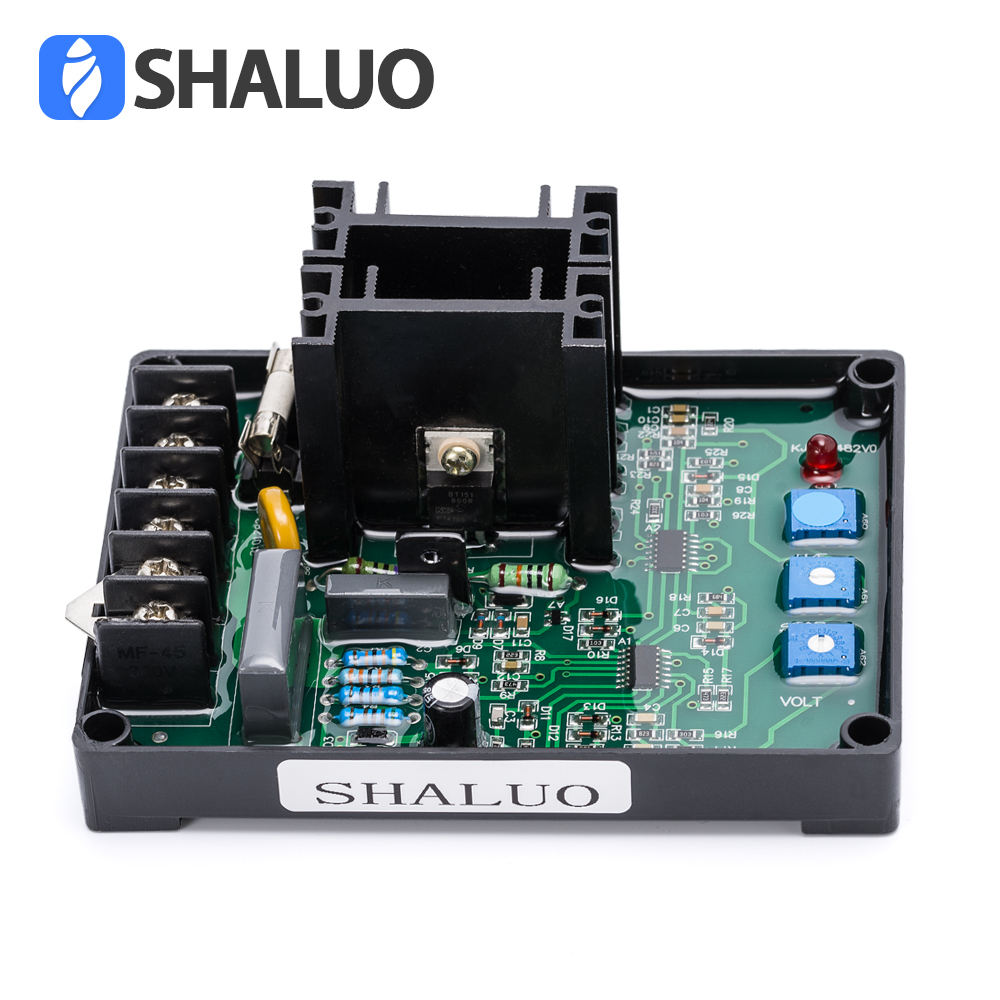

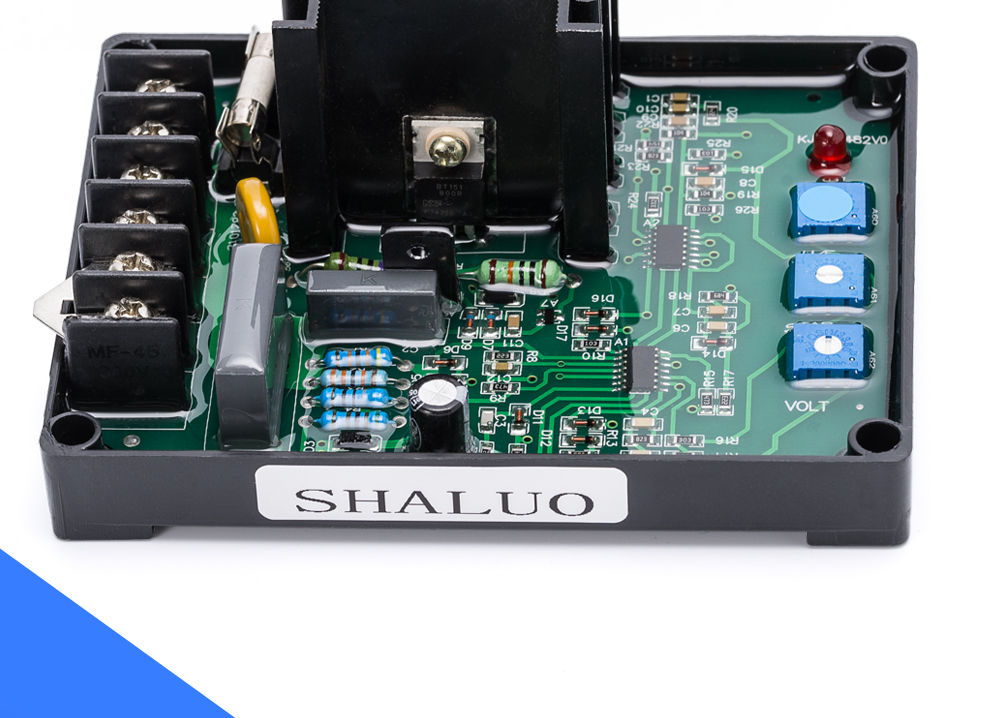

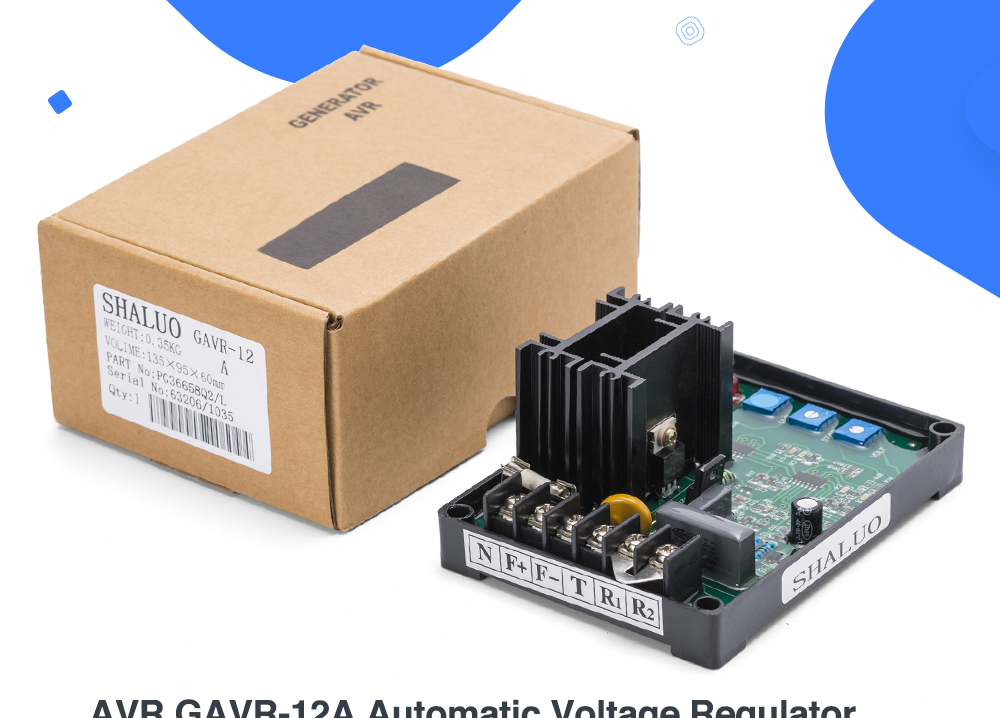

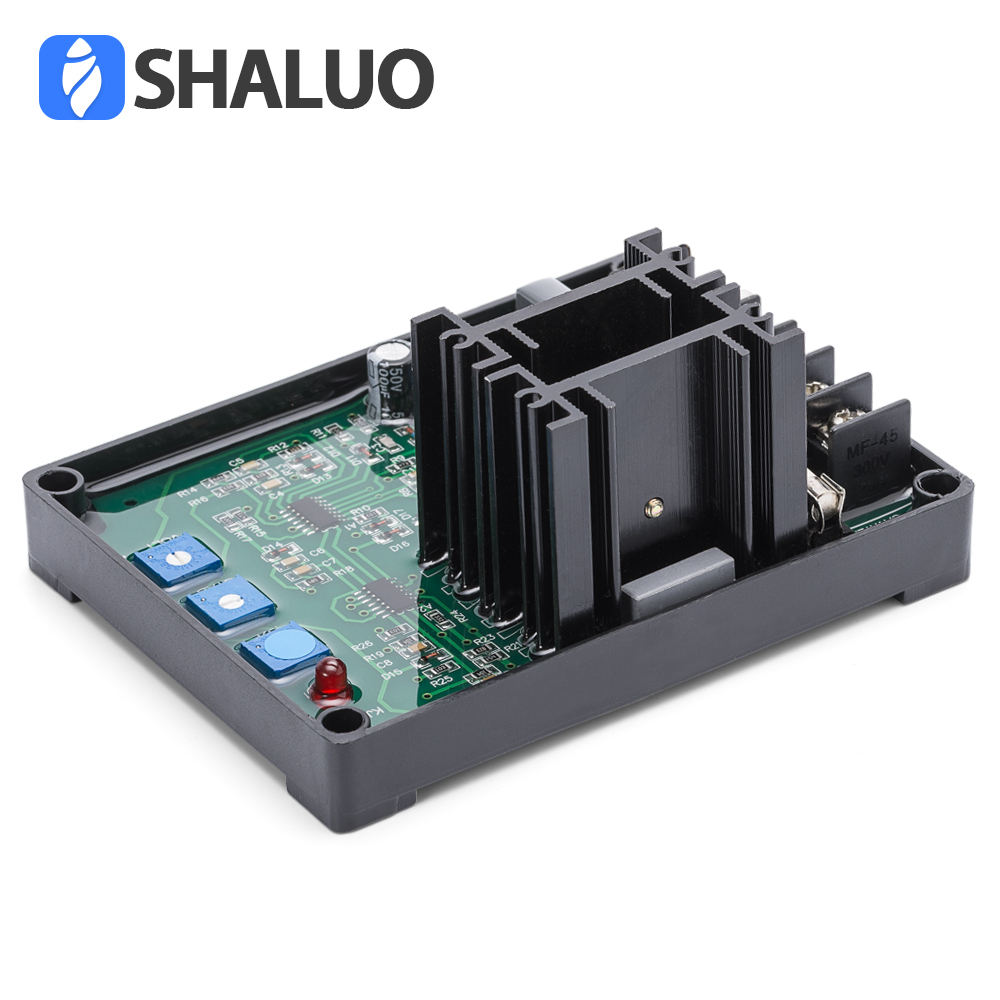

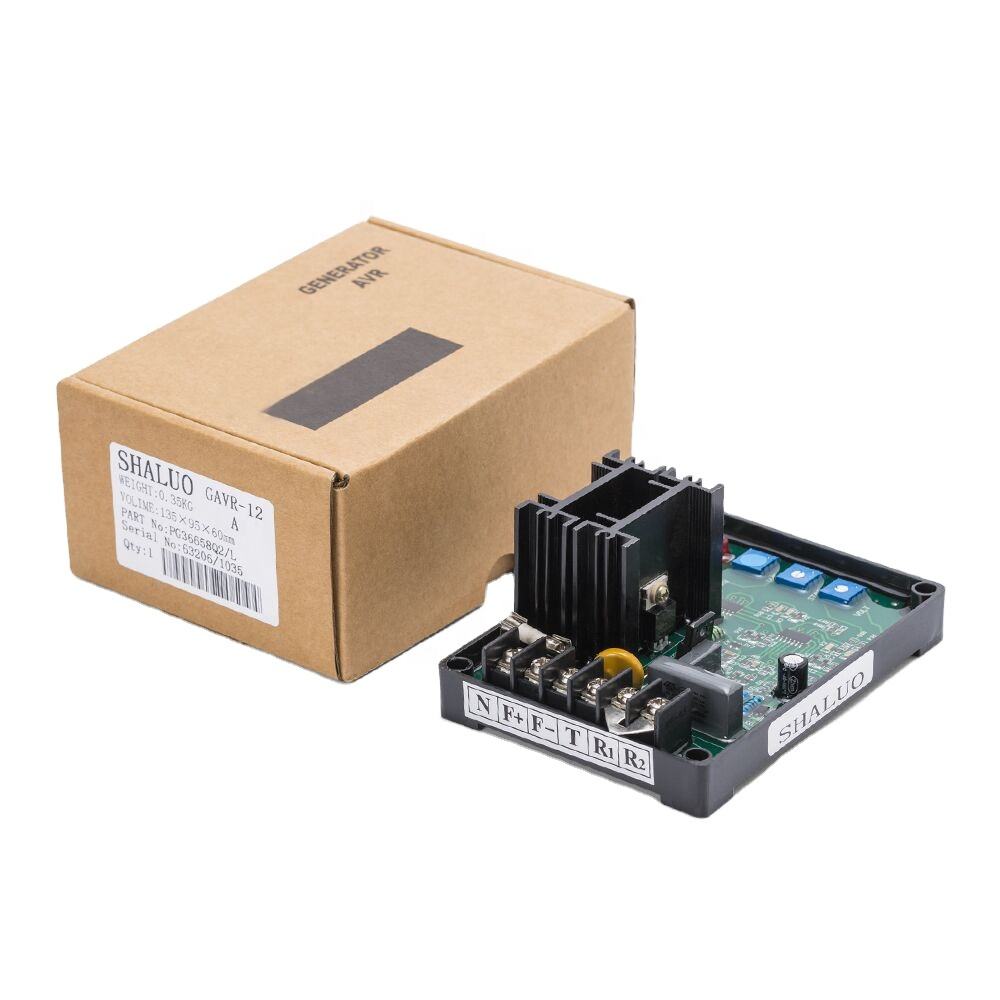

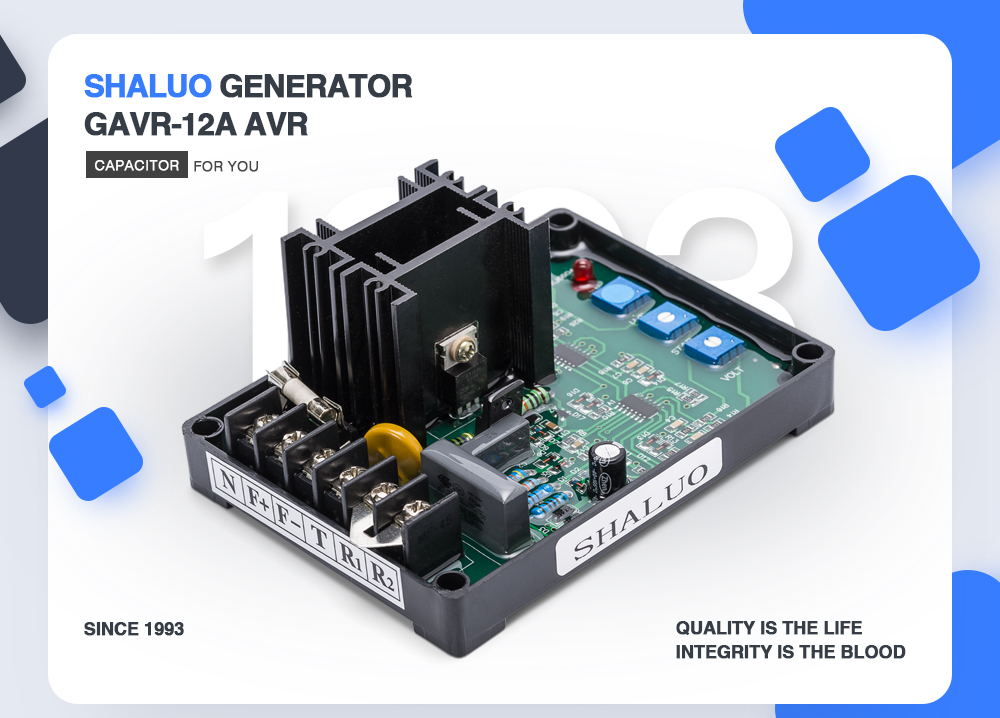

Diesel generator electronic integrated board stabilizer circuit diagram automatic voltage regulator avr GAVR 12A

General AVR GAVR12A ,GAVR-12A

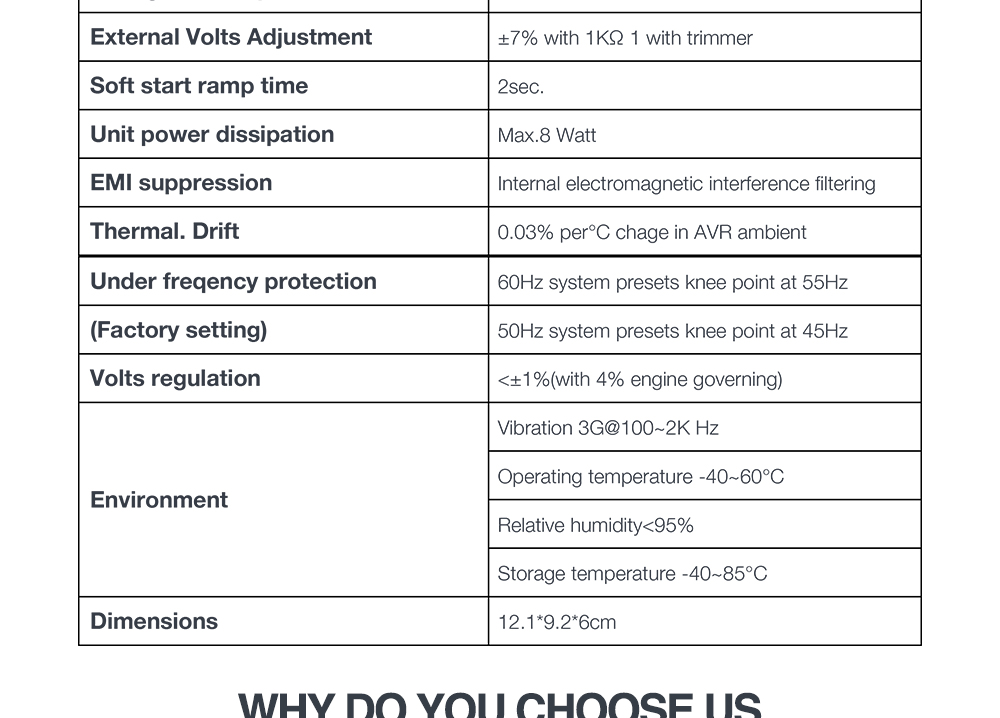

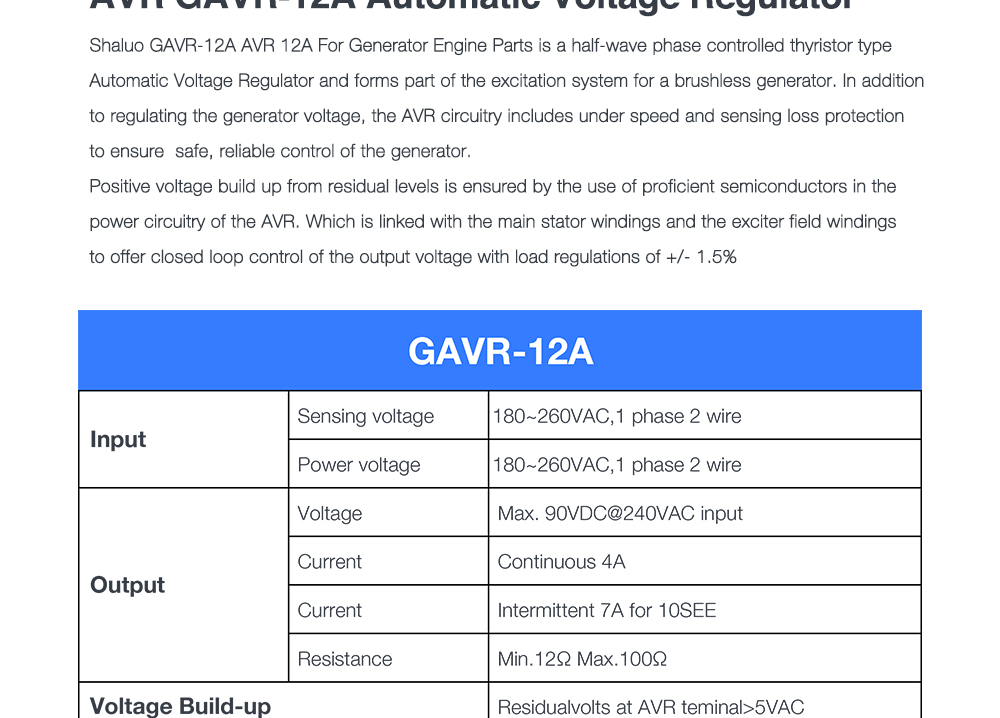

Technical parameters:
The establishment of voltage: greater than the residual magnetism 4V25Hz automatically build pressure
Power input: AC 160 ~ 260V 50/60Hz
Maximum output: DC 5A 95V (AC 240V pm)
Frequency compensation: built-in engine rpm when the output voltage drop in the frequency of fall protection circuit
Adjusted rate: better than 1%
