Product Description

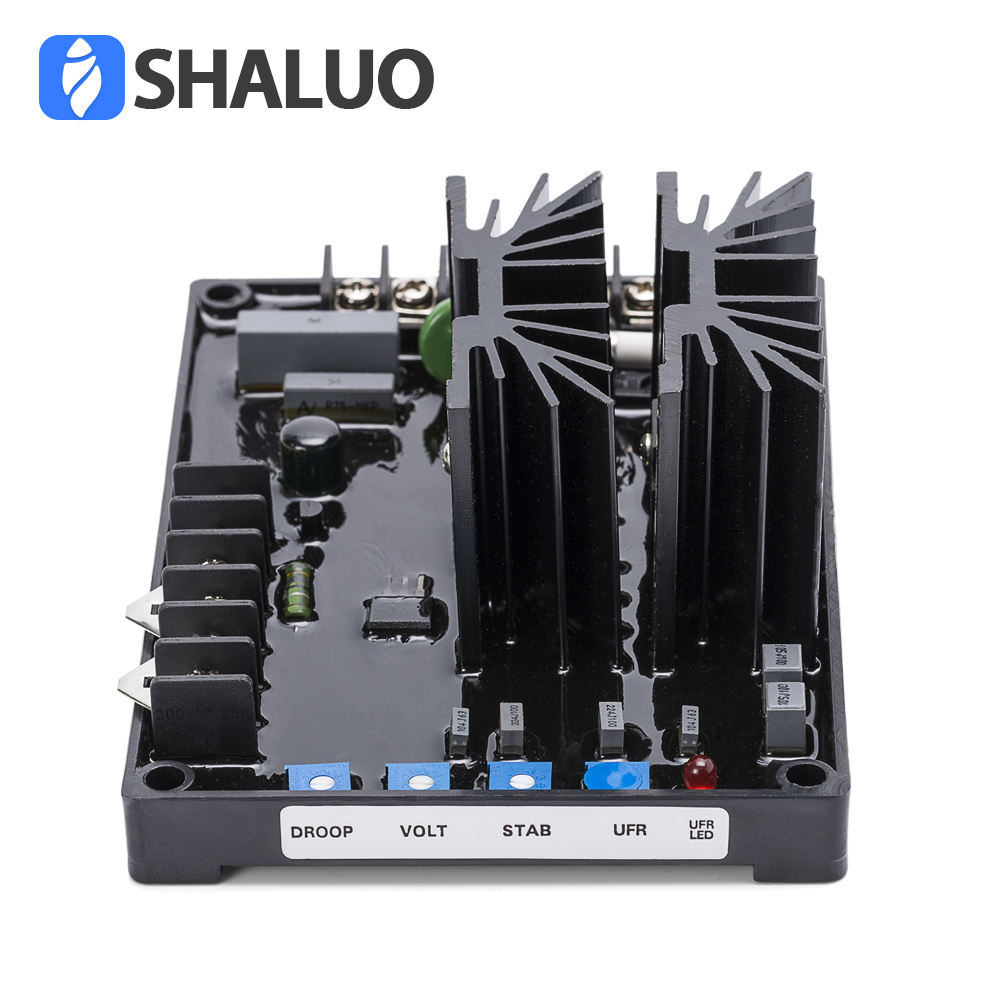

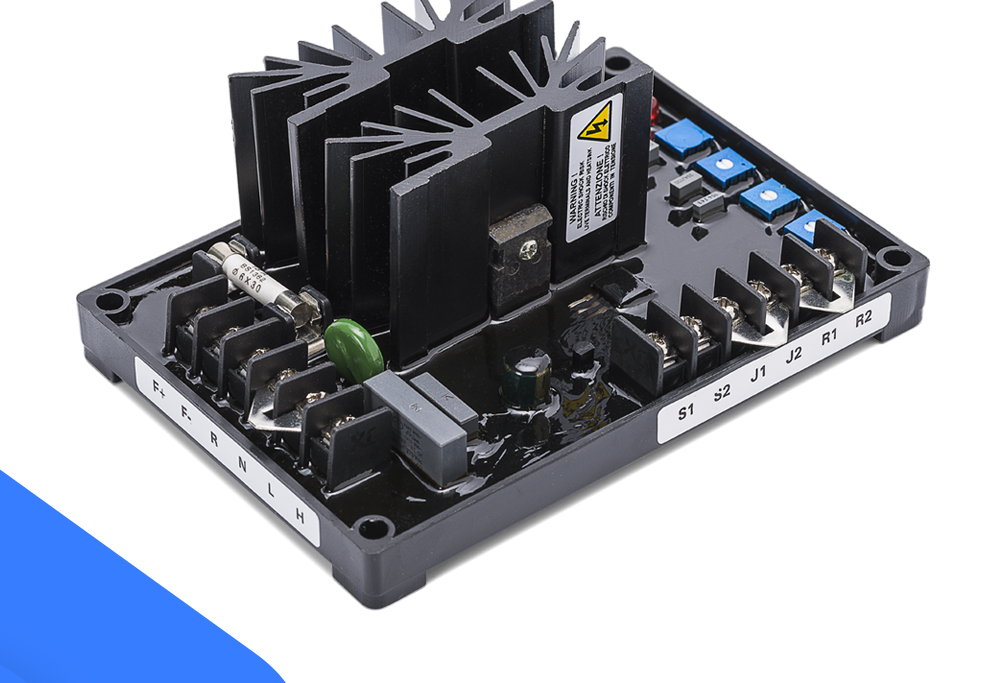

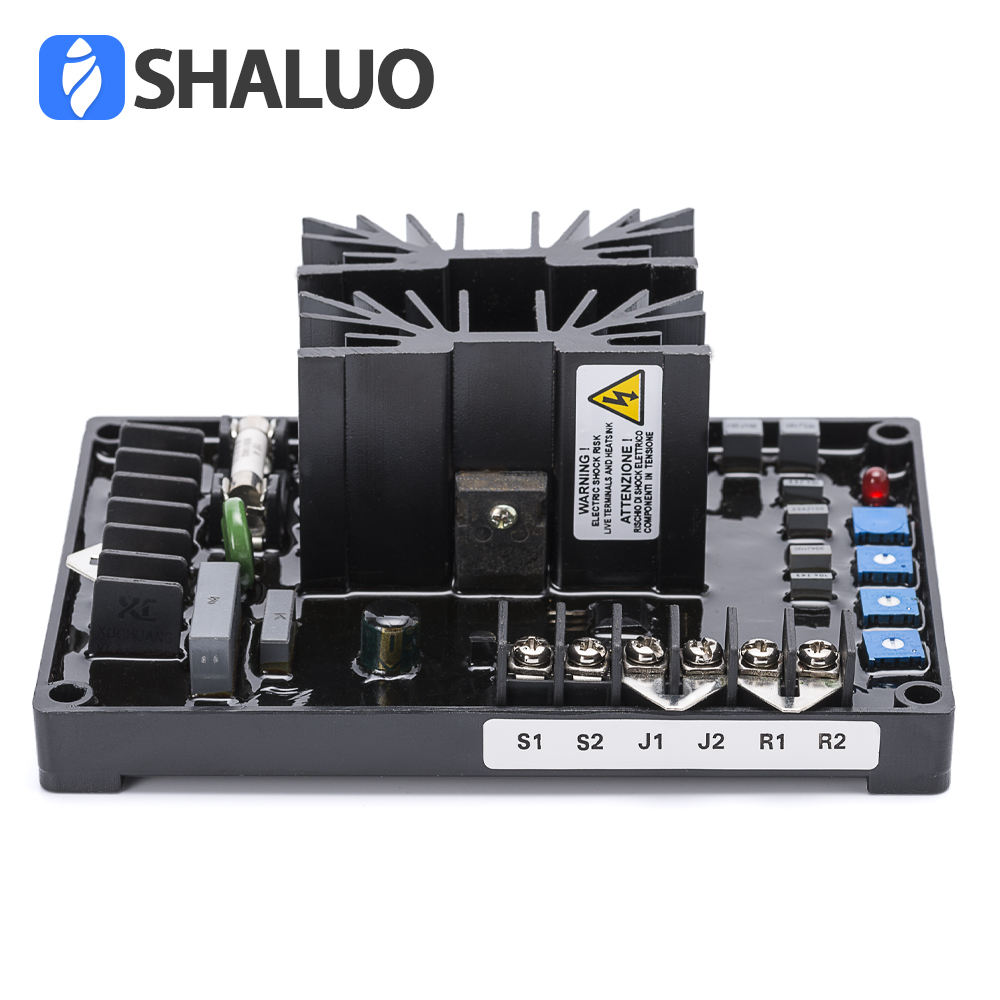

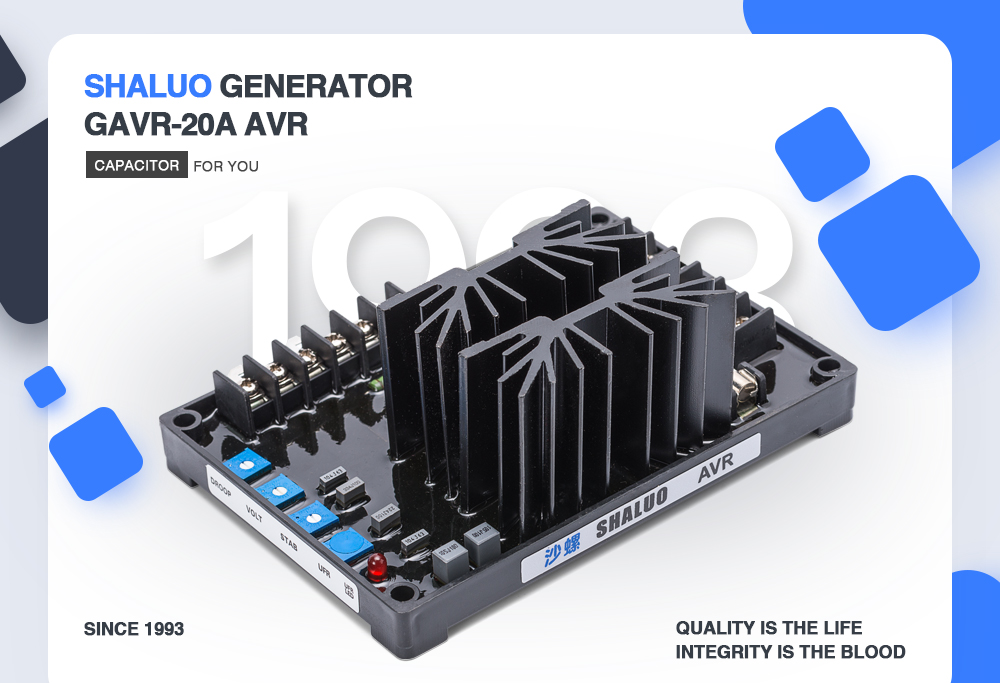

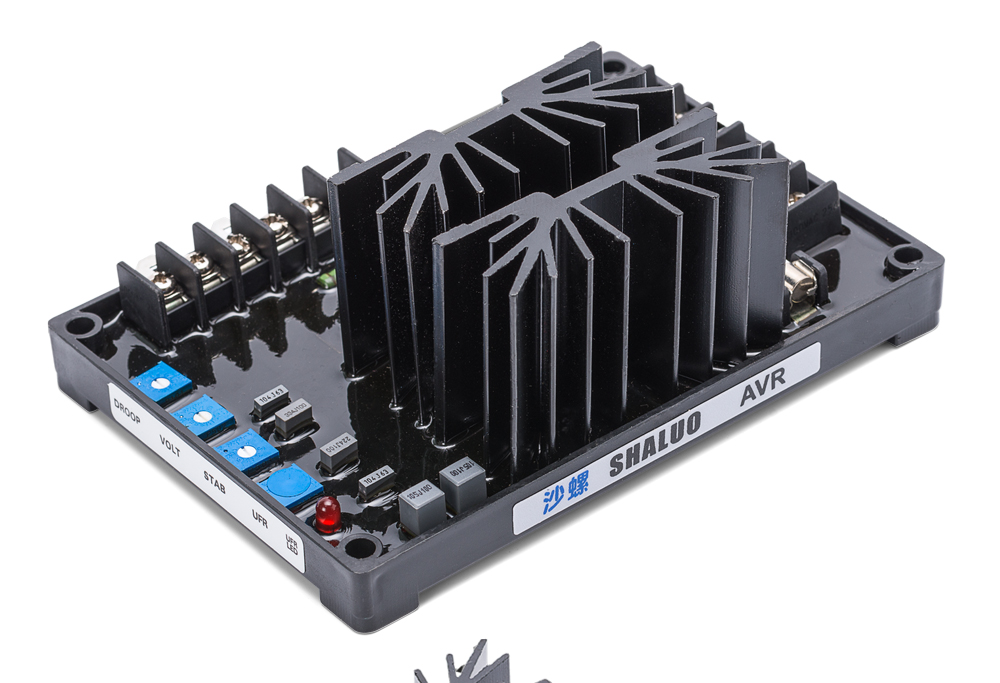

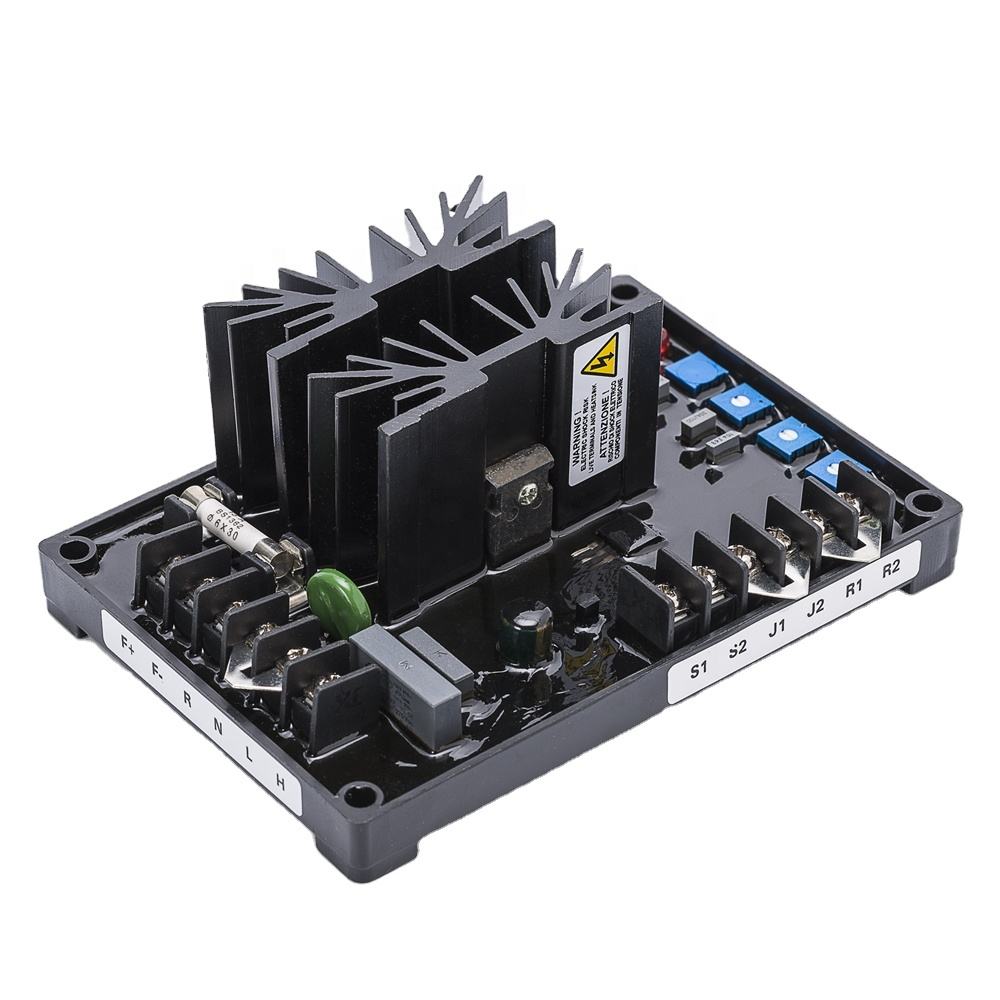

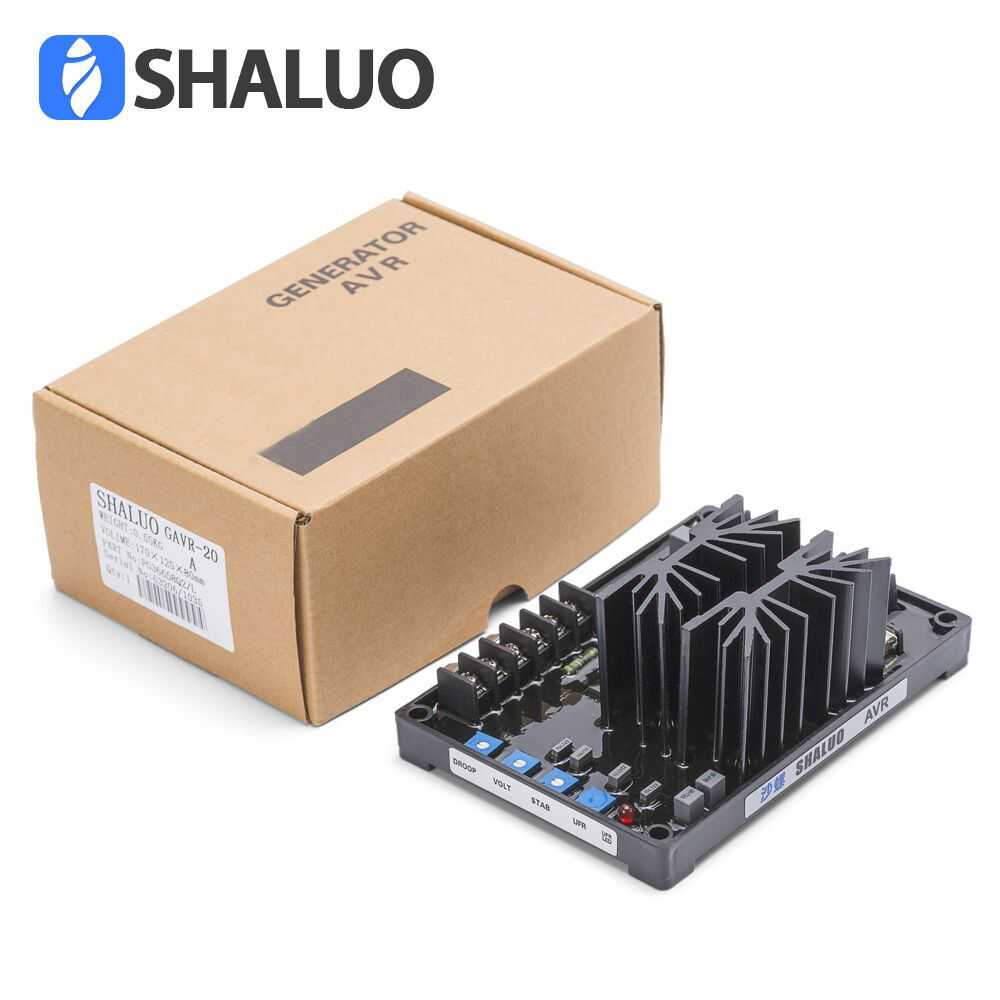

Voltage Regulator GAVR AVR 20A AVR-20A GAVR-20A Genset Generator
We have high quality Universal 20A AVR GAVR-20A for Brushless Generator in our regular stock withReasonable Price!
AVR GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip- Switch Programmable be Valtage alternator generator , which is suitable for brushless generator.
Other Universal models:
Brushless: GAVR-8A, GAVR-12A,GVAR-15A,GAVR-20A , AVR-704,AVR-703
Universal Brush & Brushless: AVR-701,AVR-35A,POW50A,POW50B, AVR-100A
Our GAVR-20A AVR withtop quality Black Aviation potentiometer (most of other use cheaper blue one) and other high quanlity components make sure our product will have better stability and longer lifetime.

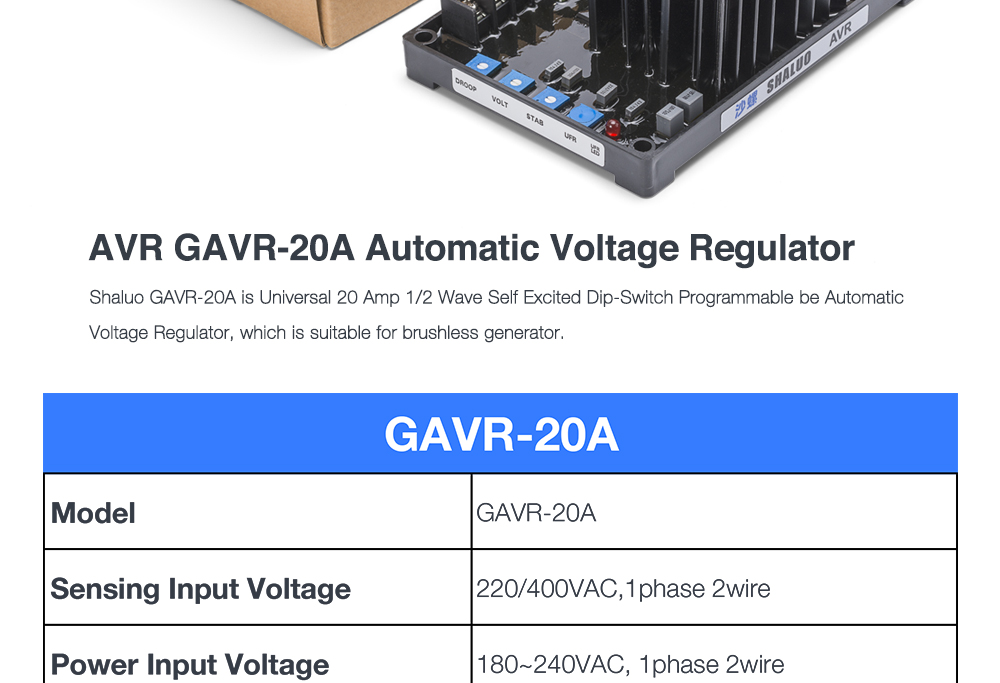

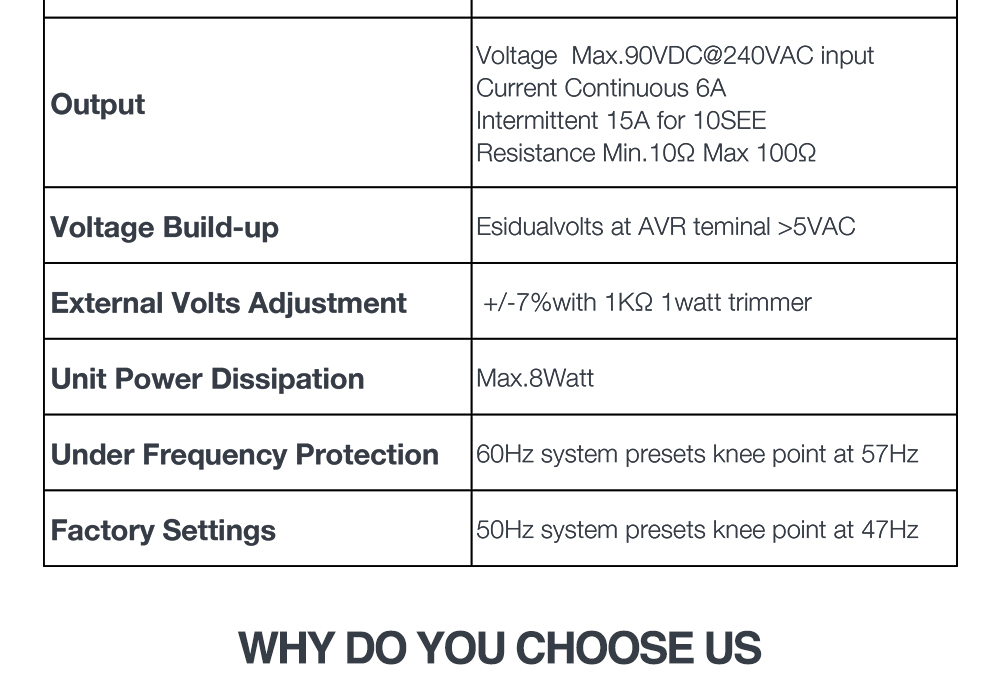

Technical data of AVR-20A
| GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-switch Programmable be Valtage alternator generator , which is suitable for brushless generator. |
| *Sensing Input Voltage 220/400VAC,1phase 2wire |
| *Power Input Voltage 180~240VAC, 1phase 2wire |
| *Output Voltage Max.90VDC@240VAC input |
| Current Continuous 6A |
| Intermittent 15A for 10SEE |
| Resistance Min.10Ω Max 100Ω |
|
|
| *Voltage Build-up esidualvolts at AVR teminal >5VAC |
| *External Volts Adjustment +/-7%with 1KΩ 1watt trimmer |
| *Unit Power Dissipation Max.8Watt |
| *Under Frequency Protection 60Hz system presets knee point at 57Hz |
| *(Factory Settings) 50Hz system presets knee point at 47Hz |
