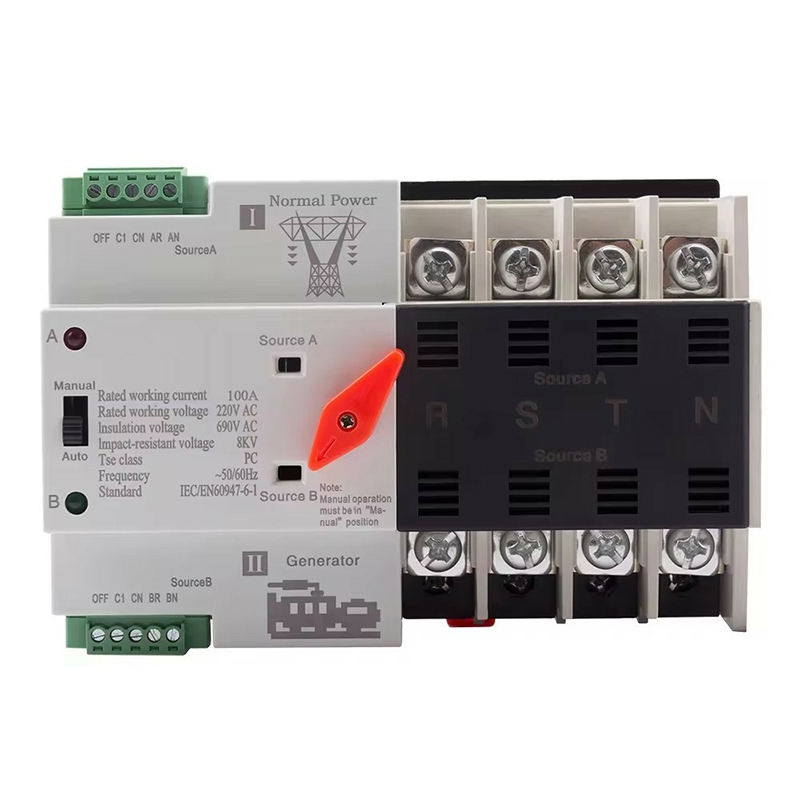

Product Description

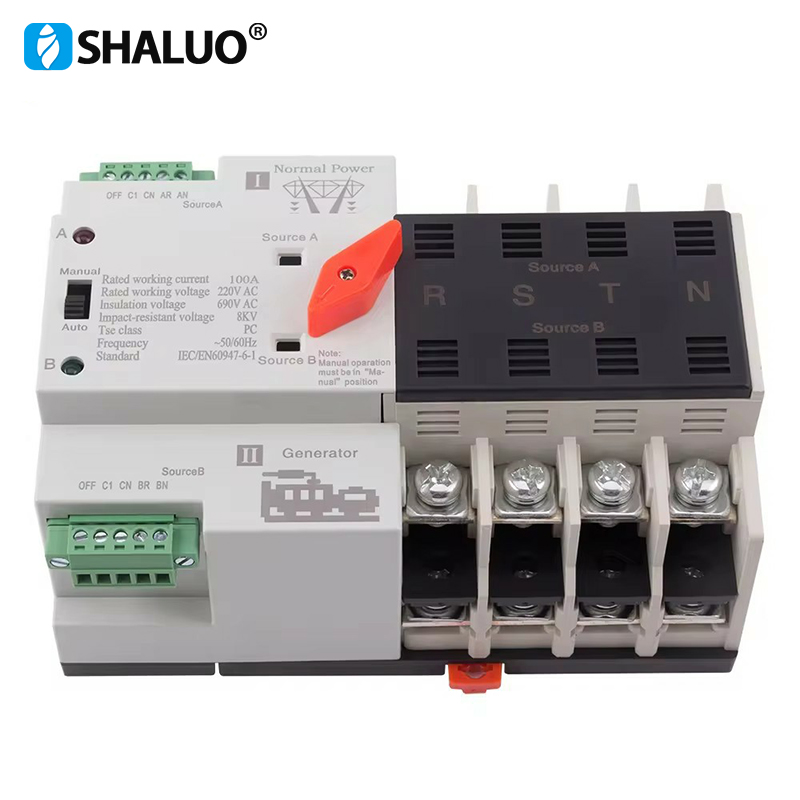

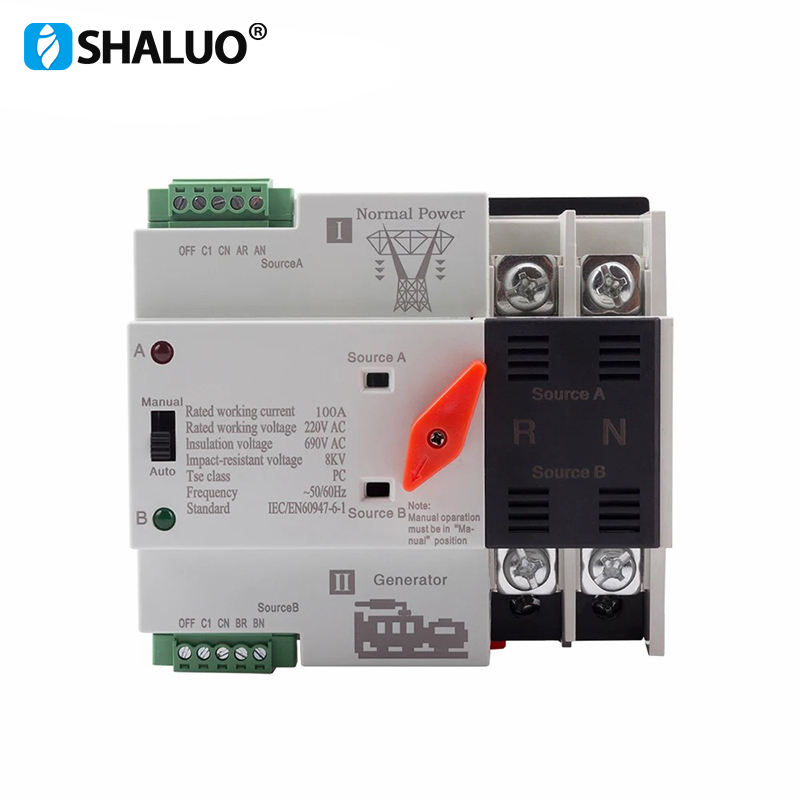

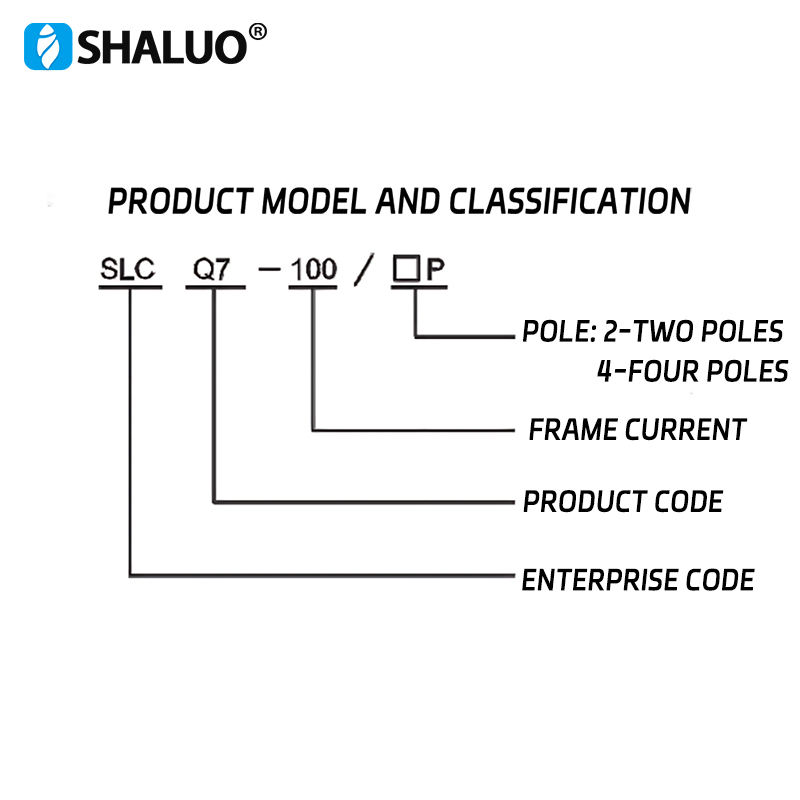

| Model | W2R | | | ||
| Rated current le A | 16 20 25 32 40 50 63 100 | | | ||
| Insulation voltage Ui | AC 690V 50/60Hz AC690V | | | ||
| Rated voltage Ue | AC 400V 50/60Hz AC400V | | | ||
| Grade | Grade PC:able to male and withstand.not to break short-circuit current | | | ||
| Use category | AC-33iB | AC-33B | | ||

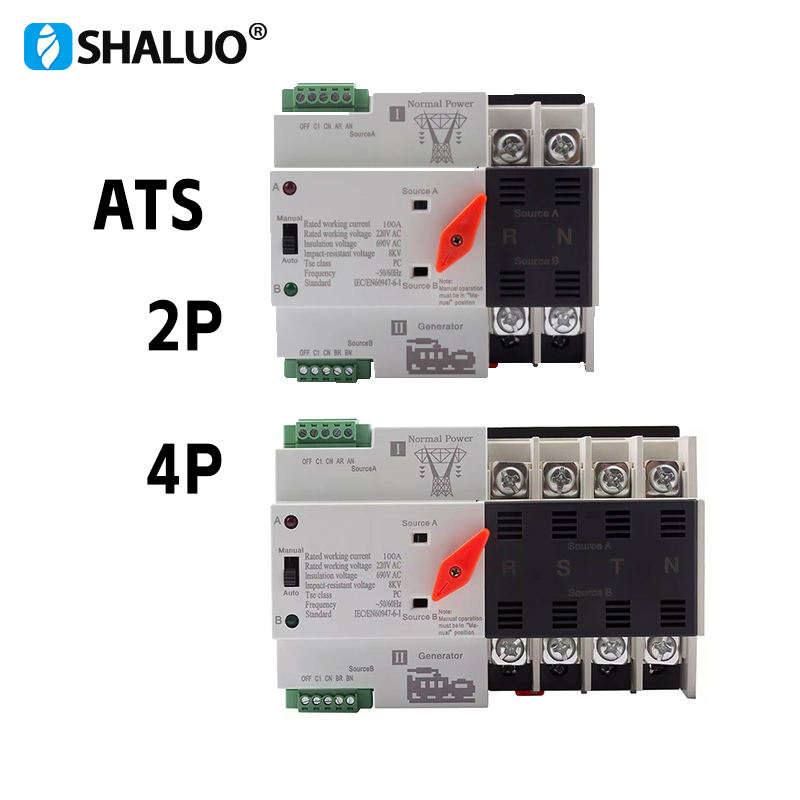

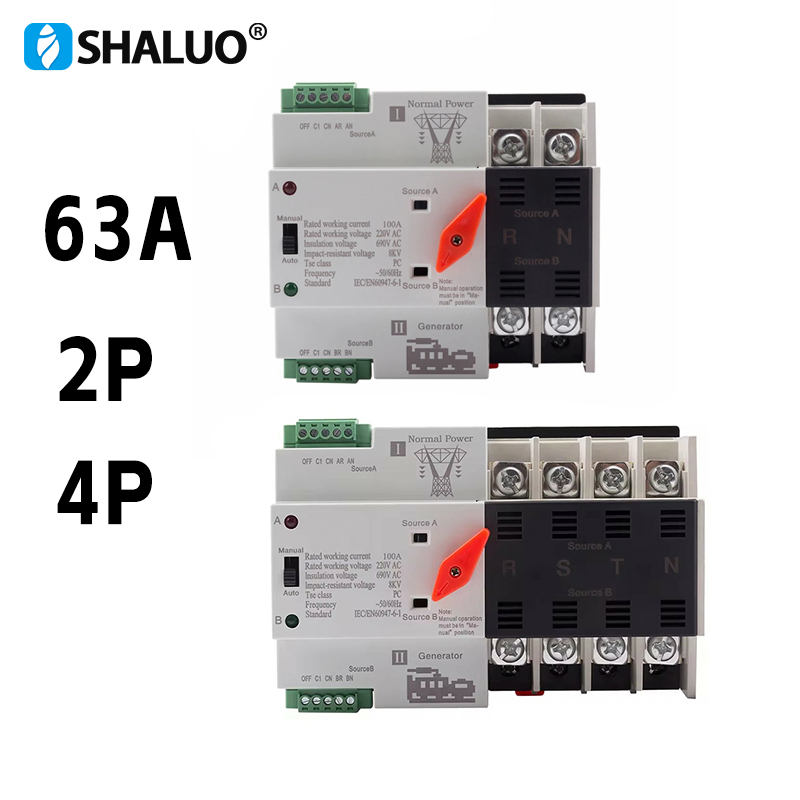

| Pole | 2P | 3P | 4P | ||
| Weight(kg) | 1.7 | 2.1 | 2.6 | ||
| Life | Electrial:2000times;Mechanical:5000times | | | ||
| Rated conditionalshort-circuit current lq | 50kA | | | ||
| SCPD (fuse) | RT16-00-63A | | | ||
| Rated impulsewithstand voltage | 8kV | | | ||
| Control circuit | Rated control voltage Us:AC220V50Hz Correct working condition85%Us~110%Us | | | ||

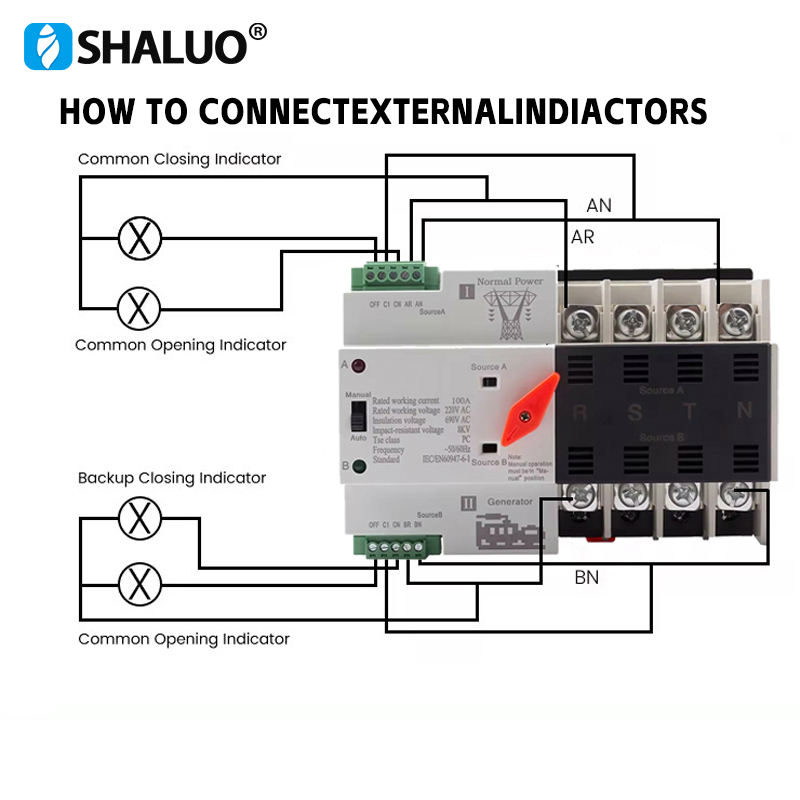

| Auciliary circuit | 2 independent relays,each inclufes 2 groups of transfer contact.Contact cappacity:AC220V 50Hz,le=50A | | | ||
| Contact transfer time | ＜50ms | | | ||
| Operating transfer time | ＜50ms | | | ||
| Return transfer time | ＜50ms | | | ||
| Off-time | ＜50ms | | | ||
