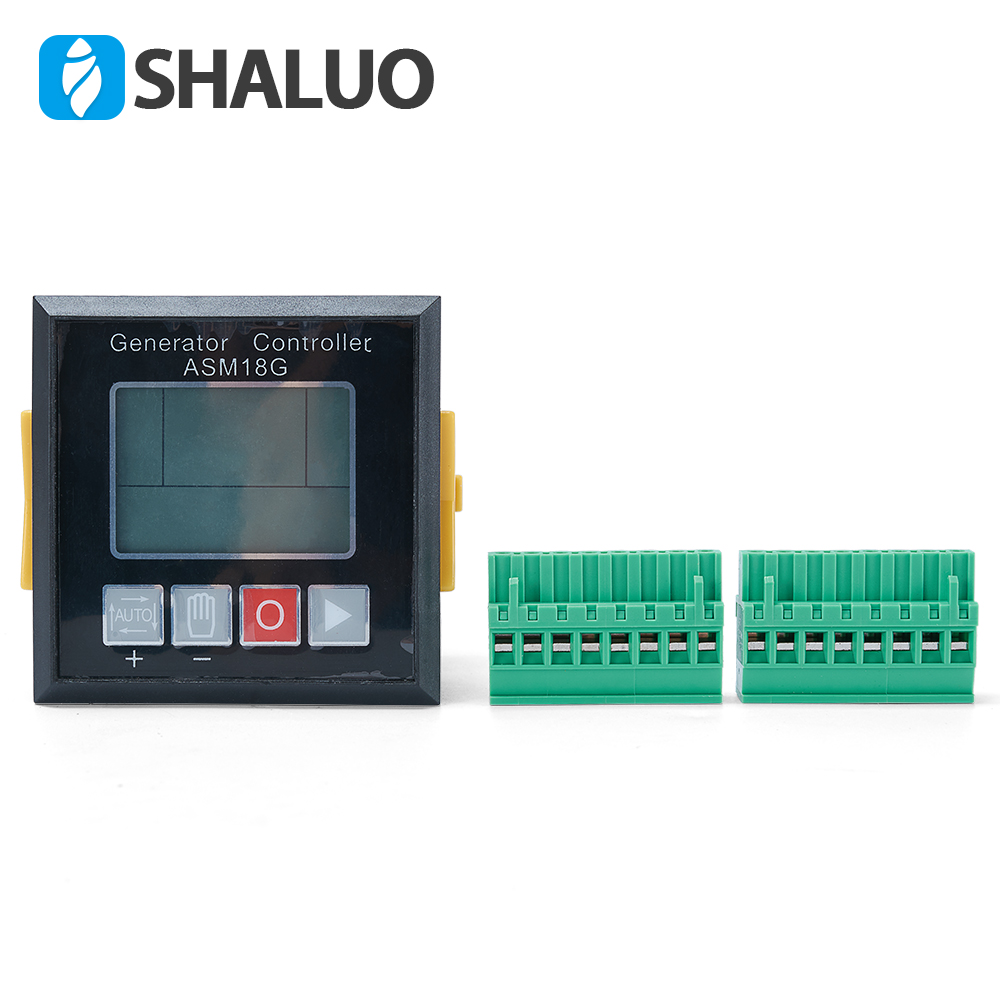

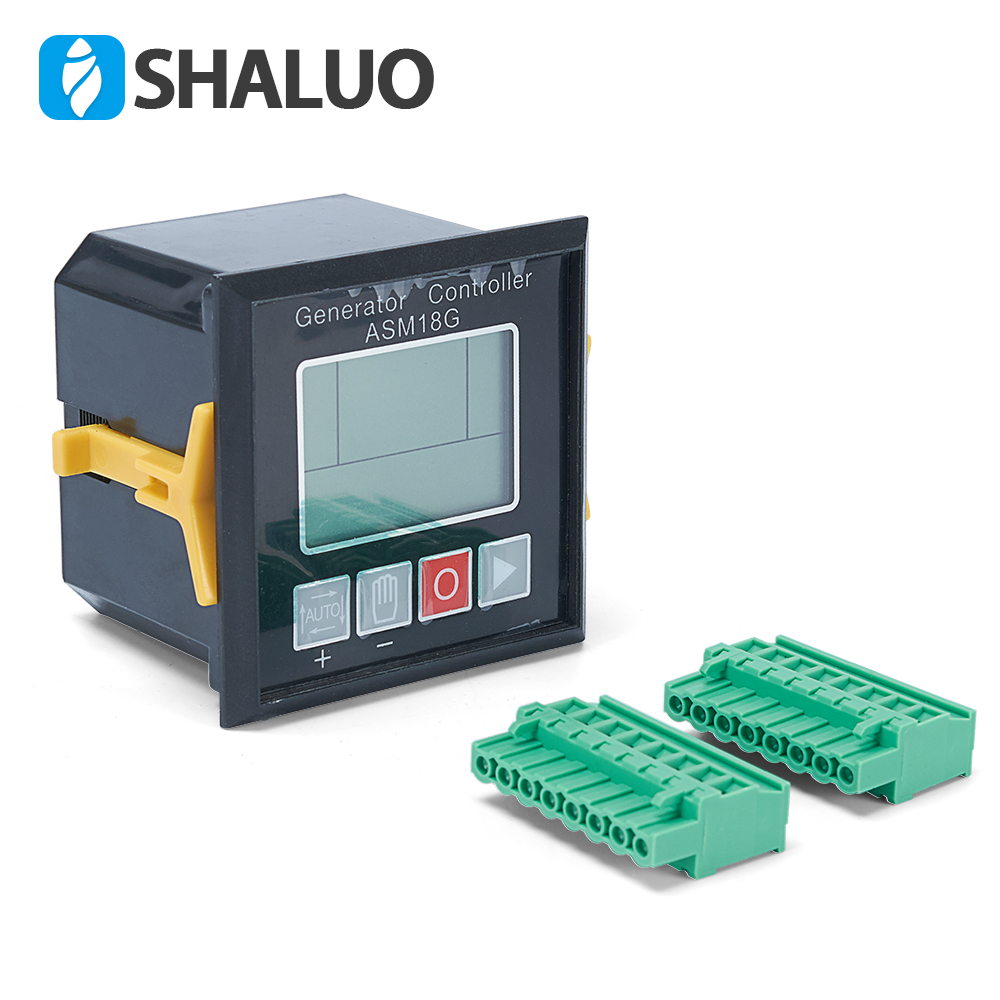

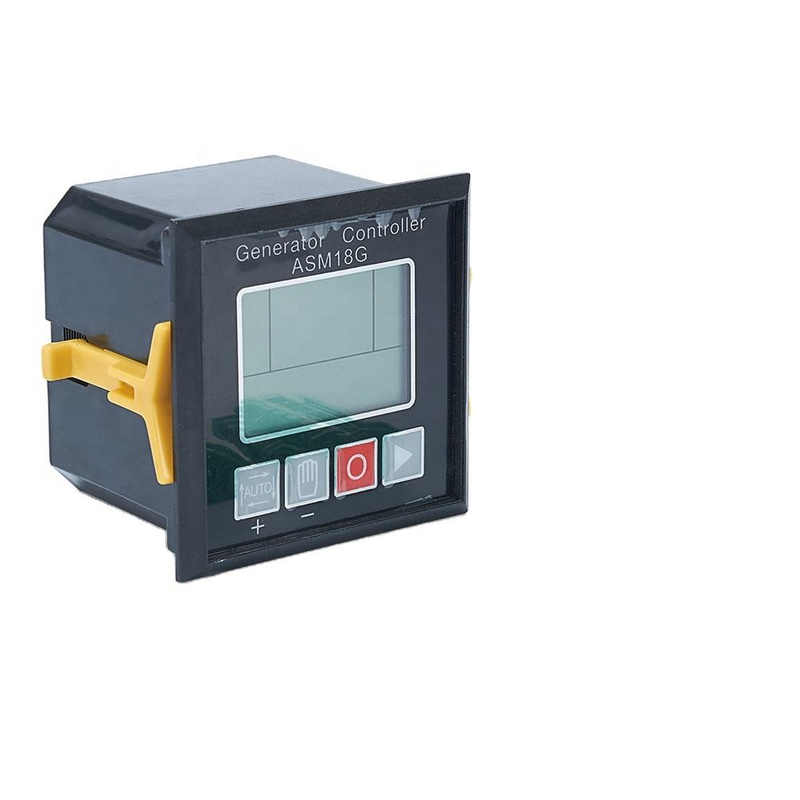

Generator Controller / diesel generator set controller / ASM18G

ASM18G generator set is automatic control and security modules. Can be selected by pressing

a button on the module panel manual or automatic control mode, manual mode , stop the generator set can be opened by pressing a button on the control panel , manual ; in automatic mode, the default remote start switch input signal to automatically open to stop generator sets. Module operating status and operating parameters using the LCD display generator. Its main features :
l using a microprocessor core ;
l through the panel buttons and LCD protection parameters can be flexibly set operation ;
l measurements show that the generator frequency and voltage , battery voltage , engine speed , water temperature, oil pressure , fuel oil , and run-time parameters ;
l Rd relay outputs , in addition to the fuel valve and start output is fixed , and the remaining three-way customizable by the user ;
l custom three-way switch input ;
l three analog inputs , which are used to connect the water temperature , oil pressure and fuel sensor ;
l Optional ATS dual power switch control signal , eliminating the need for ATS switch controller , reducing overall system cost ;
l Optional idle speed control signal and increases the speed control signal applied to the electronic engine speed and mechanical governor ;
l optional preheating , the alarm output signal ;
l built a variety of pressure and temperature sensor type for users to choose ;
l Built-in communication ports, parameters can be set via the PC 's USB port ;
l support MODBUS communication protocol, optional communication module 485 can be remotely monitored via PC;

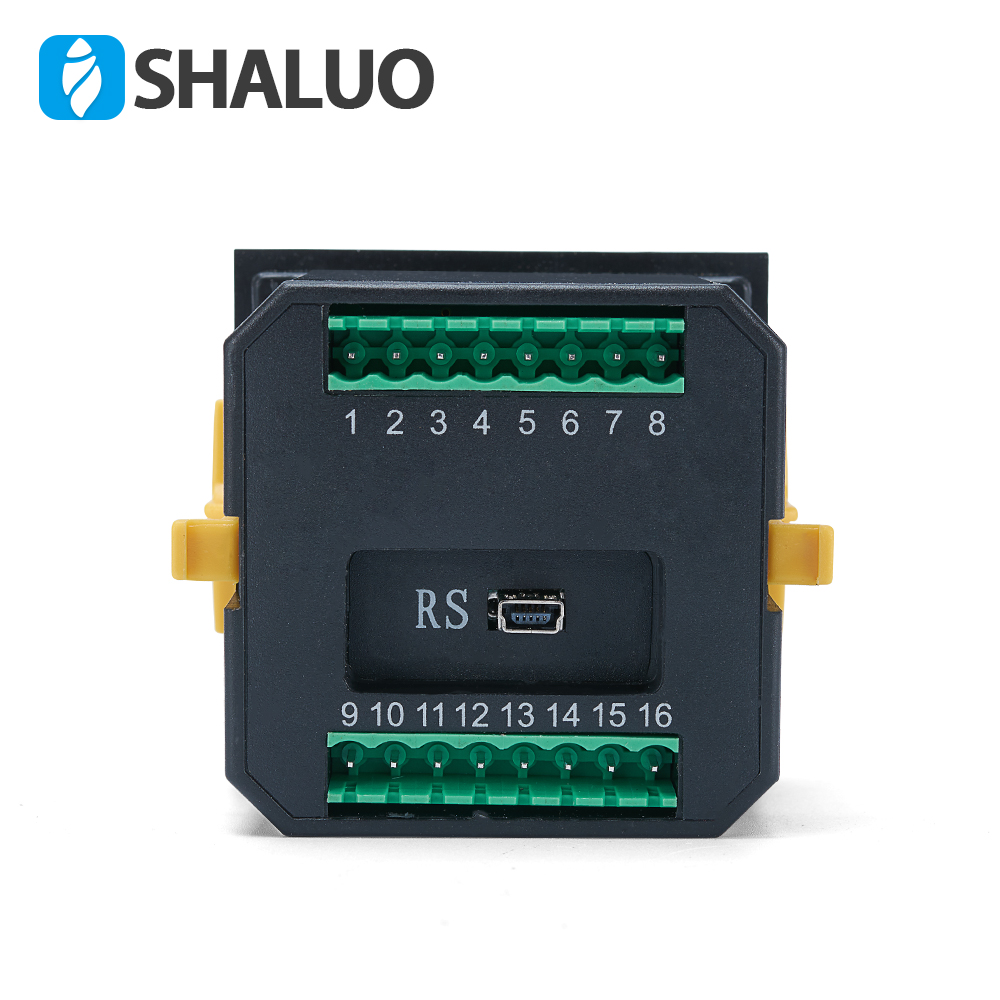

l pluggable quick-connect terminals , wiring, moving , maintenance, replacement and more convenient ;
l high-voltage power supply designed to withstand the removal of the battery , the charger voltage surges caused by the impact , more reliable

Wanna get the Instructions of ASM18G? Please contect with customer survice , and leave your Email address , tell us what you want , we are going to help you out.
