Generator motor speed electric governor 3044196

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

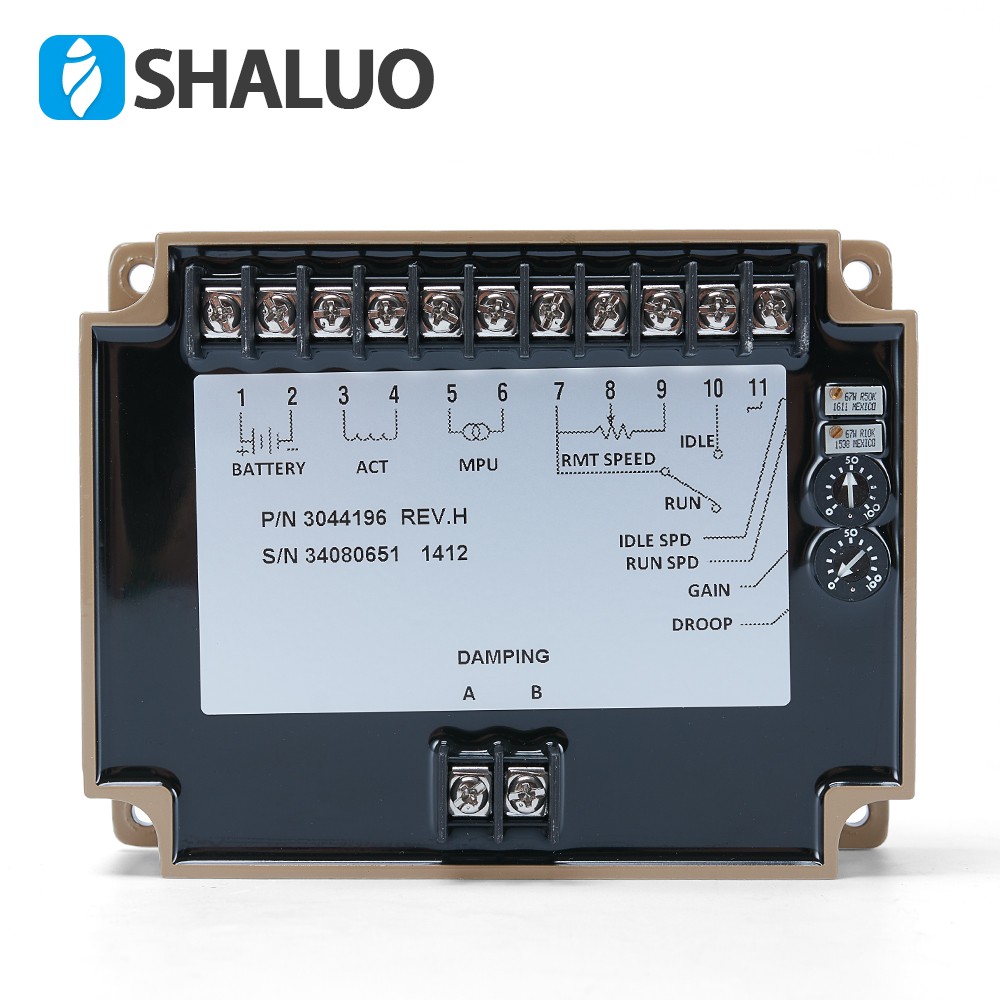

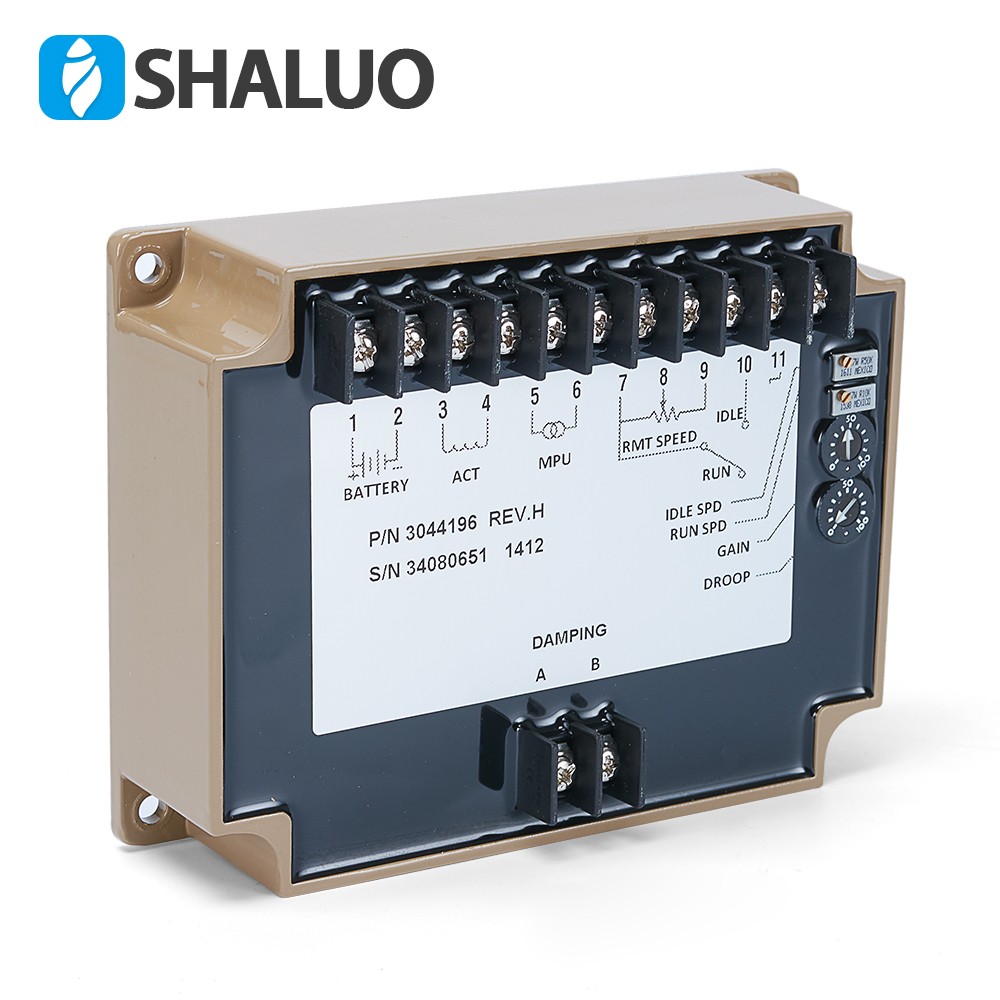

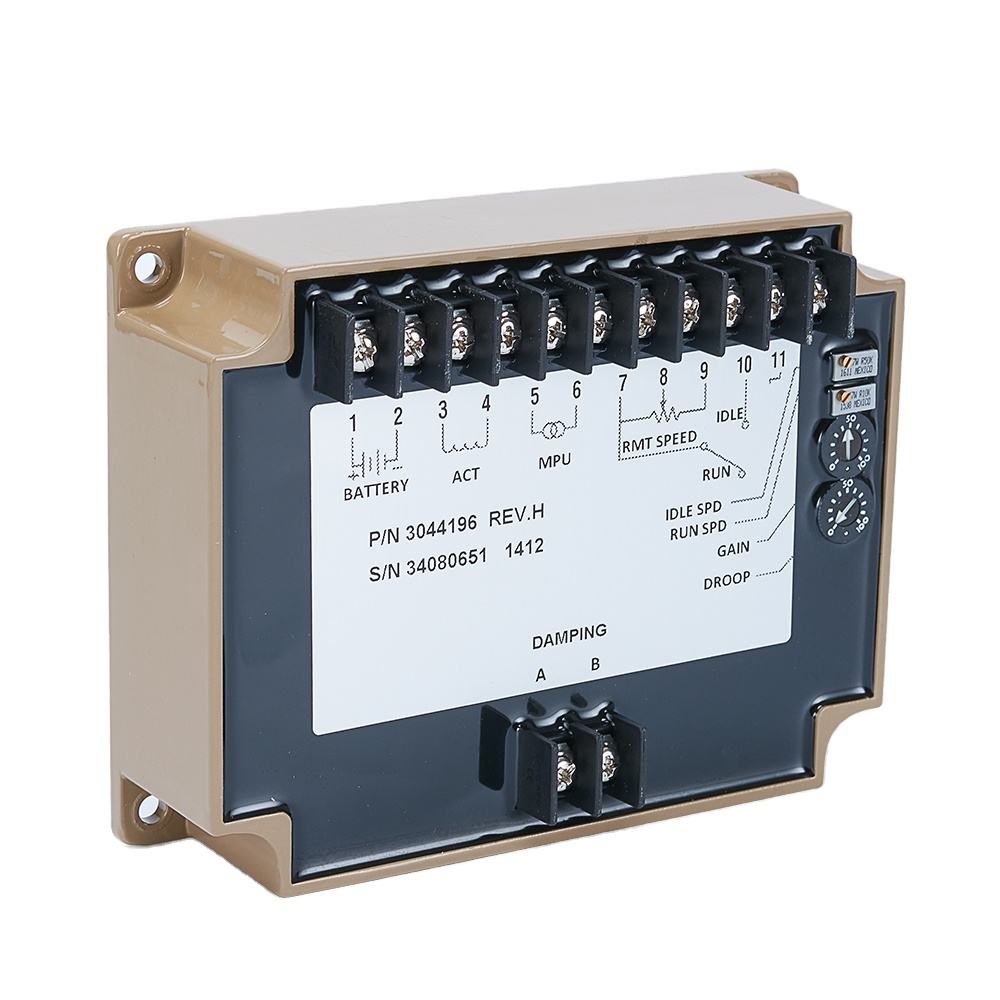

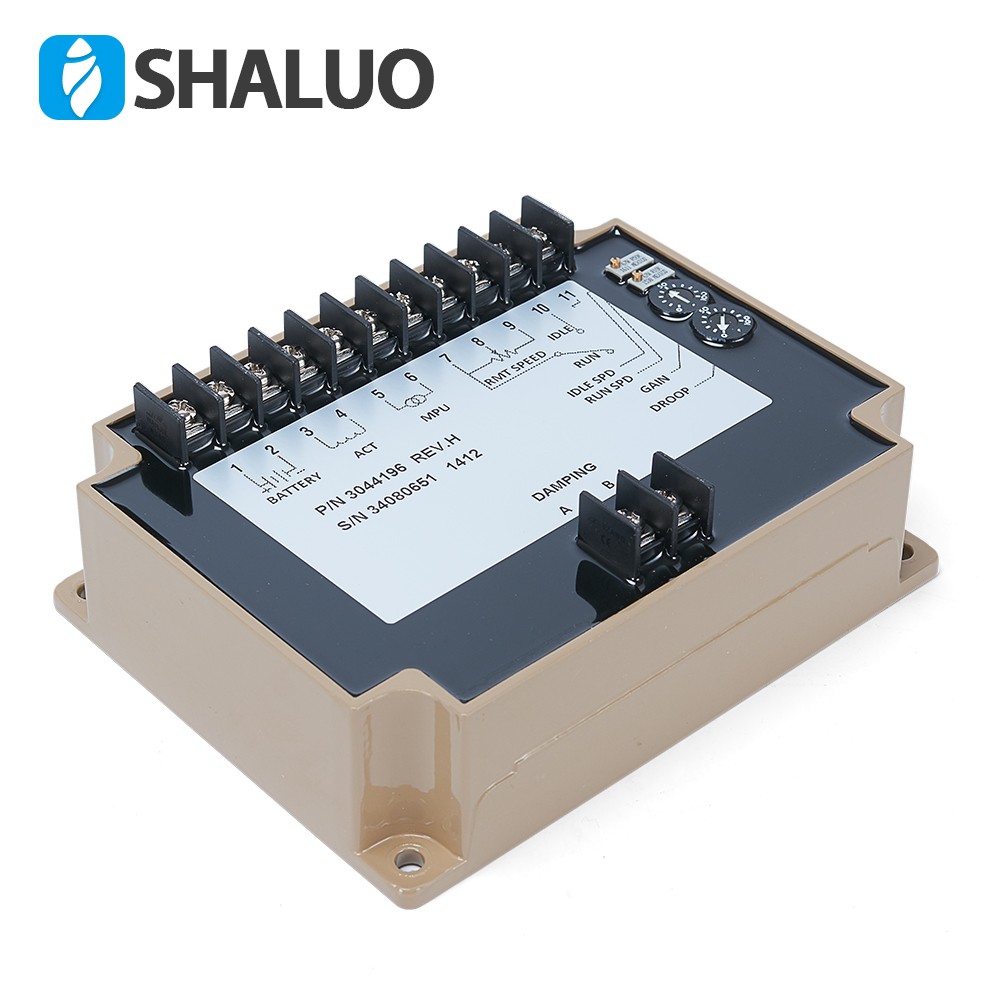

Engine Governor EFC3044196

RPM Stability
<±0.25%
Speed Range
1KHz ~ 6.5KHz
Thermal stability
Max ±0.7%
IDLE Regulation
260 ±20Hz
DROOP Regulation
Minimum 15Hz ±6Hz/ 1 Amp
Maximum
400Hz ±75Hz/ 1 Amp
External Speed Regulation
±200Hz (with 1 KΩ connected)
AUX Input Sensitivity
148Hz / 1V., ±10Hz
Impedance
1MΩ
Working Temp Range
-40 ~ 85
ENVIRONMENT
Working Humidity Range
Maximum 95%
Stocking Temp
-55 ~ 92
Shocking
20-100HZ 500mm/Sec
INPUT POWER SUPPLY
Voltage
24V
Grounding Pole
Negative pole
Power Supply
40mA
Actuator Continuous Current
Minimum 1A, Maximum 4.5A
MPU
Signal
2 ~ 120V RMS
NOTE
Above-Mentioned parameters are tested with a 3800Hz working frequency
this product is made in china, no doubt about the quality. Choose us , we won't let you regret about it.
Detailed Images
Packing & Delivery
Why do you choose us
Our Certifications
Our Factory

About the company

Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.

Factory inspection

The professional person responsible for the quality of supervision and control in the entire process.

Element testing

In order to get the superior quality we only use selected good element.

Assembles products

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
