Product Description

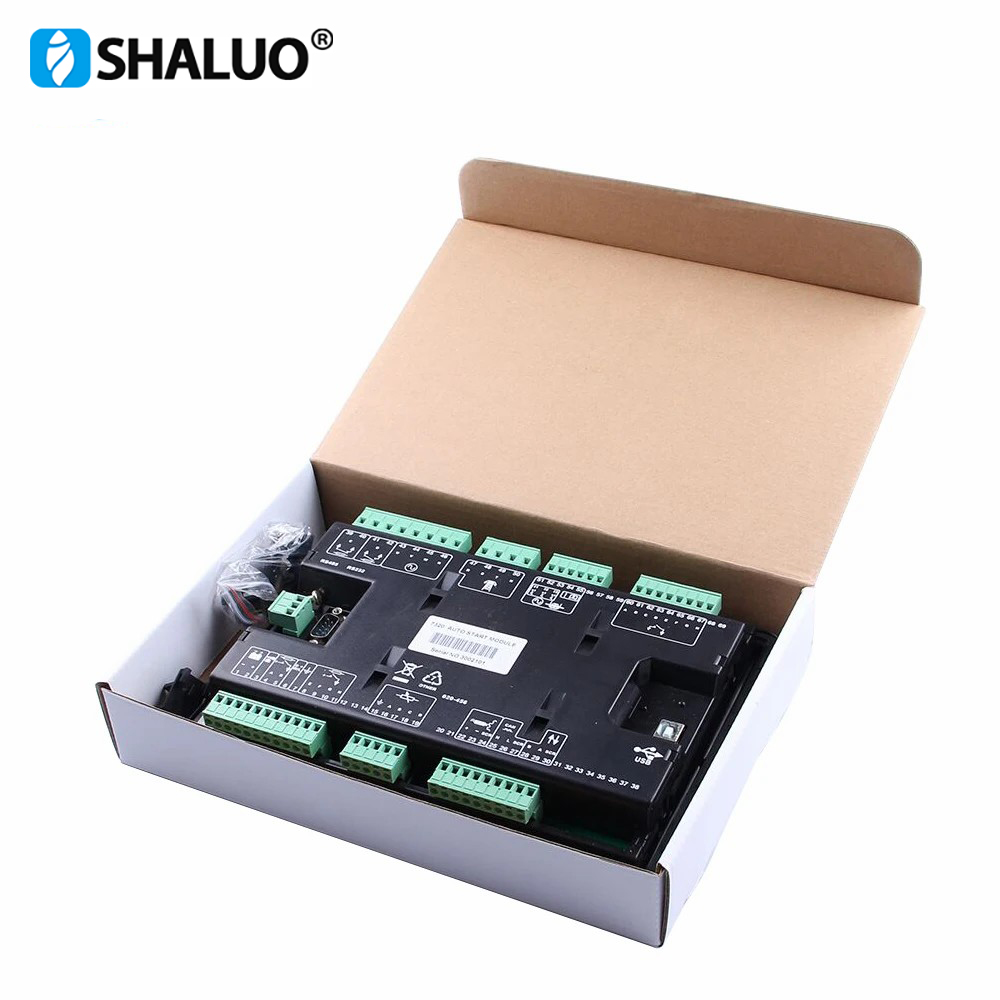

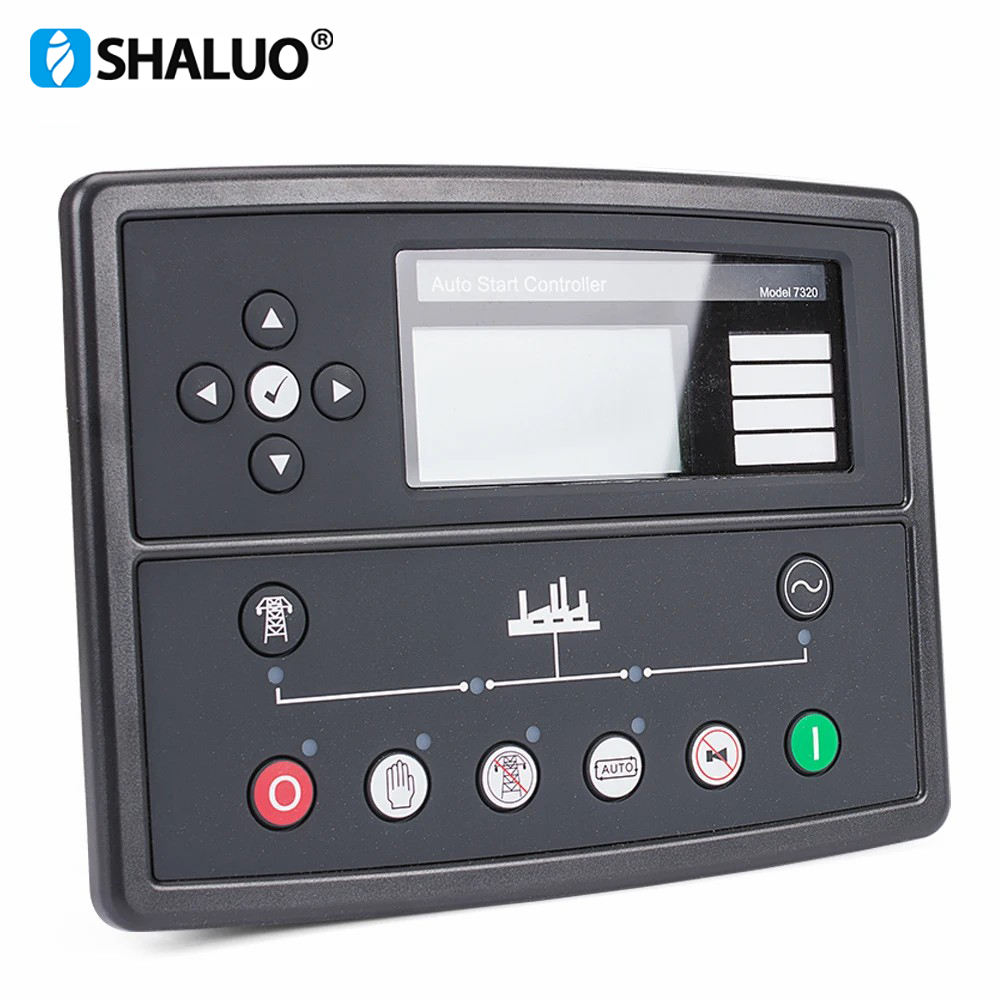

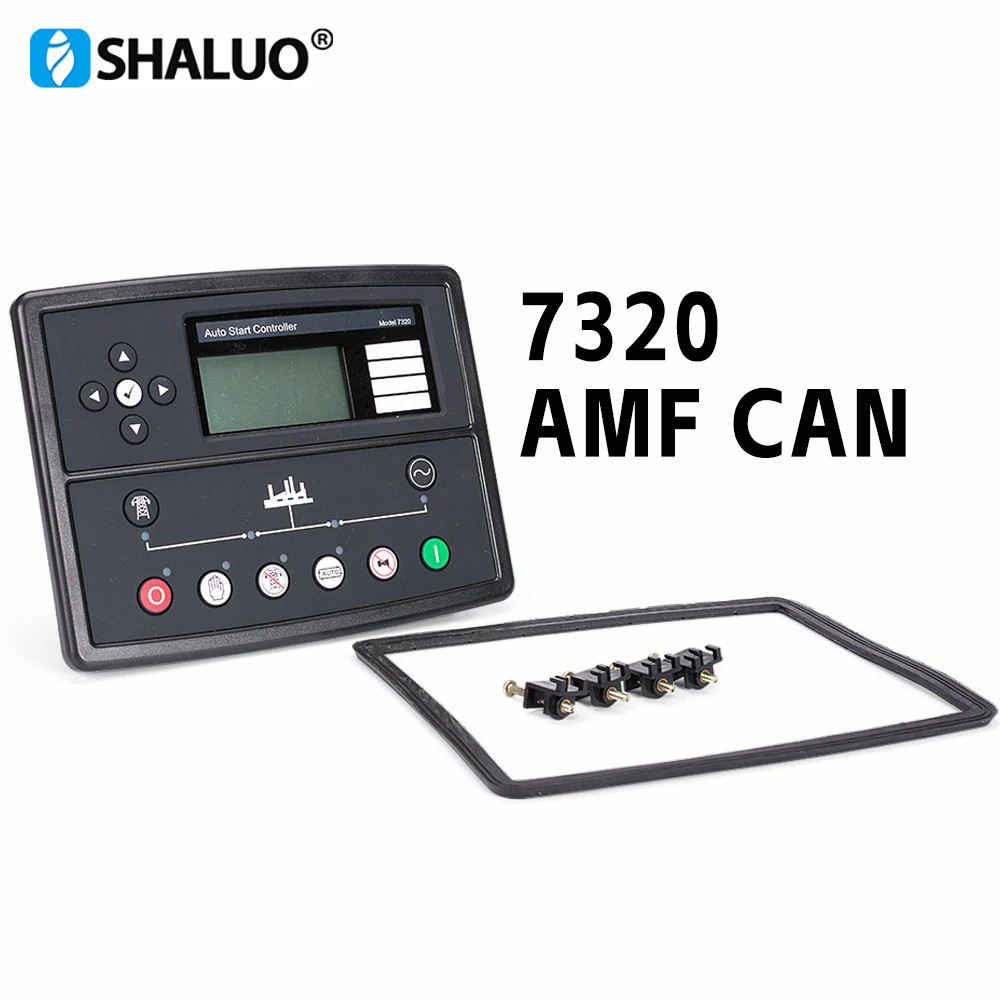

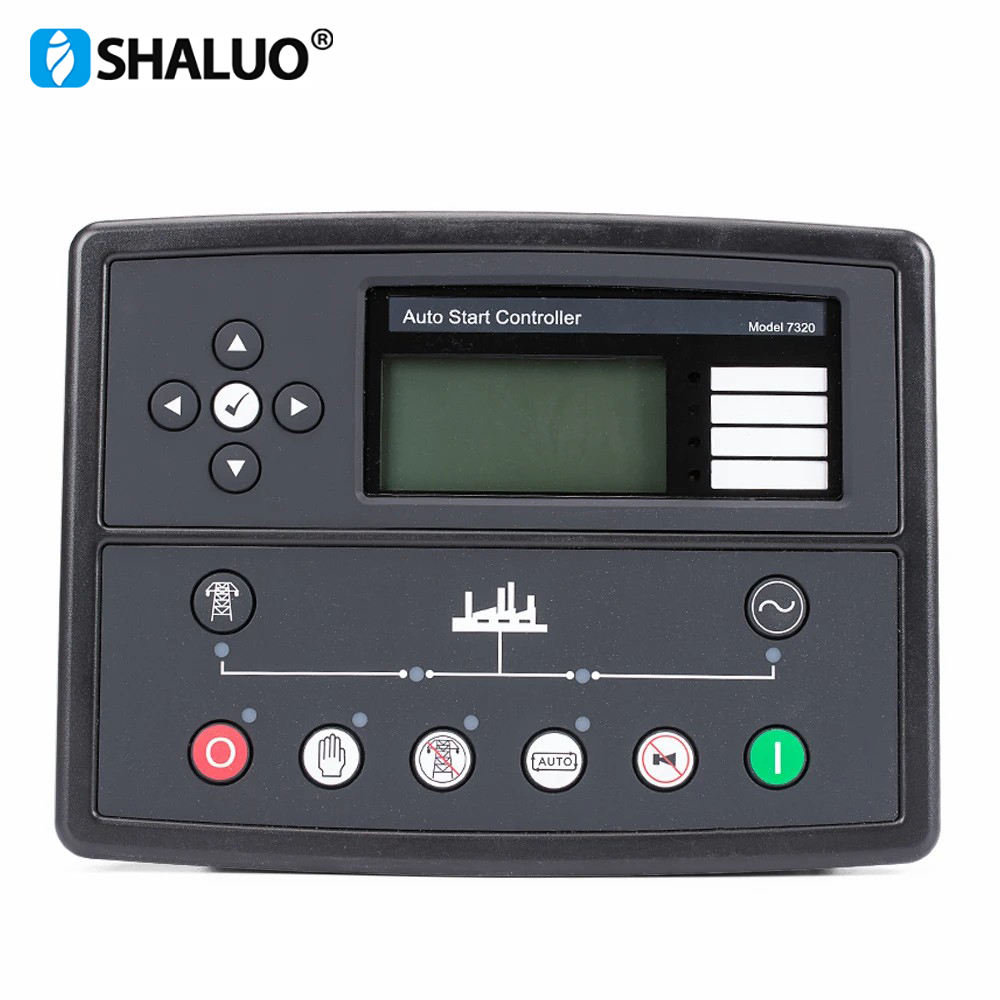

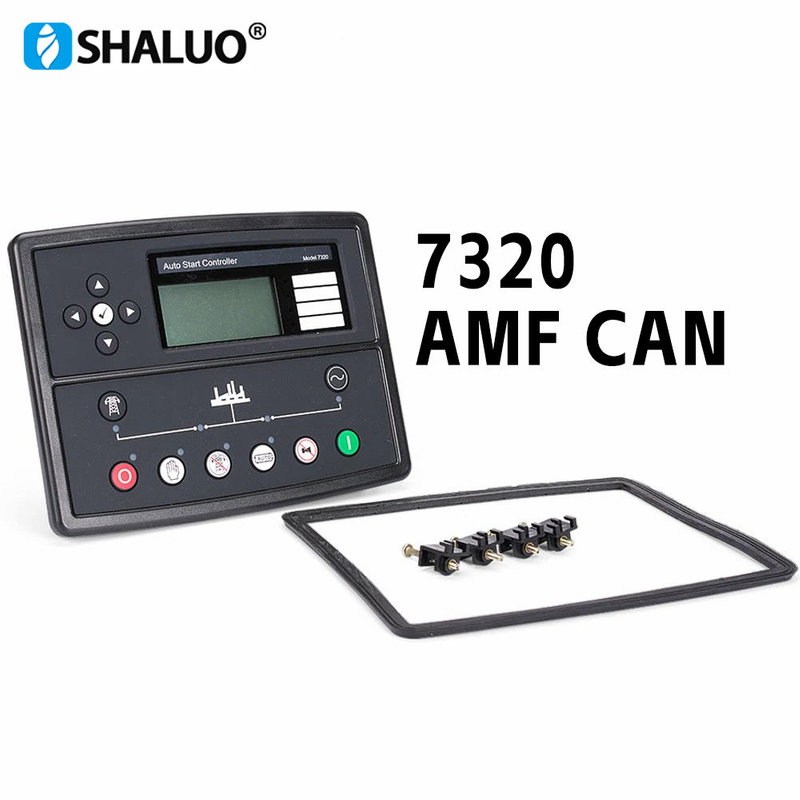

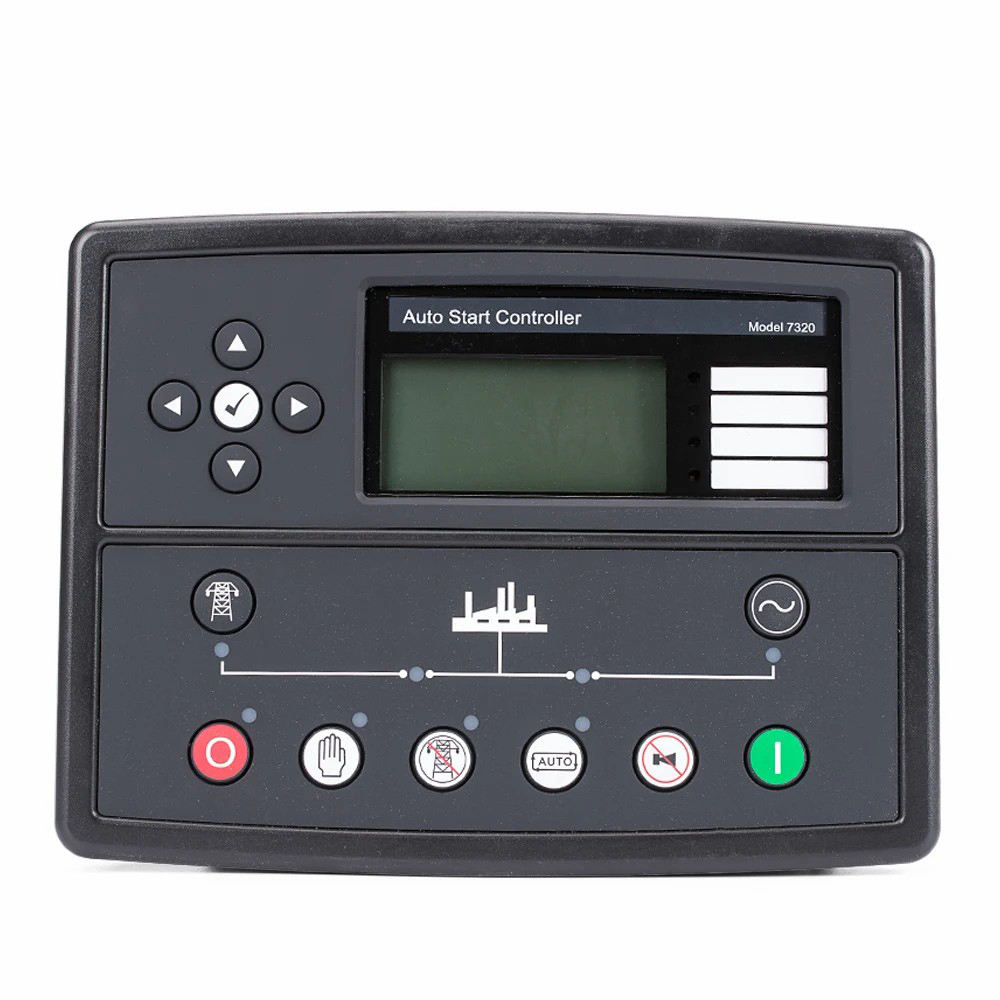

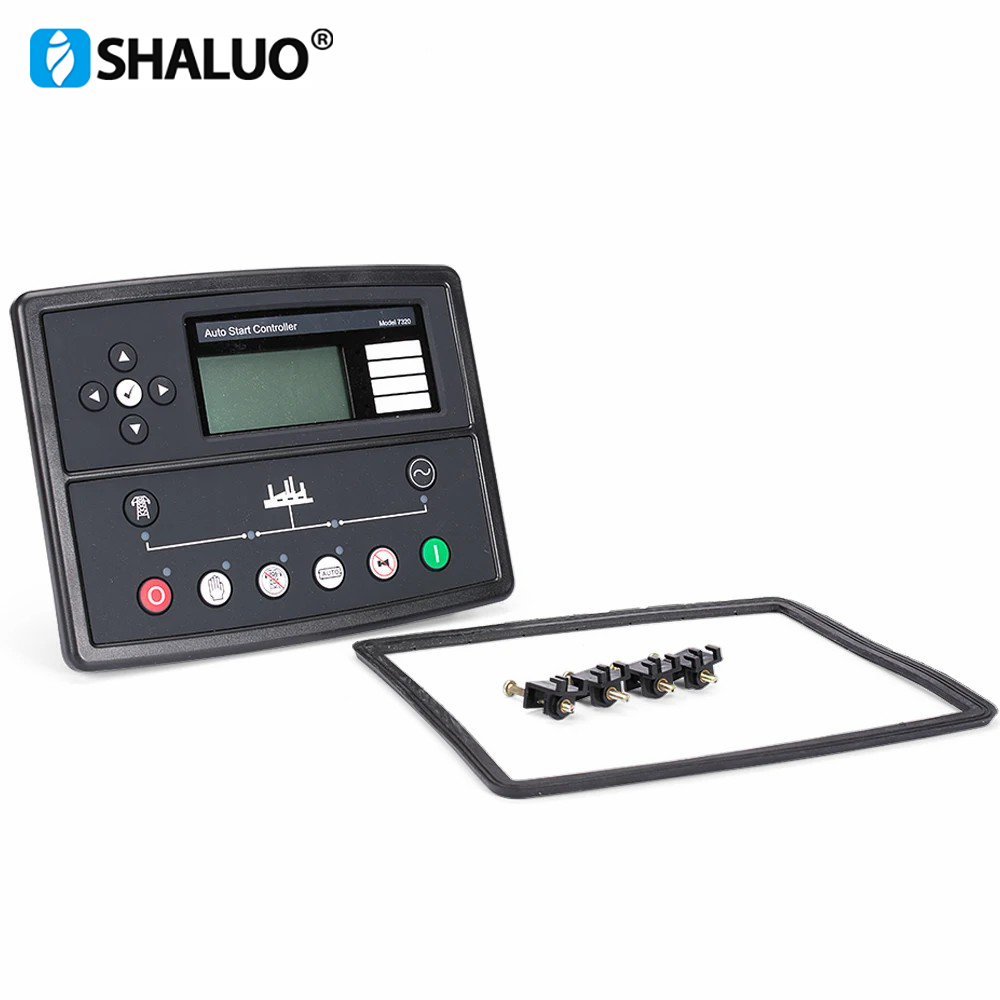

*The 7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
*Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status
information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).

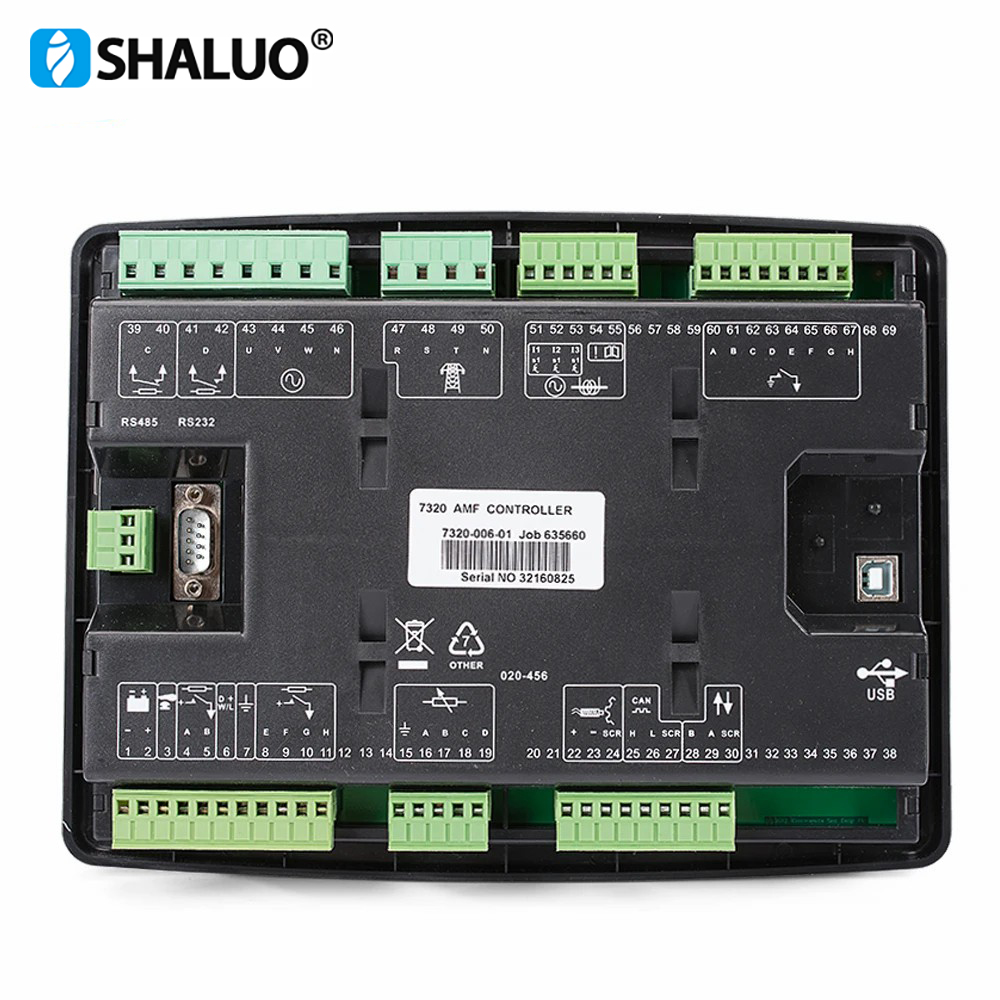

*The 7320 will monitor the mains (utility) supply and includes USB, RS232 and RS485 ports as well as dedicated
DSENet® terminals for system expansion.
*The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.
*The module has an extensive list of features including enhanced event and performance monitoring and remote
communications
*The module can be easily configured using the Configuration Suite PC software. Selected front panel editing is also available.
| Power Supply | 8 to 35 Vdc Continuous | ||||
| Cranking Dropouts: | Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the Need for internal batteries. | ||||
| Max Current | Operating 340 mA at 12 V, 160 mA at 24 V; Standby 160 mA at 12 V, 80 mA at 24 V 24V | ||||
| Start Output | 15 A DC at supply voltage | ||||
| Fuel Output | 15 A DC at supply voltage | ||||
| Auxiliary Relay Outputs | 2 A DC at supply voltage | ||||
| Charge Fail / Excitation Range | 0 V to 35 V | ||||
| Alternator Input Range | 15 V - 333 V AC (L-N) | ||||
| Alternator Input Frequency | 3.5 Hz to 75 Hz | ||||
| Mains Supply Input Range | 15 V - 333 V AC (L-N) | ||||
| Mains Supply Input Frequency | 3.5 Hz to 75 Hz | ||||
| Magnetic Pick-up Voltage Input Range | +/- 0.5 V to 70 V | ||||
| Magnetic Input Frequency | 10,000 Hz (max) | ||||
| Operating Temperature Range | -30 to +70°C | ||||

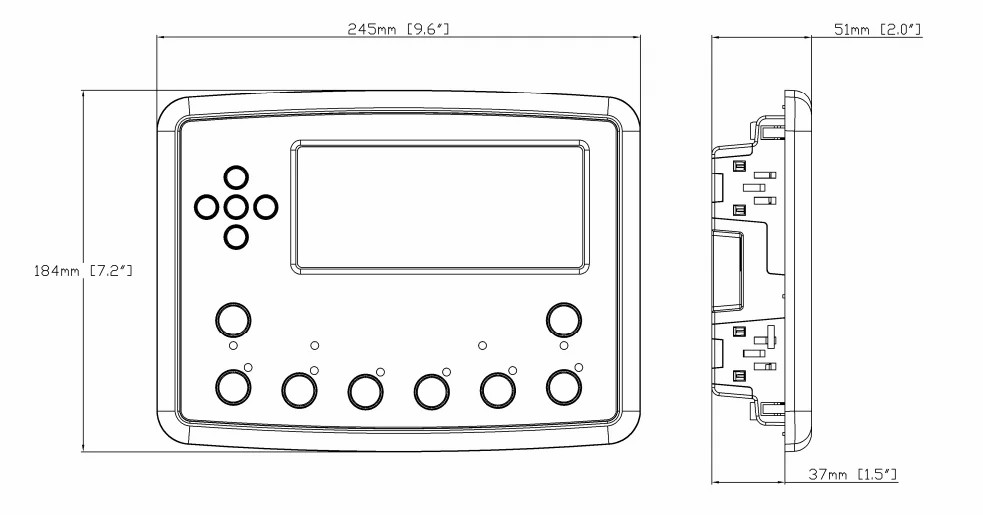

| Panel Cutout | 220mm x 160mm ( 8.7" x 6.3" | ||||
