HGM180HC diesel generator set controller smartgen distribution box accessories

HGM180HC diesel generator set controller distribution box accessories Daquan 8KW10KW15KW30KW

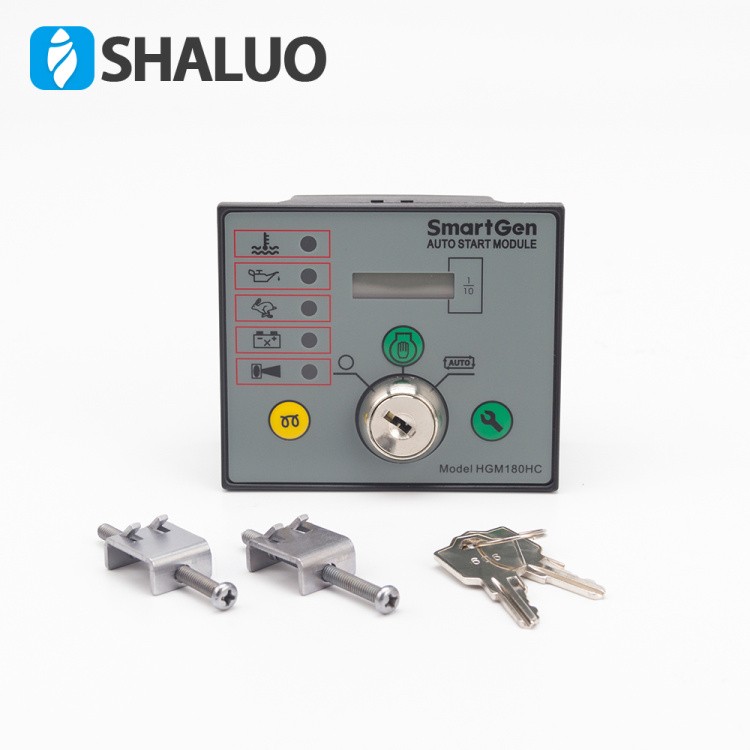

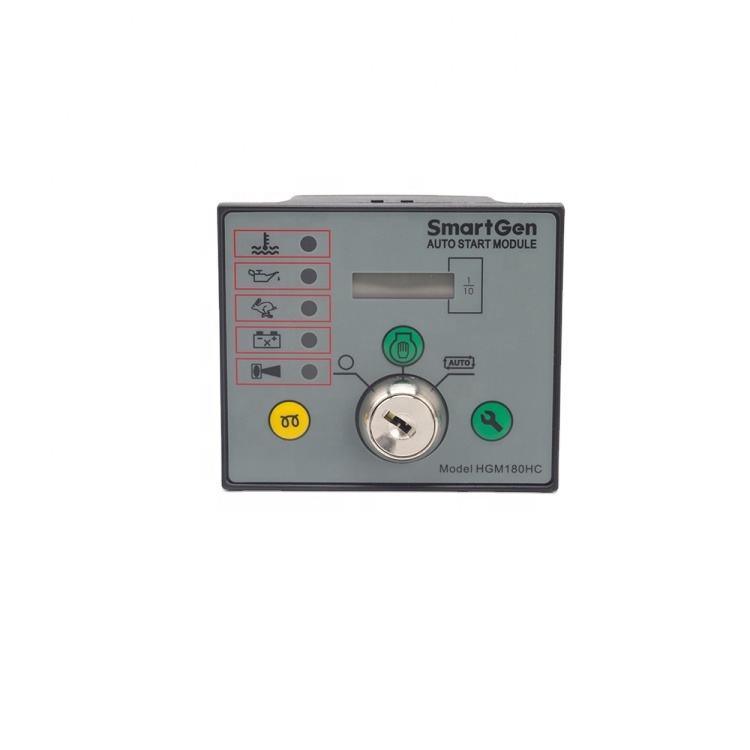

The HGM180HC generator set controller is a self-starting module. Three kinds of working states are selected by the electric lock. The generator set can be manually started by tapping the button on the panel, or the generator set can be automatically started by the remote signal input, and the fault can be detected. (When the oil pressure is low, the water temperature/cylinder temperature is high, the external alarm, the overspeed), the fuel relay is automatically disconnected and the electromagnet is stopped. The panel LED indicates the fault status and provides a true and effective fault alarm signal.

Performance and characteristics
Wide DC power input range
Low oil pressure, high water temperature/cylinder temperature, overspeed protection and indication
With charging failure warning indicator, no downtime
An additional external input alarm shutdown signal
Speed signal is taken from the frequency of power generation
LED display various alarm status
LCD with operating hours
With fuel output, start output, preheat output, shutdown output, public alarm / idle output function, and are relay output
With idle speed control, idle delay time programmable
Preheat delay time programmable
Start-up success condition optional oil pressure + power generation (factory default), or only power generation
When the DIP switch is set to idle/high speed, the output port can be configured as idle/high speed output, otherwise it is the public alarm output.
Modular structure design, ABS plastic shell, embedded installation, compact structure, small size, advanced MCU control, stable performance, easy operation
The main technical parameters

DC power supply: 8 ~ 35V
Power input: AC15 ~ 300V (+20%) 50 or 60Hz programmable
Overspeed threshold: 114% of rated frequency
Starter separation: generator voltage ≥ 15VAC and frequency ≥ 15Hz
Charging failure voltage: less than 3V
Idle time: the factory default is 10 seconds
Remote boot input judgment time: 2 seconds
Remote stop input judgment time: 10 seconds

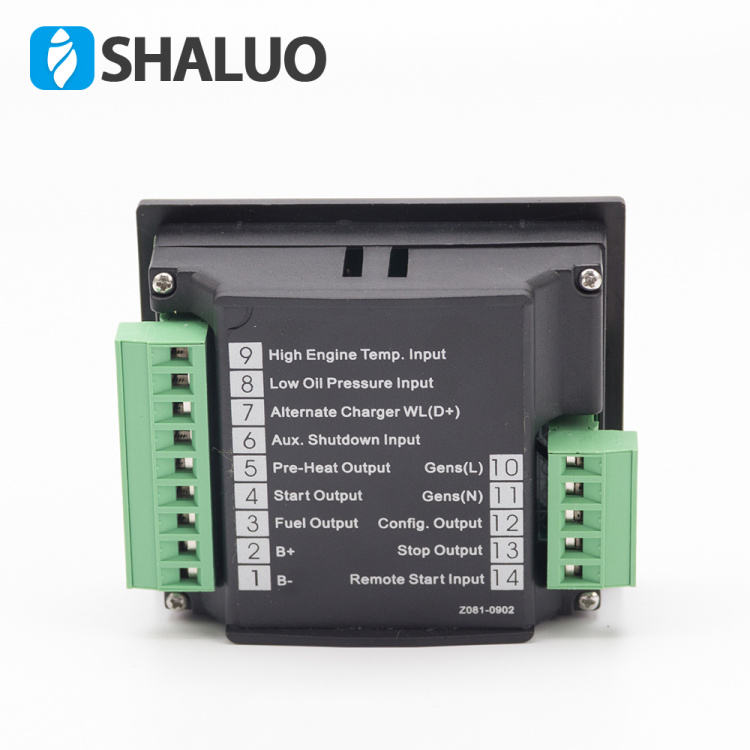

5 output ports: 1A current, DC power supply B+ relay output
4 digital input ports: connected to B-effective
Hour meter: maximum display time 99999.9 hours
Working temperature: -30 ~ +70 ° C
Power consumption: Standby (12V: 0.12W, 24V: 0.24W), normal operation (12V: 0.5W, 24V: 1W)
Appearance size: 84x72x35mm
Weight: 0.2Kg
