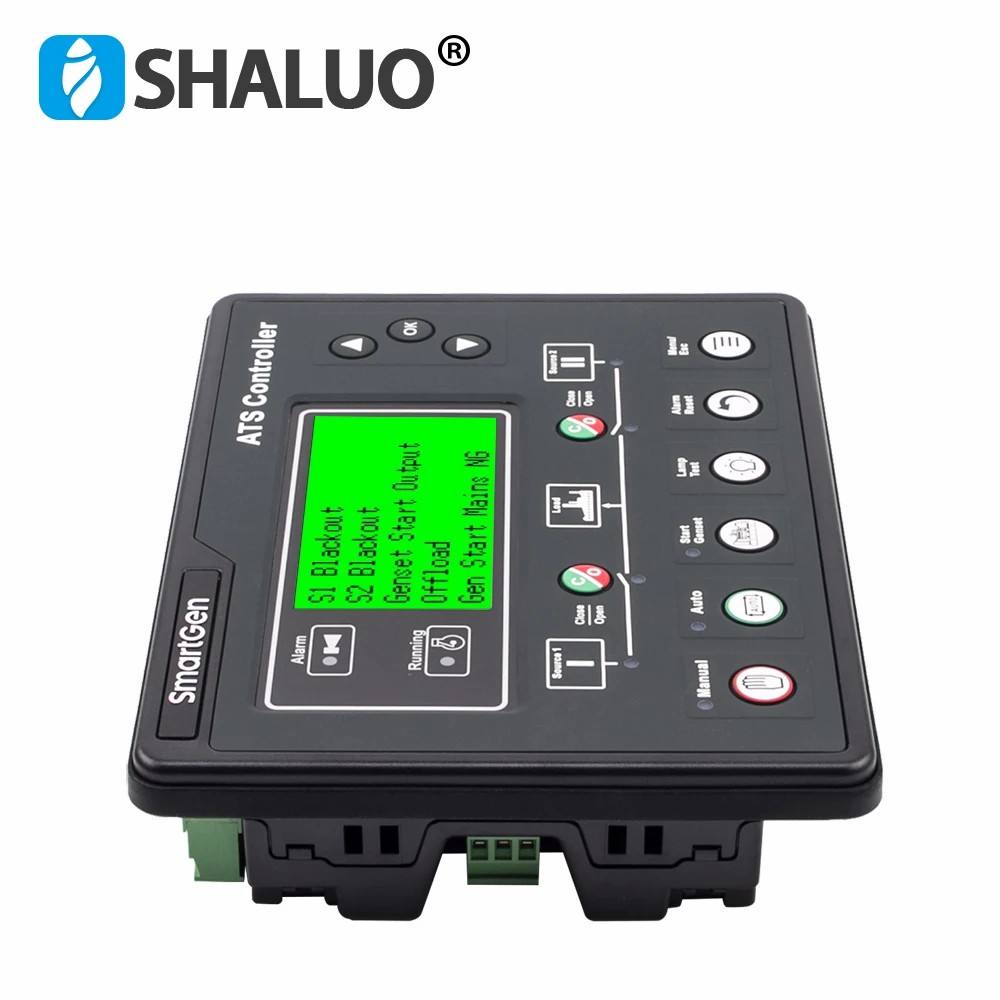

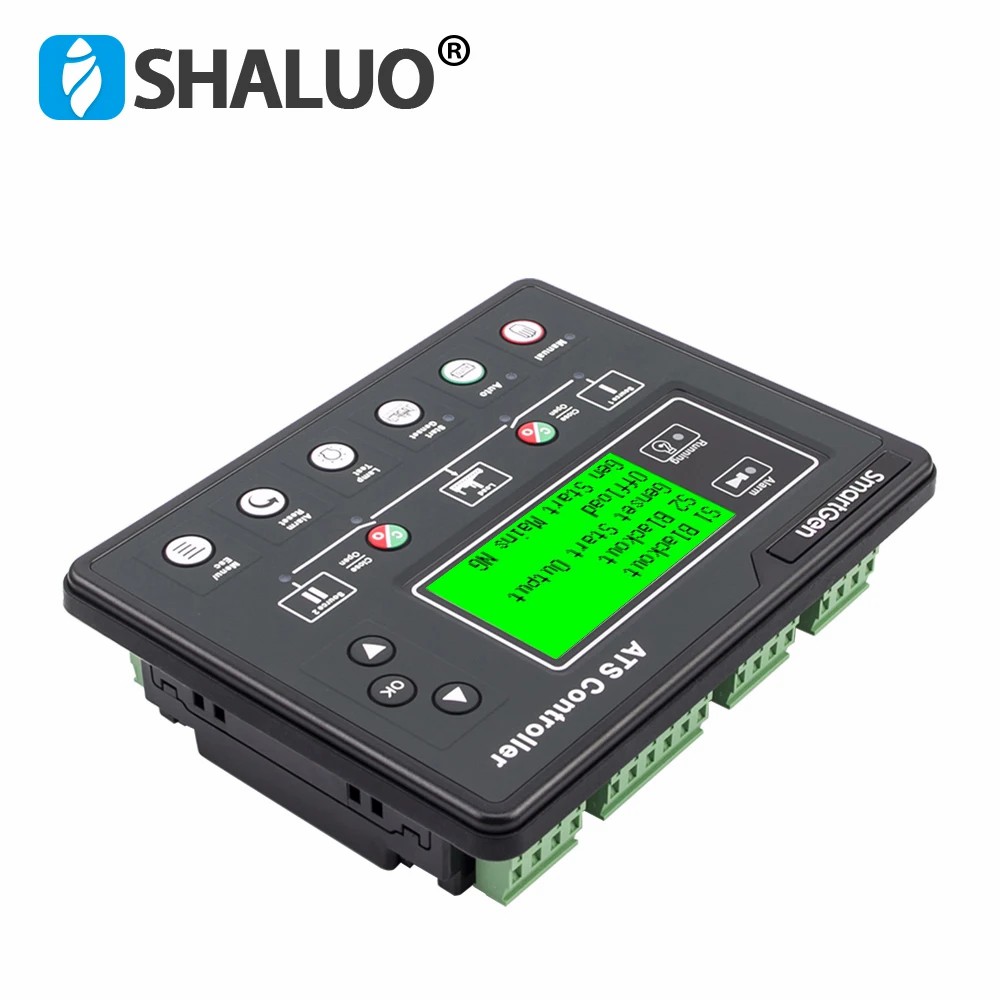

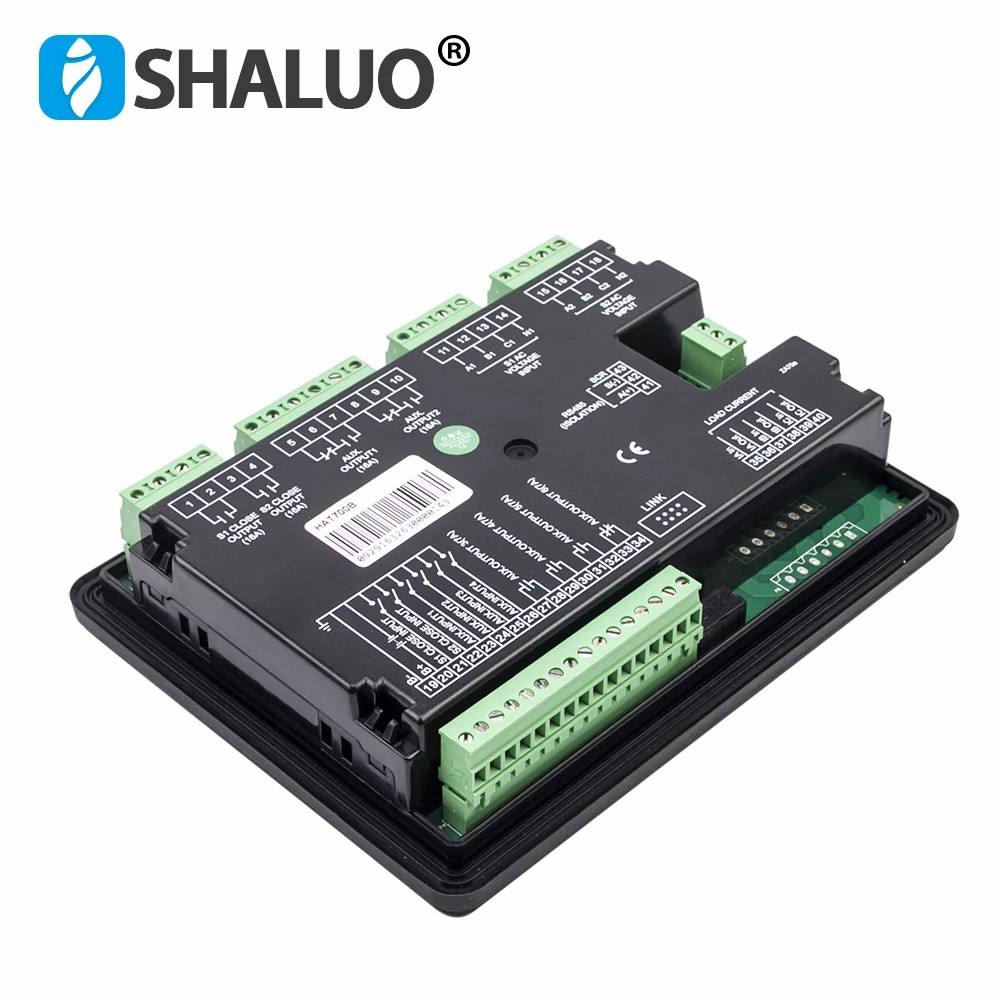

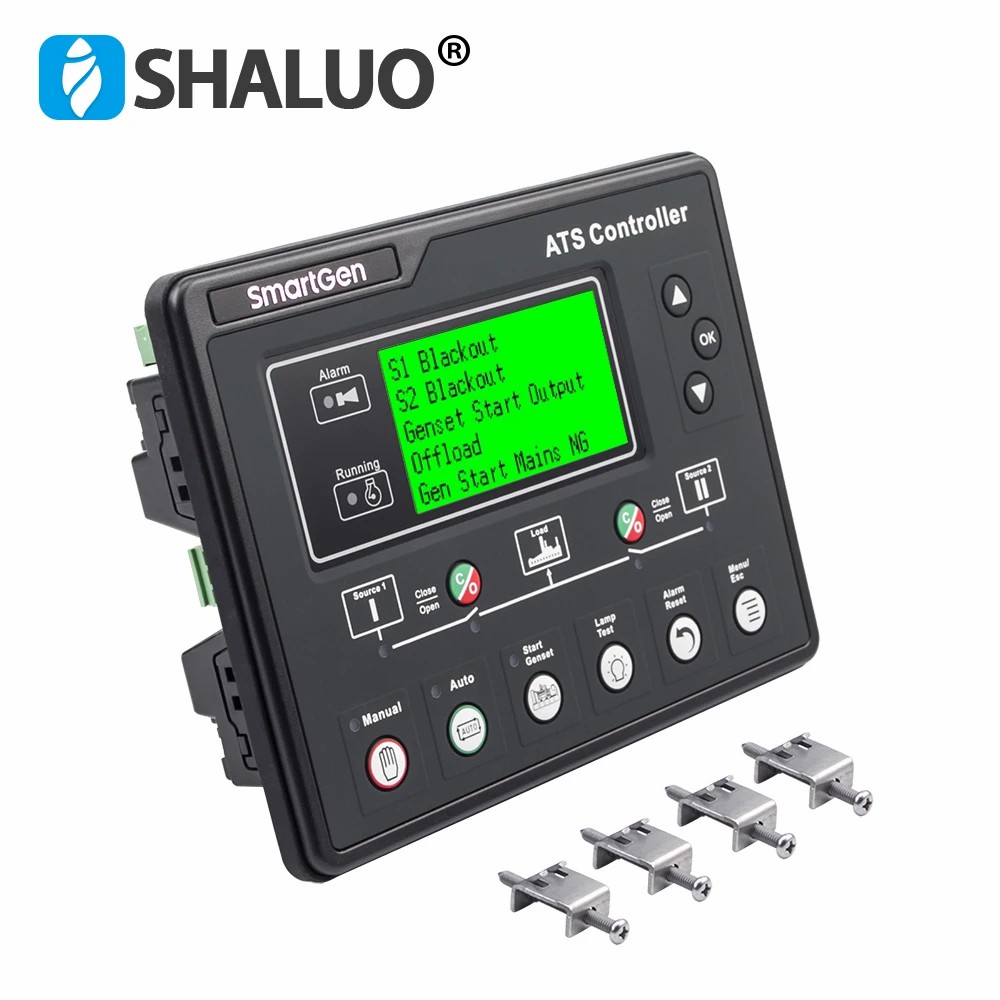

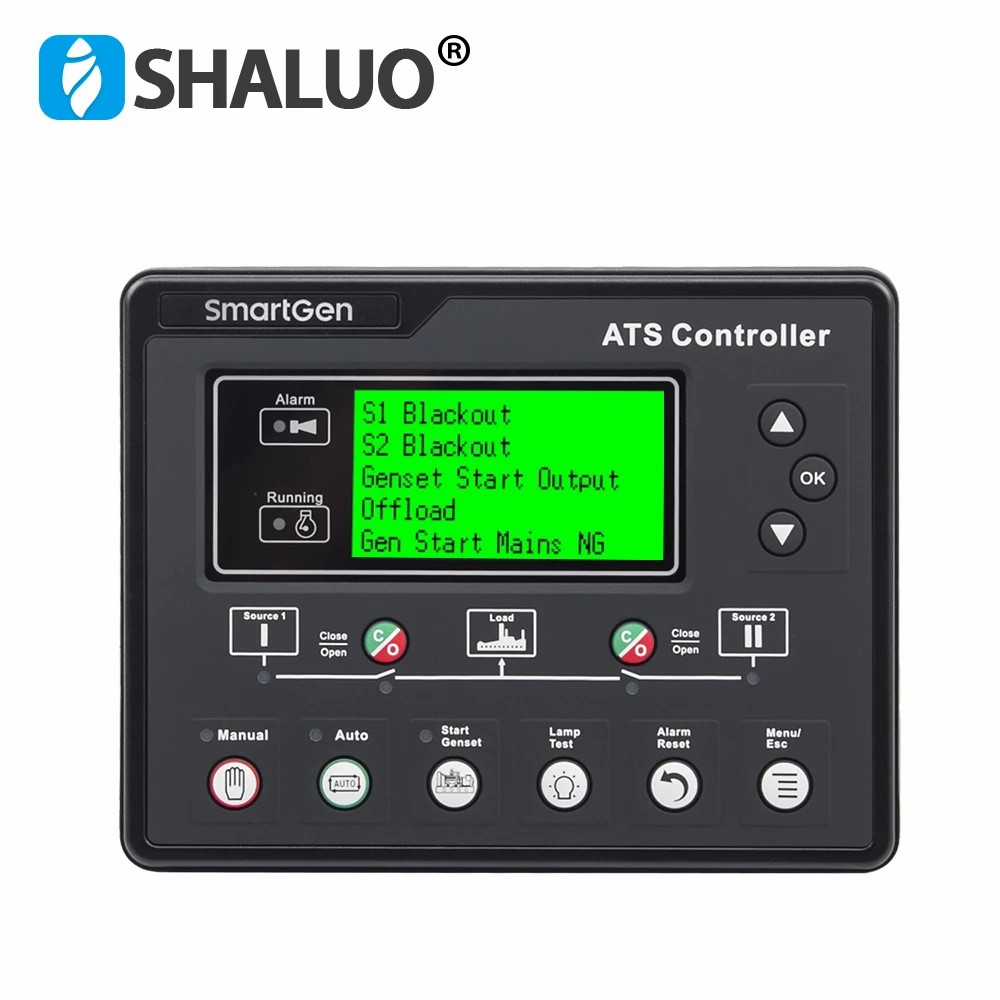

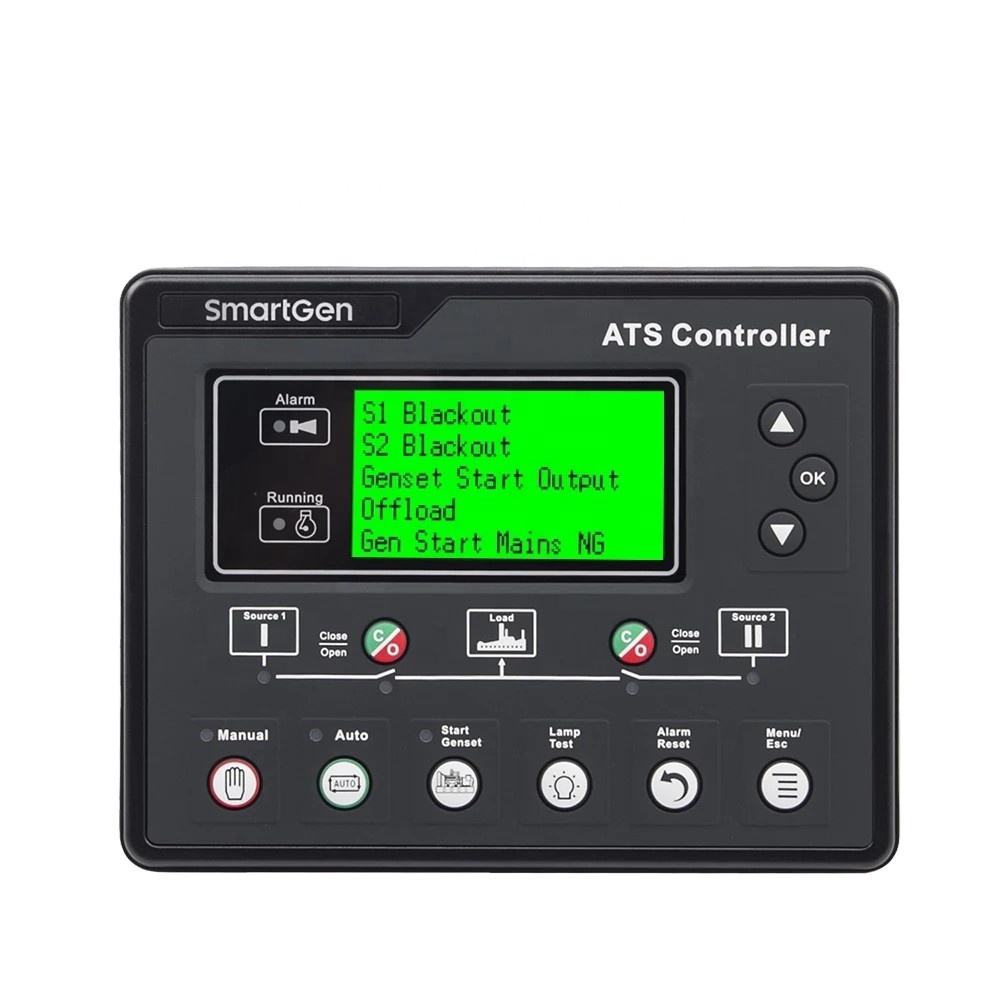

SmartGen HAT700 HAT700B HAT700S Diesel Generator ATS Controller Dual Power Synchronous Switching Control Module RS485 Interface

1 .OVERVIEW
HAT700 series ATS controller is intelligent dual-supply module with configurable function,automatic measurement, LCD display, and
digital communication. It combines digital, intelligence and ​ networking. Automatic measurement and control can reduce incorrect
operation. It is an ideal option for ATS.
COMMUNICATION CONFIGURATION:HAT700 series controller equips with RS485 serial port which enable the connection of LAN. It uses ​
Modbus protocol via PC or system software, it can also be applicable to dual power switching management to factories, telecom,
industrial and civil buildings, which achieves “remote control, remote measuring, remote communication” functions. More
information of Communication Protocol, please refer to “HAT700 Communication Protocol”.
The powerful Microprocessor contained within the unit allows for precision voltage (2-way-3-phase) measuring and make accurate
judgment; in addition, the corresponding digital output port will active ​ when there is over/under voltage, over/under frequency,
loss of phase and other abnormal condition occurs. This controller has full consideration in various application of ATS (automatic
transfer system) and can be directly used for PC ATS, CB ATS, CC ATS etc. It has compact structure, advanced circuits, simple
wiring and high reliability, and can be widely used in electrical devices, automatic control and testing system of electric power,
telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, etc.
