Product Description

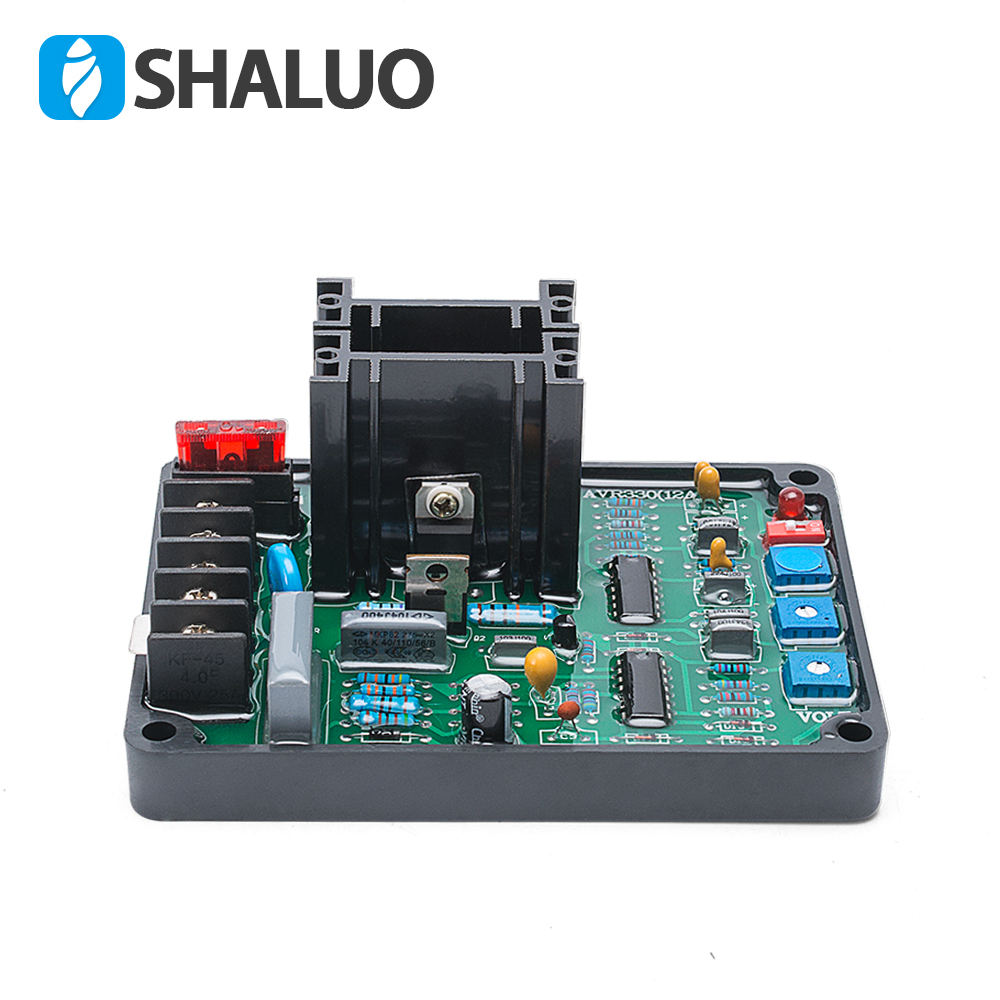

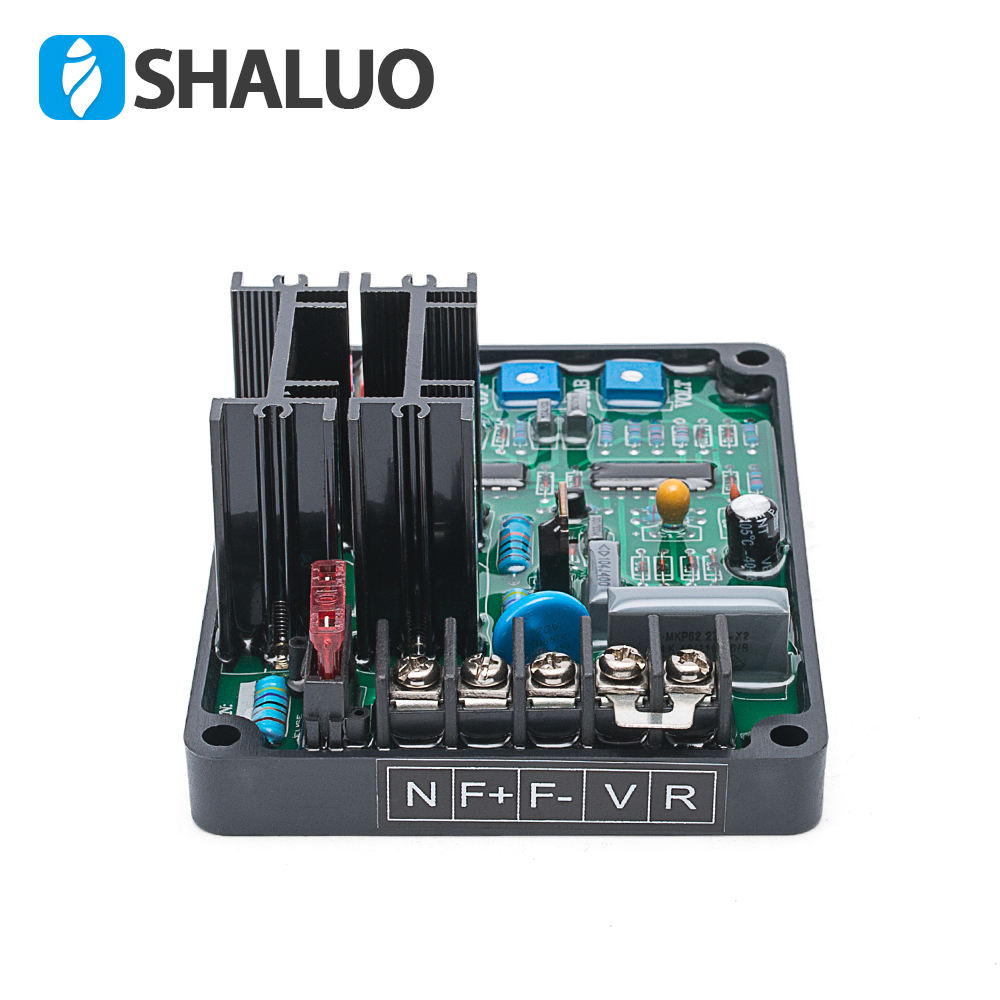

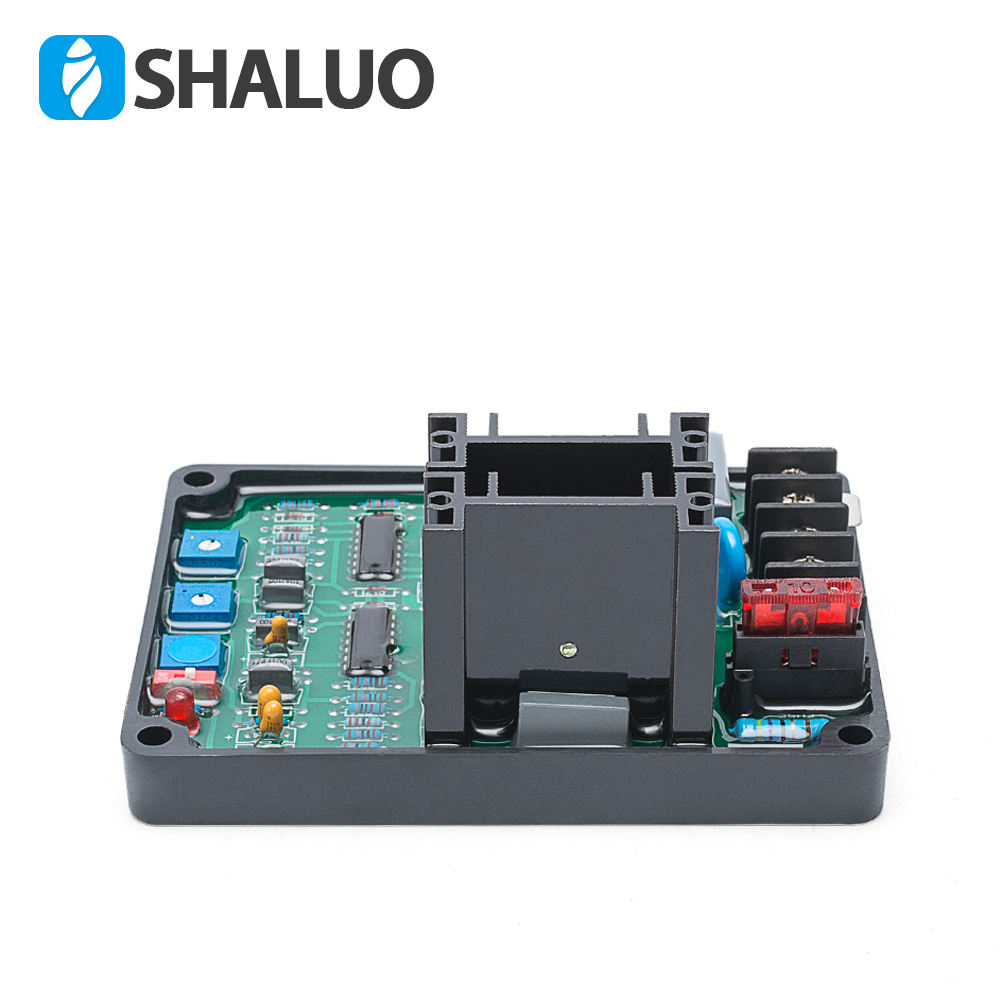

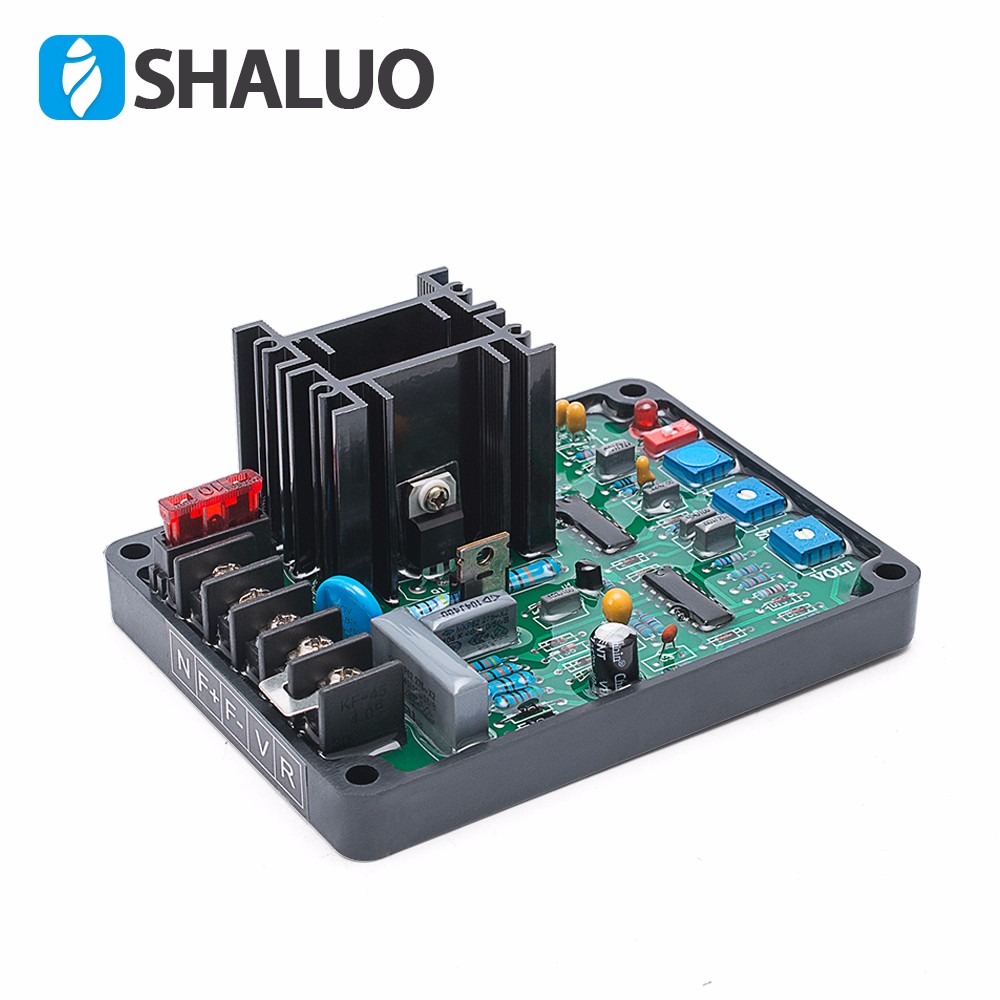

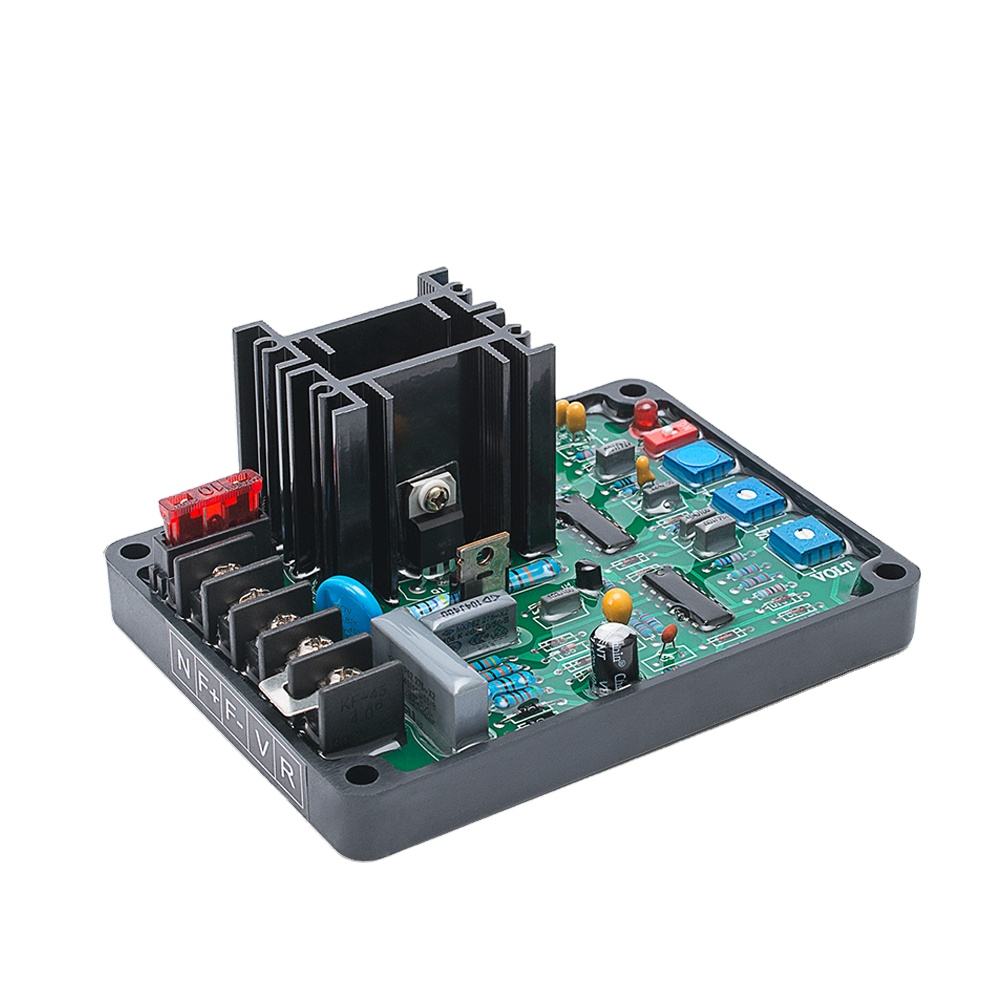

AVR GAVR-12A universal voltage regulator for generator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
| GAVR-12A | ||||
| Input | Sensing voltage | 180~260VAC,1 phase 2 wire | ||
| Power voltage | 180~260VAC,1 phase 2 wire | |||
| Output | Voltage | Max. 90VDC@240VAC input | ||
| Current | Continuous 4A | |||
| Current | Intermittent 7A for 10SEE | |||
| Resistance | Min.12Ω Max.100Ω | |||
| Voltage Build-up | Residualvolts at AVR teminal>5VAC | |||
| External Volts Adjustment | ±7% with 1KΩ 1 with trimmer | |||
| Soft start ramp time | 2sec. | |||
| Unit power dissipation | Max.8 Watt | |||
| EMI suppression | Internal electromagnetic interference filtering | |||
| Thermal. Drift | 0.03% per°C chage in AVR ambient | |||
| Under freqency protection | 60Hz system presets knee point at 55Hz | |||
| (Factory setting) | 50Hz system presets knee point at 45Hz | |||
| Volts regulation | <±1%(with 4% engine governing) | |||
| Environment | Vibration 3G@100~2K Hz | |||
| Operating temperature -40~60°C | ||||
| Relative humidity<95% | ||||
| Storage temperature -40~85°C | ||||
| Dimensions | 12.1*9.2*6cm | |||
