Product Description

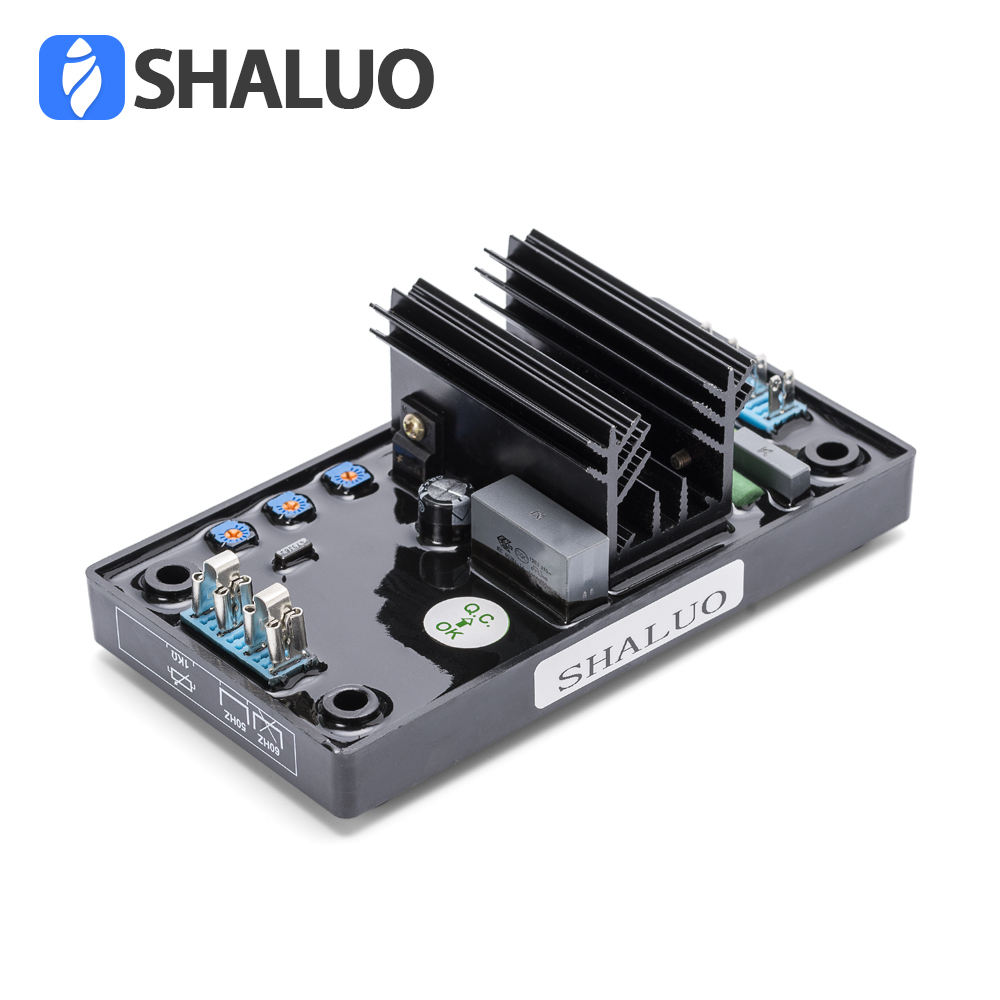

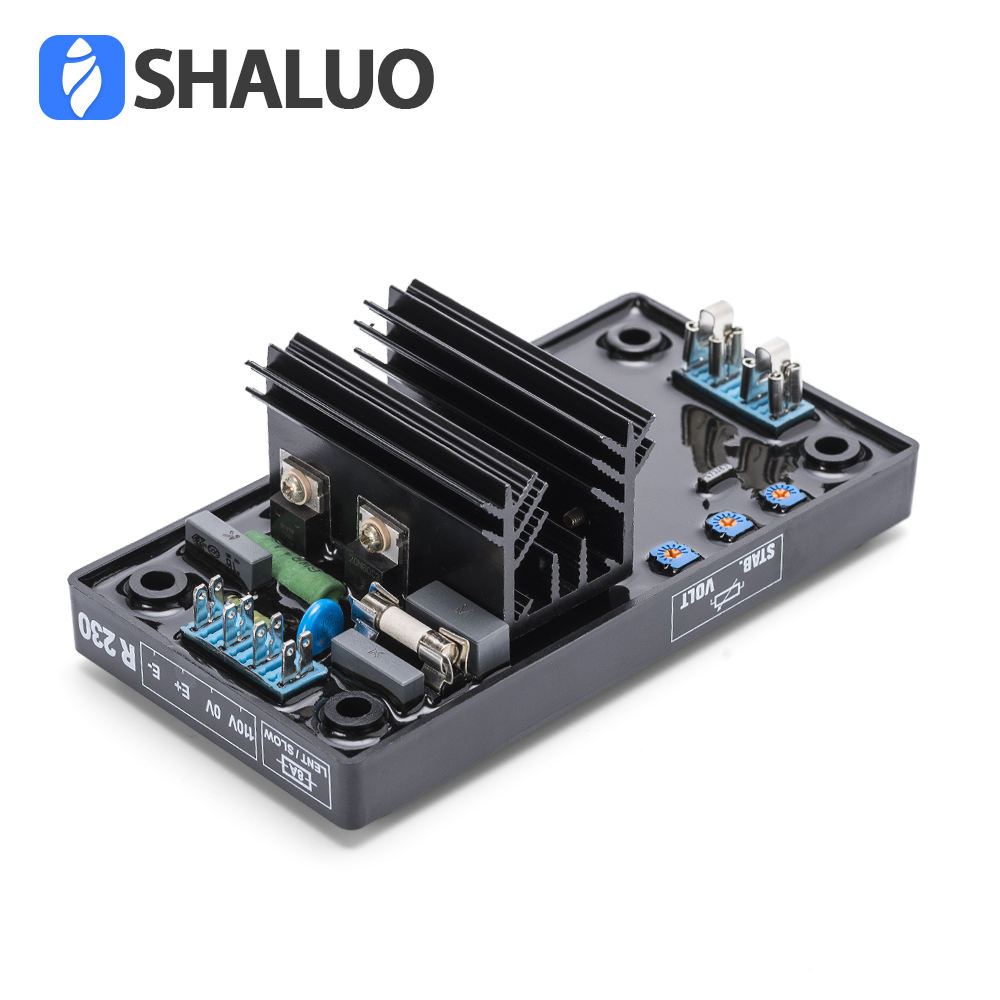

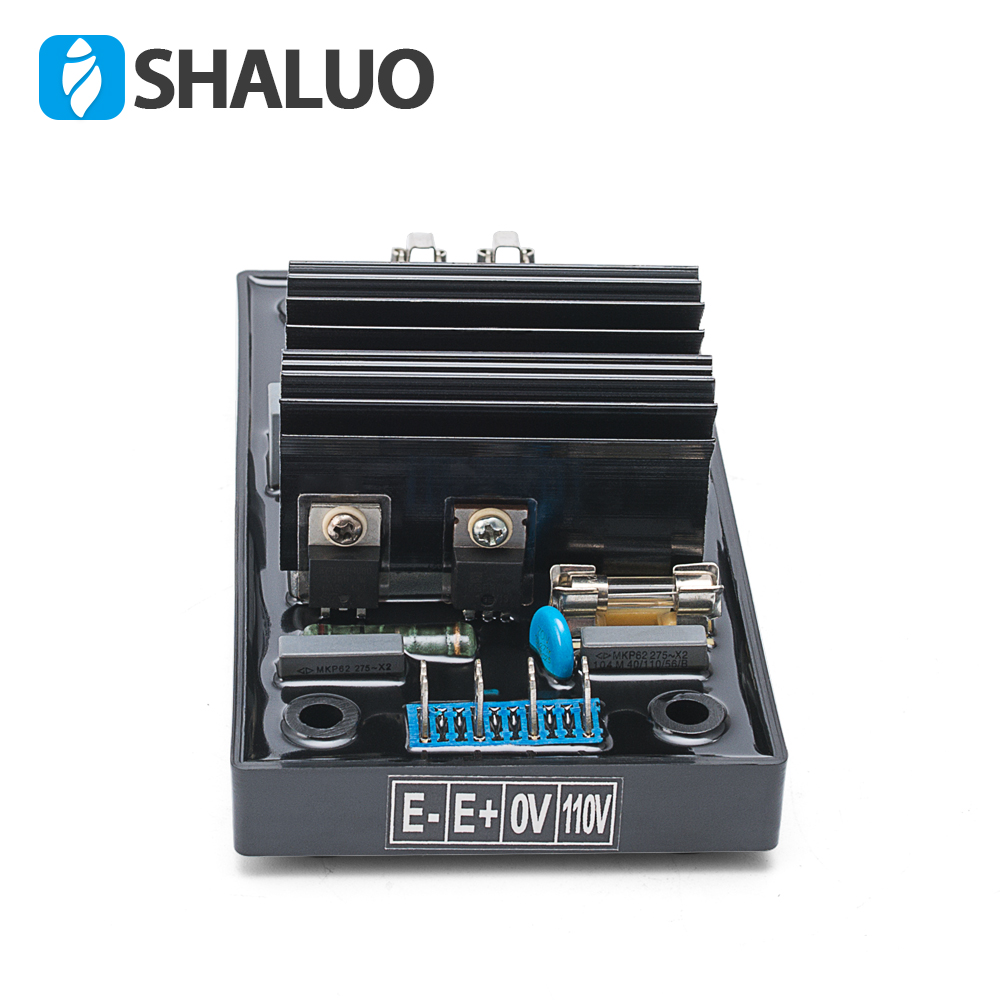

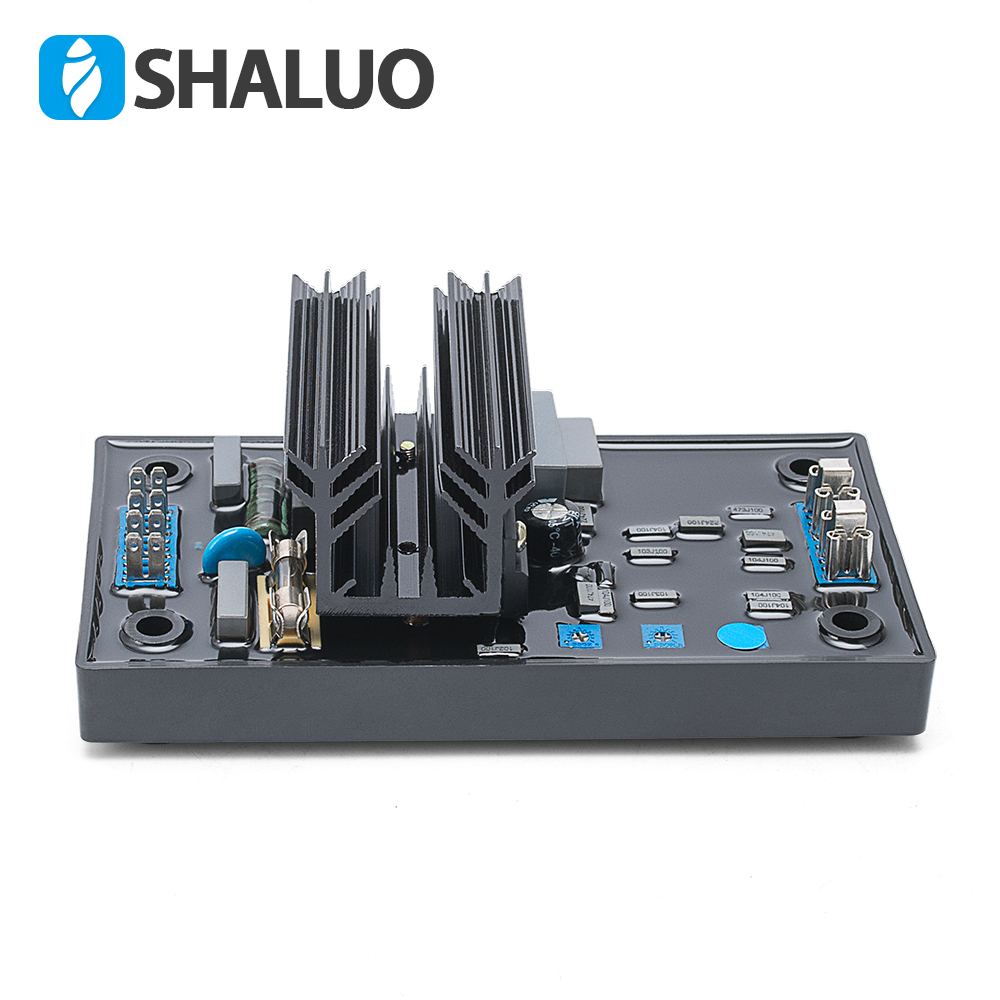

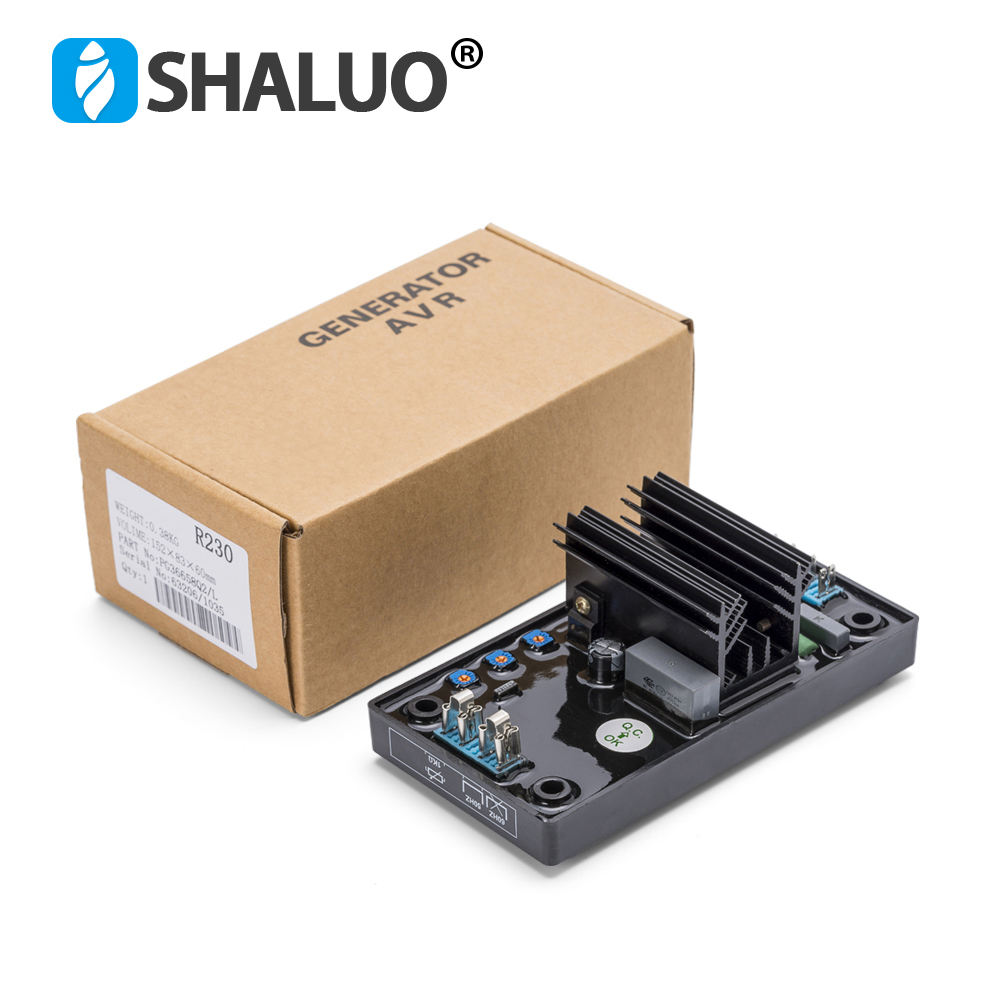

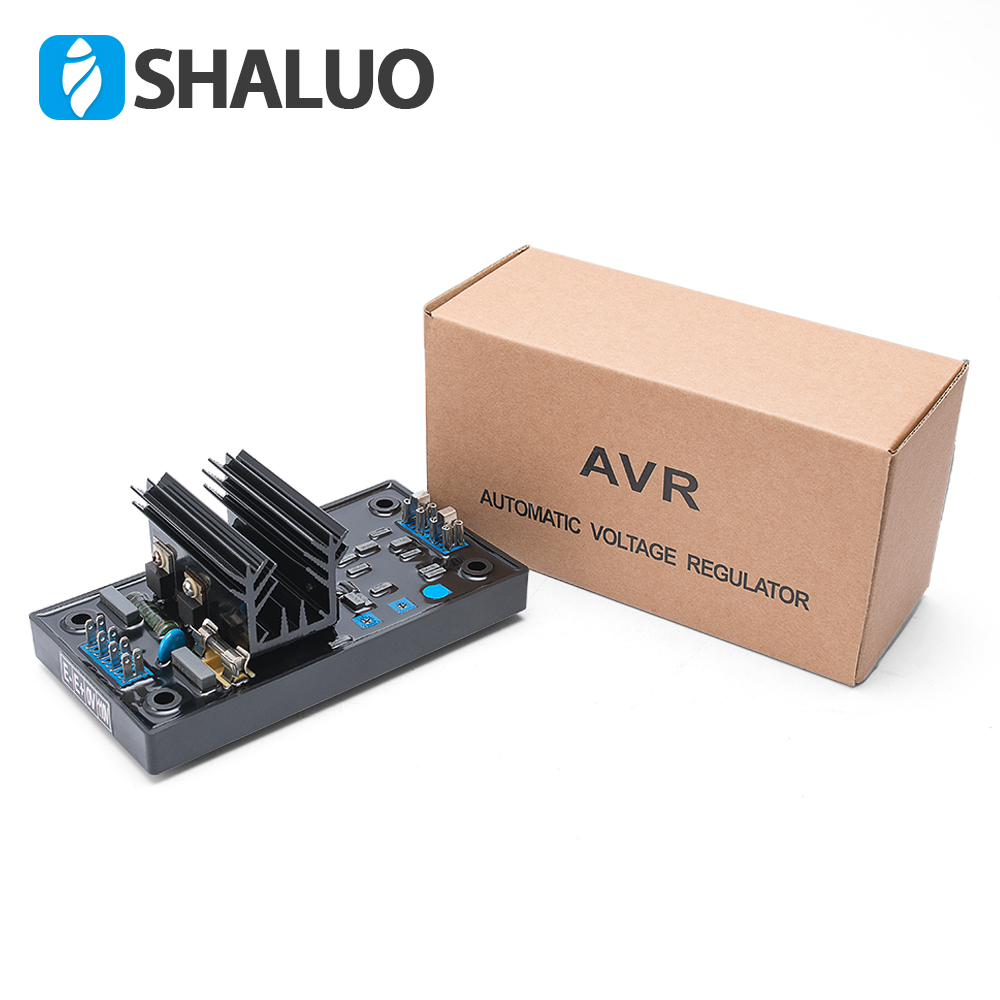

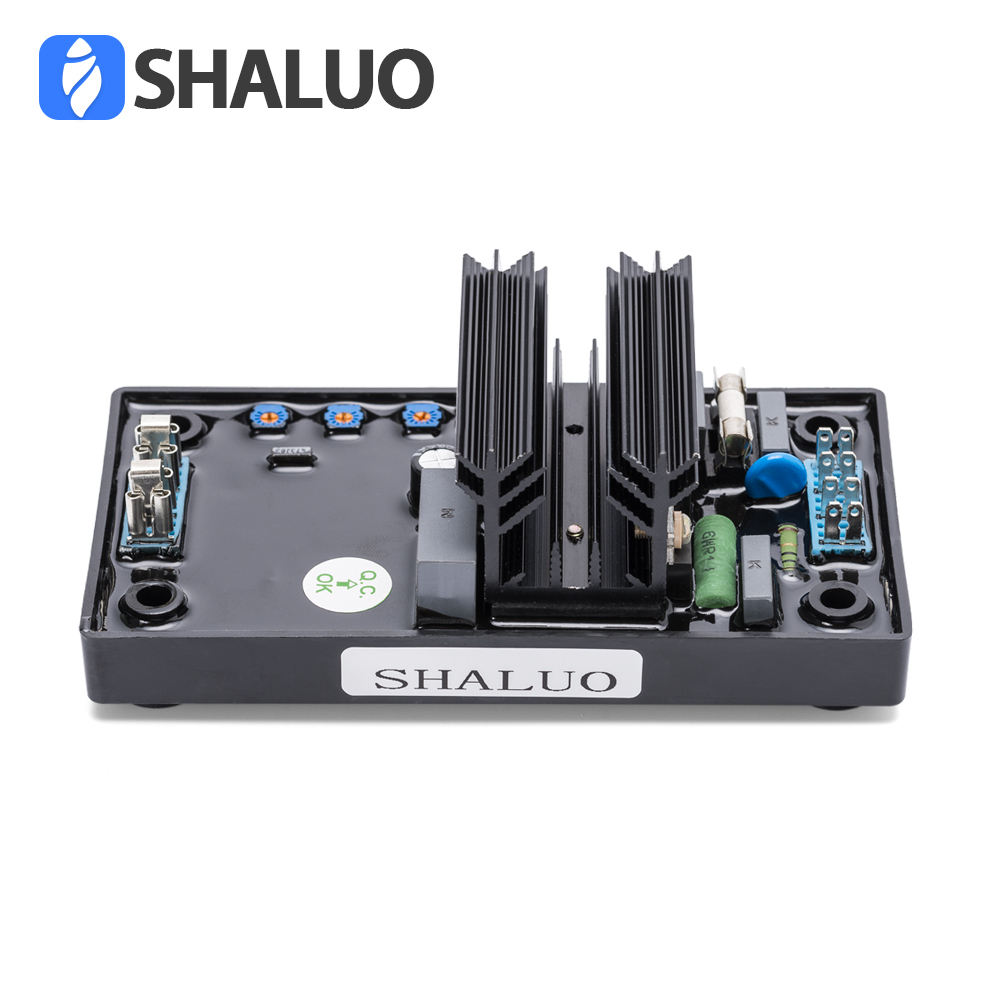

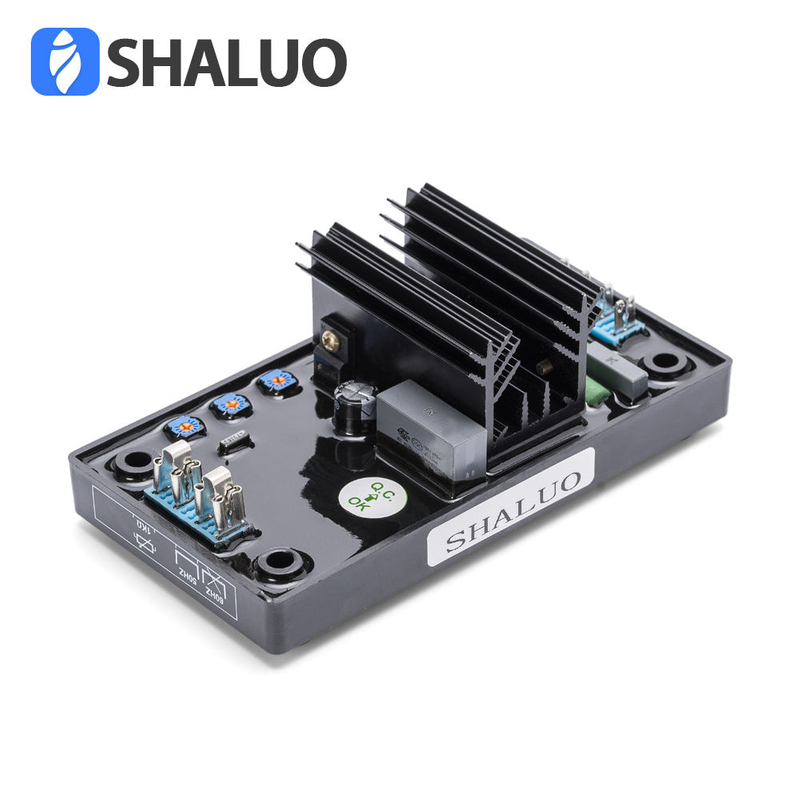

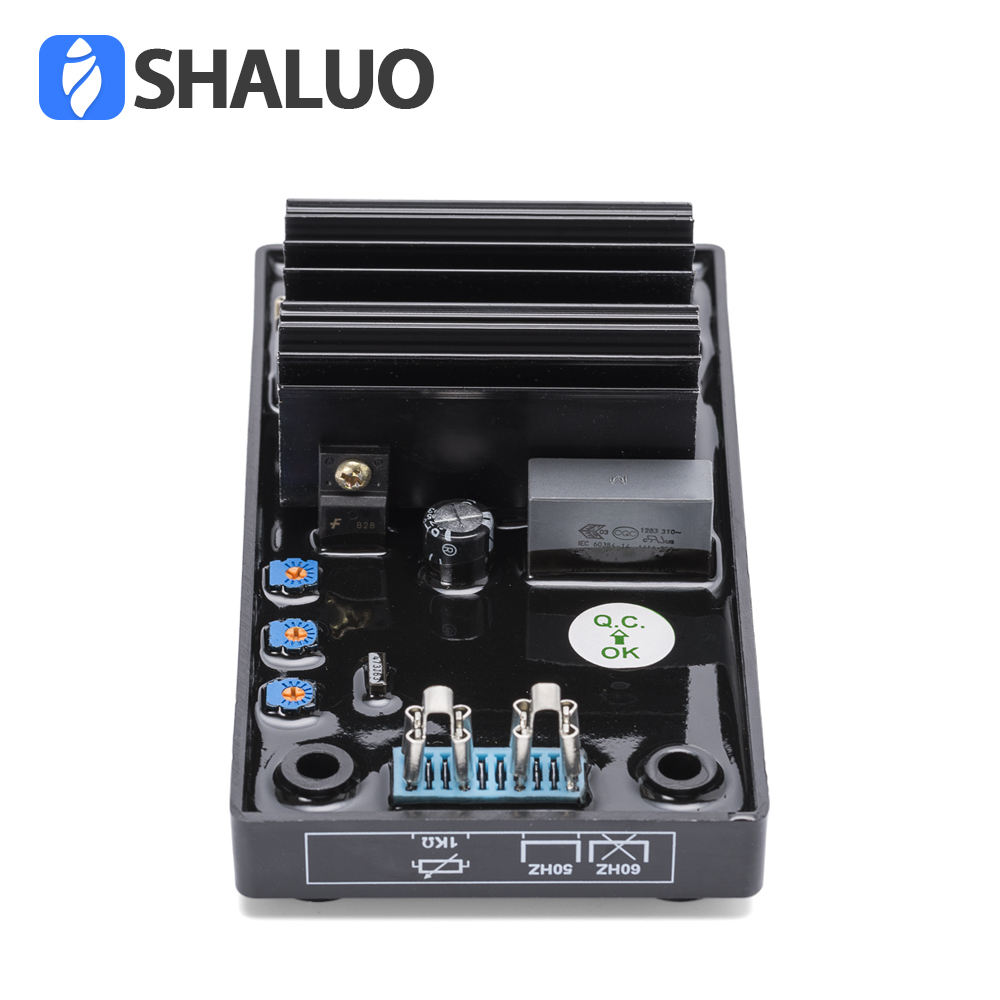

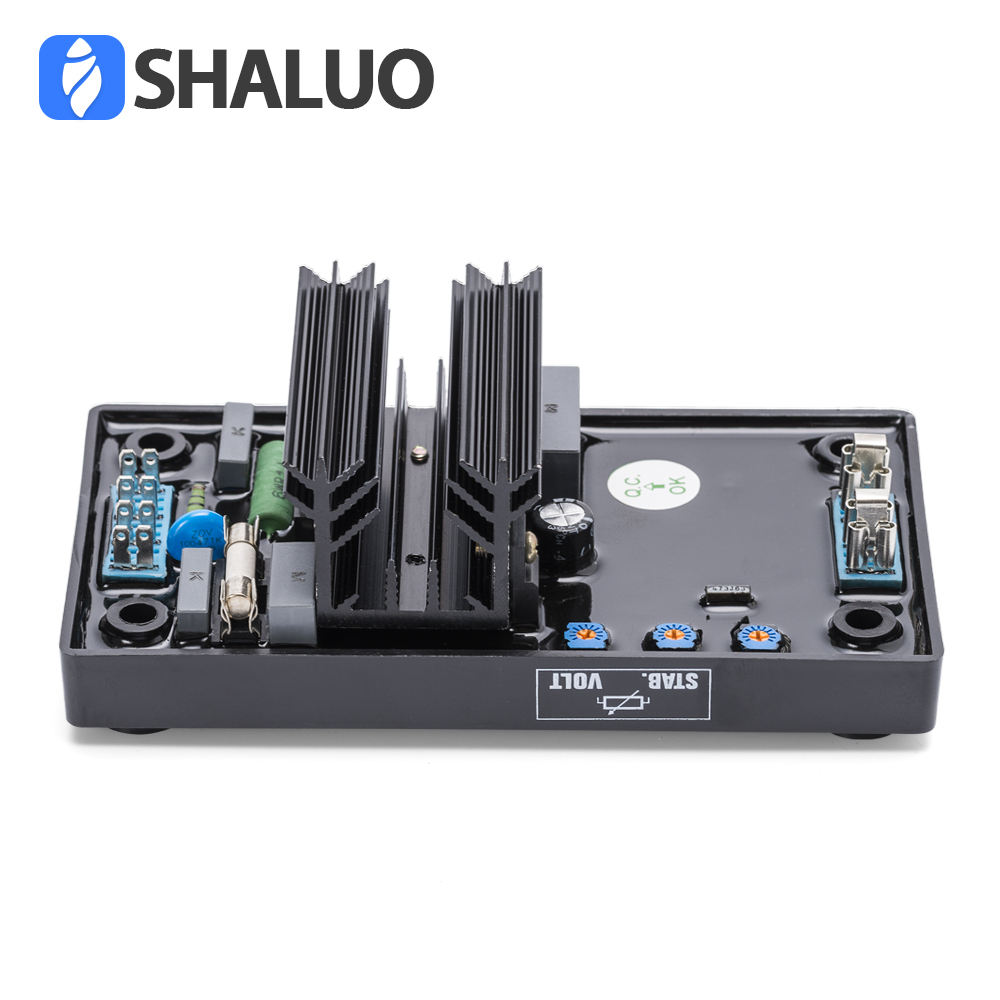

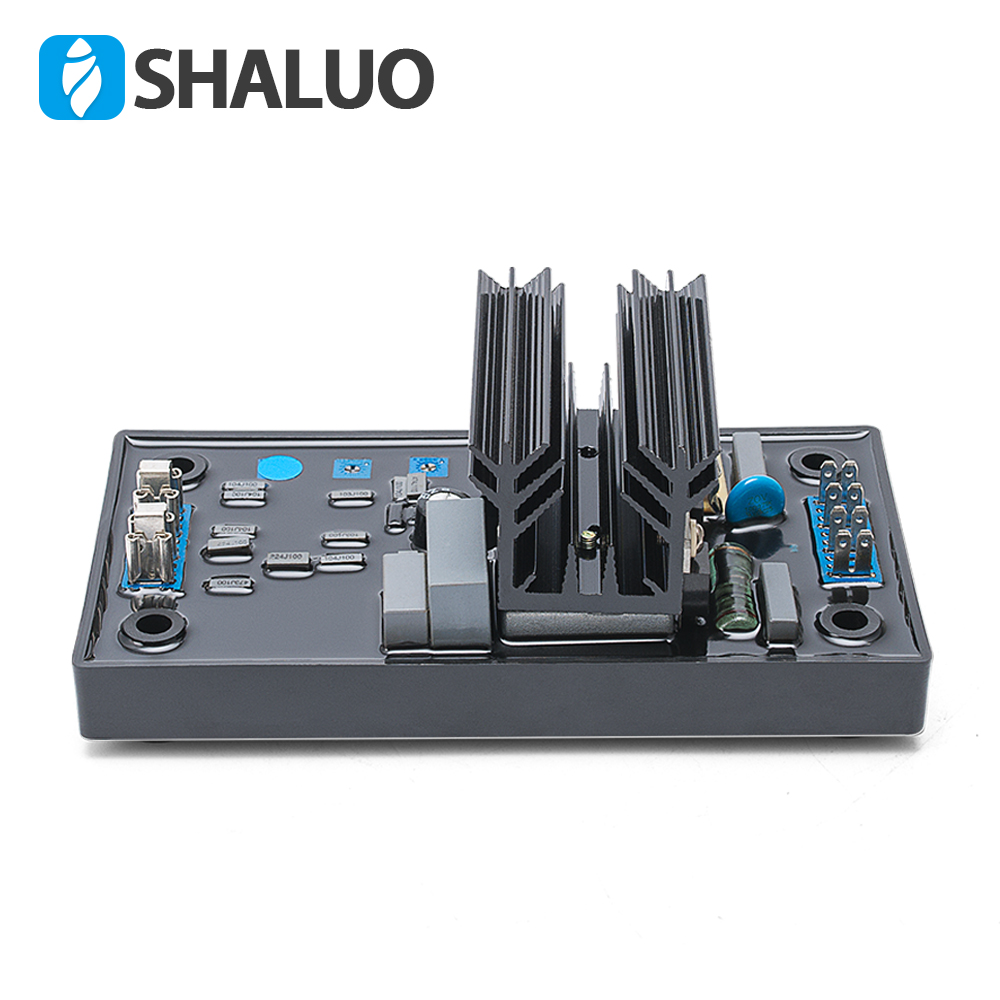

Diesel generator spare part AVR R230 Single phase with grey capacitor is a half-wave phase controlled thyristor type Auto Voltage Regulator and forms part of the excitation system for a brushless generator.
In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
| Diesel generator spare part AVR R230 Single phase with grey capacitor | ||||||
| Sensing/Power input | ||||||
| Voltage | 120 (90-140VAC) | |||||
| 1 phase,2 wires, with copper jumper options | ||||||
| Magnetic Field Output | ||||||
| Voltage | Max 100VDC at 120VAC input | |||||
| Current | Continuous 8A Intermittent 10A within 10 seconds | |||||
| Pressure Regulating Accuracy | ||||||
| <±1% RMS with 4% engine governing | ||||||
