Product Description

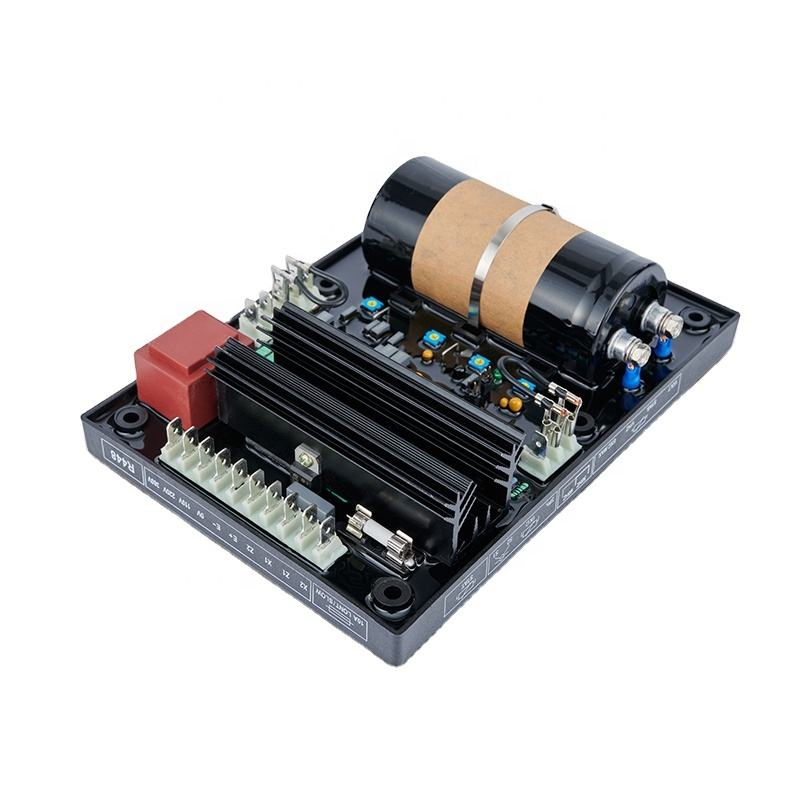

50HZ/60HZ Automatic Voltage Regulator AVR R448 The R448 AVR is powered by two auxiliary windings which are self-sufficient of the voltage match circuit, the first winding has a voltage in proportion to that of the alternator(characteristic shunt), the second has a voltage in proportion to the stator current(compound characteristic: booster effect). The power supply voltage is rectified and filtered before being used by the AVR monitoring transisitor.
| Voltage Regulation | ±0.5% | |||||||
| Remote voltage adjustment range | ±0.5% | Around ± 0.5 % | ||||||
| Short circuit capability | 3 x Irated for 10 seconds | 85 to 139 V | ||||||
| Standard power supply | AREP or PMG | 1000Ω /0.5W min. setting range ±5% | ||||||
| Rated overload current | 8 A - 10 s | Threshold at 48 Hz without LAM forimpactsbetween 30 and 40% of the rated Load | ||||||
| Voltage sensing | 5 VA isolated via transforme | Threshold at 48 Hz with LAM 13% forimpacts between 40 and 70% of the rated Load. | ||||||
| 0-110V terminals | 95 to 140V | Threshold at 48 Hz with LAM 25% for impacts > 70% of the rated load | ||||||
| 0-220V terminals | 170 to 260V | Threshold at 58 Hz without LAM forimpacts between 30 and 40% of the Rated load | ||||||
| 0-380V terminals | 340 to 520V | |||||||
| Voltage regulation | ± 1% | Threshold at 58Hz with LAM 13% for impacts 40 and 70% of the rated load | ||||||
| Current sensing | C.T.2.5VA cl1,secondary 1 A | Threshold at 58Hz with LAM 25% for impacts > 70% of the rated load | ||||||
| Voltage sensing | 95~140 volts (50/60 Hz) | Threshold at 57Hz without LAM for speed variations at a steady state > 2 Hz | ||||||
| 170~260 volts (50/60 Hz) | Threshold at 65Hz without LAM for speed and tractelec / gearlec (U/F gradient) | |||||||
| 340~520 volts (50/60 Hz) | Special: the factory setting 48Hz 2U/F gradient; a special programme is Possible on request. | |||||||
| Fit for | 1000 series generator | Threshold at 47.5 Hz without LAM for speed variations at a steady state > 2 Hz | ||||||
| 2000 series generator | ||||||||
| 3000 series generator | ||||||||
