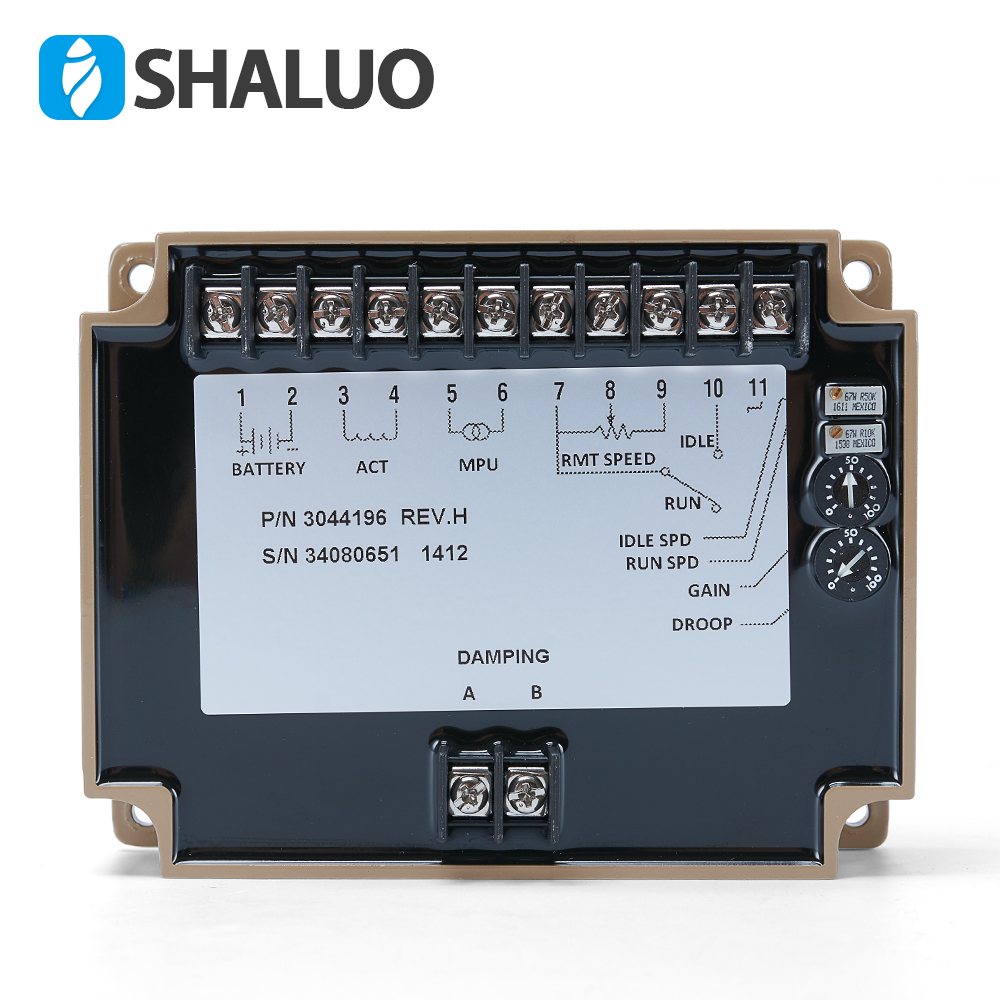

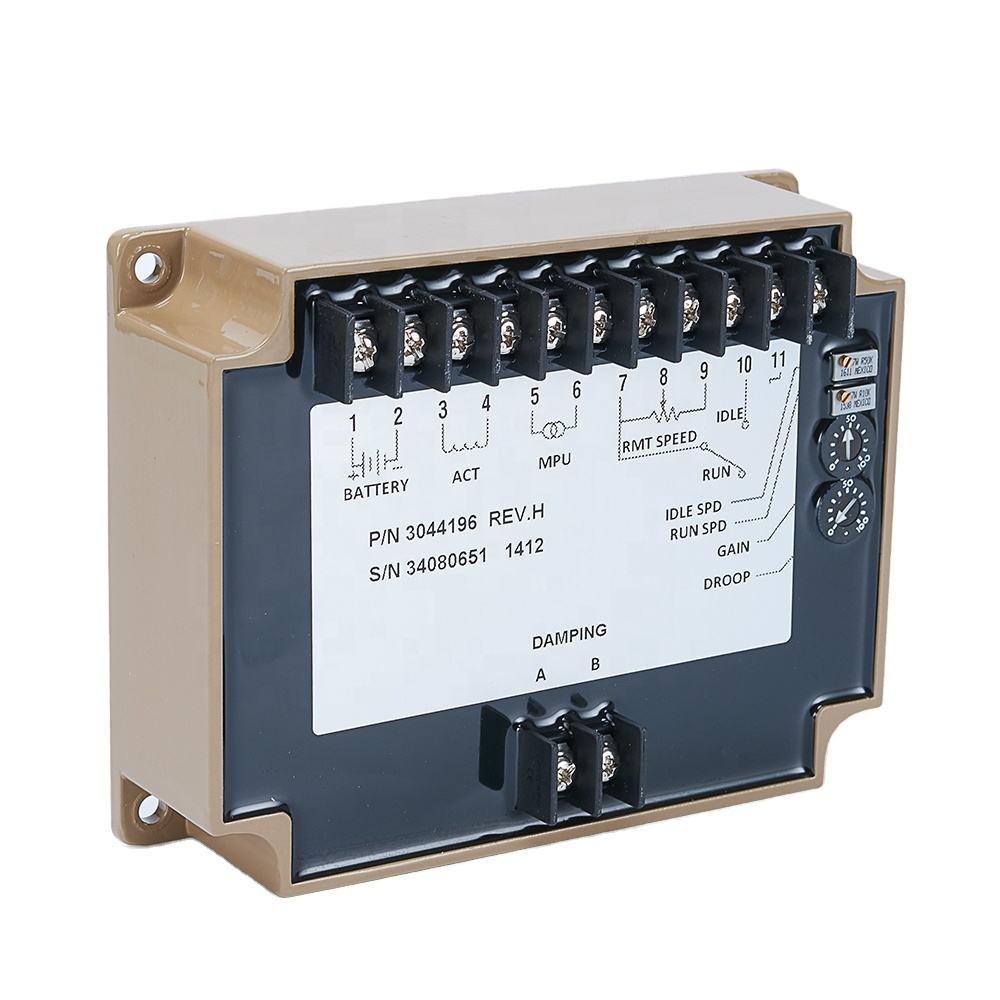

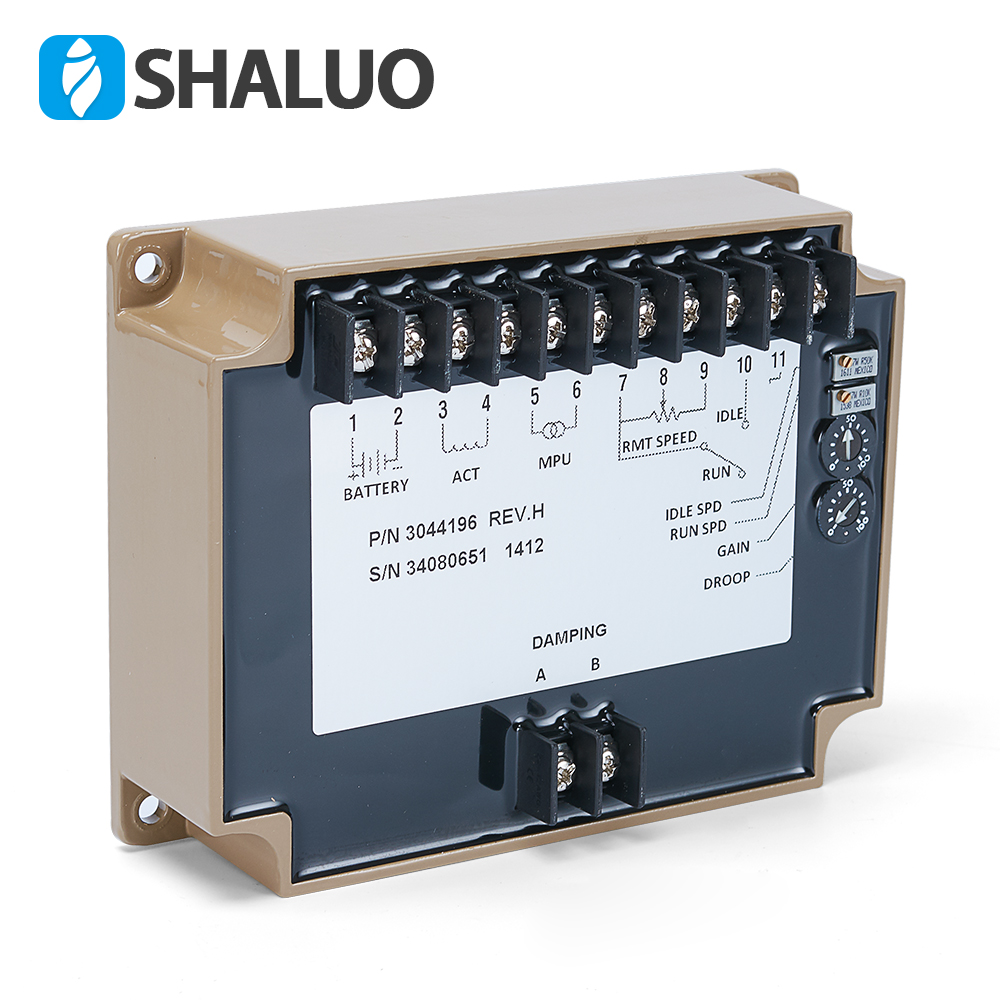

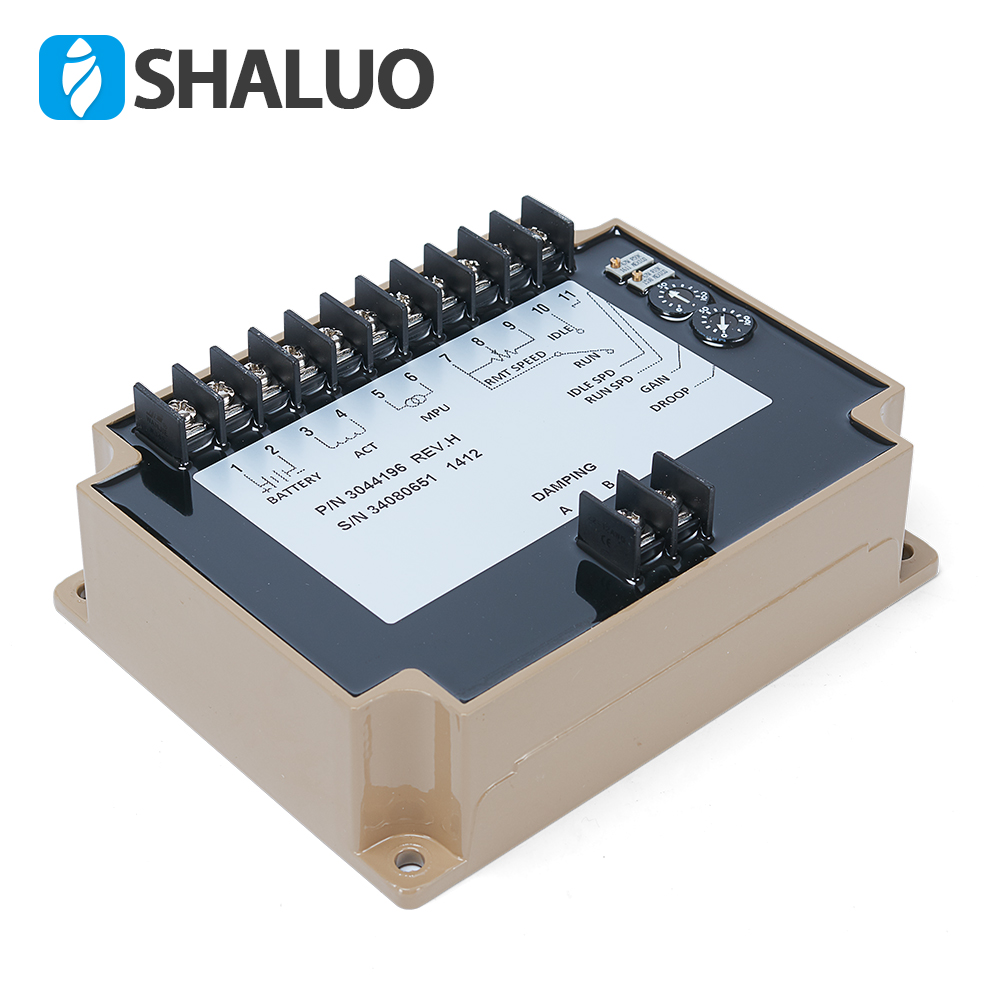

diesel generator engine Electronic Governor speed Control Module controller 3044196

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

Engine Governor EFC3044196

RPM Stability: <±0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal stability: Max ±0.7%
IDLE Regulation: 260 ±20Hz

DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage: 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
MPU
Signal: 2 ~ 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency
Detailed Images
Why do you choose us
Our Certifications
Our Factory

About the company

Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.

Factory inspection

The professional person responsible for the quality of supervision and control in the entire process.

Element testing

In order to get the superior quality we only use selected good element.

Assembles products

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
