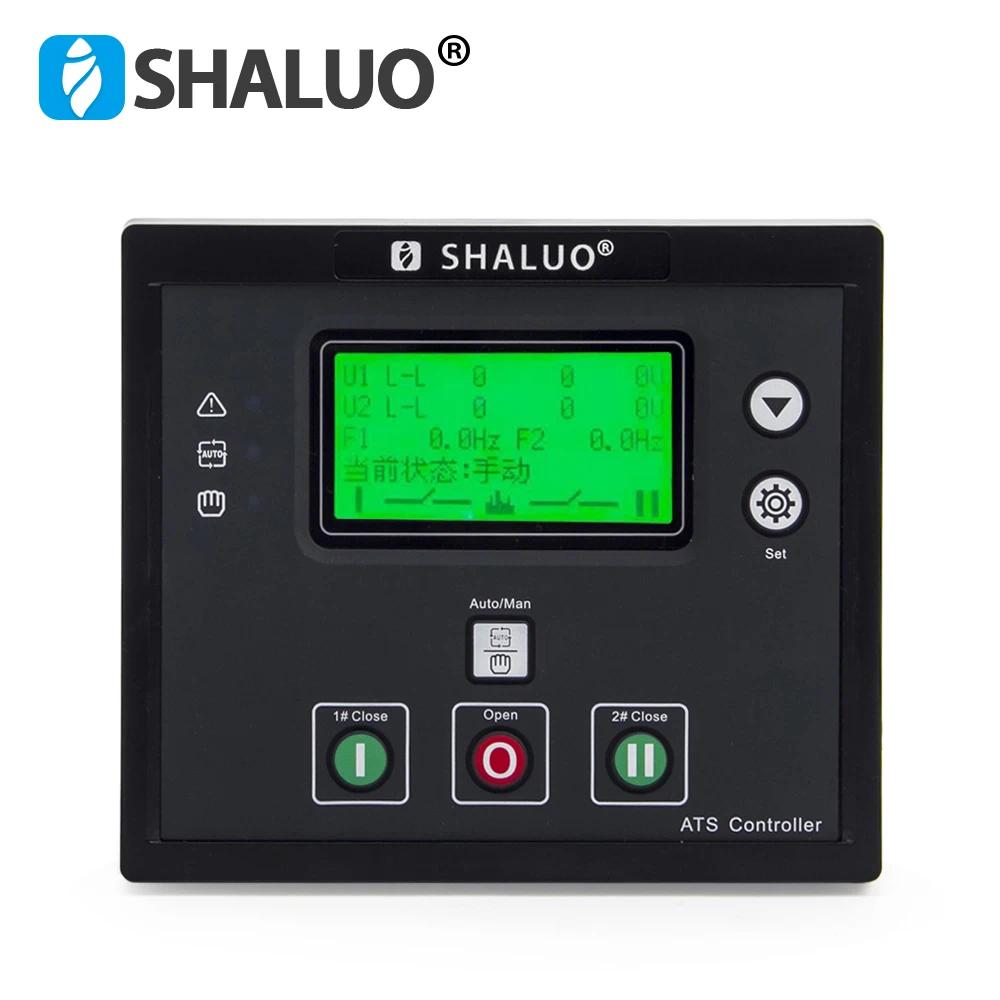

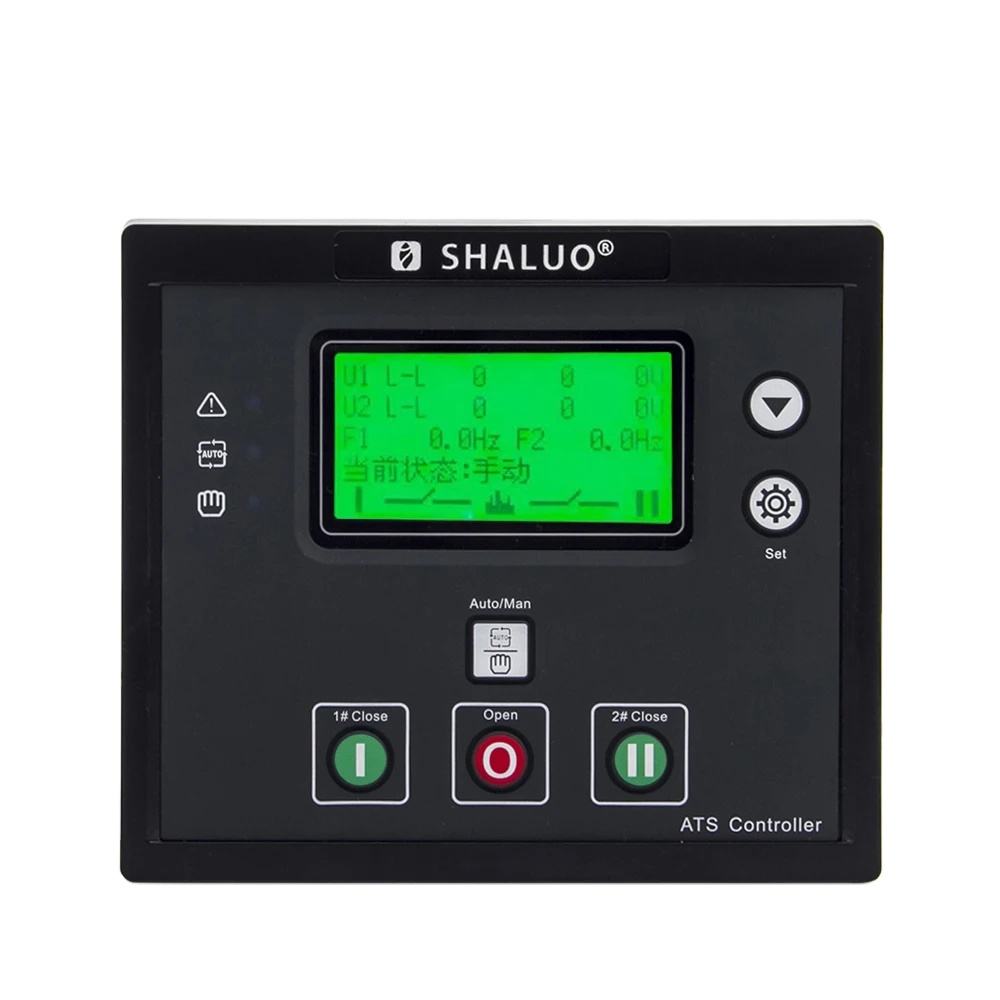

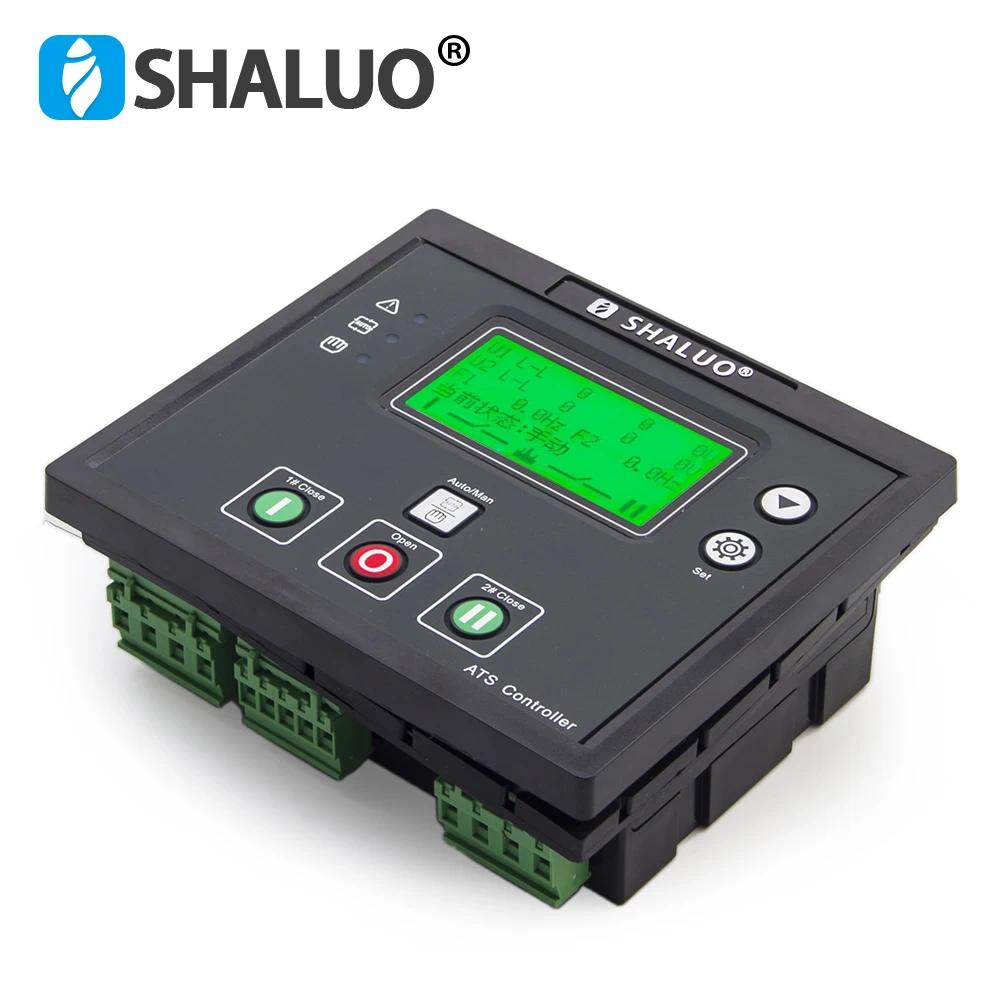

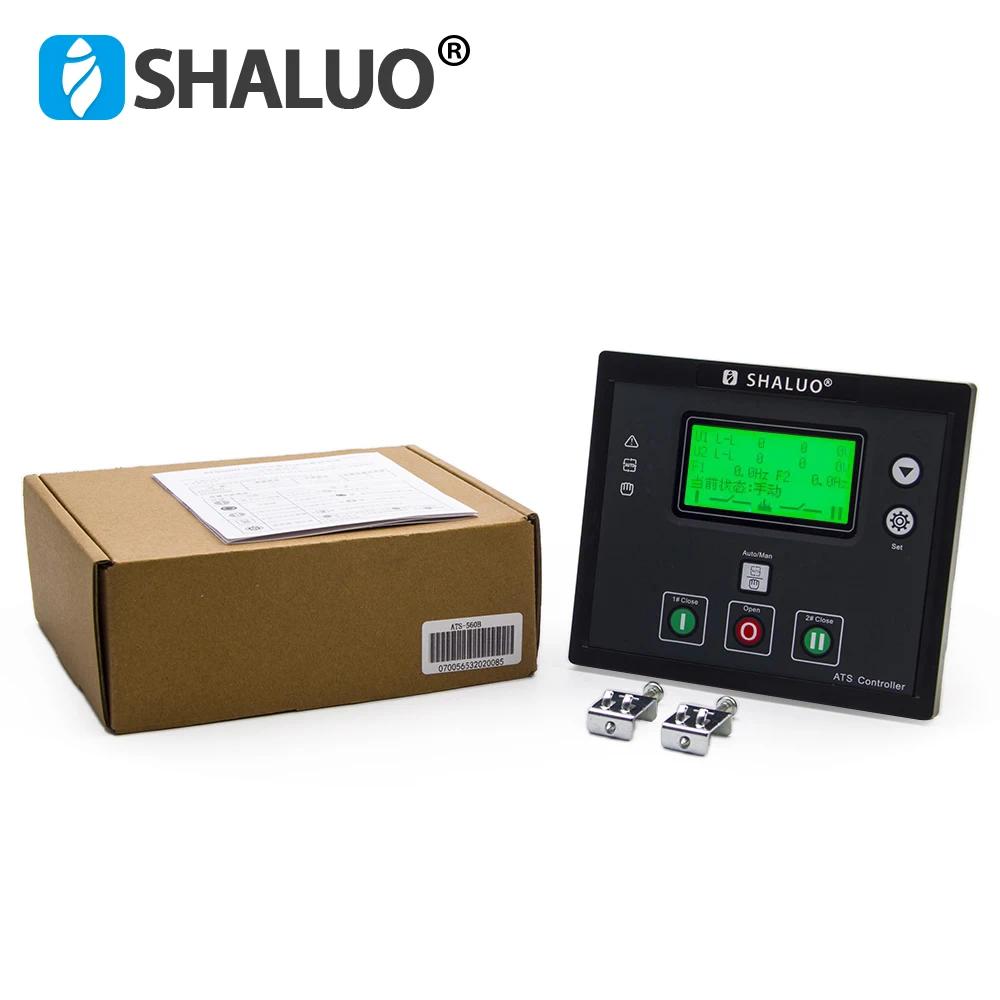

ATS560NB Replace Smartgen HAT560NB ATS Controller Module Generator Dual Power Automatic Transfer Switch Control Panel

1.OVERVIEW
Product for dual powertransfer.
ATS560N series dual power ATS controller is made with the microprocessor in the core, which canprecisely measure 2-channel
3-phase/single phase voltages, make correct judgment for occurredvoltage abnormal (over voltage, under voltage, loss of phase,
over frequency, under frequency) andoutput discrete volt free control signals. This device is designed after considering various
applicationsin ATS (load auto transfer system), and can be used for specialized ATS switch, ATS with connectorcomposed, and ATS
made by air switch etc. It has compact structure, advanced circuits, simple wiringand high reliability, and can be widely used in
electrical devices, automatic control and testing systemof electric power, telecommunications, petroleum, coal, metallurgy,
railways, municipal administration,intelligent building etc.

The professional person responsible for the quality of supervision and control in the entire process.

In order to get the superior quality we only use selected good element.

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
