Generator ATS controller automatic transfer switch panel 63A 100A 125A 250A 630A 1000A ATS SLS3-125B

Share to:

Generator ATS Controller Automatic Transfer Switch Panel 63A 100A 125A 250A 630A 1000A ATS SLS3-125B

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

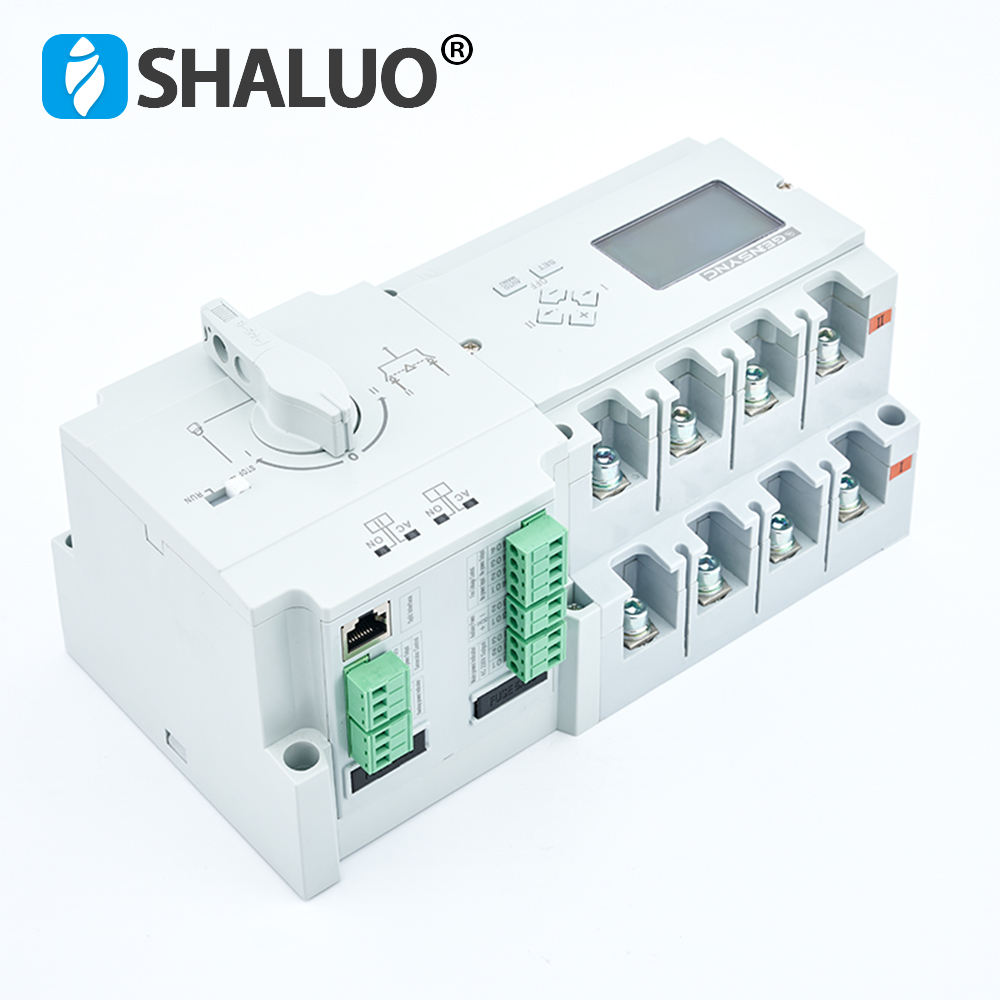

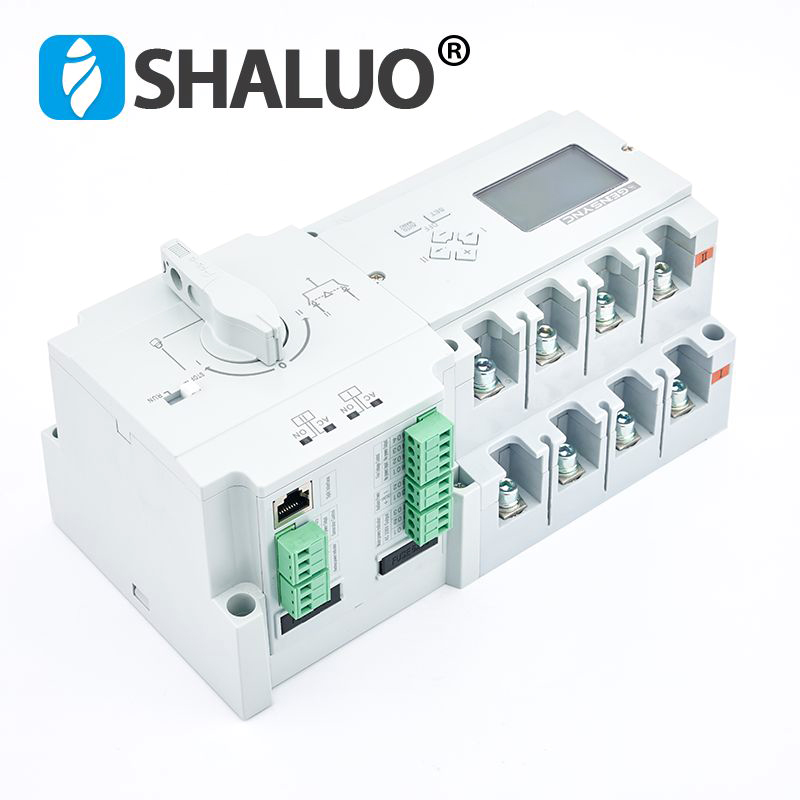

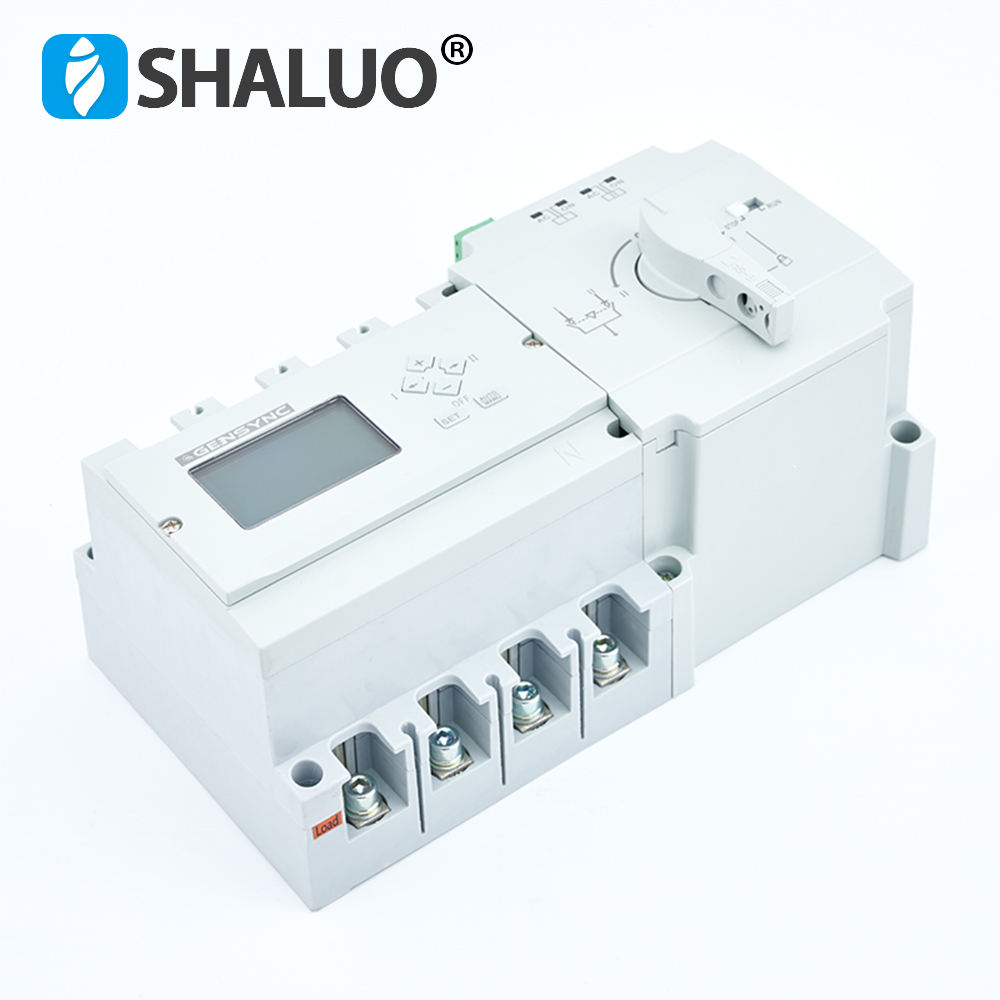

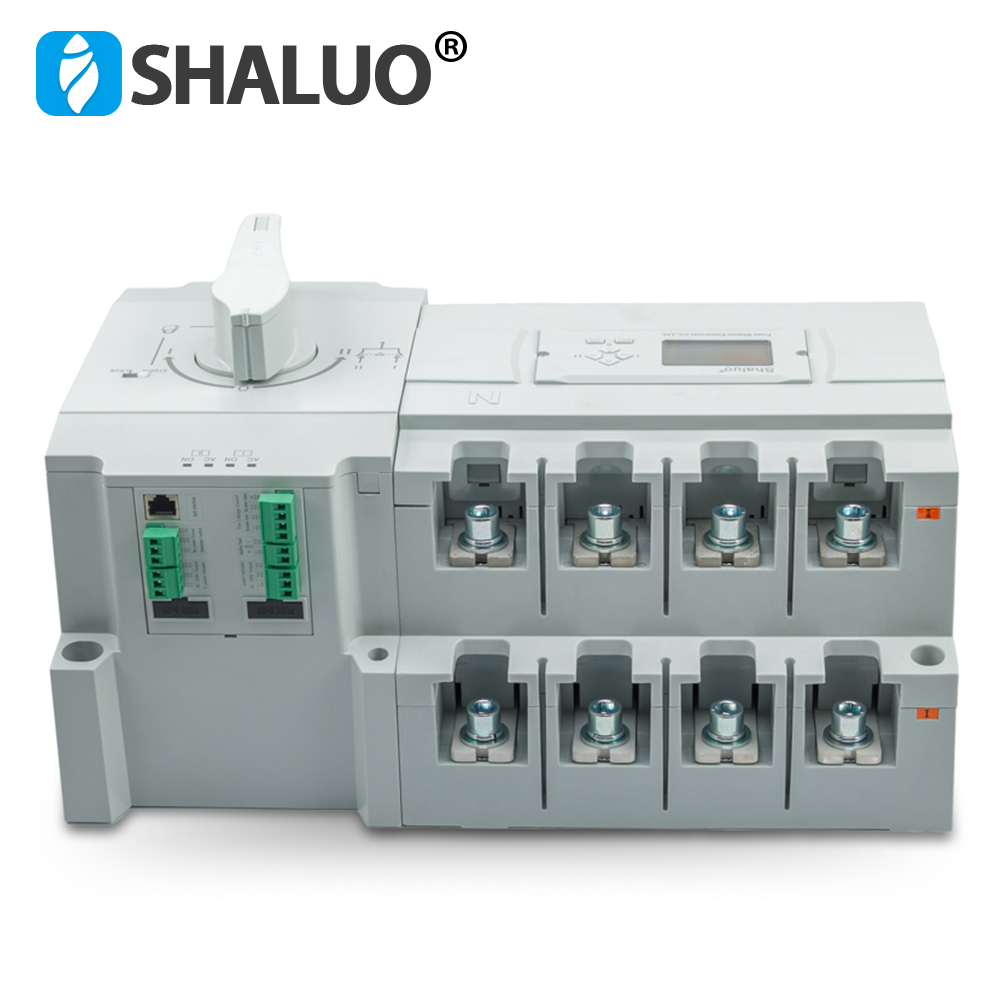

Generator ATS controller automatic transfer switch

63A 100A 125A

250A 400A

630A 1000A

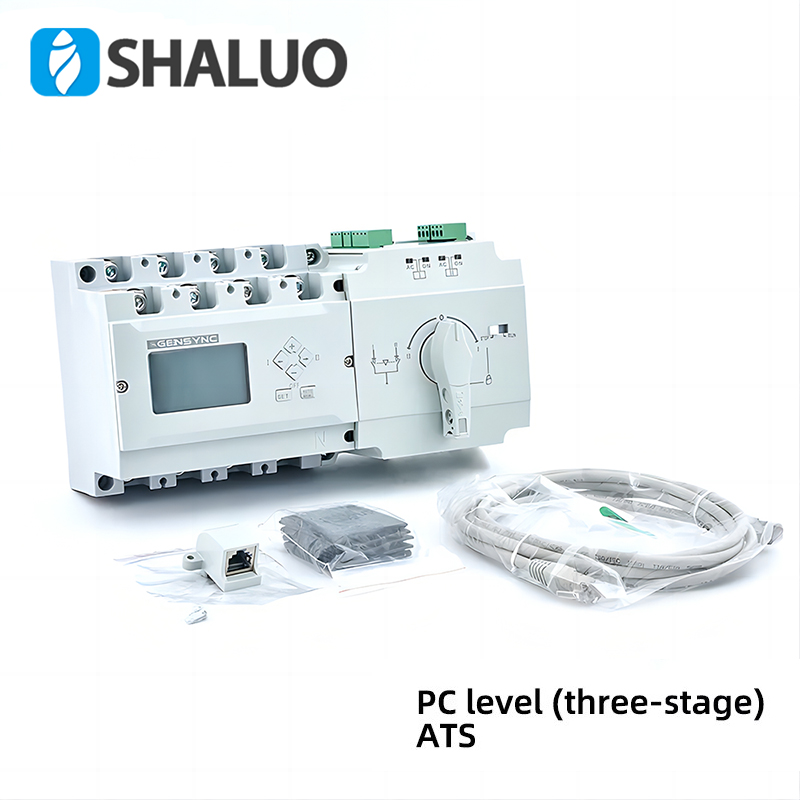

This changeover switch is an microprocessor based PC class device designed to transfer loads automatically and manually from one power source to another in a wide variety of 1-3 phase applications.

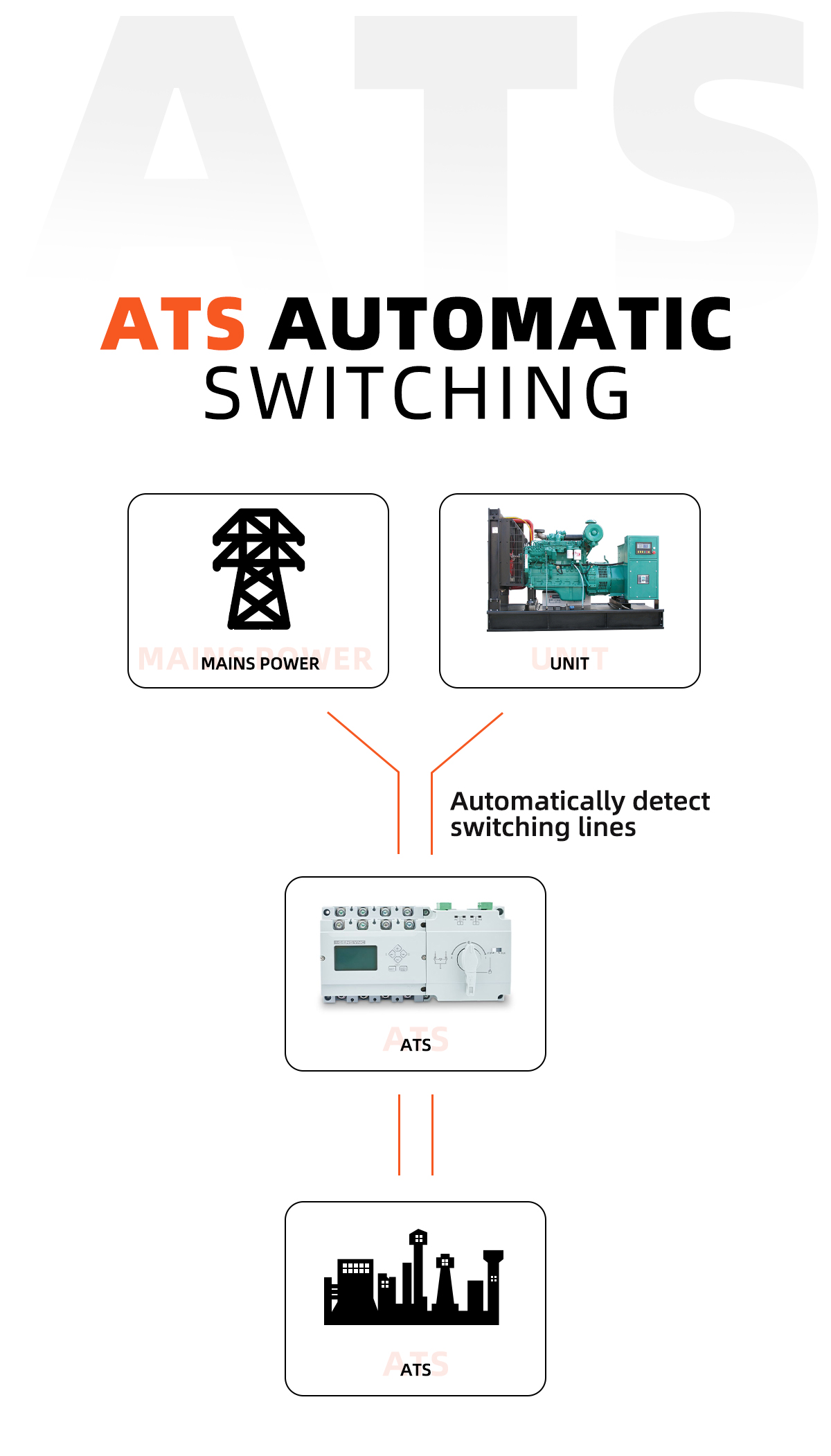

The unit monitors 3-phase normal and reserve source voltages, sends remote start command to the generating set and performs
changeover switching between those 2 sources connecting the load circuits to a power source having voltage and frequency within preset limits.

When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the generator set; when the mains power returns to normal,

it will automatically switch to restore the mains power supply to the load
after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling
operation.

Item	B Type	C Type	D Type	E Type
Control power Voltage	AC230V 50/60Hz
Auxiliary supply voltage	DC24V
Voltage measuring Range	40~300V
Power Loss	≤10W
Working postion	(Normal power ON, Reserve power ON, OFF) Three working position
Operation Mode	Auto, Manual			Auto, Manual, Remote
Display mode	LED indicator			LCD Display , LED indicator
Conversion mode	Auto Transfer auto recovery / Auto transfer no recovery
Undervoltage conversion value	187V			160~200V Adjustable
Overvoltage conversion mode	263V			240~290V Adjustable
Conversion delay Function	NO			0~180s Adjust able
Return delay Function	NO			0~180s Adjust able
Phase missing detect	Three phase ( B C Phase)
Generator control	Yes(one set relay contact)
Fire-linkage control	Yes(passive contact input, with one set NO passive feedback signal)
RS485 function	NO			Yes	Default None(optional)

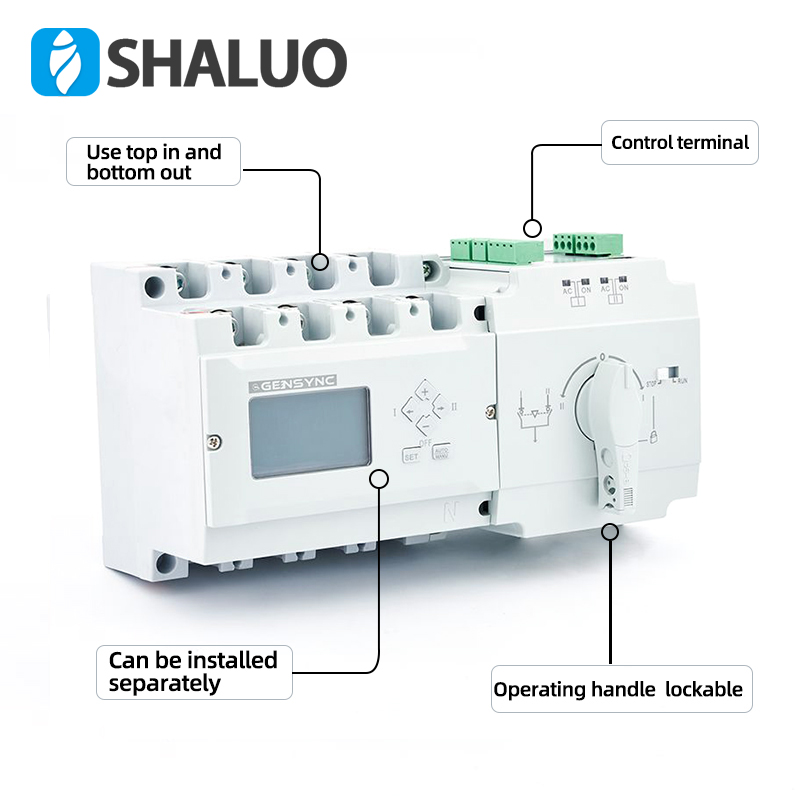

Installation mode	Integrated (No display)	Add split cinnector,can do split type (Note: integrated type without display)
Power underfrequency/Overfrequency detection	NO					40Hz~60Hz Adjustable
Timing start function	NO					Timing conversion, timing start generator
Isolation lock	Disconnect position has isolation function,lt can be padlocked at the same time
