Generator Alternator Parts Automatic Voltage Regulator Control Module AVR KRS440 KRS440B

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description

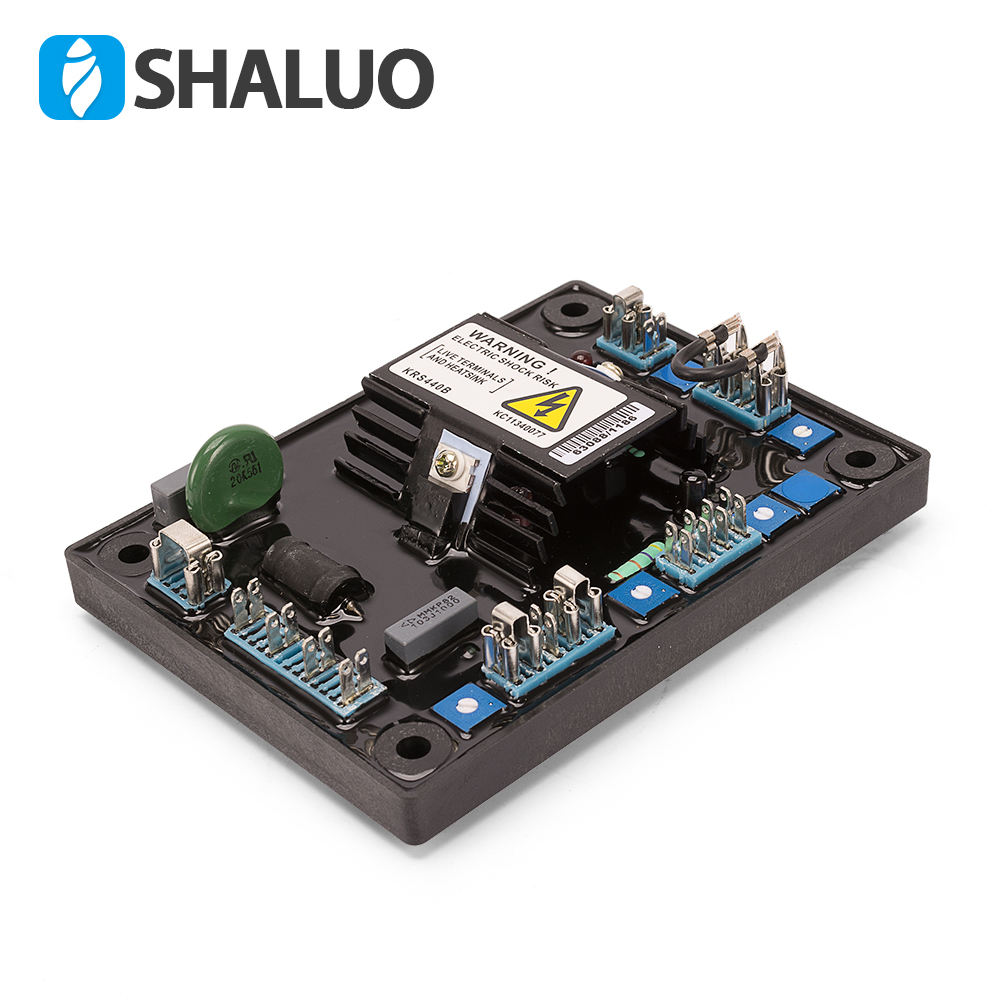

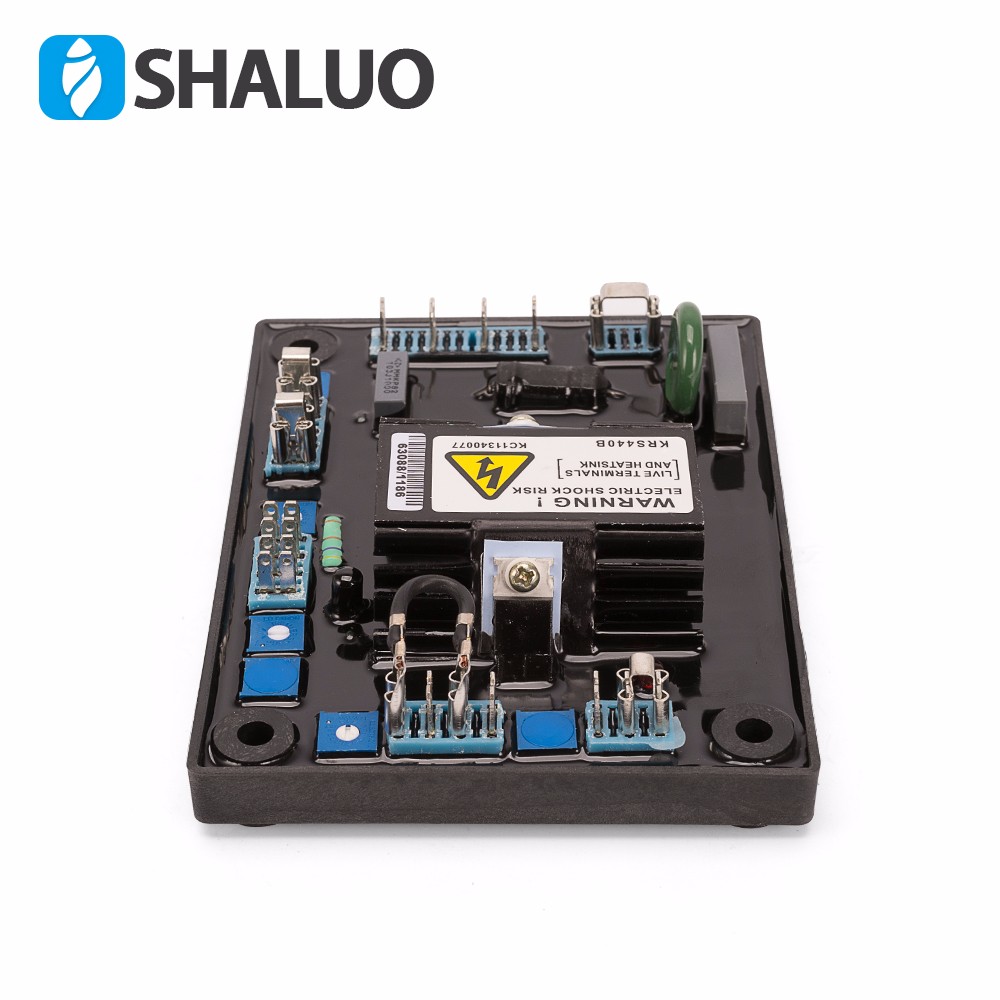

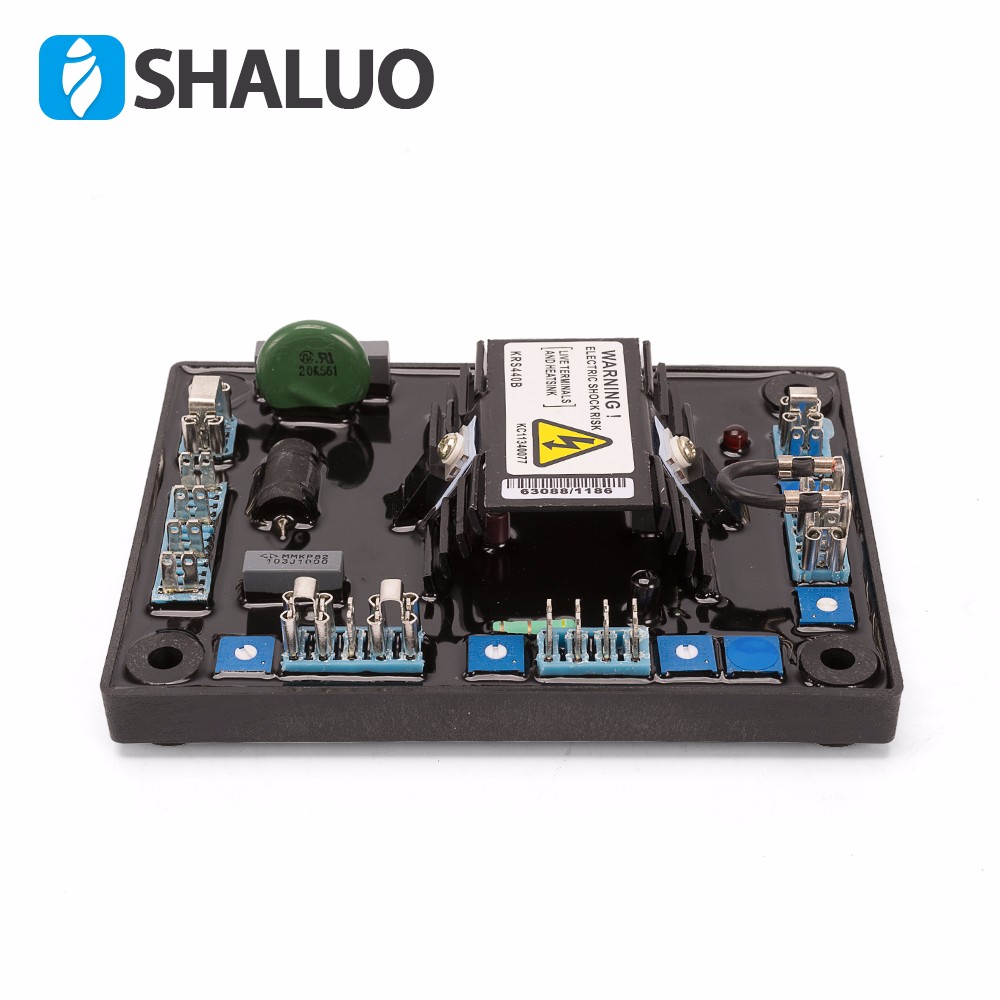

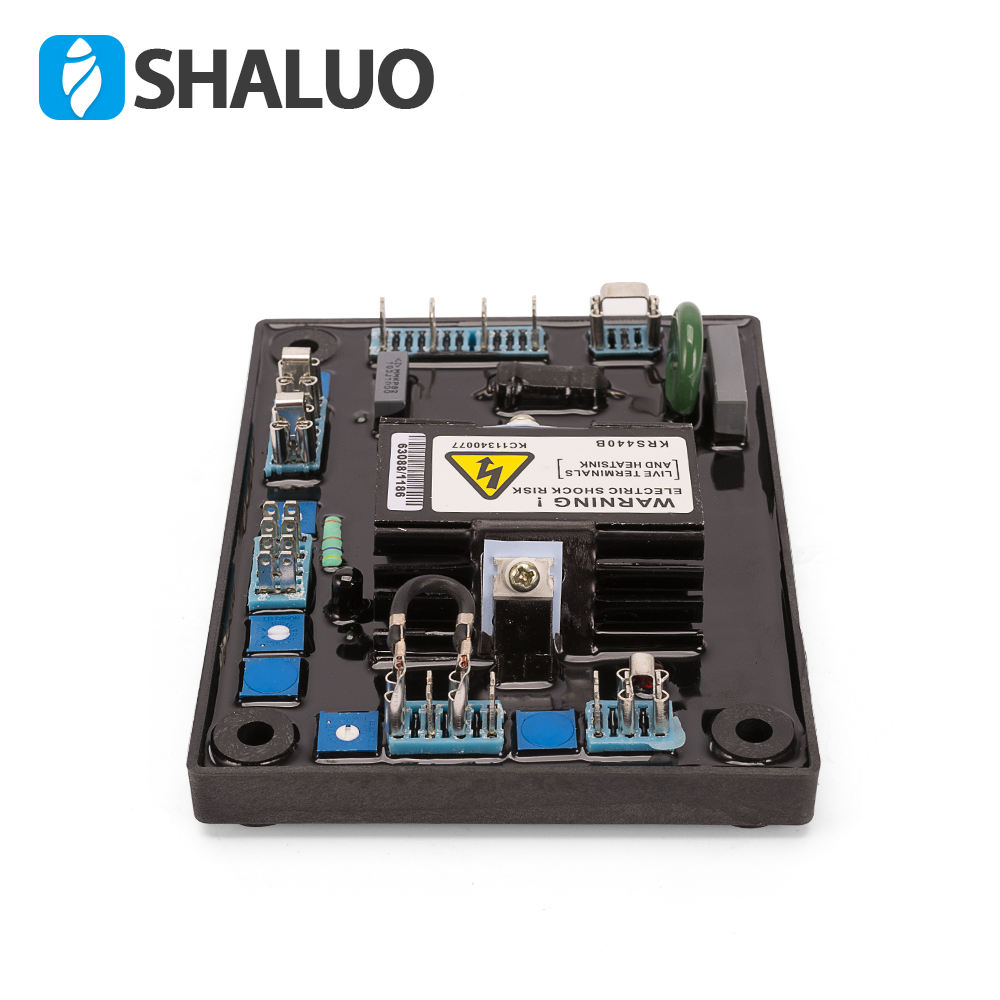

KRS440B Automatic Voltage Regulator

   KRS440B is a high quality Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator.

AVR KRS440B
Input
Sensing Input
Voltage
170-264V AC,352-528V AC,
Frequency
50-60Hz common
Phase
2
Power Input
voltage
100-264V AC
Frequency
50-60Hz
Phase
1
Output
Voltage
Max.82V DC@200VAC Input
Current
Continuous 4A,Transient 7.5A for 10secs
Field Resistance
Min.15Ω(Min.10Ωwhen input voltage is less than 175V AC)
Quadrature
Droop Input
load
10Ω
Max Sensitivity
0.07A for 5% droop (PF=0)
Max Input
0.33A
Analog Input
Max Input
±5V DC
Sensitivity
±1V for 5% Generator Volts
Input Resistance
1KΩ
Environment
Vibration
20-100Hz   50mm/sec
100HZ-2KHz   3.3g
Relative Humidity
0-70℃ 95%
Operate Temperature
-40℃ to +70℃
Storage Temperature
-55℃ to +80℃
Detailed Images



Why do you choose us

Our Certifications




Our Factory


About the company

   Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.

Factory inspection

The professional person responsible for the quality of supervision and control in the entire process.

Element testing

In order to get the superior quality we only use selected good element.

Assembles products

Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
