Product Description

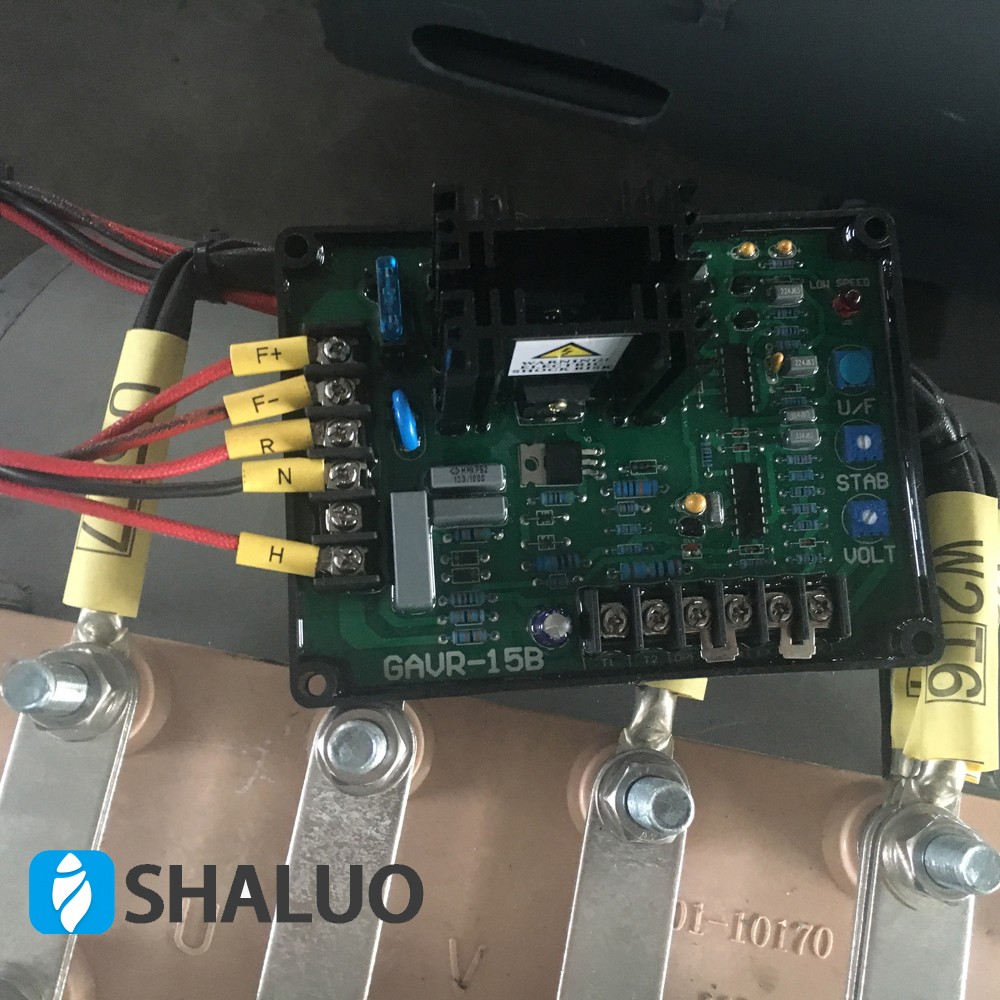

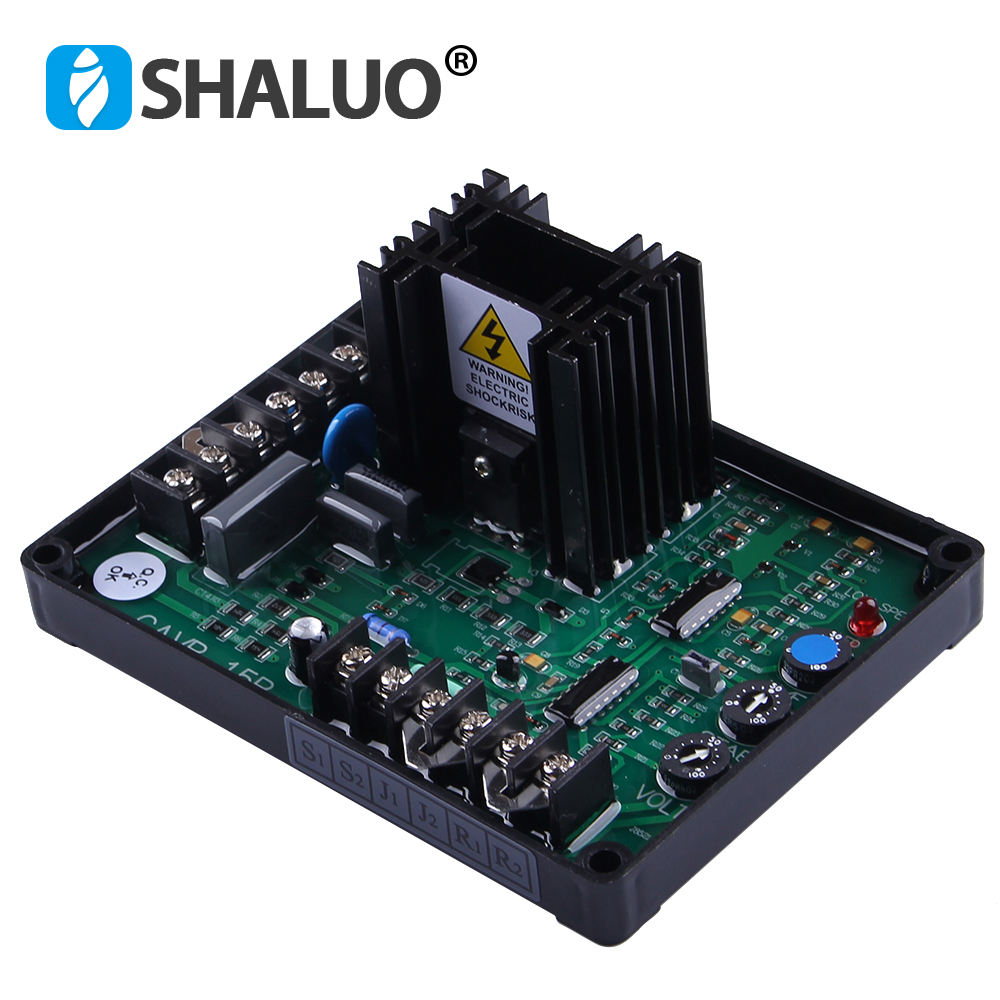

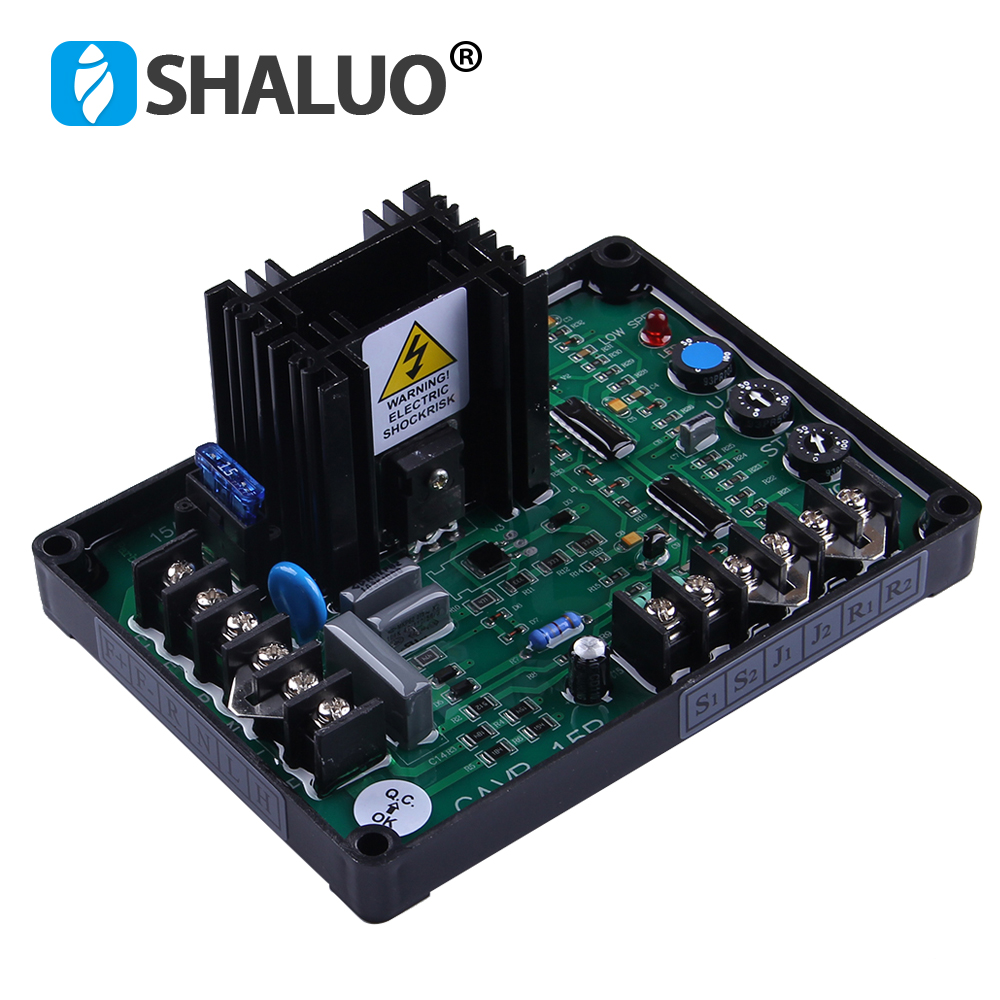

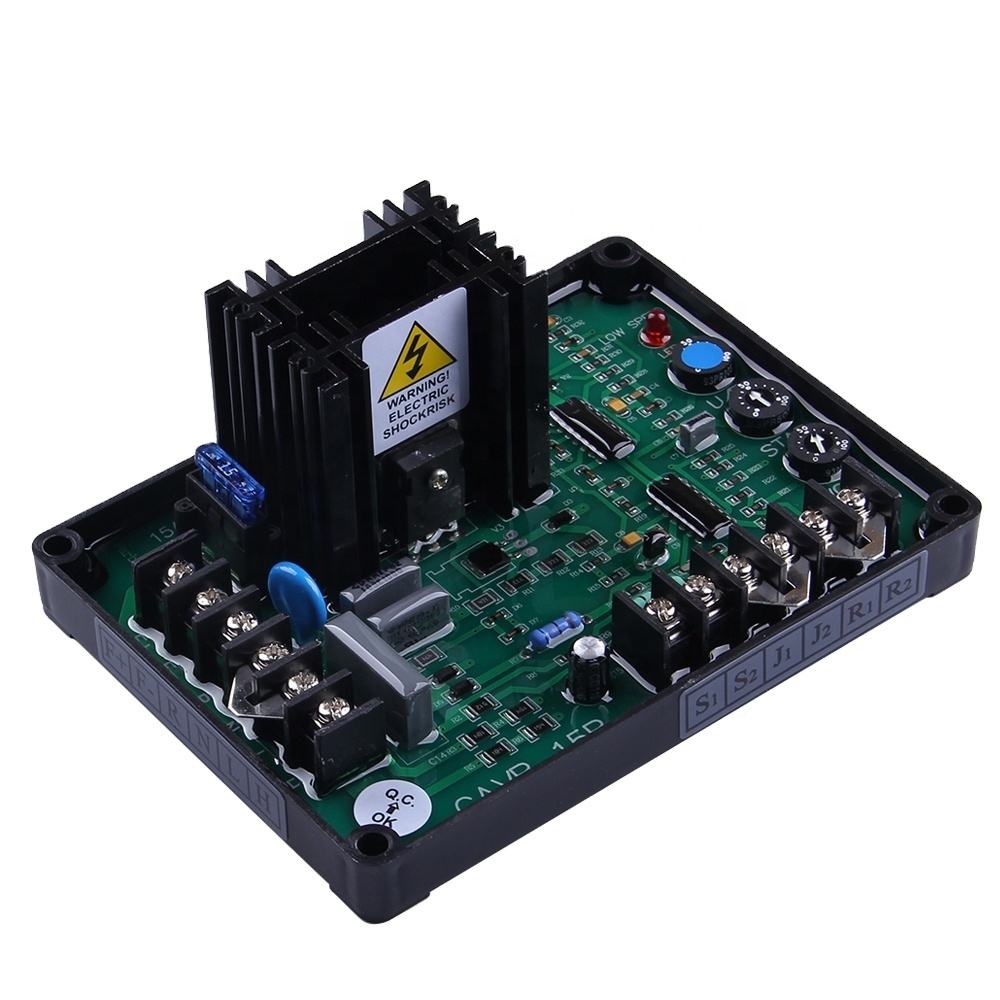

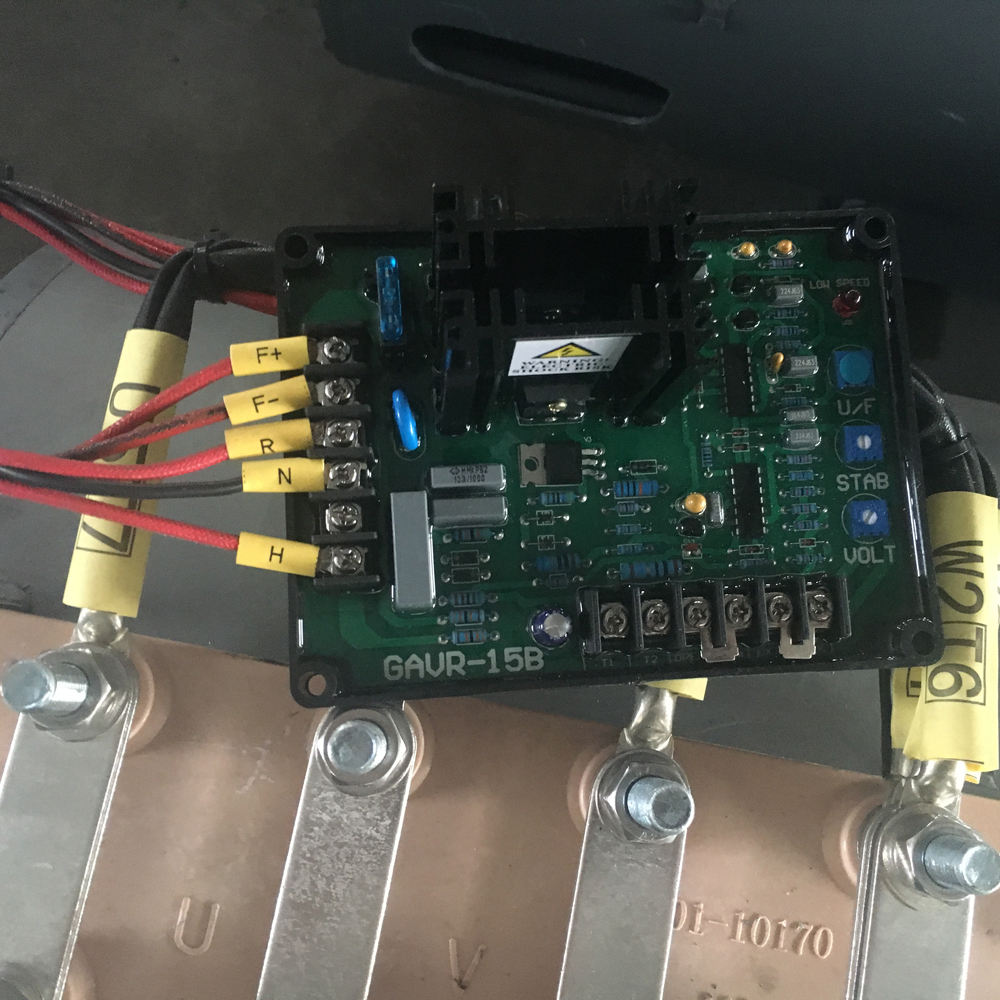

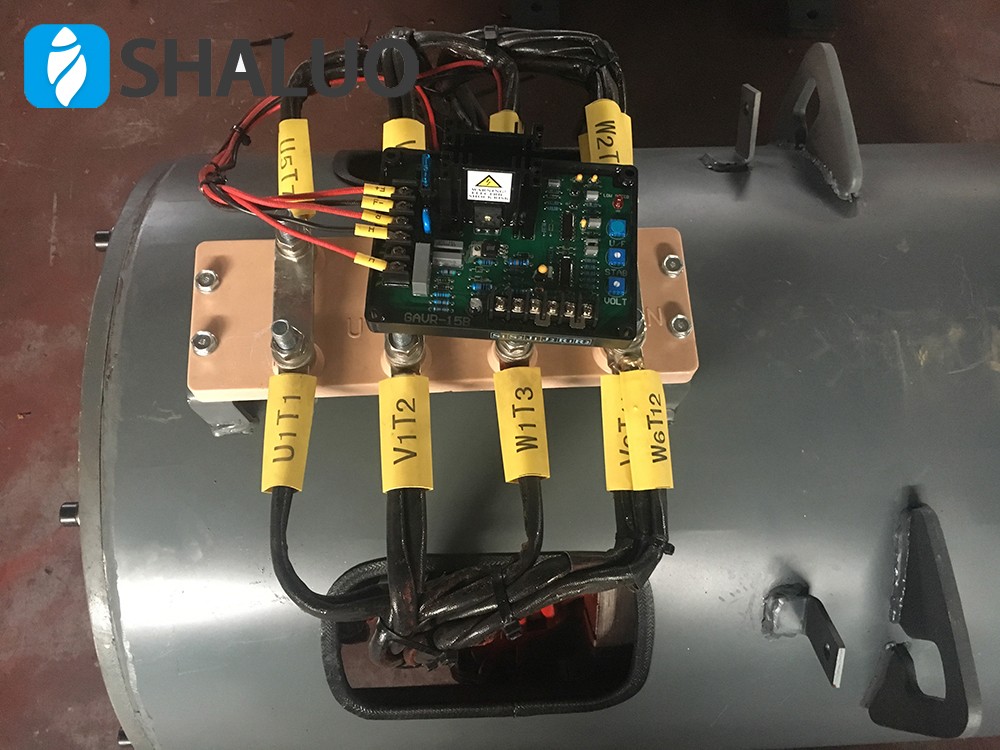

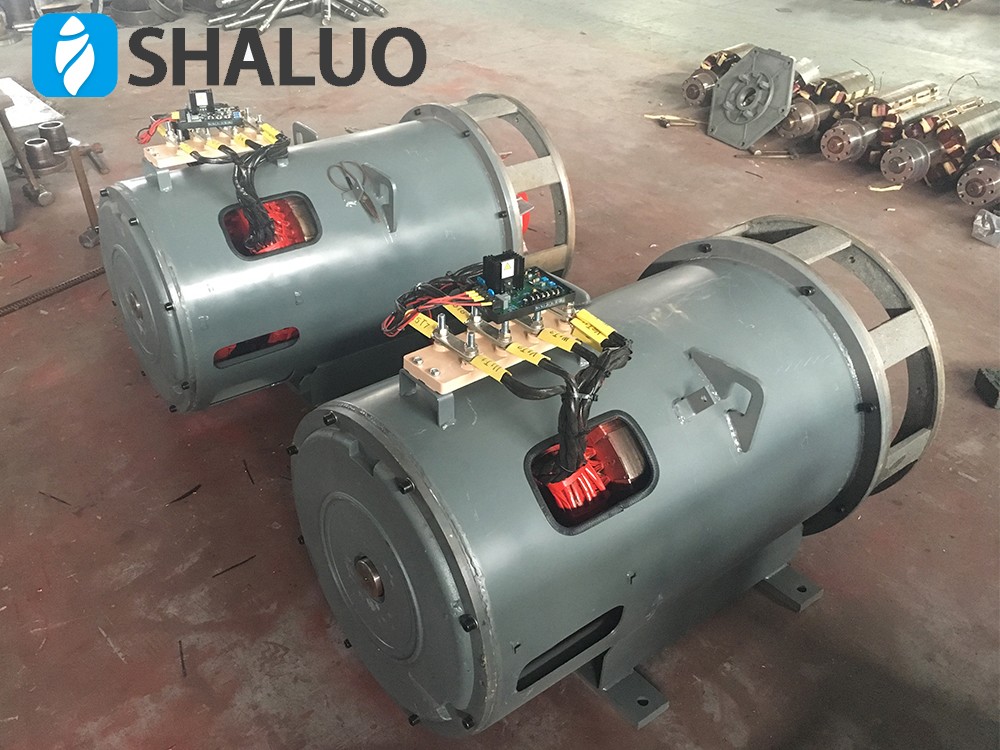

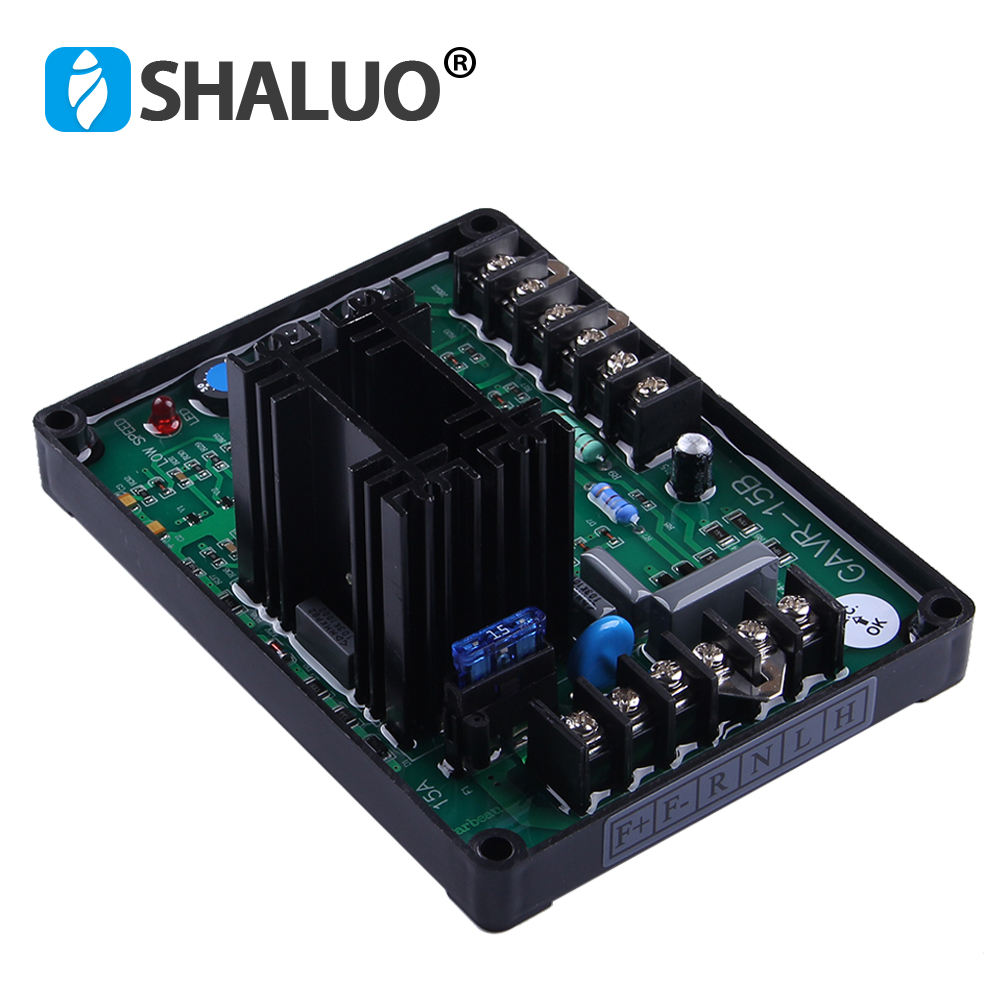

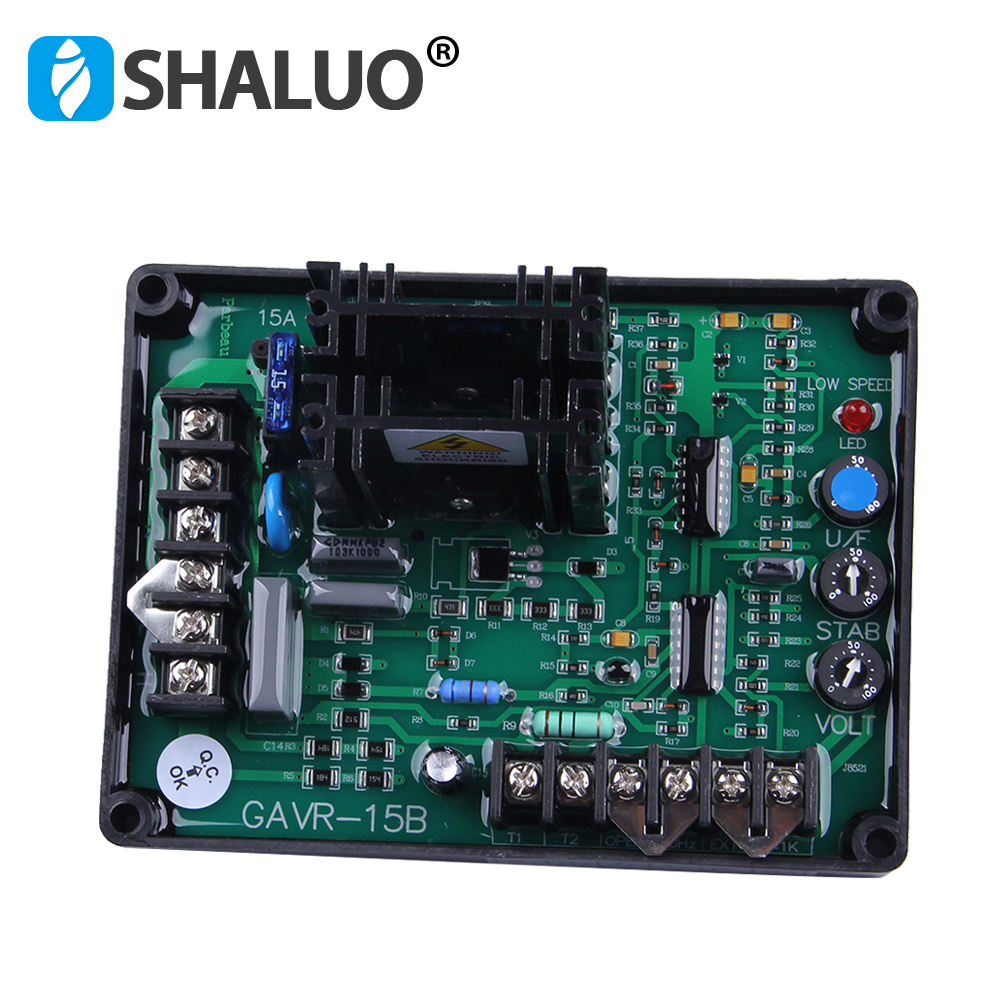

Universal avr for brushless diesel generator 15B
The difference between 15A and 15B is that. 15B is with Aviation potentiometer material.
Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr
Voltage Regulation < ±1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
With Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 15Amp Fuse
Voltage 220/400VAC , 1 phase 2 wire
Power Input voltage 180-240VAC , 1 phase 2 wire
Output voltage max 90 VDC at 240VAC input
Current Continuous 6A , intermittent 12A for 10secs
Resistance Min.10 ohm , Max 100ohm
Voltage Build-up residual voltage at avr terminal >5VAC
Voltage Regulation <±0.5% with 4% engine governing
Operating Temperature (-40°C to +65°C
Storage Temperatue (-40°C to +85°C
External Volts Adjutment ±7% with 1k ohm 1 watt trimmer
EMI Suppression Internal electromagnetic interference filtering
Unit Power Dissipation Max.8 watt
Under Frequency Protection 60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz
Demensions 157mmL*117mmW*70mmH

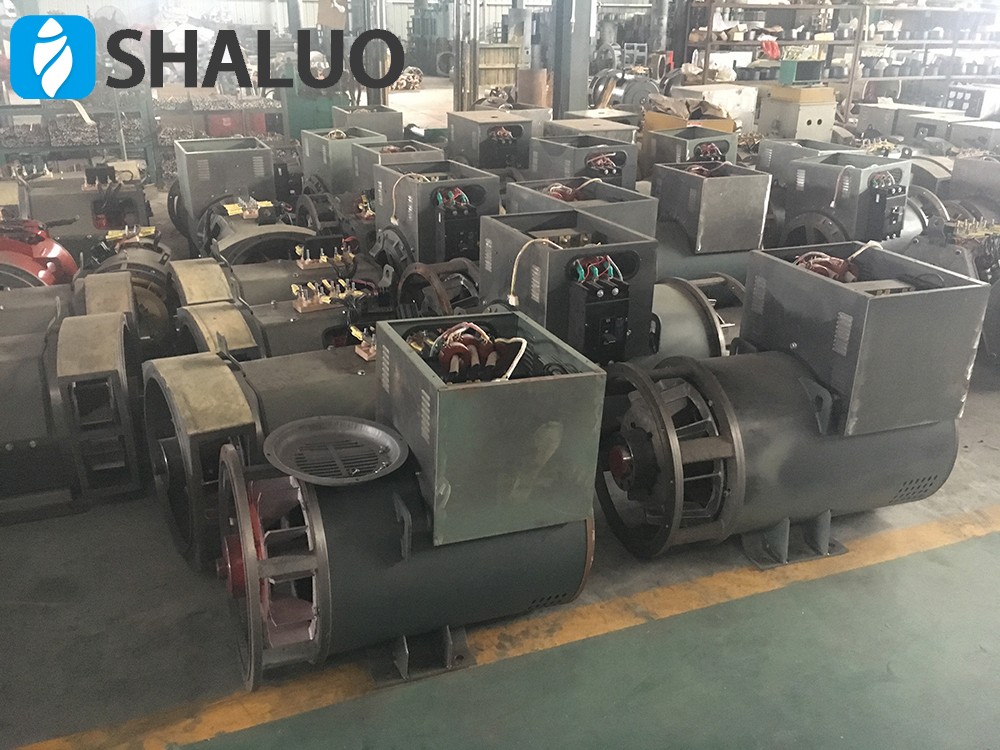

Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
The professional person responsible for the quality of supervision and control in the entire process.
In order to get the superior quality we only use selected good element.
Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
